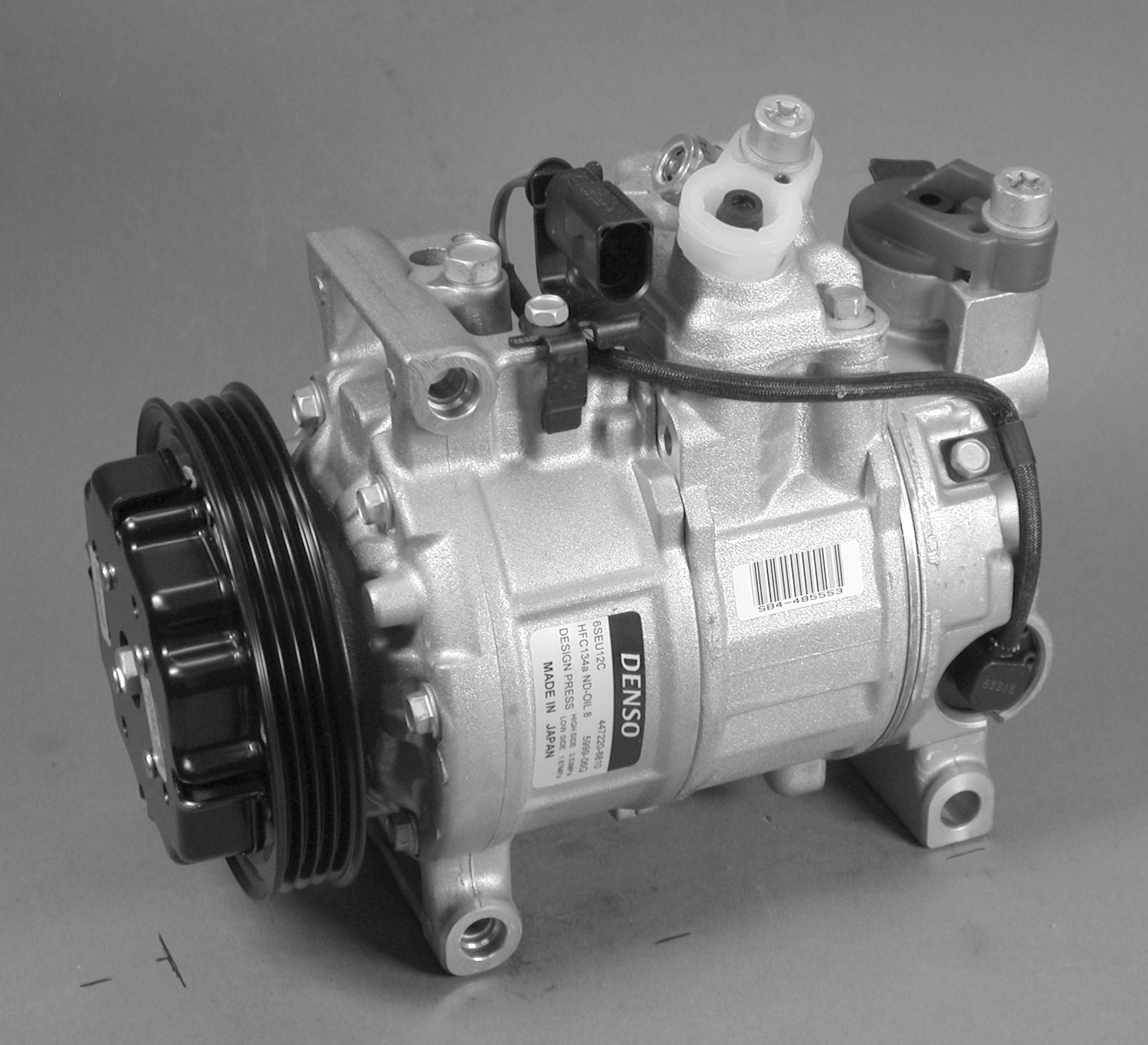

Denso Aircon Compressor DCP02013

Compressor, Air Conditioner

• Clutch Type: DL / R-SC
• Compressor Type: 6SEU12C
• DNTS short code: 447190-9560
• Filled: Filled
• Gross Weight (g): 6810
• Height Incl Packaging (mm): 290
• Indication Reman Part: New
• Inlet Ø: 28.5
• Length Incl Packaging (mm): 320
• Mounting Type: Bolted
• Net Weight (g): 6000
• Number of grooves: 4
• Number of ribs: 4
• OE Manufacturer: VW-Group
• Oil Quantity: 245
• Oil Type: ND-Oil 8
• Oil Type 2: ND-8
• Outlet Ø: 13
• Pulley Diameter(mm): 110
• Pulley type: DL-Pulley
• Quality: DENSO
• Refrigerant Type: R134a
• Width Incl Packaging (mm): 220

Replaces OEM reference(s):
AUDI: 4B0260805J, Denso: 44719095603D, SKODA: 4B0260805J, VOLKSWAGEN: 4B0260805J

Replaces aftermarket reference(s):
AVA COOLING SYSTEMS: AIK261, DENSO: 4471709380, DENSO: 4471909560, DENSO: 4472208810, DENSO: 4472604760, DENSO: 4473009600, DENSO: 447170-9380, DENSO: 447190-9560, DENSO: 447220-8810, DENSO: 447260-4760, DENSO: 447300-9600, ELSTOCK: 510139, ELSTOCK: 51-0139, WAECO: 8880100241, WAECO: 8880120427
