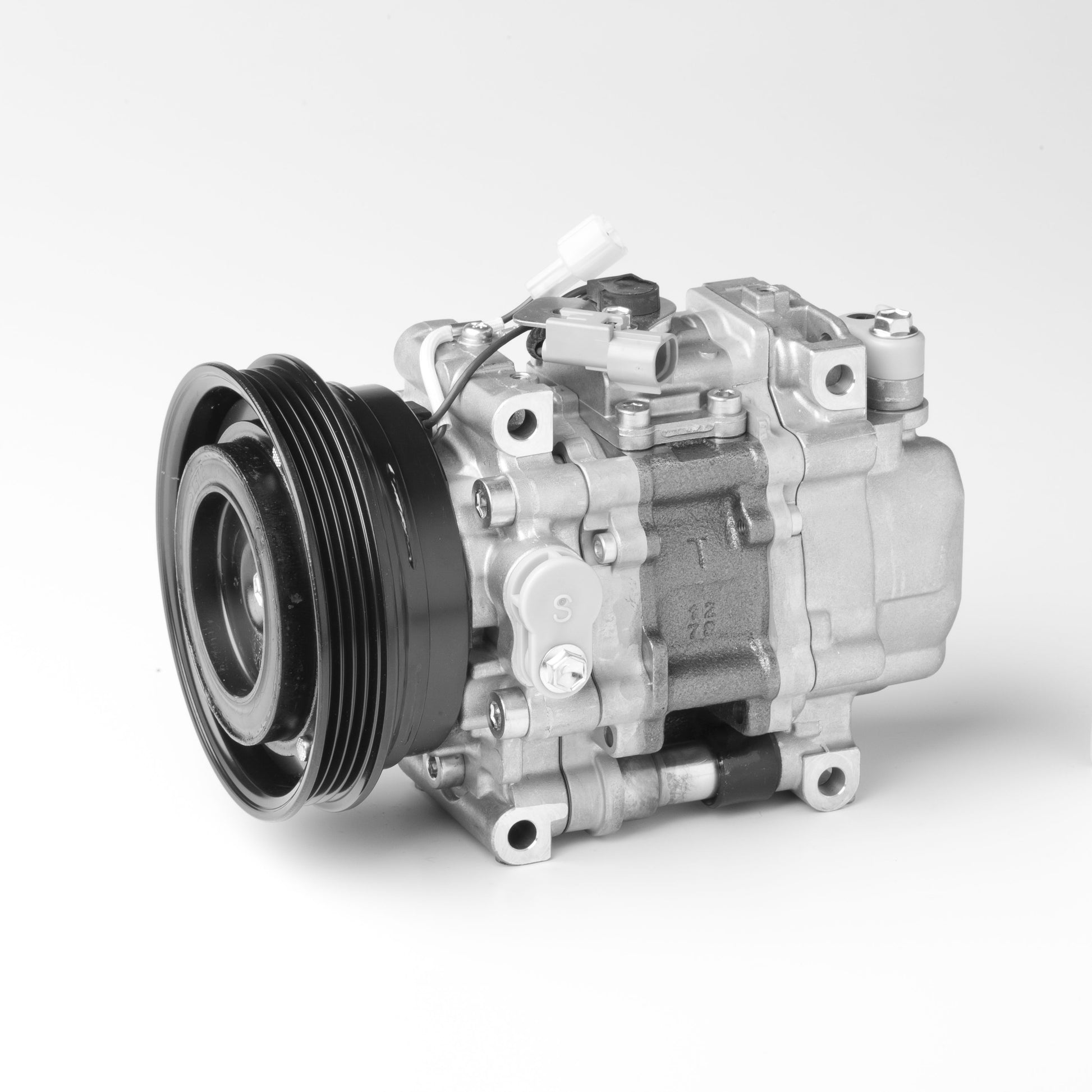

Denso Aircon Compressor DCP09006

Compressor, Air Conditioner

• Clutch Type: L50
• Compressor Type: TV12SC
• DNTS short code: 447100-0960
• Filled: Filled
• Gross Weight (g): 7060
• Height Incl Packaging (mm): 290
• Indication Reman Part: New
• Length Incl Packaging (mm): 320
• Mounting Type: Bolted
• Net Weight (g): 6250
• Number of grooves: 4
• Number of ribs: 4
• OE Manufacturer: FIAT-GROUP
• OE Number: 46438576
• Oil Quantity: 150
• Oil Type: ND-oil 9
• Oil Type 2: PAG 100
• Pulley Diameter(mm): 120
• Quality: DENSO
• Refrigerant Type: R134a
• Supplementary Article Info 2: with magnetic clutch
• Voltage (V): 12
• Width Incl Packaging (mm): 220

Replaces OEM reference(s):
Denso: 43710055503D, Denso: 44710009603D, FIAT: 5440710, FIAT: 46438576, FIAT: 54407100, FIAT: 8841087106, FIAT: 88410-87106

Replaces aftermarket reference(s):
AVA COOLING SYSTEMS: FTK048, BEHR HELLA SERVICE: 8FK 351 114-031, BEHR HELLA SERVICE: 8FK351114031, DELPHI: TSP0155319, DENSO: 544071000, DENSO: 4371005550, DENSO: 4425002130, DENSO: 4471000960, DENSO: 4473000920, DENSO: 437100-5550, DENSO: 442500-2130, DENSO: 447100-0960, DENSO: 447300-0920, DENSO: 54407-1000, ELSTOCK: 510250, ELSTOCK: 51-0250, FRIGAIR: 92030015, VALEO: 699076, VALEO: 699289
