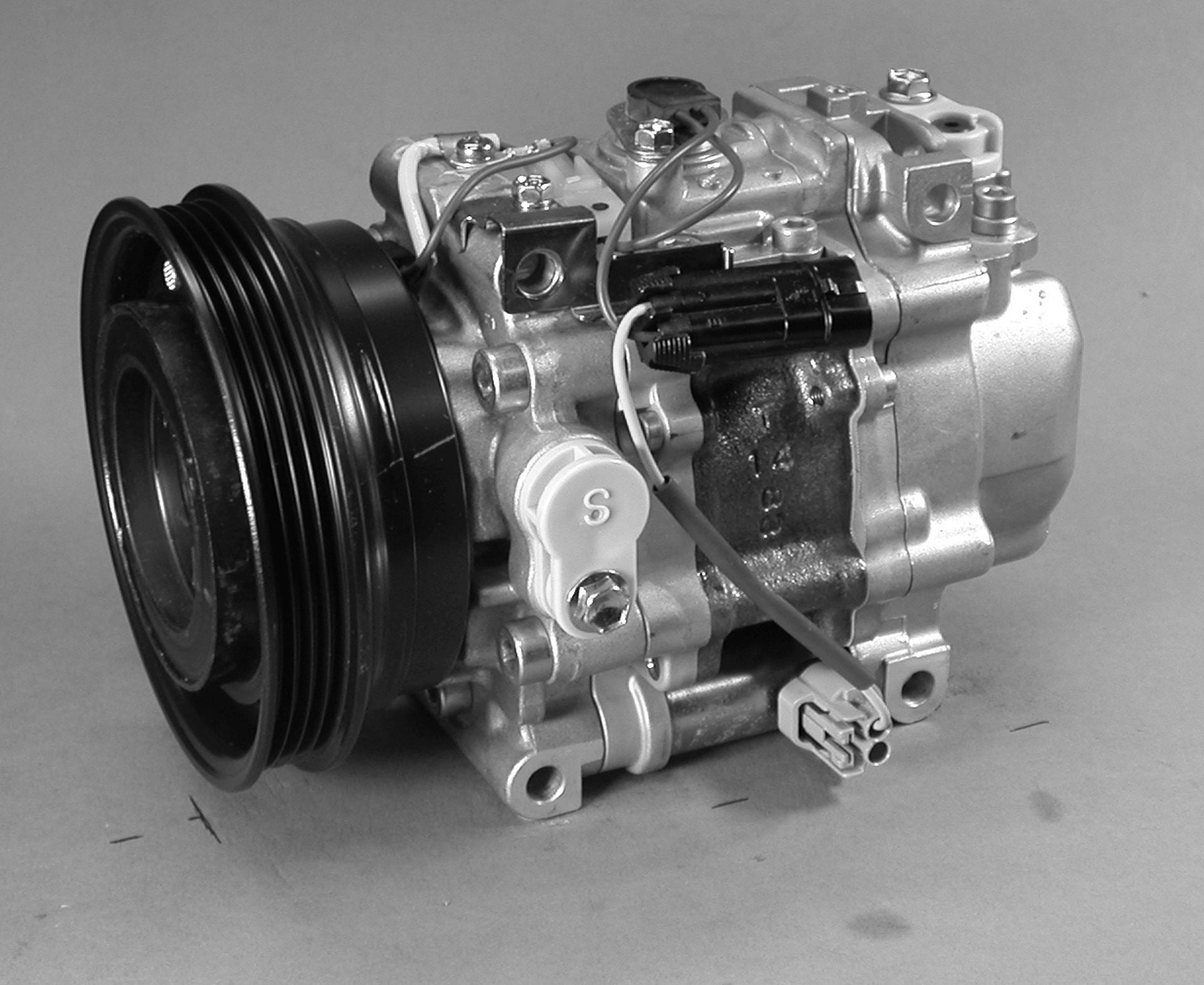

Denso Aircon Compressor DCP09015

Compressor, Air Conditioner

• Clutch Type: L50
• Compressor Type: TV14EC
• DNTS short code: 447100-0030
• Filled: Filled
• Gross Weight (g): 7710
• Height Incl Packaging (mm): 290
• Indication Reman Part: New
• Length Incl Packaging (mm): 320
• Mounting Type: Bolted
• Net Weight (g): 6900
• Number of grooves: 4
• Number of ribs: 4
• OE Manufacturer: FIAT-GROUP
• OE Number: 7736928
• Oil Quantity: 150
• Oil Type: ND-oil 9
• Oil Type 2: PAG 100
• Pulley Diameter(mm): 120
• Quality: DENSO
• Refrigerant Type: R134a
• Supplementary Article Info 2: with magnetic clutch
• Voltage (V): 12
• Width Incl Packaging (mm): 220

Replaces OEM reference(s):
Denso: 44710000303D, FIAT: 5077706, FIAT: 7736928, FIAT: 50777060, FIAT: 8841087106, FIAT: 88410-87106

Replaces aftermarket reference(s):
DENSO: 507770600, DENSO: 4425004230, DENSO: 4471000030, DENSO: 4473000920, DENSO: 442500-4230, DENSO: 447100-0030, DENSO: 447300-0920, DENSO: 50777-0600, ELSTOCK: 510253, ELSTOCK: 51-0253, FRIGAIR: 92030005, VALEO: 699288
