Description

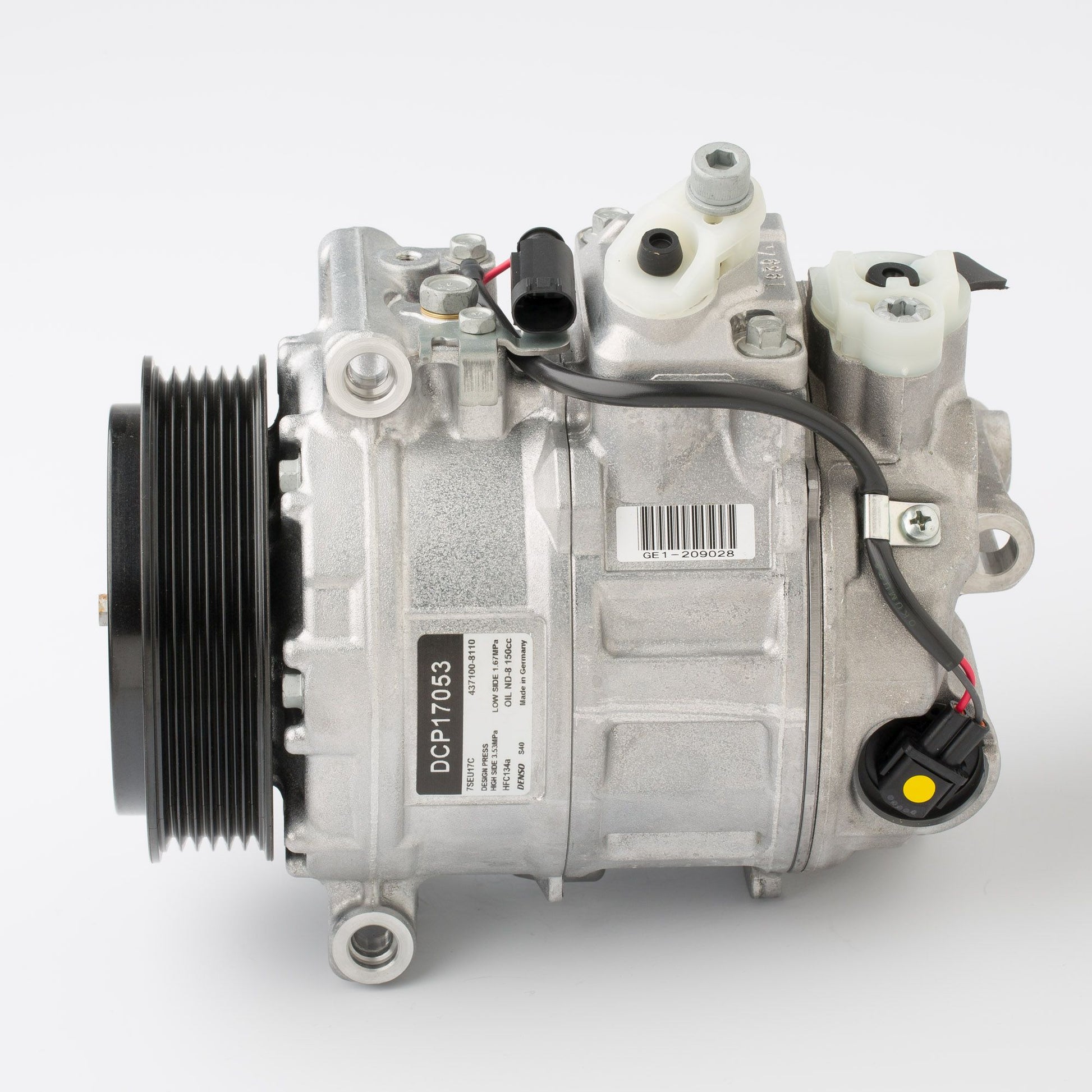

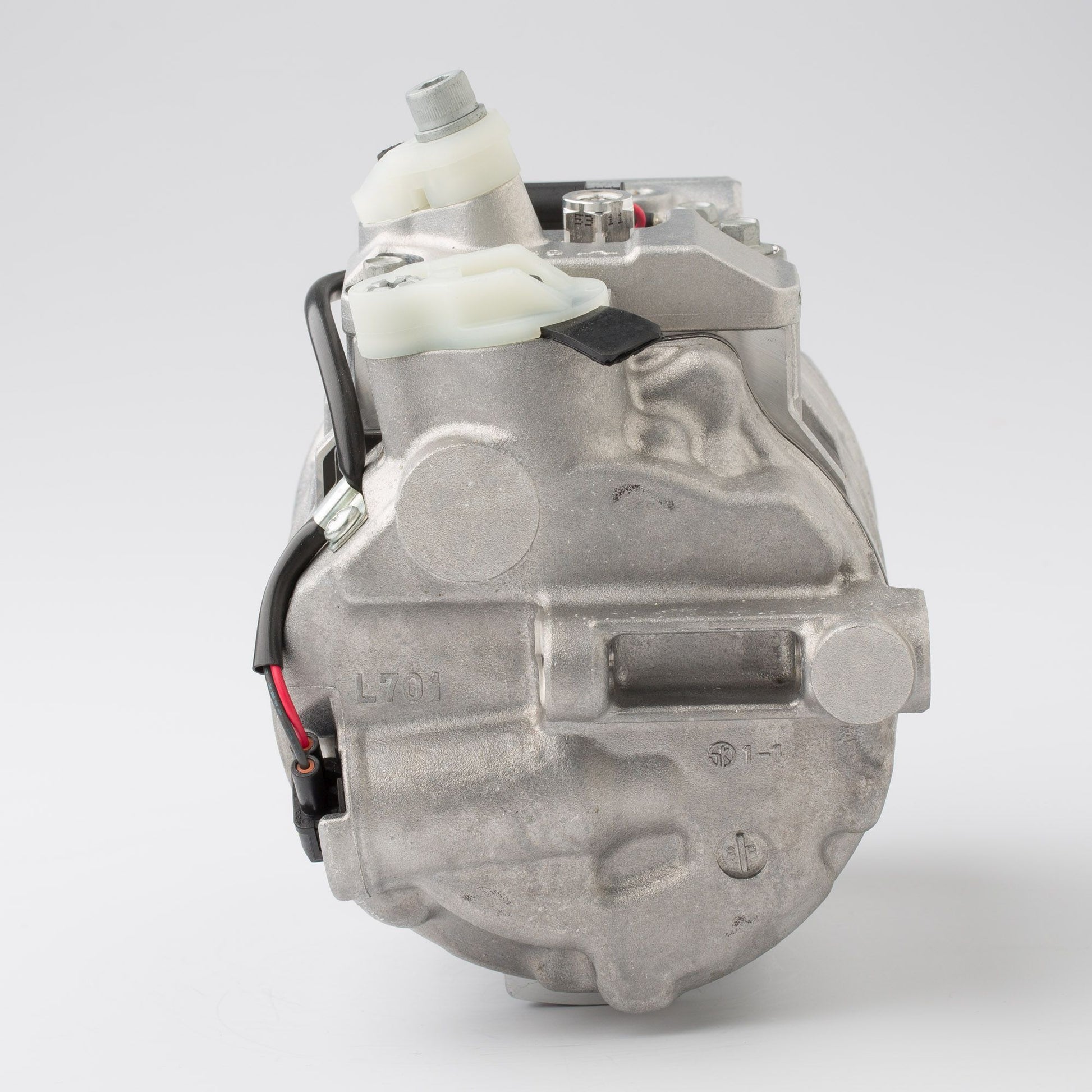

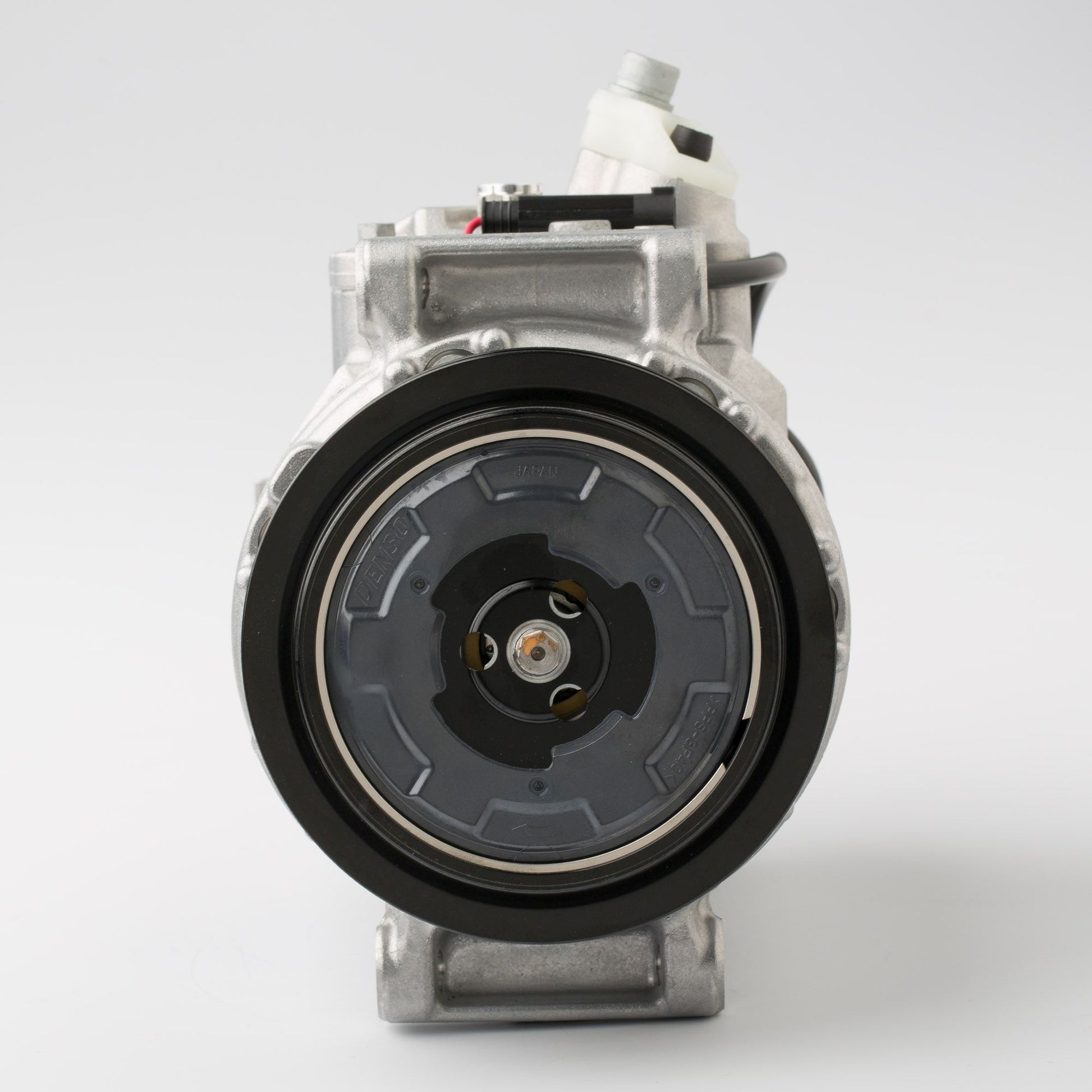

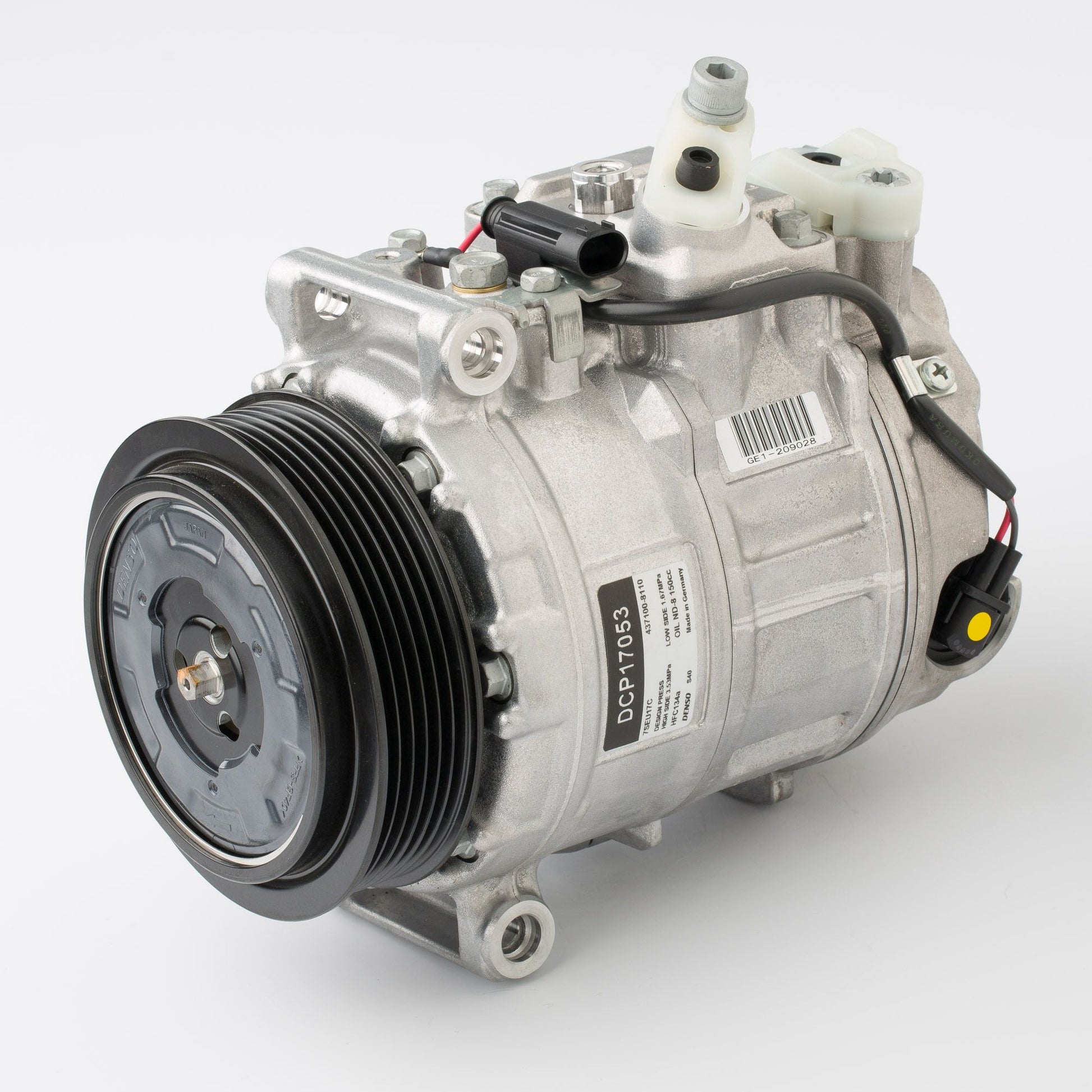

Compressor, Air Conditioner
- Clutch Type: DL / B-PC
- Compressor Type: 7SEU17C
- DNTS short code: 447150-0490
- Filled: Filled
- Gross Weight (g): 5800
- Height Incl Packaging (mm): 290
- Indication Reman Part: New
- Inlet Ø: 28.4
- Length Incl Packaging (mm): 320
- Mounting Type: Bolted
- Net Weight (g): 4990
- Number of grooves: 6
- Number of ribs: 6
- OE Manufacturer: MERCEDES-BENZ
- OE Number: A0012305611
- Oil Quantity: 150
- Oil Type: ND-Oil 8
- Oil Type 2: ND-8
- Outlet Ø: 13
- Pulley Diameter(mm): 110
- Pulley type: DL-Pulley
- Quality: DENSO
- Refrigerant Type: R134a
- Width Incl Packaging (mm): 220
Replaces OEM reference(s):
Denso: 43710081103D, Denso: 44715004903D, Denso: 44715039603D, MERCEDES-BENZ: 0012305611, MERCEDES-BENZ: 12305611, MERCEDES-BENZ: A0012305611
Replaces aftermarket reference(s):
AVA COOLING SYSTEMS: MSK427, DENSO: 2483000250, DENSO: 4371008110, DENSO: 4471500490, DENSO: 4471503960, DENSO: 4471809720, DENSO: 4472600220, DENSO: 4472603990, DENSO: 248300-0250, DENSO: 437100-8110, DENSO: 447150-0490, DENSO: 447150-3960, DENSO: 447180-9720, DENSO: 447260-0220, DENSO: 447260-3990, ELSTOCK: 510256, ELSTOCK: 51-0256, WAECO: 8880100234
