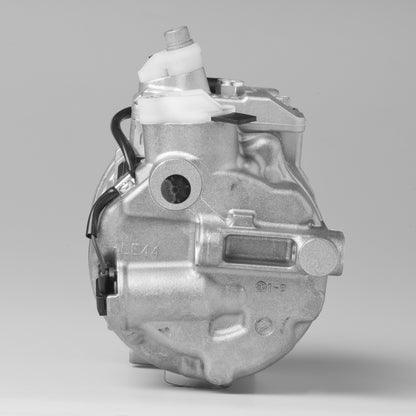

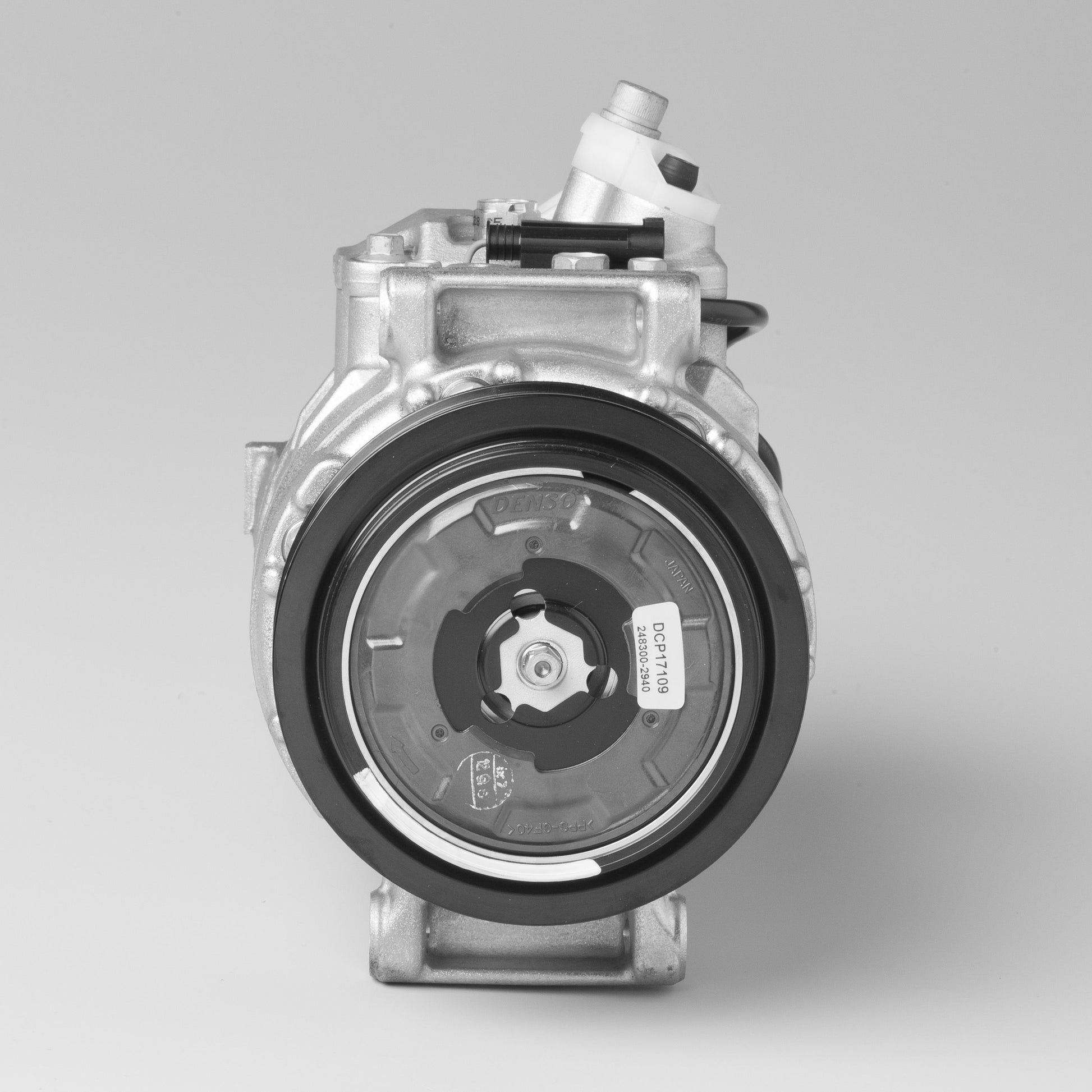

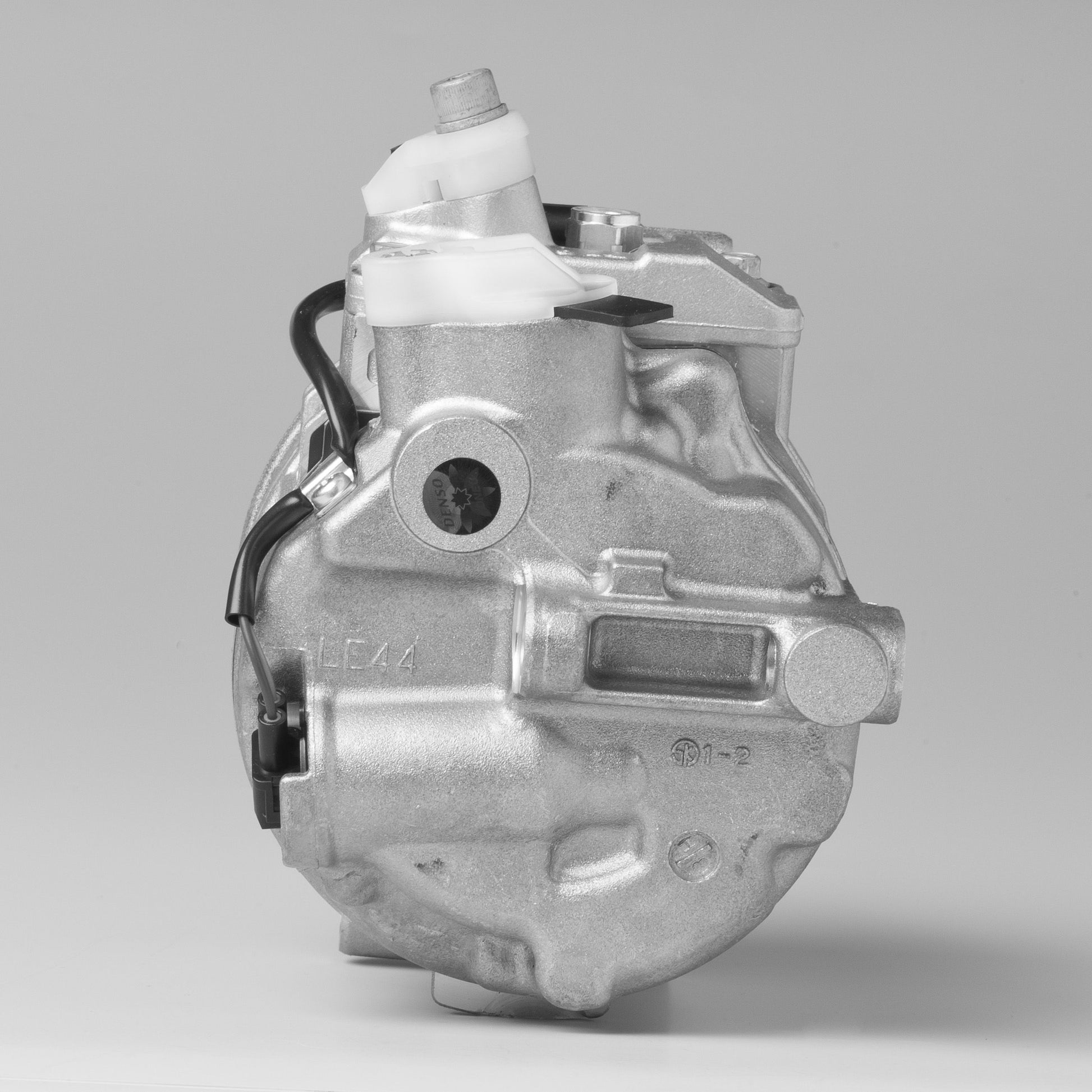

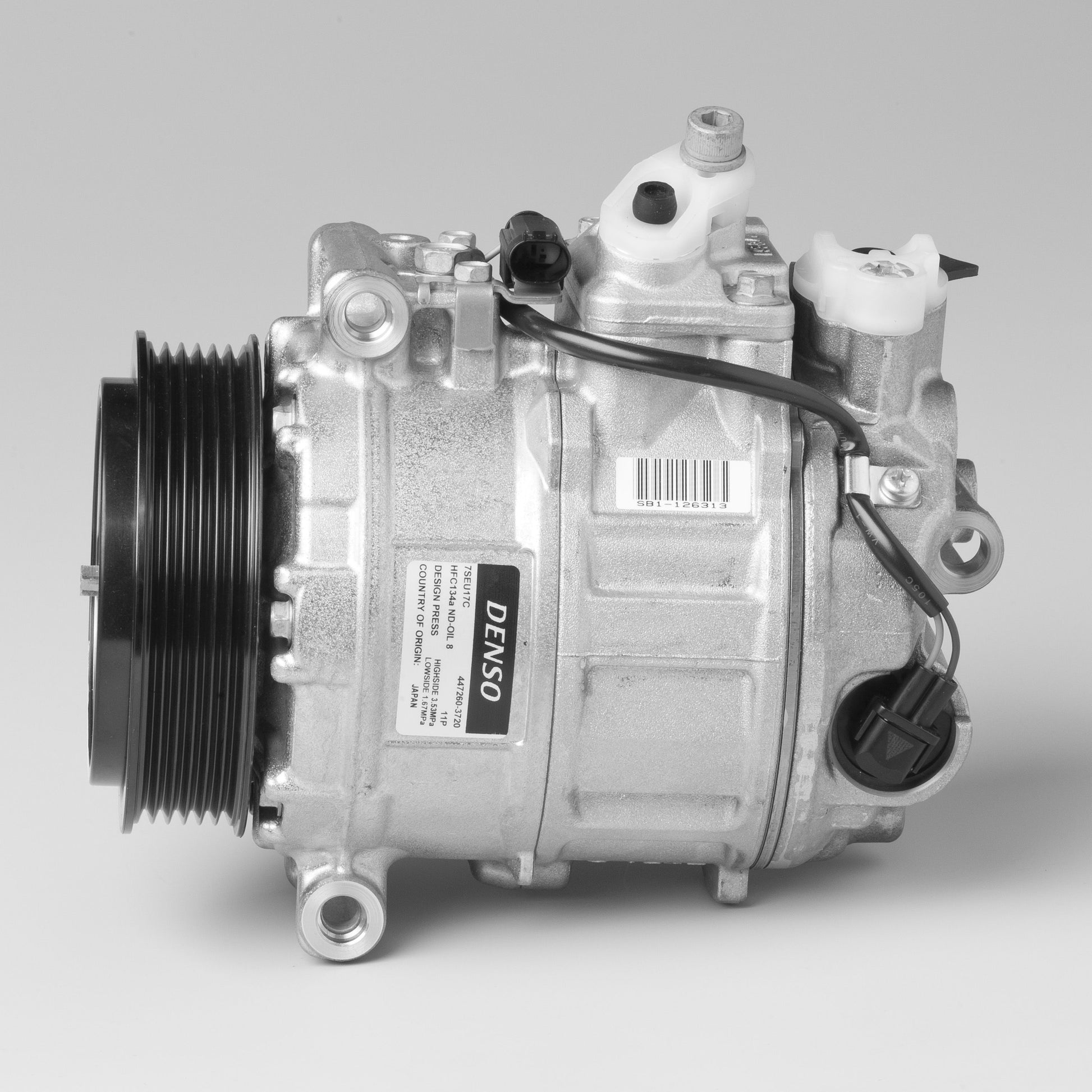

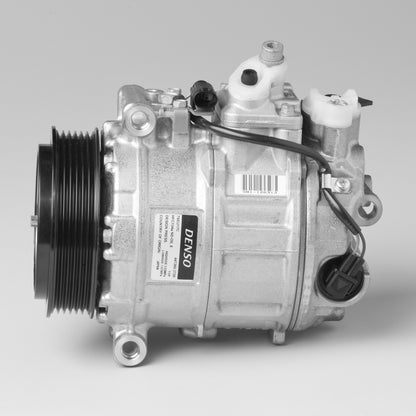

Denso Aircon Compressor DCP17109

Compressor, Air Conditioner

• Clutch Type: B-PC
• Compressor Type: 7SEU17C
• DNTS short code: 447150-0890
• Filled: Filled
• Gross Weight (g): 6720
• Height Incl Packaging (mm): 290
• Indication Reman Part: New
• Inlet Ø: 28.4
• Length Incl Packaging (mm): 320
• Mounting Type: Bolted
• Net Weight (g): 5910
• Number of grooves: 6
• Number of ribs: 6
• OE Manufacturer: MERCEDES-BENZ
• OE Number: A0032302311
• Oil Quantity: 170
• Oil Type: ND-Oil 8
• Oil Type 2: ND-8
• Outlet Ø: 13
• Pulley Diameter(mm): 110
• Pulley type: DL-Pulley
• Quality: DENSO
• Refrigerant Type: R134a
• Width Incl Packaging (mm): 220

Replaces OEM reference(s):
Denso: 43710064003D, Denso: 44715008903D, Denso: 4471505440AM, MERCEDES-BENZ: 0032302311, MERCEDES-BENZ: 32302311, MERCEDES-BENZ: A0032302311

Replaces aftermarket reference(s):
AVA COOLING SYSTEMS: MSK569, BEHR HELLA SERVICE: 8FK 351 114-371, BEHR HELLA SERVICE: 8FK351114371, DENSO: 2483002940, DENSO: 4371006400, DENSO: 4471500890, DENSO: 4471505440, DENSO: 4472603720, DENSO: 248300-2940, DENSO: 437100-6400, DENSO: 447150-0890, DENSO: 447150-5440, DENSO: 447260-3720, ELSTOCK: 510256, ELSTOCK: 51-0256, MAHLE: ACP 903, MAHLE: ACP 903 000P, MAHLE: ACP903, MAHLE: ACP903000P
