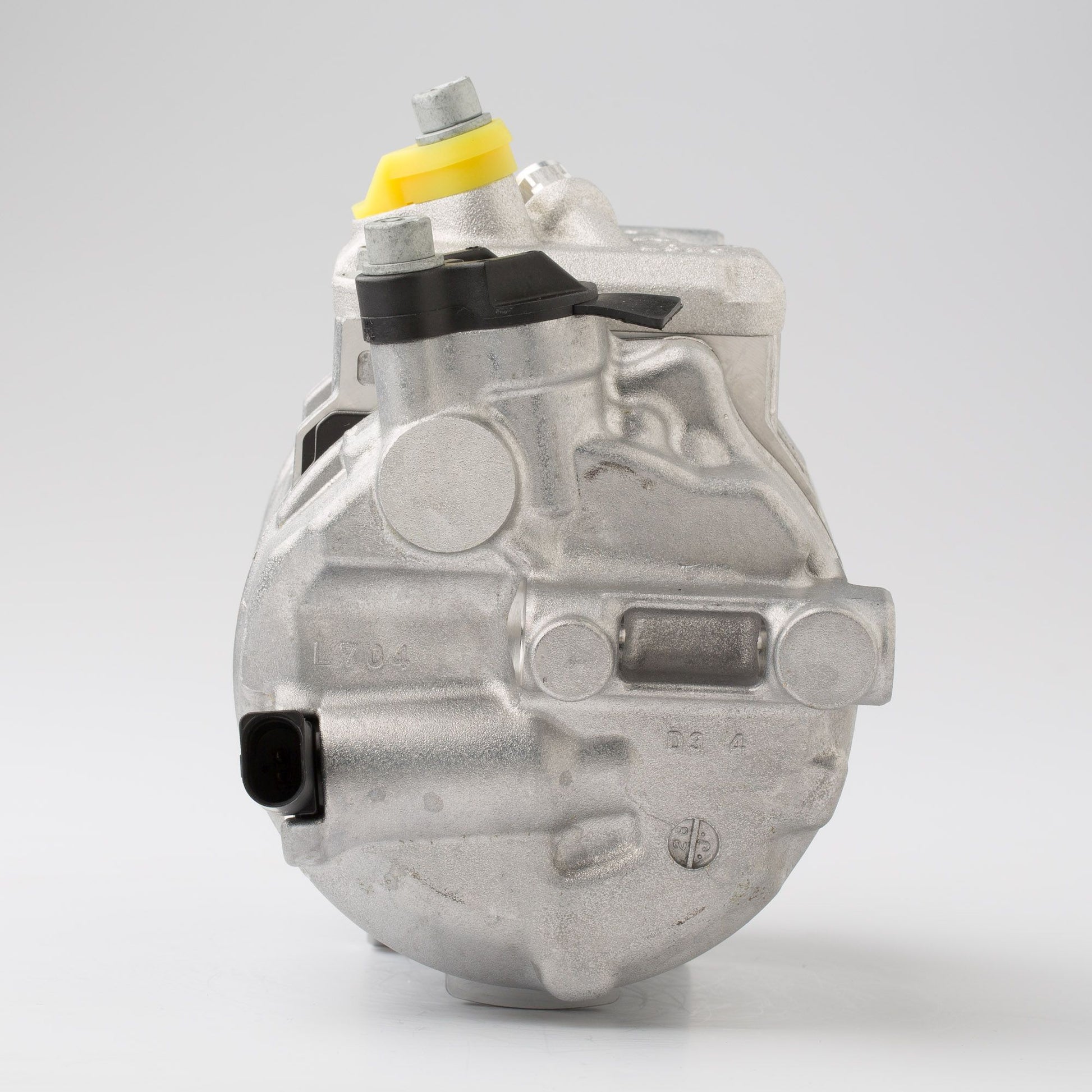

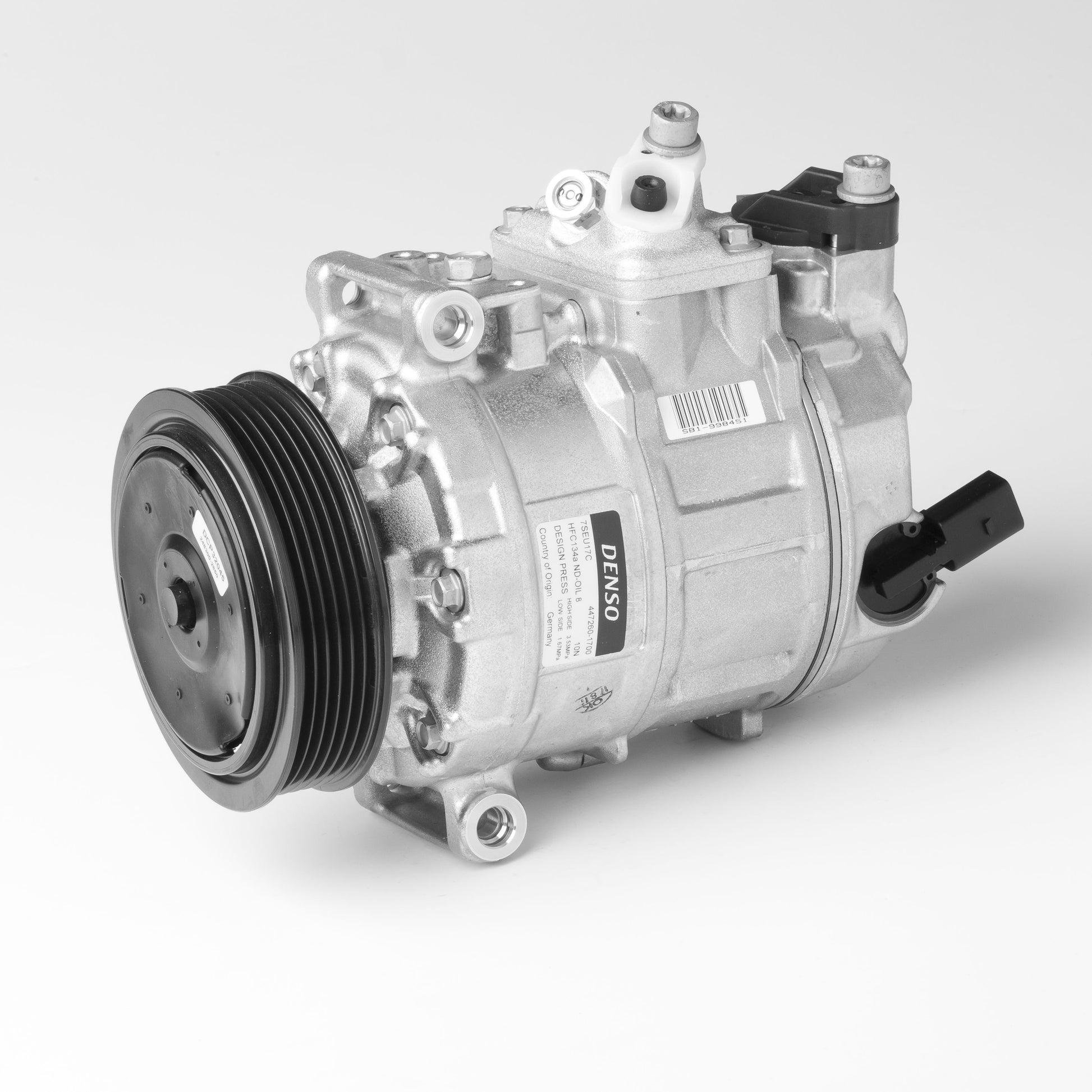

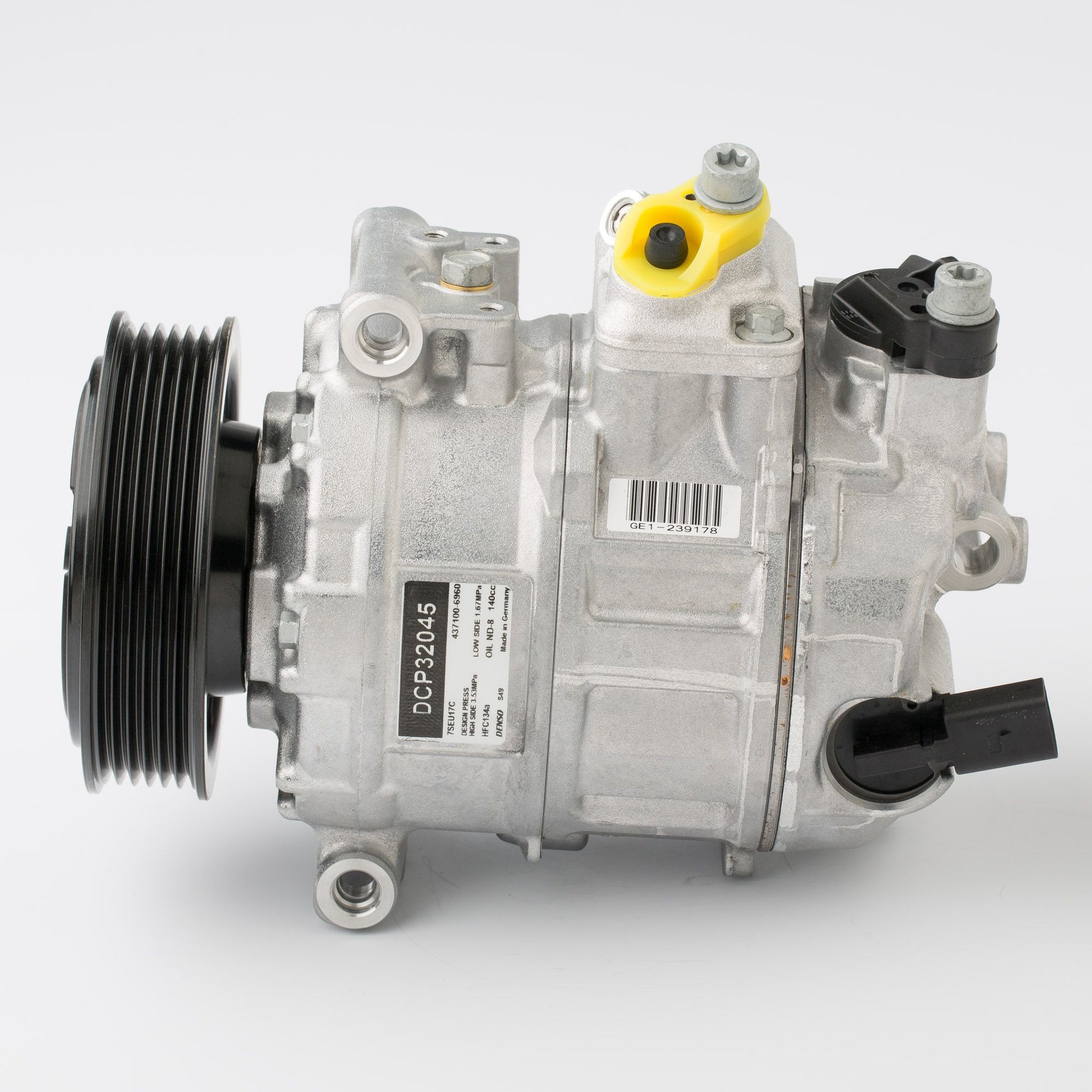

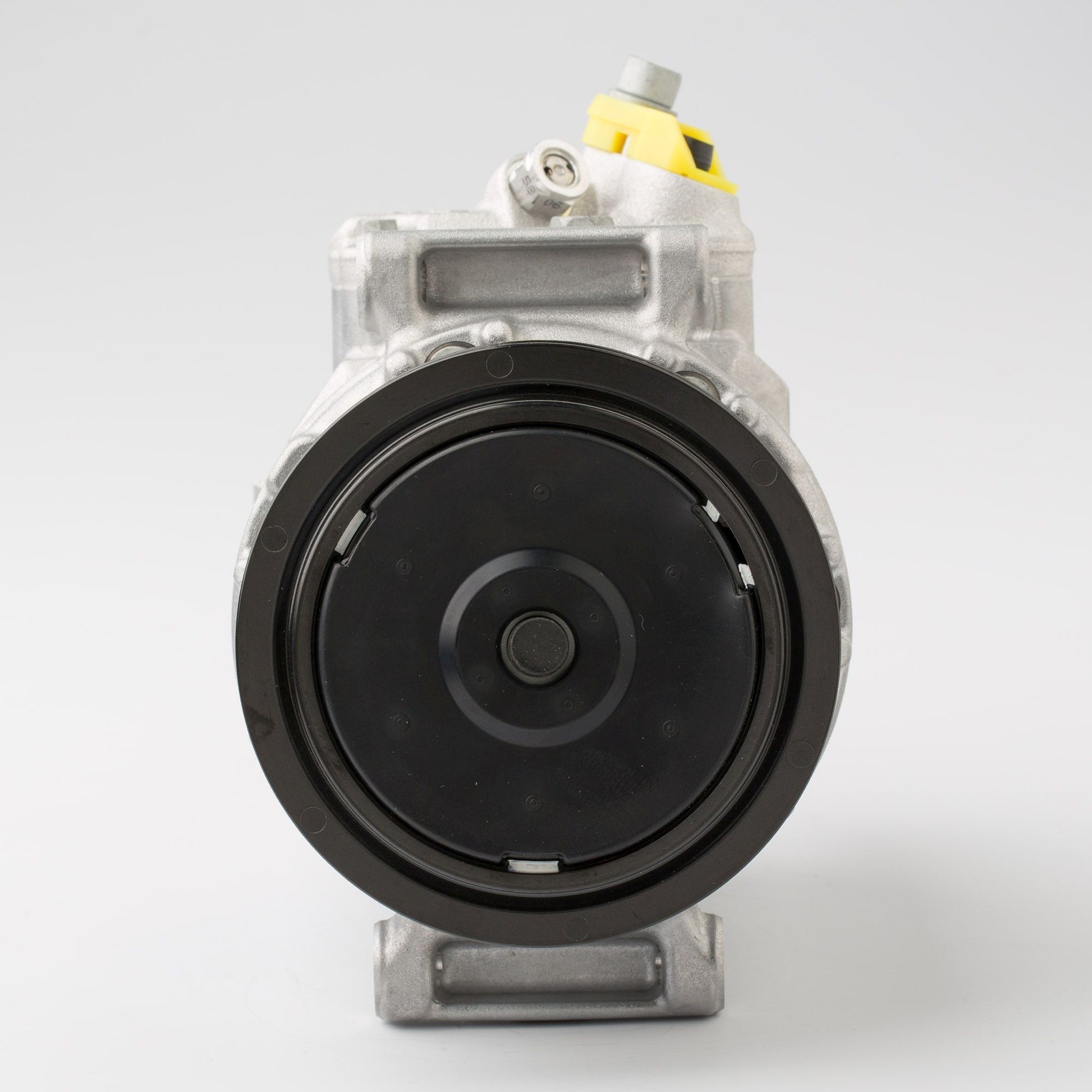

Denso Aircon Compressor DCP32045

Compressor, Air Conditioner

• Clutch Type: DL / B-PC
• Compressor Type: 7SEU17C
• DNTS short code: 447190-7950
• Filled: Filled
• Gross Weight (g): 5930
• Height Incl Packaging (mm): 290
• Indication Reman Part: New
• Length Incl Packaging (mm): 320
• Mounting Type: Bolted
• Net Weight (g): 5120
• Number of grooves: 6
• Number of ribs: 6
• OE Manufacturer: VW-Group
• OE Number: 1K0820859S
• Oil Quantity: 140
• Oil Type: ND-Oil 8
• Oil Type 2: ND-8
• Pulley Diameter(mm): 110
• Pulley type: DL-Pulley
• Quality: DENSO
• Refrigerant Type: R134a
• Width Incl Packaging (mm): 220

Replaces OEM reference(s):
AUDI: 1K0820803E, AUDI: 1K0820803G, AUDI: 1K0820803P, AUDI: 1K0820803Q, AUDI: 1K0820803S, AUDI: 1K0820808B, AUDI: 1K0820808BX, AUDI: 1K0820808D, AUDI: 1K0820808DX, AUDI: 1K0820808F, AUDI: 1K0820859C, AUDI: 1K0820859E, AUDI: 1K0820859F, AUDI: 1K0820859M, AUDI: 1K0820859QX, AUDI: 1K0820859S, AUDI: 1K0820859SX, Denso: 43710069603D, Denso: 44715036503D, Denso: 44719079503D, SEAT: 1K0820803E, SEAT: 1K0820803G, SEAT: 1K0820803P, SEAT: 1K0820803Q, SEAT: 1K0820803S, SEAT: 1K0820808D, SEAT: 1K0820808DX, SEAT: 1K0820808F, SEAT: 1K0820859C, SEAT: 1K0820859E, SEAT: 1K0820859F, SEAT: 1K0820859M, SEAT: 1K0820859QX, SEAT: 1K0820859S, SEAT: 1K0820859SX, SKODA: 1K0820803E, SKODA: 1K0820803G, SKODA: 1K0820803P, SKODA: 1K0820803Q, SKODA: 1K0820803S, SKODA: 1K0820808D, SKODA: 1K0820808DX, SKODA: 1K0820808F, SKODA: 1K0820859C, SKODA: 1K0820859E, SKODA: 1K0820859F, SKODA: 1K0820859M, SKODA: 1K0820859QX, SKODA: 1K0820859S, SKODA: 1K0820859SX, VOLKSWAGEN: 1K0820803E, VOLKSWAGEN: 1K0820803G, VOLKSWAGEN: 1K0820803N, VOLKSWAGEN: 1K0820803P, VOLKSWAGEN: 1K0820803Q, VOLKSWAGEN: 1K0820803S, VOLKSWAGEN: 1K0820808D, VOLKSWAGEN: 1K0820808DX, VOLKSWAGEN: 1K0820808F, VOLKSWAGEN: 1K0820808FX, VOLKSWAGEN: 1K0820812B, VOLKSWAGEN: 1K0820859C, VOLKSWAGEN: 1K0820859E, VOLKSWAGEN: 1K0820859F, VOLKSWAGEN: 1K0820859M, VOLKSWAGEN: 1K0820859Q, VOLKSWAGEN: 1K0820859QX, VOLKSWAGEN: 1K0820859S, VOLKSWAGEN: 1K0820859SX

Replaces aftermarket reference(s):
AVA COOLING SYSTEMS: VNAK220, AVA COOLING SYSTEMS: VNK220, AVA COOLING SYSTEMS: VWAK220, AVA COOLING SYSTEMS: VWAK266, AVA COOLING SYSTEMS: VWK220, AVA COOLING SYSTEMS: VWK266, AVA COOLING SYSTEMS: VWK285, AVA COOLING SYSTEMS: VWK298, AVA COOLING SYSTEMS: VWK302, BEHR HELLA SERVICE: 8FK 351 316-141, BEHR HELLA SERVICE: 8FK 351 316-461, BEHR HELLA SERVICE: 8FK 351 322-011, BEHR HELLA SERVICE: 8FK 351 322-741, BEHR HELLA SERVICE: 8FK351316141, BEHR HELLA SERVICE: 8FK351316461, BEHR HELLA SERVICE: 8FK351322011, BEHR HELLA SERVICE: 8FK351322741, DELPHI: TSP0155997, DENSO: 2483000450, DENSO: 2483001150, DENSO: 2483001900, DENSO: 2483002850, DENSO: 4371006960, DENSO: 4471503650, DENSO: 4471508190, DENSO: 4471806390, DENSO: 4471903650, DENSO: 4471904650, DENSO: 4471907950, DENSO: 4472600800, DENSO: 4472601700, DENSO: 248300-0450, DENSO: 248300-1150, DENSO: 248300-1900, DENSO: 248300-2850, DENSO: 437100-6960, DENSO: 447150-3650, DENSO: 447150-8190, DENSO: 447180-6390, DENSO: 447190-3650, DENSO: 447190-4650, DENSO: 447190-7950, DENSO: 447260-0800, DENSO: 447260-1700, ELSTOCK: 510123, ELSTOCK: 51-0123, FRIGAIR: 920.20073, FRIGAIR: 92010952, FRIGAIR: 92020073, FRIGAIR: 92030056, FRIGAIR: 92052054, FRIGAIR: 93020073, FRIGAIR: 94020073, MAHLE: 72440449, MAHLE: ACP 6, MAHLE: ACP 6 000P, MAHLE: ACP 6 000S, MAHLE: ACP 6 001P, MAHLE: ACP 6 002P, MAHLE: ACP6, MAHLE: ACP6000P, MAHLE: ACP6000S, MAHLE: ACP6001P, MAHLE: ACP6002P, NISSENS: 89020, NISSENS: 890396, NRF: 32146, NRF: 32147, NRF: 32146G, NRF: 32147G, NRF: 32500G, VALEO: 699304, VALEO: 699357, VALEO: 699857, WAECO: 8880100219, WAECO: 8880120209, WAECO: 8880120219
