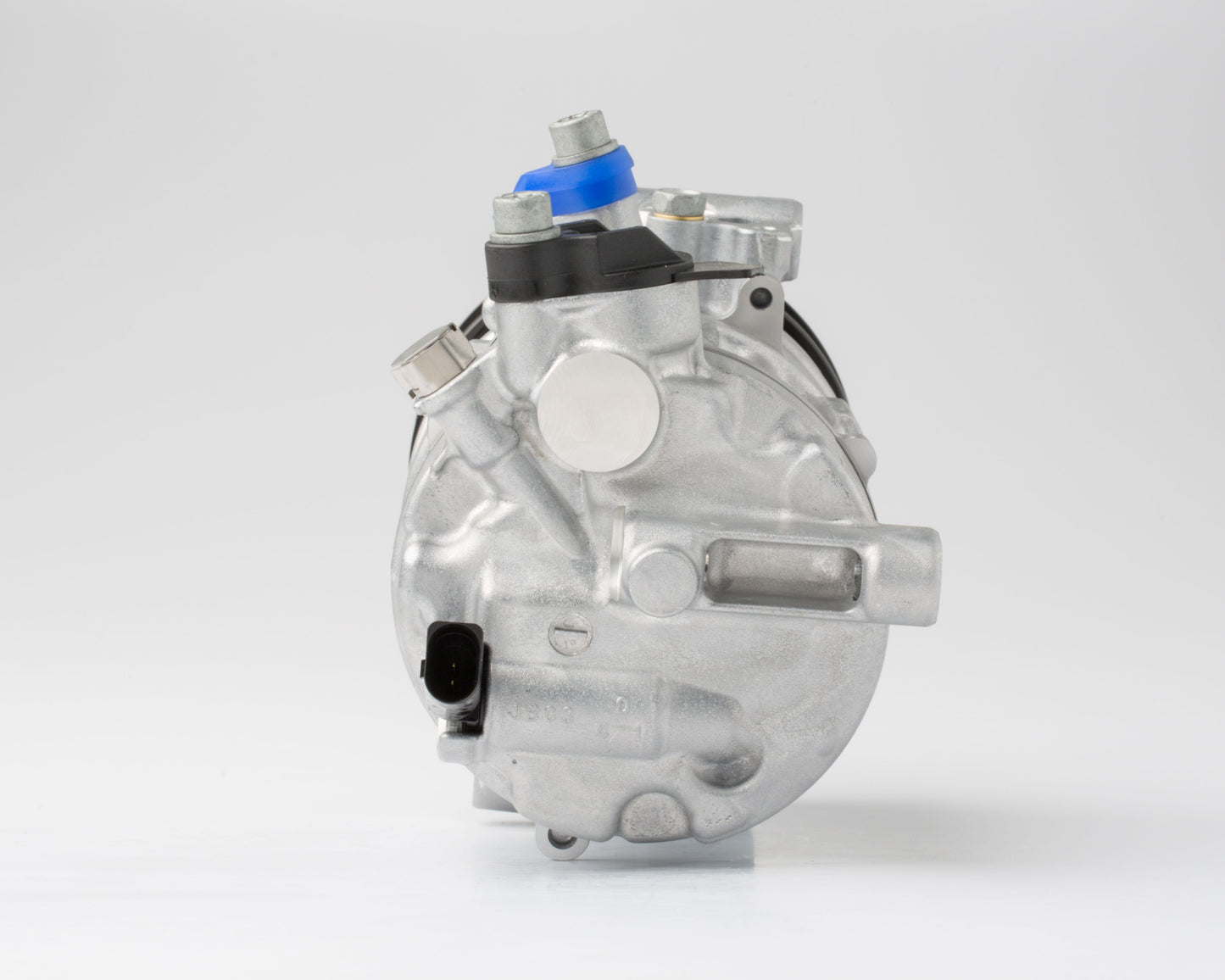

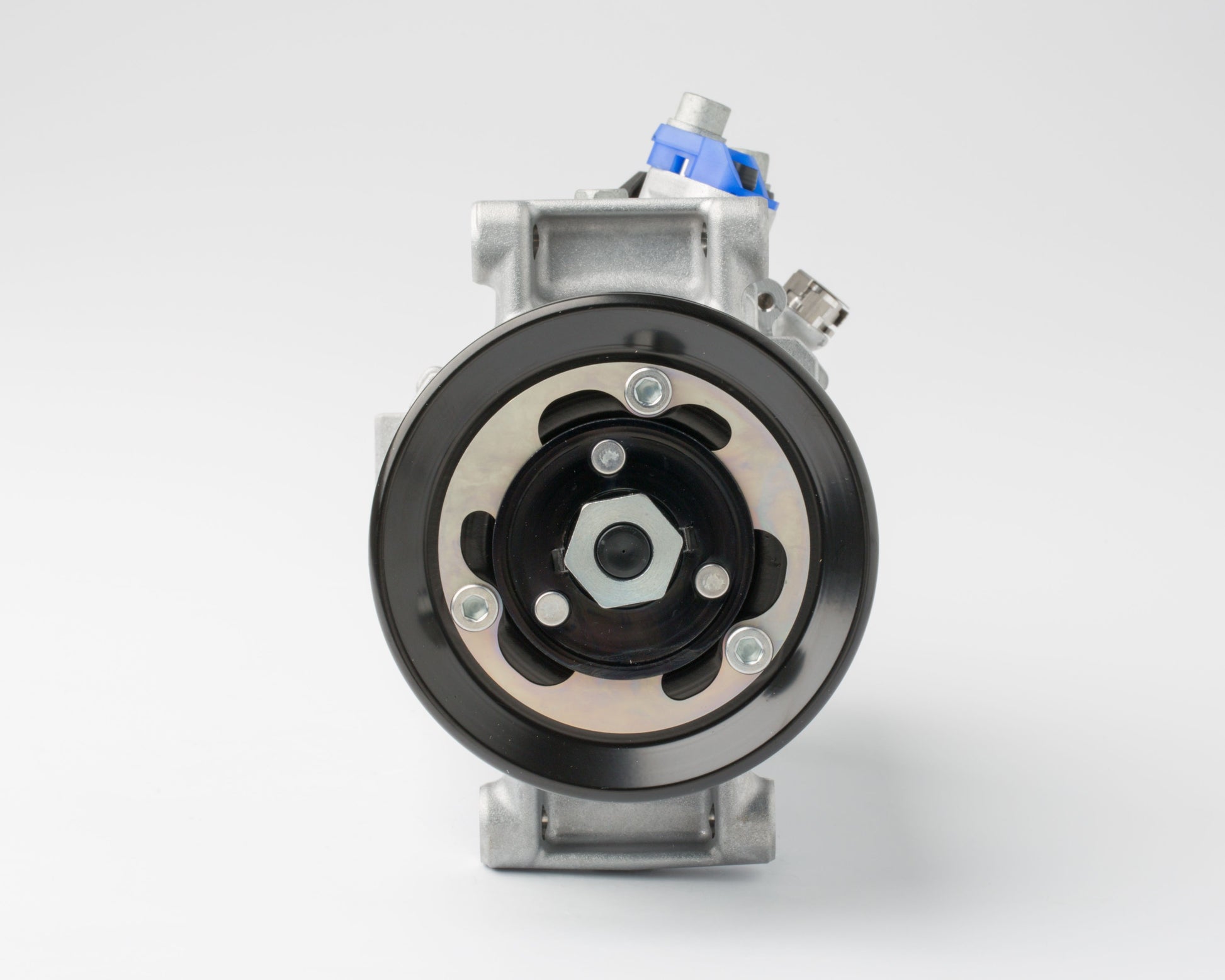

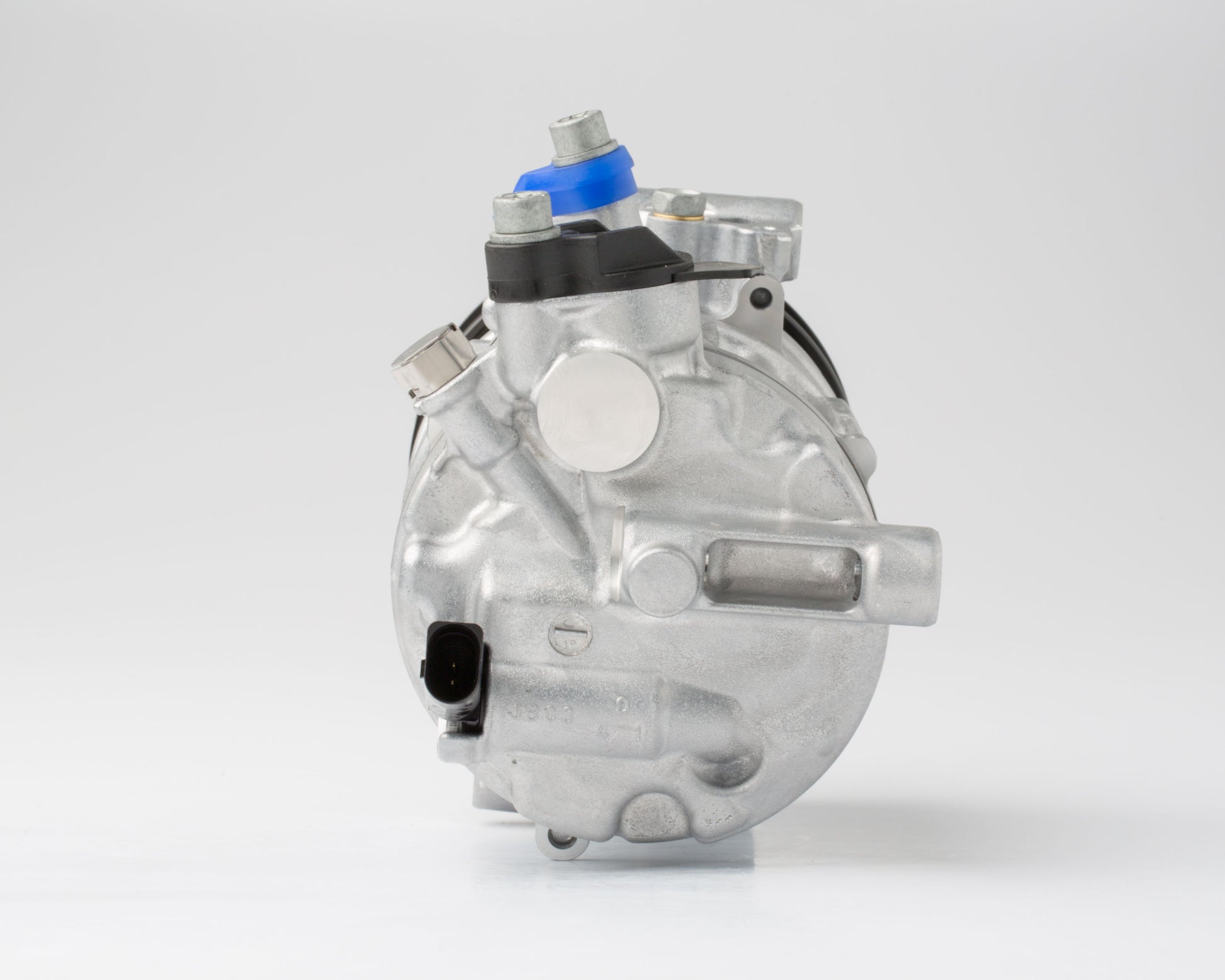

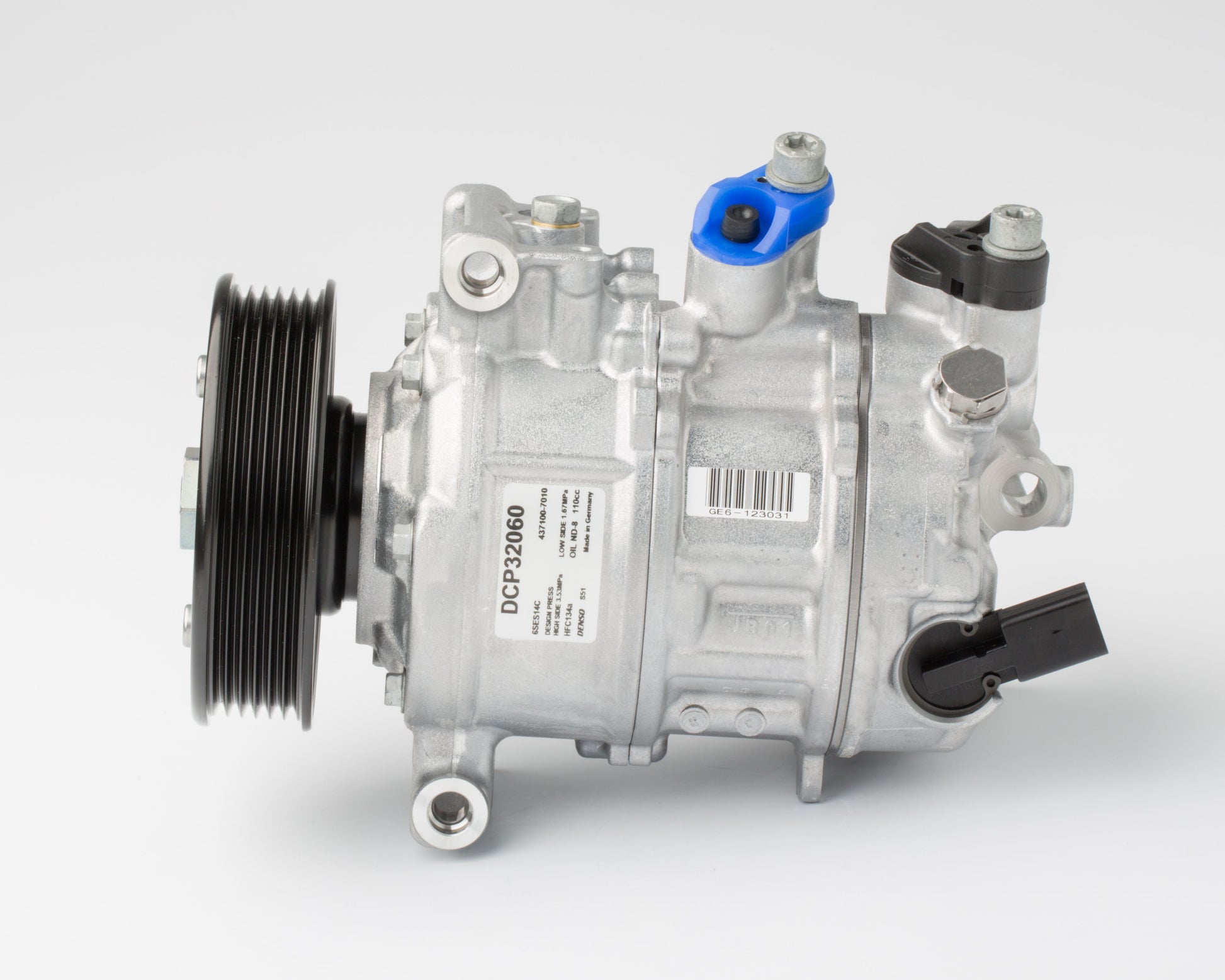

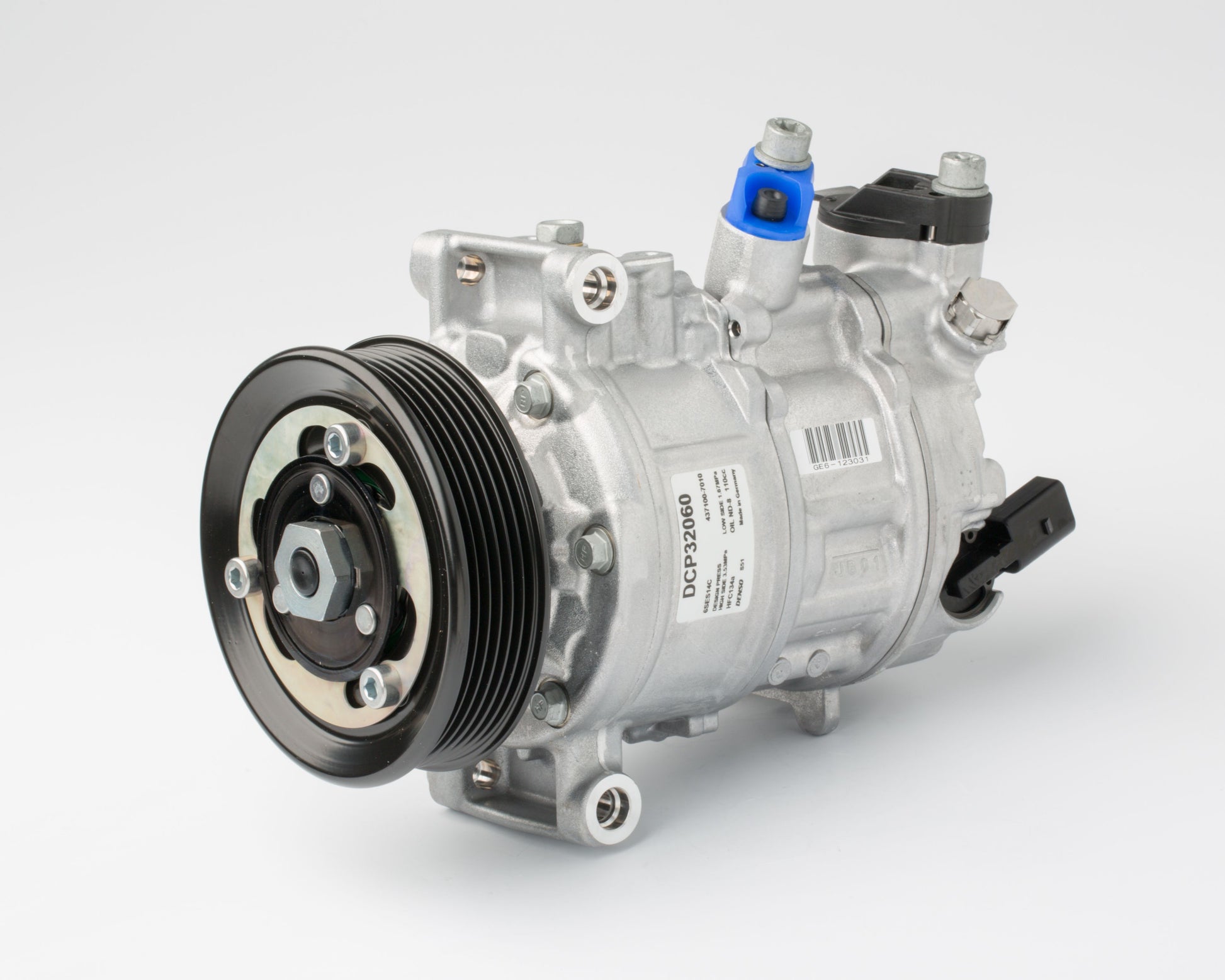

Denso Aircon Compressor DCP32060

Compressor, Air Conditioner

• Clutch Type: DL
• Compressor Type: 6SES14C
• DNTS short code: 447150-4200
• Filled: Filled
• Gross Weight (g): 5200
• Height Incl Packaging (mm): 290
• Indication Reman Part: New
• Length Incl Packaging (mm): 320
• Mounting Type: Bolted
• Net Weight (g): 4390
• Number of grooves: 6
• Number of ribs: 6
• OE Manufacturer: VW-Group
• OE Number: 5Q0820803
• Oil Quantity: 110
• Oil Type: ND-Oil 8
• Oil Type 2: ND-8
• Pulley Diameter(mm): 110
• Pulley type: DL-Pulley
• Quality: DENSO
• Refrigerant Type: R134a
• Width Incl Packaging (mm): 220

Replaces OEM reference(s):
AUDI: 5K0820803, AUDI: 5K0820803C, AUDI: 5K0820803X, AUDI: 5N0820803B, AUDI: 5N0820803C, AUDI: 5N0820803G, AUDI: 5N0820803HX, AUDI: 5Q0820803, AUDI: 5Q0820803A, AUDI: 5Q0820803B, AUDI: 5Q0820803C, AUDI: 5Q0820803D, AUDI: 5Q0820803E, AUDI: 5Q0820803F, Denso: 43710070103D, Denso: 44715060303D, SEAT: 5K0820803, SEAT: 5K0820803C, SEAT: 5K0820803X, SEAT: 5N0820803C, SEAT: 5N0820803G, SEAT: 5N0820803HX, SEAT: 5Q0820803, SEAT: 5Q0820803A, SEAT: 5Q0820803B, SEAT: 5Q0820803C, SEAT: 5Q0820803D, SEAT: 5Q0820803E, SEAT: 5Q0820803F, SKODA: 5K0820803, SKODA: 5K0820803C, SKODA: 5K0820803X, SKODA: 5N0820803C, SKODA: 5N0820803G, SKODA: 5N0820803HX, SKODA: 5Q0820803, SKODA: 5Q0820803A, SKODA: 5Q0820803B, SKODA: 5Q0820803C, SKODA: 5Q0820803D, SKODA: 5Q0820803E, SKODA: 5Q0820803F, SKODA: 5Q0820803K, VAG: 5K0820803CX, VAG: 5Q0820803J, VAG: 5Q0820803K, VOLKSWAGEN: 5K0820803, VOLKSWAGEN: 5K0820803C, VOLKSWAGEN: 5K0820803CX, VOLKSWAGEN: 5K0820803X, VOLKSWAGEN: 5N0820803, VOLKSWAGEN: 5N0820803A, VOLKSWAGEN: 5N0820803H, VOLKSWAGEN: 5Q0820803, VOLKSWAGEN: 5Q0820803A, VOLKSWAGEN: 5Q0820803B, VOLKSWAGEN: 5Q0820803C, VOLKSWAGEN: 5Q0820803D, VOLKSWAGEN: 5Q0820803E, VOLKSWAGEN: 5Q0820803F

Replaces aftermarket reference(s):
BEHR HELLA SERVICE: 8FK 351 105-211, BEHR HELLA SERVICE: 8FK 351 105-711, BEHR HELLA SERVICE: 8FK 351 106-251, BEHR HELLA SERVICE: 8FK 351 136-061, BEHR HELLA SERVICE: 8FK351105211, BEHR HELLA SERVICE: 8FK351105711, BEHR HELLA SERVICE: 8FK351106251, BEHR HELLA SERVICE: 8FK351136061, DELPHI: TSP0155997, DENSO: 2483003140, DENSO: 4371007010, DENSO: 4471504200, DENSO: 4471506030, DENSO: 4471507340, DENSO: 4471507950, DENSO: 4471509750, DENSO: 4472502790, DENSO: 4472806860, DENSO: 4472808770, DENSO: 248300-3140, DENSO: 437100-7010, DENSO: 447150-4200, DENSO: 447150-6030, DENSO: 447150-7340, DENSO: 447150-7950, DENSO: 447250-2790, DENSO: 447280-6860, DENSO: 447280-8770, ELSTOCK: 510535, ELSTOCK: 51-0535, MAHLE: 72466806, MAHLE: ACP 1148, MAHLE: ACP 1148 000P, MAHLE: ACP 364, MAHLE: ACP 364 000P, MAHLE: ACP 364 000S, MAHLE: ACP1148, MAHLE: ACP1148000P, MAHLE: ACP364, MAHLE: ACP364000P, MAHLE: ACP364000S, WAECO: 8880100404, WAECO: 8880120404
