Description

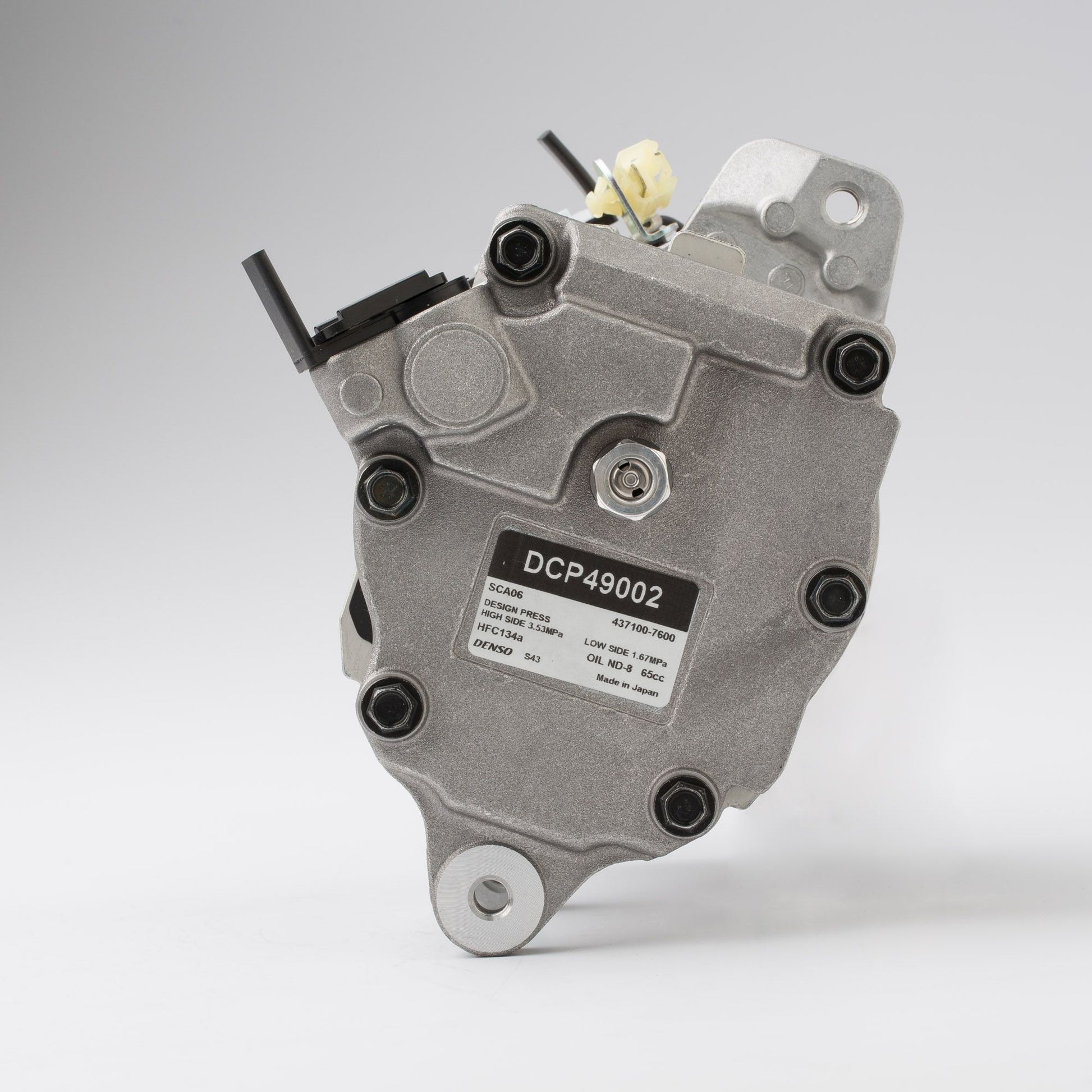

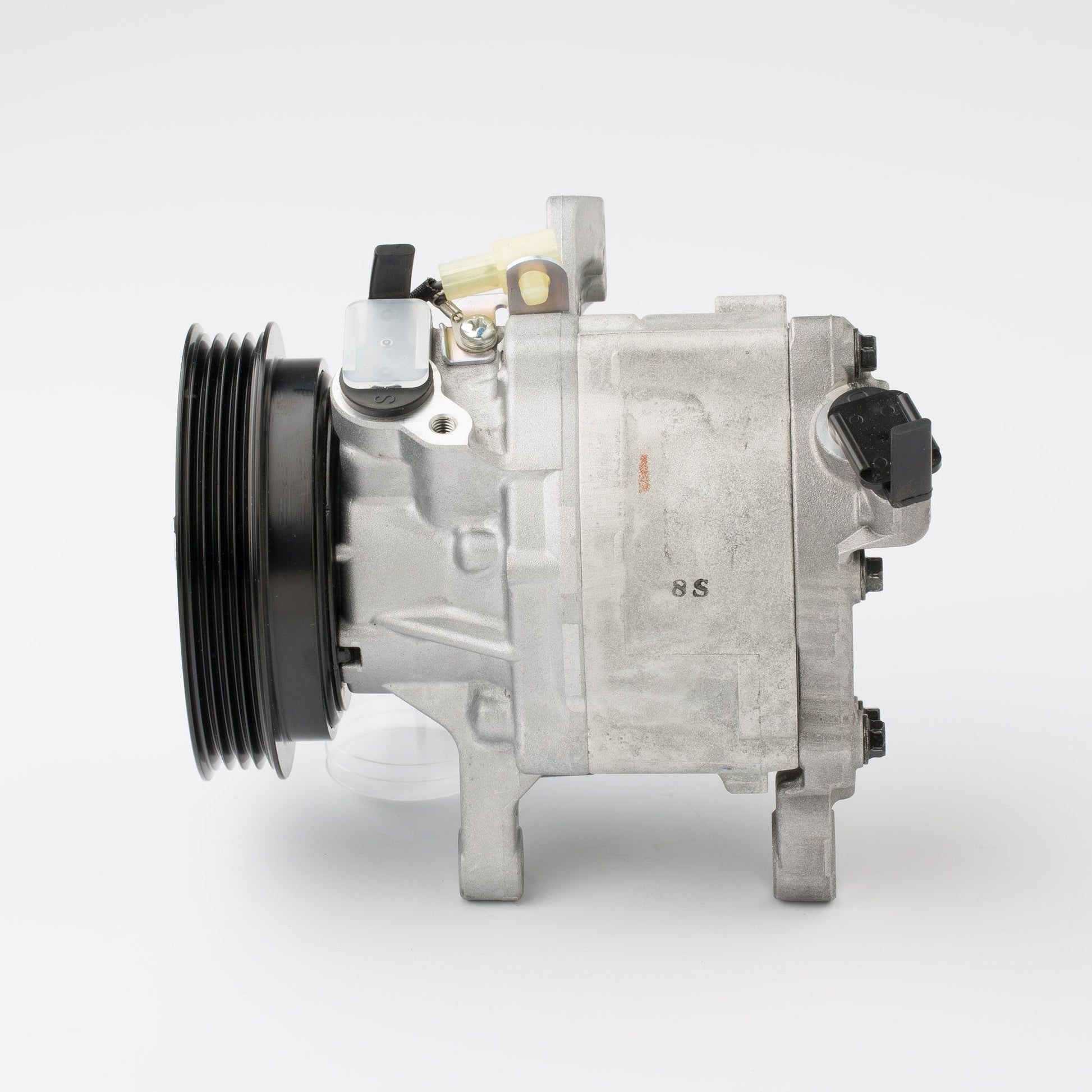

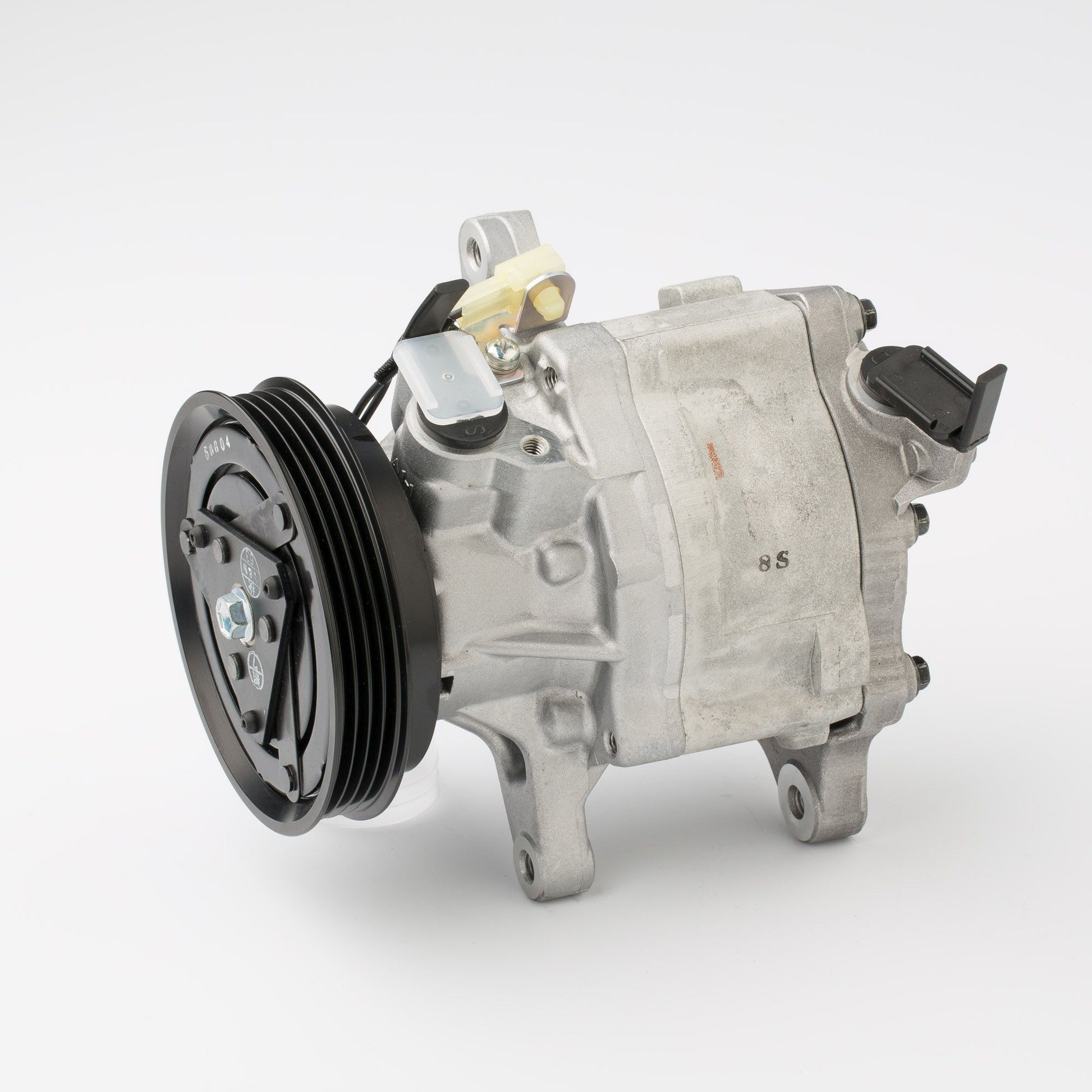

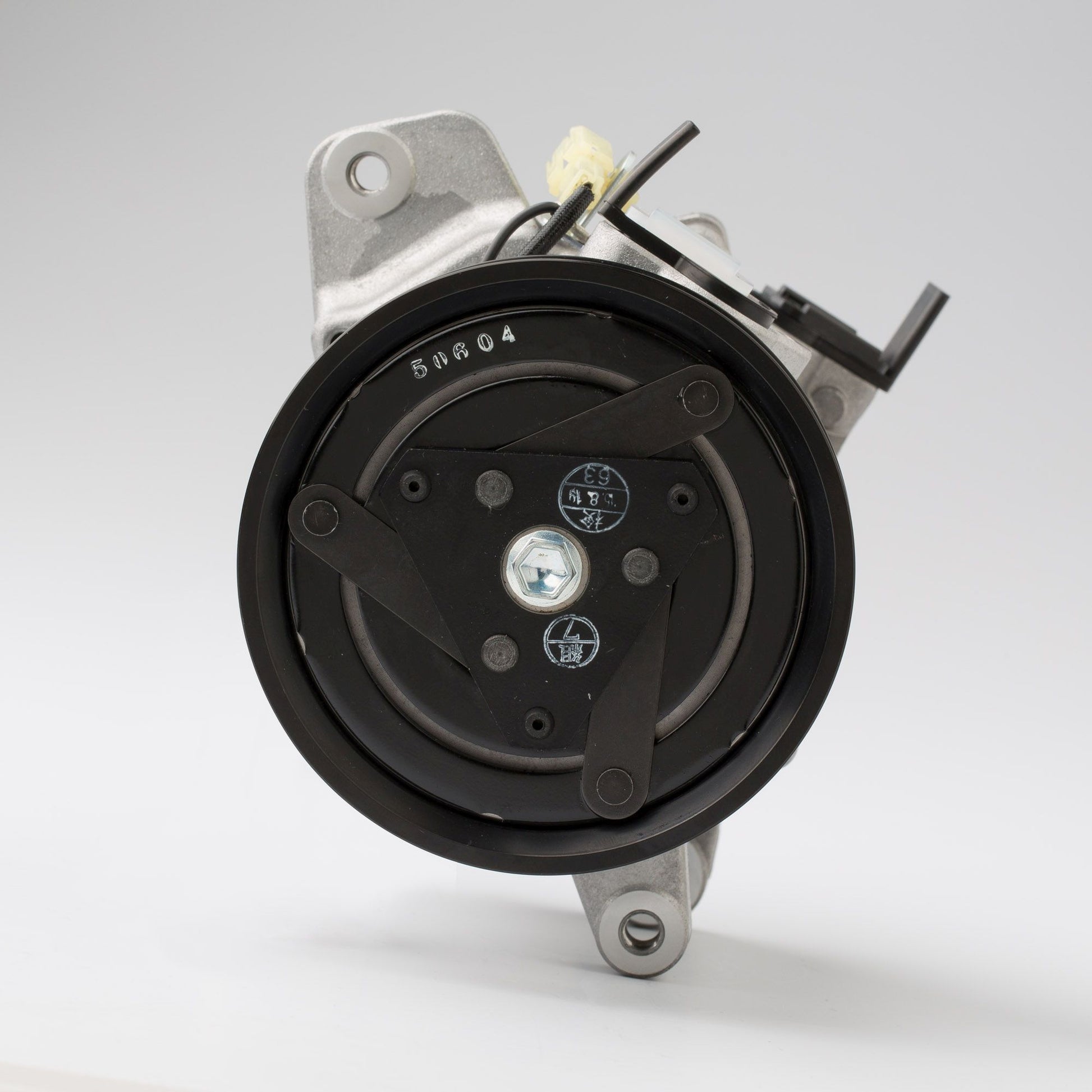

Compressor, Air Conditioner
- Clutch Type: K20S
- Compressor Type: SCA06E
- DNTS short code: 437100-7600
- Filled: Filled
- Gross Weight (g): 5160
- Height Incl Packaging (mm): 290
- Indication Reman Part: New
- Length Incl Packaging (mm): 320
- Mounting Type: Bolted
- NDE p/n_NTR: 437100-7600
- Net Weight (g): 4350
- Number of grooves: 4
- Number of ribs: 4
- OE Manufacturer: DAIHATSU
- OE Number: 88310-97405-000
- Oil Quantity: 65
- Oil Type: ND-Oil 8
- Oil Type 2: ND-8
- Pulley Diameter(mm): 105
- Quality: DENSO
- Refrigerant Type: R134a
- Supplementary Article Info 2: with magnetic clutch
- Voltage (V): 12
- Width Incl Packaging (mm): 220
Replaces OEM reference(s):
DAIHATSU: 8831097405, DAIHATSU: 8841097212, DAIHATSU: 8831097405000, DAIHATSU: 88310-97405-000, DAIHATSU: 88410-97212, Denso: 43710076003D, TOYOTA: 8831097405, TOYOTA: 8832097209, TOYOTA: 8841097212, TOYOTA: 88310-97405, TOYOTA: 88320-97209, TOYOTA: 88410-97212
Replaces aftermarket reference(s):
DENSO: 2473002240, DENSO: 4371007600, DENSO: 4471805740, DENSO: 4472206900, DENSO: 247300-2240, DENSO: 437100-7600, DENSO: 447180-5740, DENSO: 447220-6900
