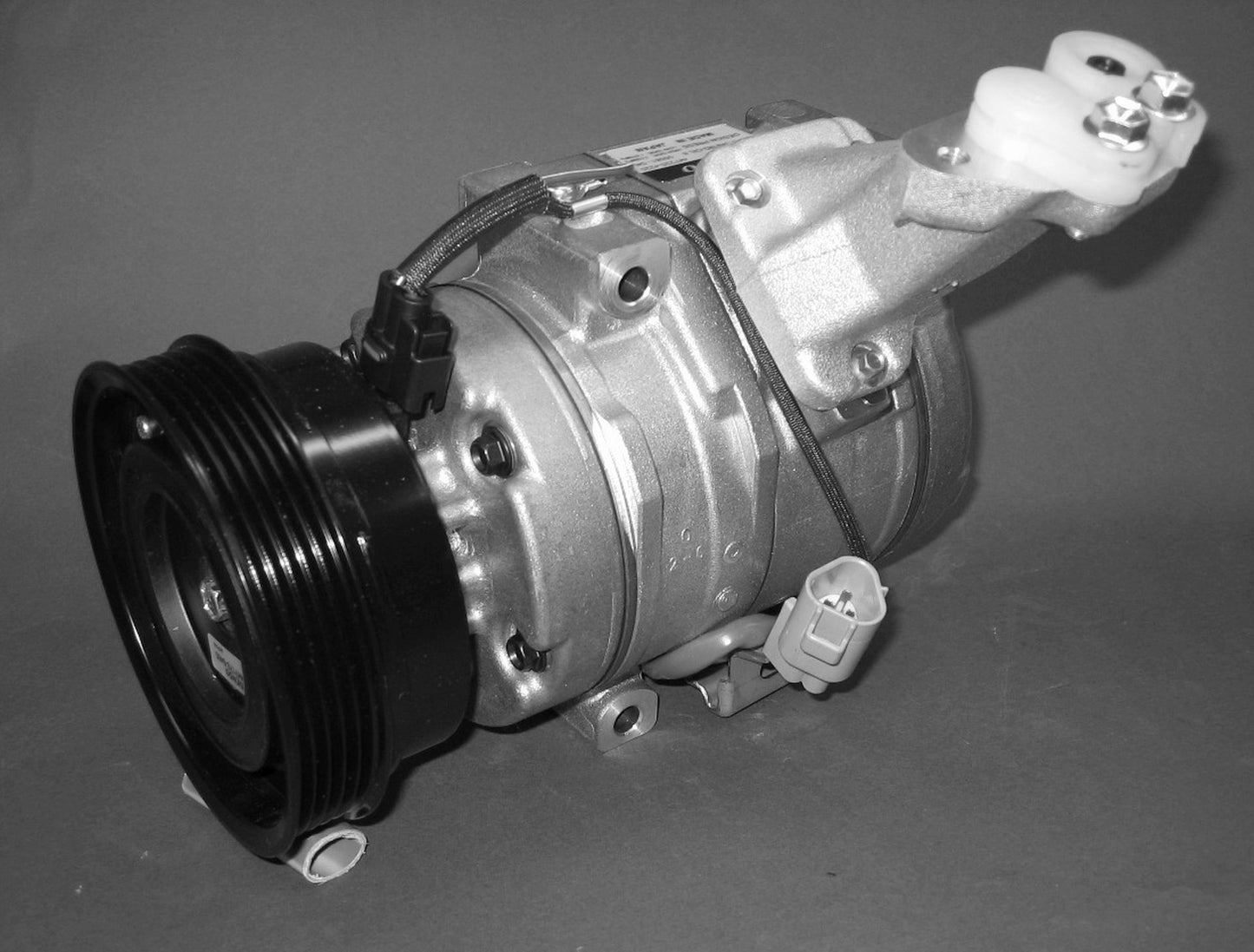

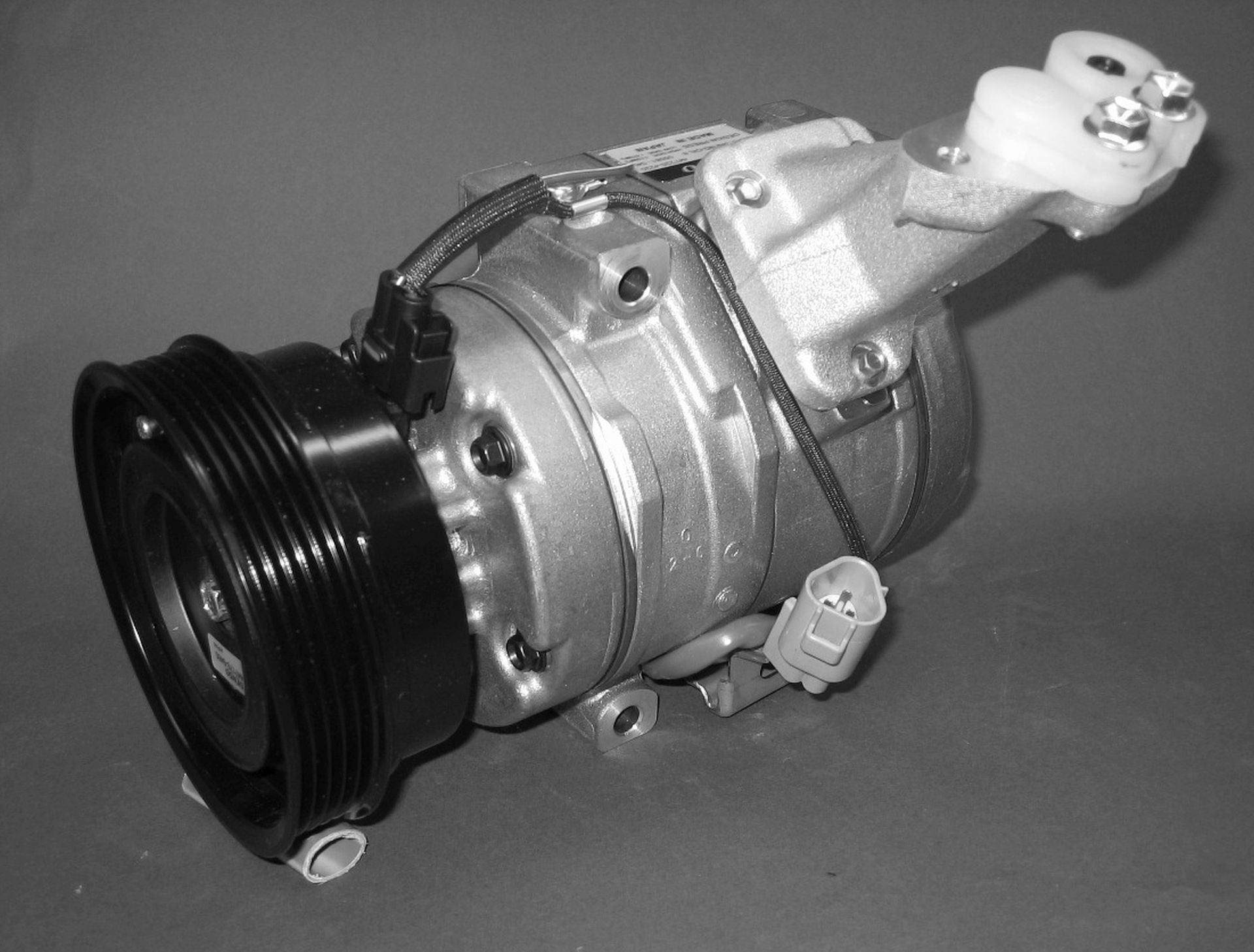

Denso Aircon Compressor DCP50222

Compressor, Air Conditioner

• Clutch Type: LS45
• Compressor Type: 10S15L
• DNTS short code: 447170-9460
• Filled: Filled
• Gross Weight (g): 6920
• Height Incl Packaging (mm): 290
• Indication Reman Part: New
• Inlet Ø: 18.3
• Length Incl Packaging (mm): 320
• Mounting Type: Bolted
• Net Weight (g): 6110
• Number of grooves: 5
• Number of ribs: 5
• OE Manufacturer: TOYOTA
• OE Number: 88310-44170
• Oil Quantity: 120
• Oil Type: ND-Oil 8
• Oil Type 2: ND-8
• Outlet Ø: 15.5
• Pulley Diameter(mm): 115
• Quality: DENSO
• Refrigerant Type: R134a
• Supplementary Article Info 2: with magnetic clutch
• Voltage (V): 12
• Width Incl Packaging (mm): 220

Replaces OEM reference(s):
Denso: 44717094603D, TOYOTA: 8831044170, TOYOTA: 8832044140, TOYOTA: 8841028230, TOYOTA: 88310-44170, TOYOTA: 88320-44140, TOYOTA: 88410-28230

Replaces aftermarket reference(s):
AVA COOLING SYSTEMS: TOK633, DENSO: 2473000700, DENSO: 4471709460, DENSO: 4472204220, DENSO: 247300-0700, DENSO: 447170-9460, DENSO: 447220-4220, ELSTOCK: 510215, ELSTOCK: 51-0215, NRF: 32652, NRF: 32652G
