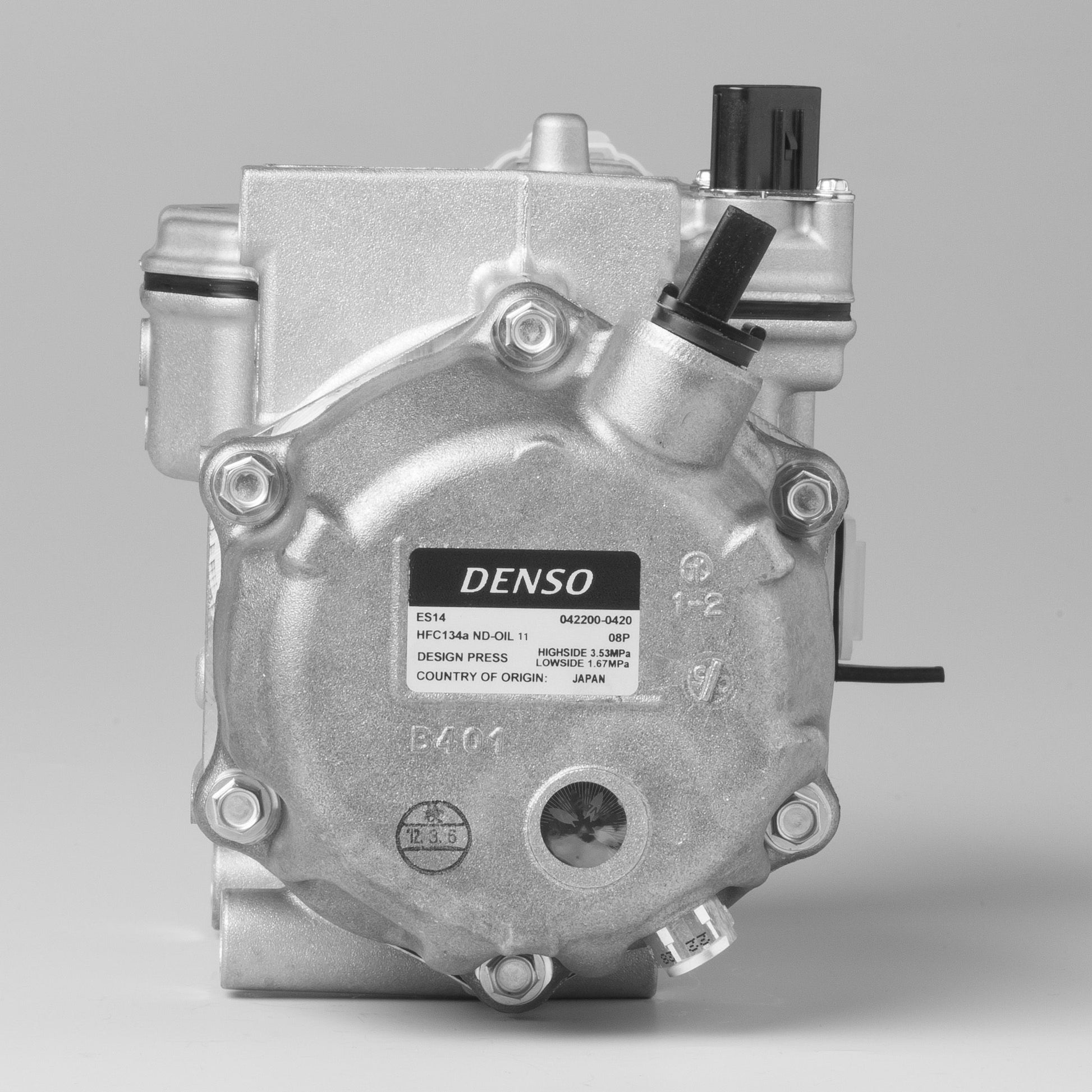

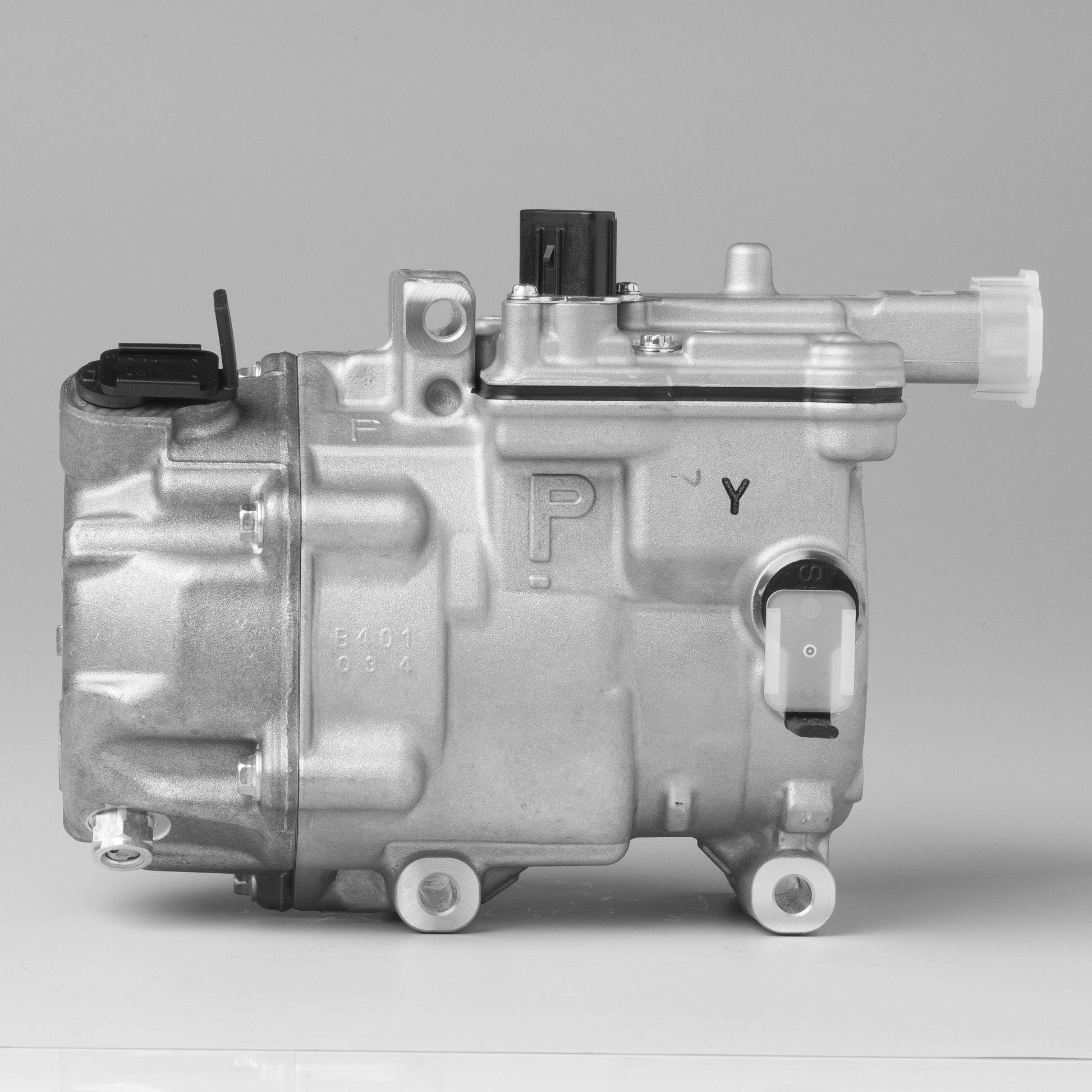

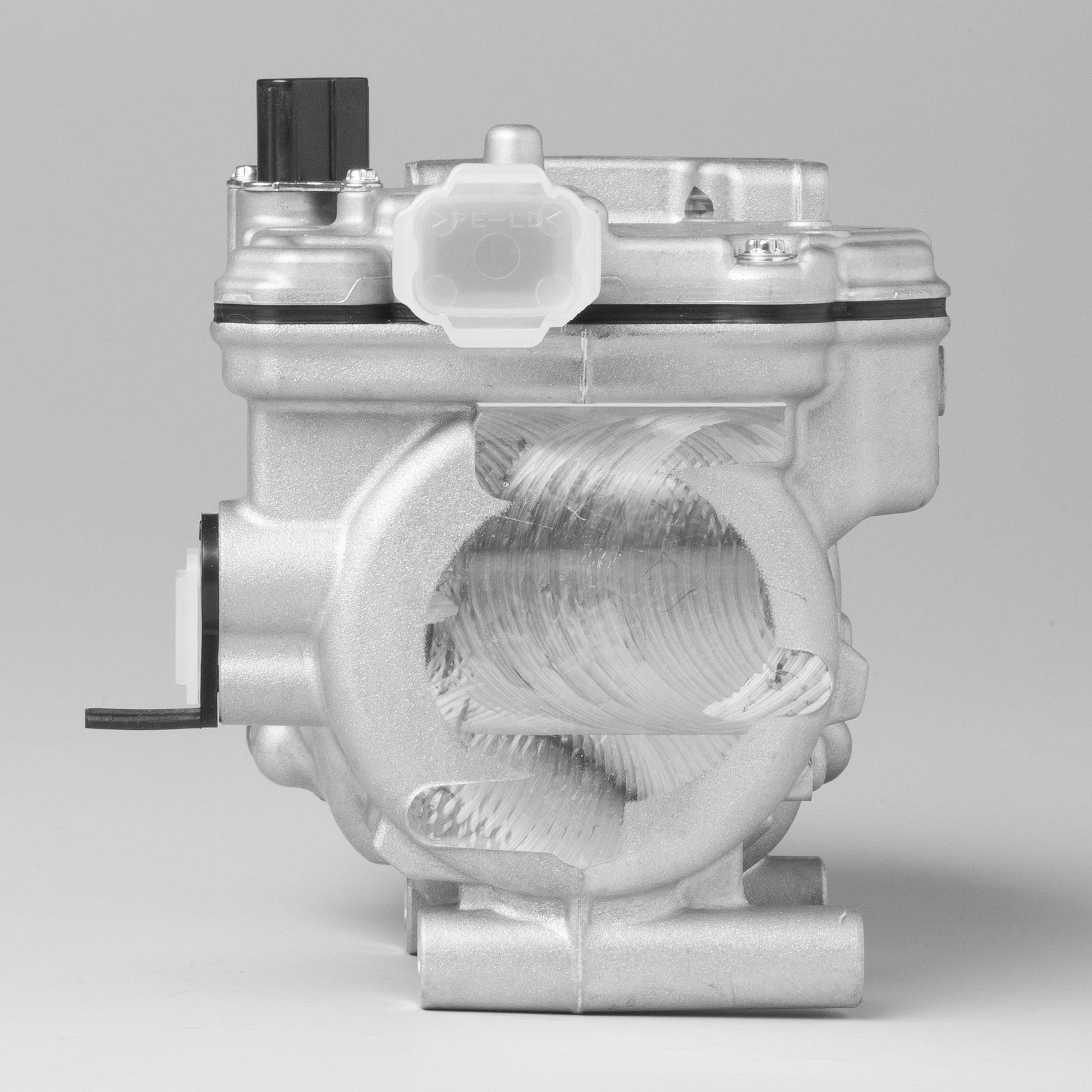

Denso Aircon Compressor DCP50502

Compressor, Air Conditioner

• Compressor Type: ES14C
• Country Restriction: EU Only (BER);Exclude Except Europe;Exclude Armenia;Exclude Georgia;Exclude Kazakhstan;Exclude Middle East;Exclude Palestine;Exclude Russia;Exclude Serbia;Exclude Ukraine;Exclude Tajikistan;Exclude Turkmenistan
• DNTS short code: 042200-0420
• Filled: Filled
• Gross Weight (g): 5440
• Height Incl Packaging (mm): 290
• Indication Reman Part: New
• Inlet Ø: 18.4
• Length Incl Packaging (mm): 320
• Mounting Type: Bolted
• Net Weight (g): 4630
• OE Manufacturer: TOYOTA
• OE Number: 88370-47033
• Oil Quantity: 130
• Oil Type: ND-Oil 11
• Oil Type 2: ND-11
• Outlet Ø: 15.5
• Pulley type: DL-Pulley
• Quality: DENSO
• Refrigerant Type: R134a
• Voltage (V): 150,300
• Width Incl Packaging (mm): 220

Replaces OEM reference(s):
Denso: 04220004203D, Denso: 0422001031AM, Denso: 04220013303D, TOYOTA: 8837047030, TOYOTA: 8837047031, TOYOTA: 8837047032, TOYOTA: 8837047033, TOYOTA: 88370-47030, TOYOTA: 88370-47031, TOYOTA: 88370-47032, TOYOTA: 88370-47033

Replaces aftermarket reference(s):
AVA COOLING SYSTEMS: TOK583, BEHR HELLA SERVICE: 8FK 351 342-001, BEHR HELLA SERVICE: 8FK351342001, DENSO: 0422000210, DENSO: 0422000420, DENSO: 0422001030, DENSO: 042200-0210, DENSO: 042200-0420, DENSO: 042200-1030, ELSTOCK: 510895, ELSTOCK: 51-0895, MAHLE: ACP 1447, MAHLE: ACP 1447 000P, MAHLE: ACP1447, MAHLE: ACP1447000P
