Description

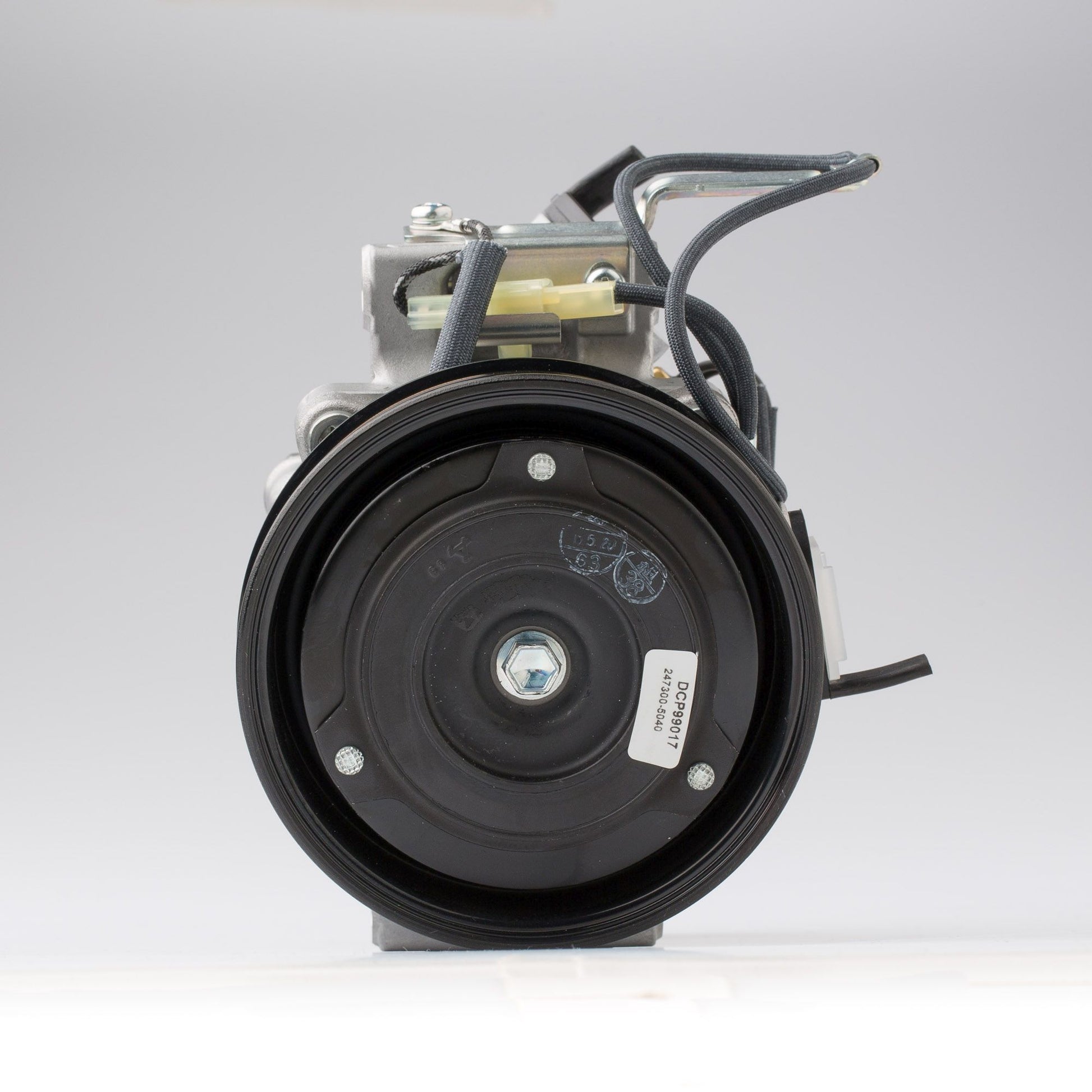

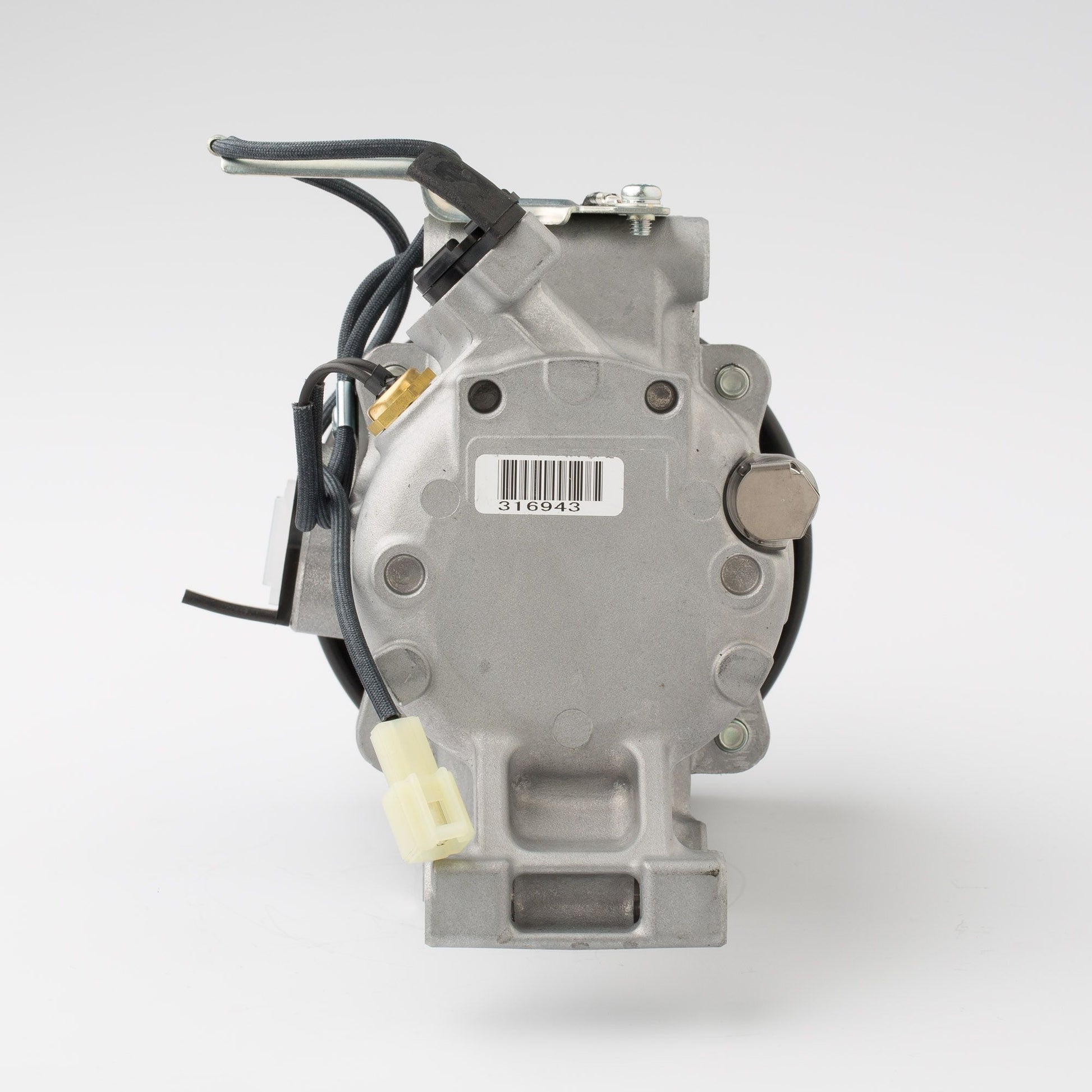

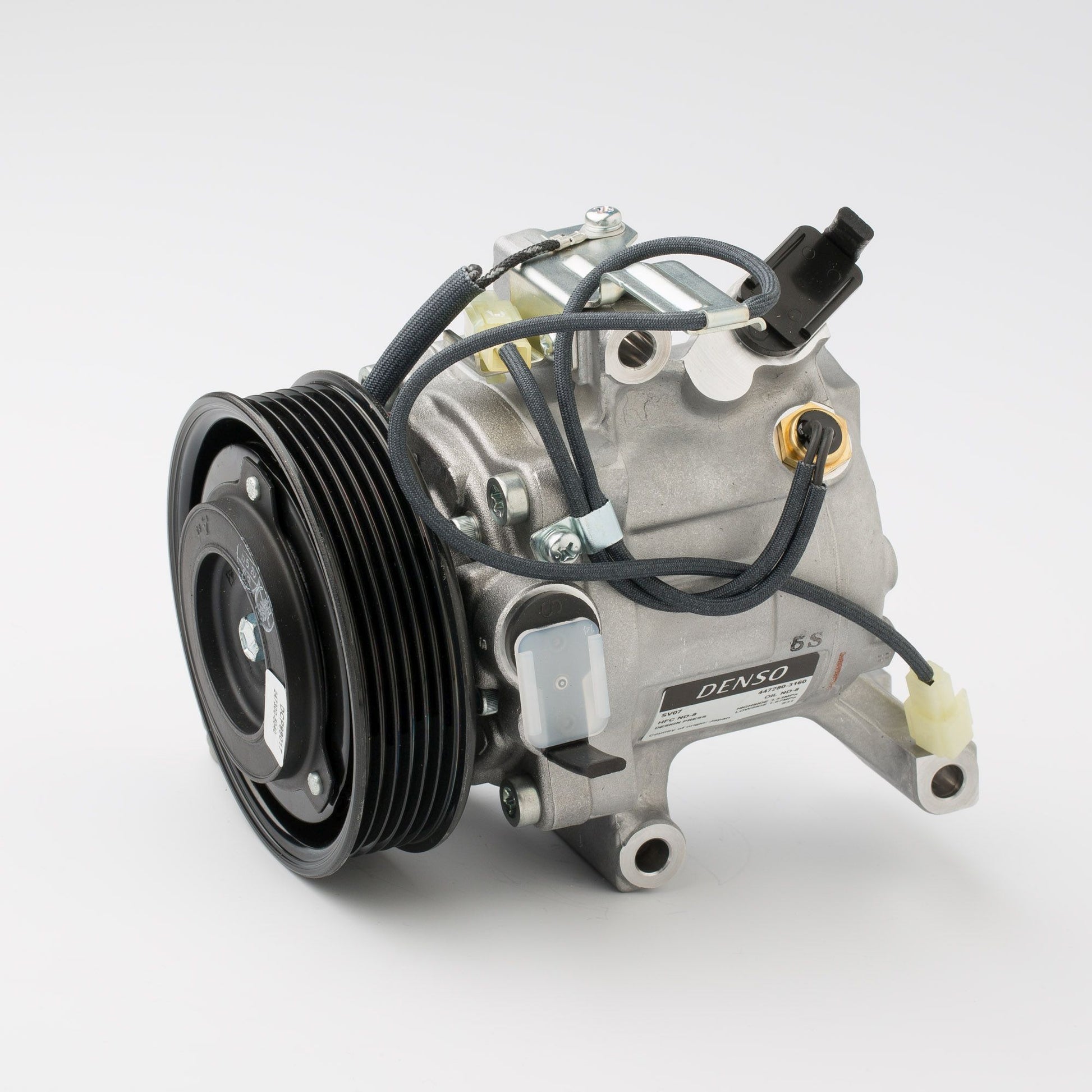

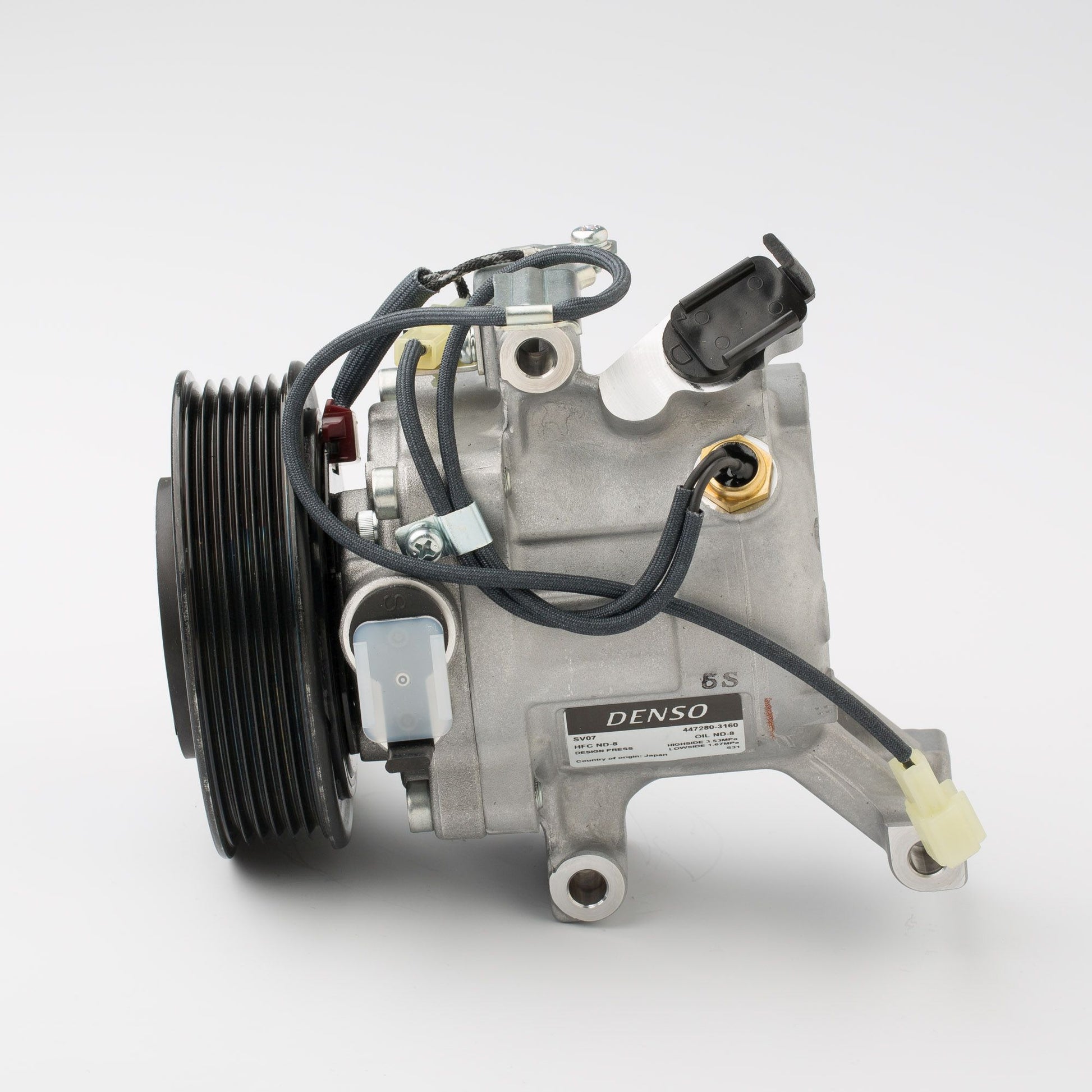

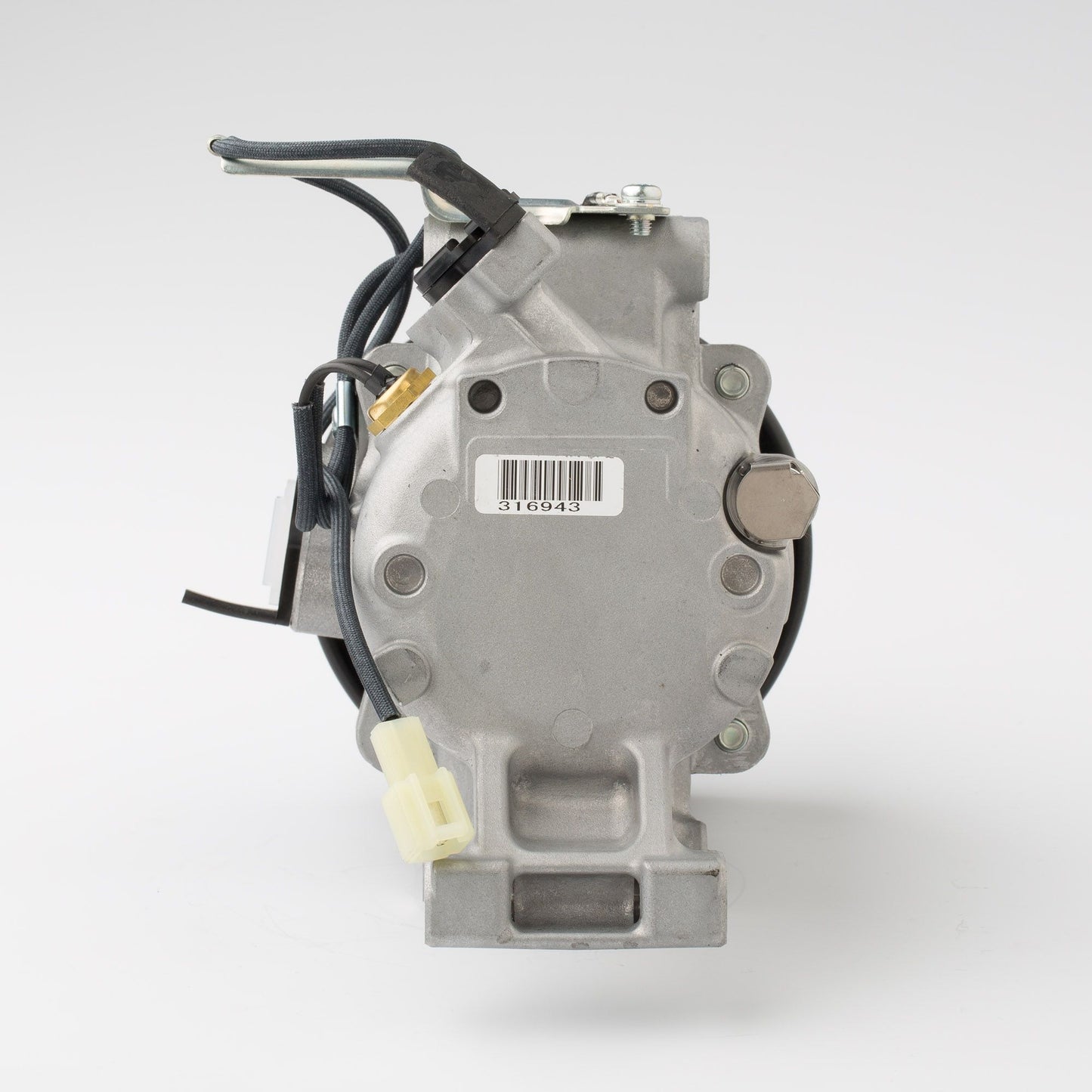

Compressor, Air Conditioner
- Clutch Type: K20
- Compressor Type: SV07C
- DNTS short code: 437100-7620
- Filled: Filled
- Gross Weight (g): 4090
- Height Incl Packaging (mm): 290
- Indication Reman Part: New
- Length Incl Packaging (mm): 320
- Mounting Type: Bolted
- NDE p/n_NTR: 437100-7620
- Net Weight (g): 3280
- Number of grooves: 6
- Number of ribs: 6
- OE Manufacturer: DAIHATSU
- OE Number: 88310-B2220
- Oil Quantity: 80
- Oil Type: ND-Oil 8
- Oil Type 2: ND-8
- Pulley Diameter(mm): 108
- Quality: DENSO
- Refrigerant Type: R134a
- Supplementary Article Info 2: with magnetic clutch
- Voltage (V): 12
- Width Incl Packaging (mm): 220
Replaces OEM reference(s):
Denso: 43710076203D, TOYOTA: 88310B2220, TOYOTA: 88310-B2220, TOYOTA: 88320B2070, TOYOTA: 88320-B2070, TOYOTA: 88410B1040, TOYOTA: 88410-B1040
Replaces aftermarket reference(s):
DENSO: 2473005040, DENSO: 4371007620, DENSO: 4471908610, DENSO: 4472605900, DENSO: 4472803160, DENSO: 247300-5040, DENSO: 437100-7620, DENSO: 447190-8610, DENSO: 447260-5900, DENSO: 447280-3160, ELSTOCK: 511397, ELSTOCK: 51-1397
