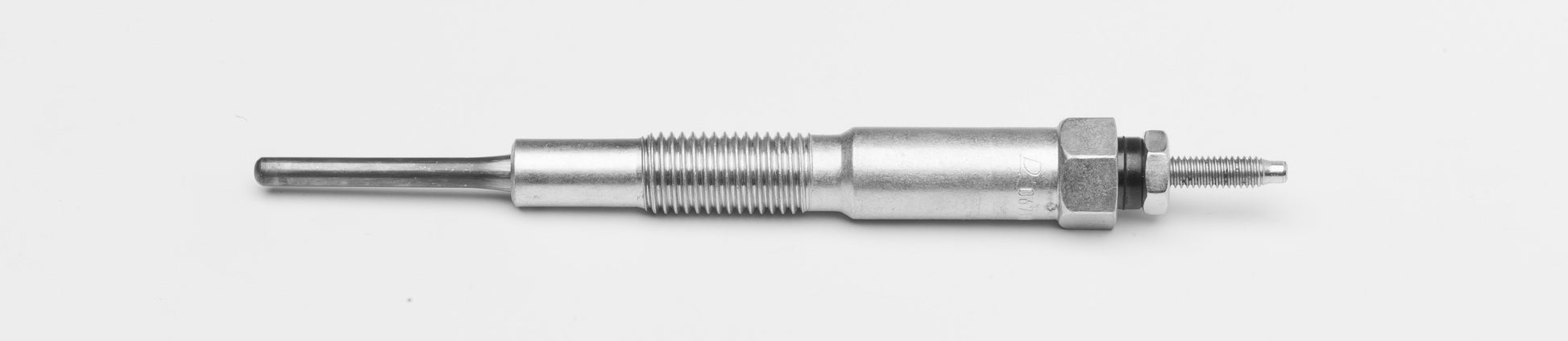

Denso Glow Plug DG-502

Glow Plug

• Cone Pitch: 120
• Connector type: M4x0.7
• Glow Plug Design: Metal glow plug; After-glow capable
• Height Incl Packaging (mm): 22
• Hexagon mm: 12
• Length Incl Packaging (mm): 180
• Length overall: 121.5
• NDE p/n_NTR: 067100-1900
• Net Weight (g): 48.5
• OE Number: RF2A-18601
• Probe Diameter mm: 3.5 Probe
• Probe Length mm: 30
• Quality: DENSO
• Shell Torque Nm: 1-1.5
• Supersession Partnumber: -
• Supplementary Article Info 2: with nut
• Term Torque From (Nm): 10
• Term Torque To (Nm): 12
• Thread Size: M10x1.25
• Version: Single coil
• Voltage (V): 11
• Width Incl Packaging (mm): 25

Replaces OEM reference(s):
MAZDA: RF2A18601, MAZDA: RF2A-18-601

Replaces aftermarket reference(s):
BERU: 0100226526, BERU: GN064, CHAMPION: CH210, CHAMPION: CH210/002, CHAMPION: CH210002, CHAMPION: CH260, CHAMPION: CH260/002, CHAMPION: CH260002, DENSO: 0671001900, DENSO: 0671001901, DENSO: 067100-1900, DENSO: 067100-1901, DENSO: DE2602700070, DENSO: DE260270-0070, KITAHARA: PZ704, NGK: 4664, NGK: Y529J, RPOWER: RP8434
