Description

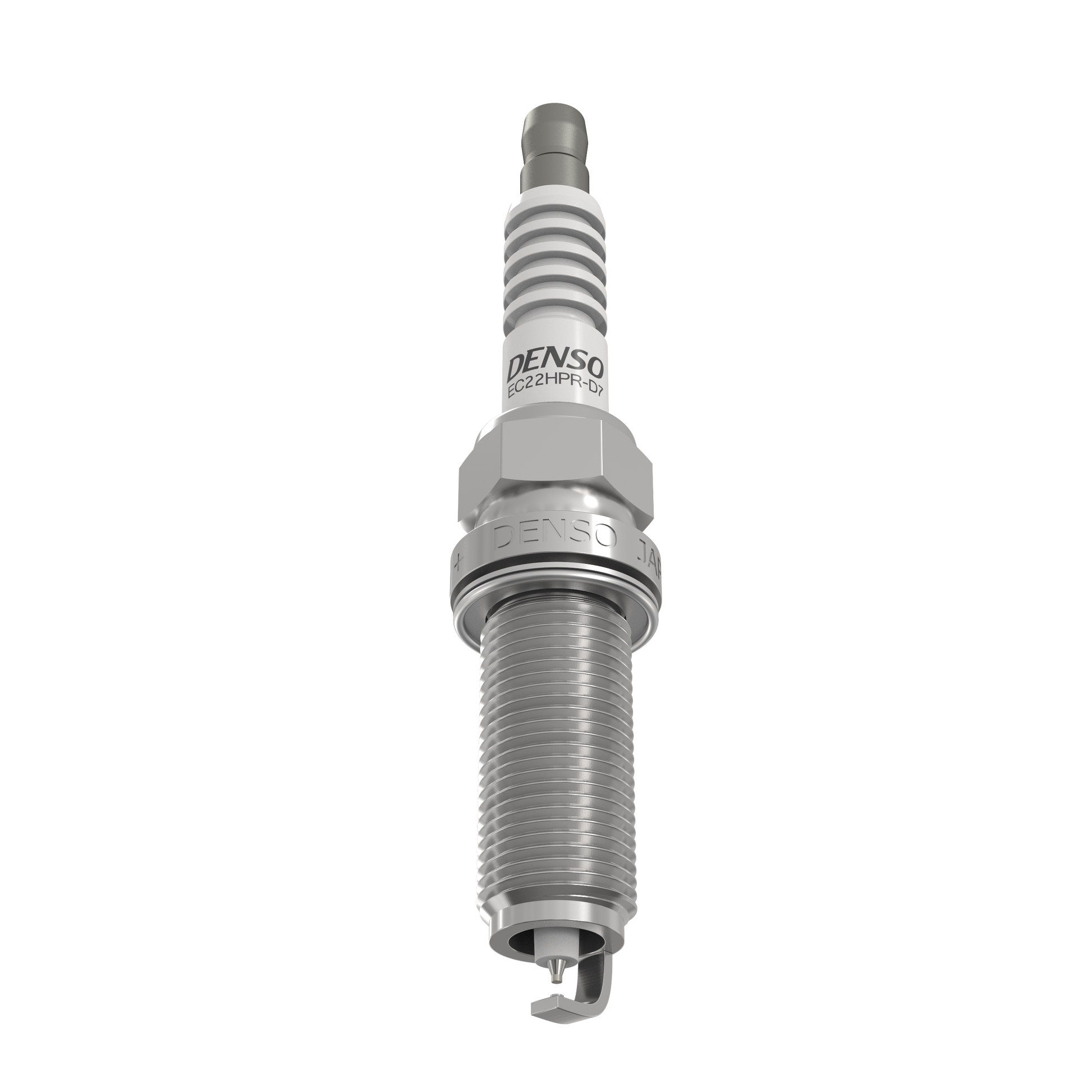

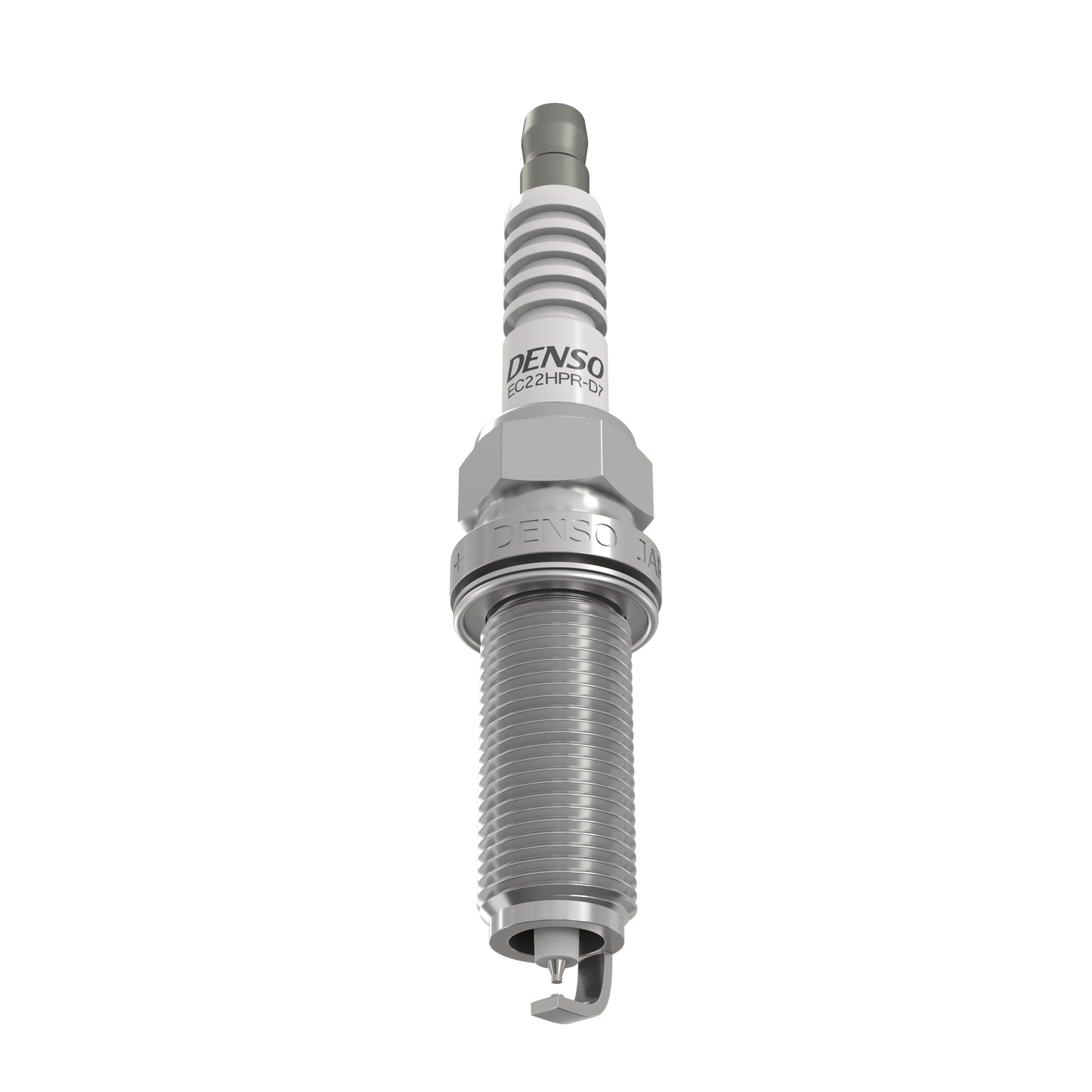

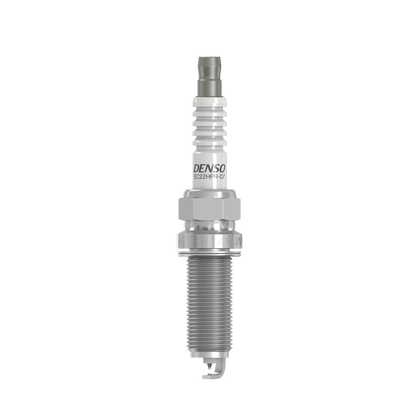

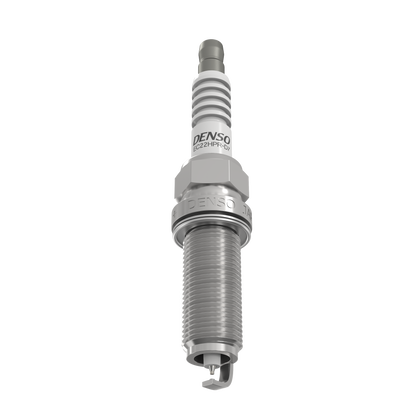

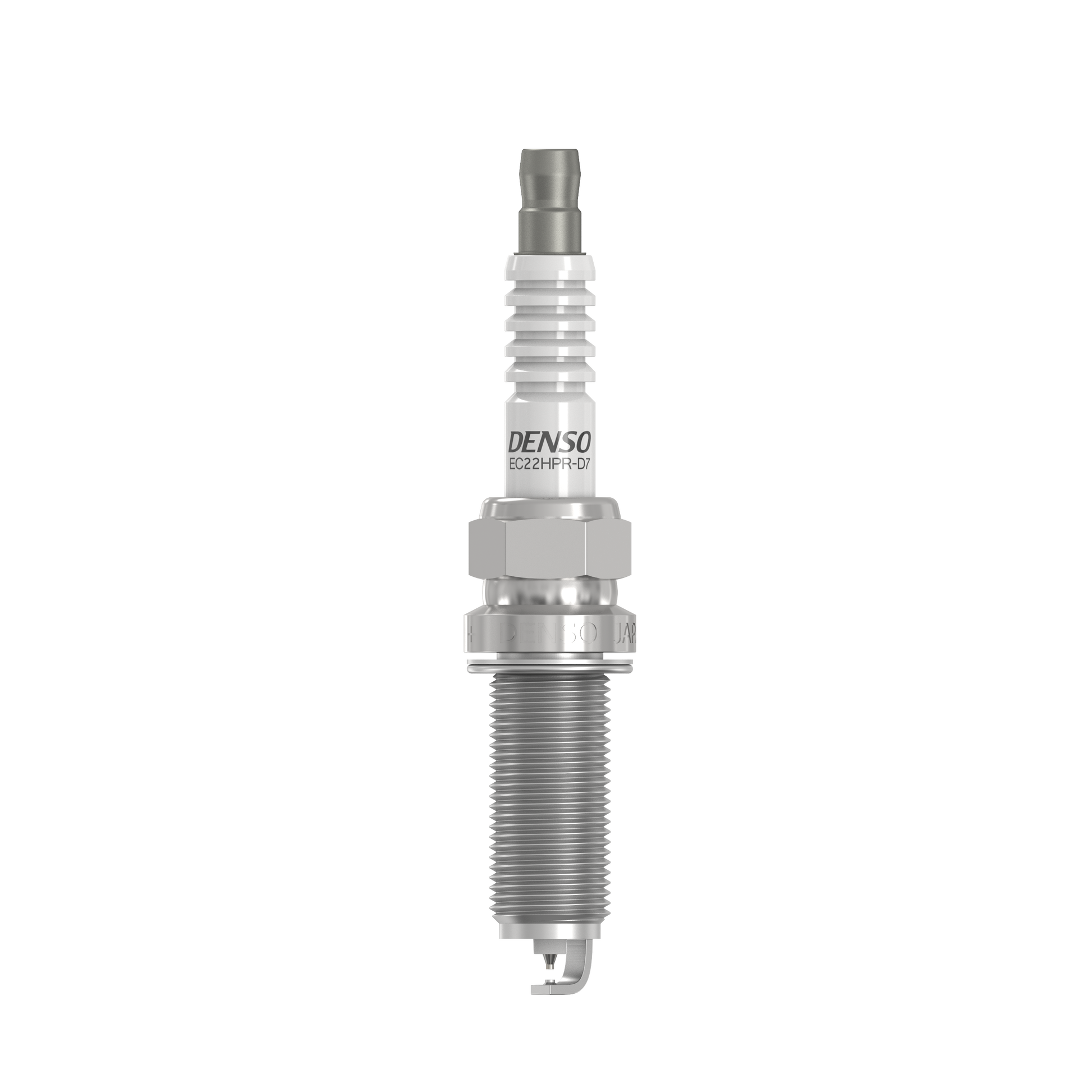

Spark Plug
- Alternative Partnumber: IXEH24FTT
- Connector type: Solid SAE
- Diam (mm): 12
- Electrode: 1 - Earthed Electrode
- Electrode Gap (mm): 0.7
- Gross Weight (g): 50
- Ground: Platinum Needle
- Height Incl Packaging (mm): 25
- Hex mm: 14 mm
- Installation torque Nm: 17
- Iridium TT: -
- Length Incl Packaging (mm): 93
- NDE p/n_NTR: 267700-8720
- Net Weight (g): 47
- Nickel TT: -
- Short code 4: S103
- Spark Plug 4 Pack with "#"_NTR: EC22HPR-D7#4

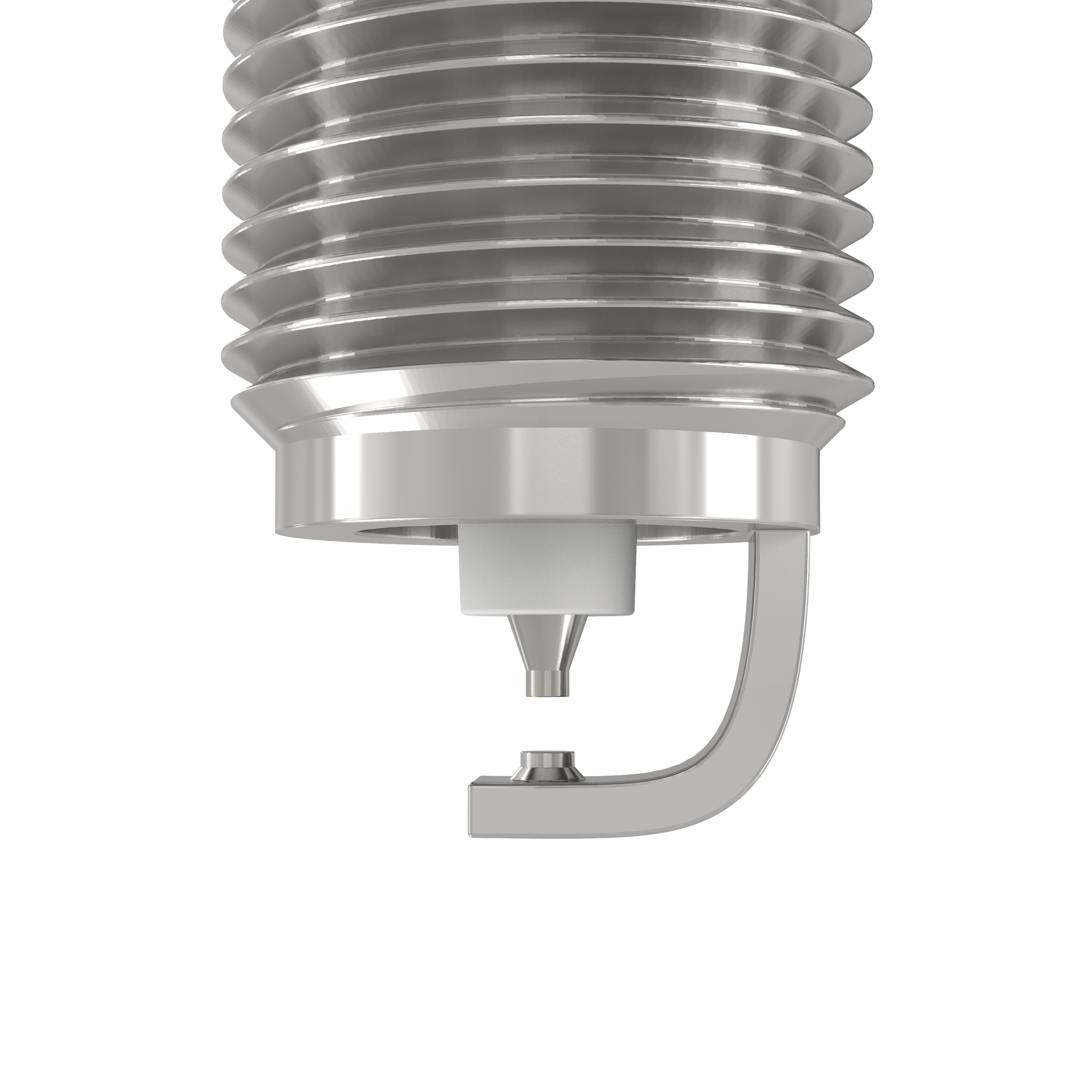

- Spark Plug: Iridium center electrode, Platinum ground electrode & resistor
- Spec: Super Ignition Plug
- Thread Length (mm): 26.5
- Thread Size: M12x1.25
- UK Stock No: 3523
- Upgrade Iridium Tough LPG: EC22HPR-D7
- Width Incl Packaging (mm): 25
Replaces OEM reference(s):
LEXUS: 9091901295, LEXUS: 90919-01295, TOYOTA: 9091901285, TOYOTA: 90919-01285, TOYOTA: 90919A1006, TOYOTA: 90919-A1006
Replaces aftermarket reference(s):
BERU: 0002240910, BERU: 0 002 240 910, BERU: 12 VR-6 MPPUS, BERU: 12VR6MPPUS, BERU: Z274, BOSCH: 0242140539, BOSCH: 0242140557, BOSCH: 0 242 140 539, BOSCH: 0 242 140 557, BOSCH: VR 6 NII 332, BOSCH: VR6NII332, BOSCH: VR8SC, BOSCH: VR8SC+, CHAMPION: OE225, CHAMPION: REA6PYPB, DENSO: 3523, DENSO: 35234, DENSO: 267700872, DENSO: 2677008720, DENSO: 267700-8720, DENSO: 3523#4, DENSO: S103, DENSO: VDCH22F, KAMOKA: 7100049, NGK: 91432, NGK: 93026, NGK: 93607, NGK: DILKAR8A8, NGK: DILKAR8J9G, NGK: ILKAR7A7, NGK: ILKAR7A7(A), NGK: ILKAR7A7A, NGK: ILKAR7D6G
