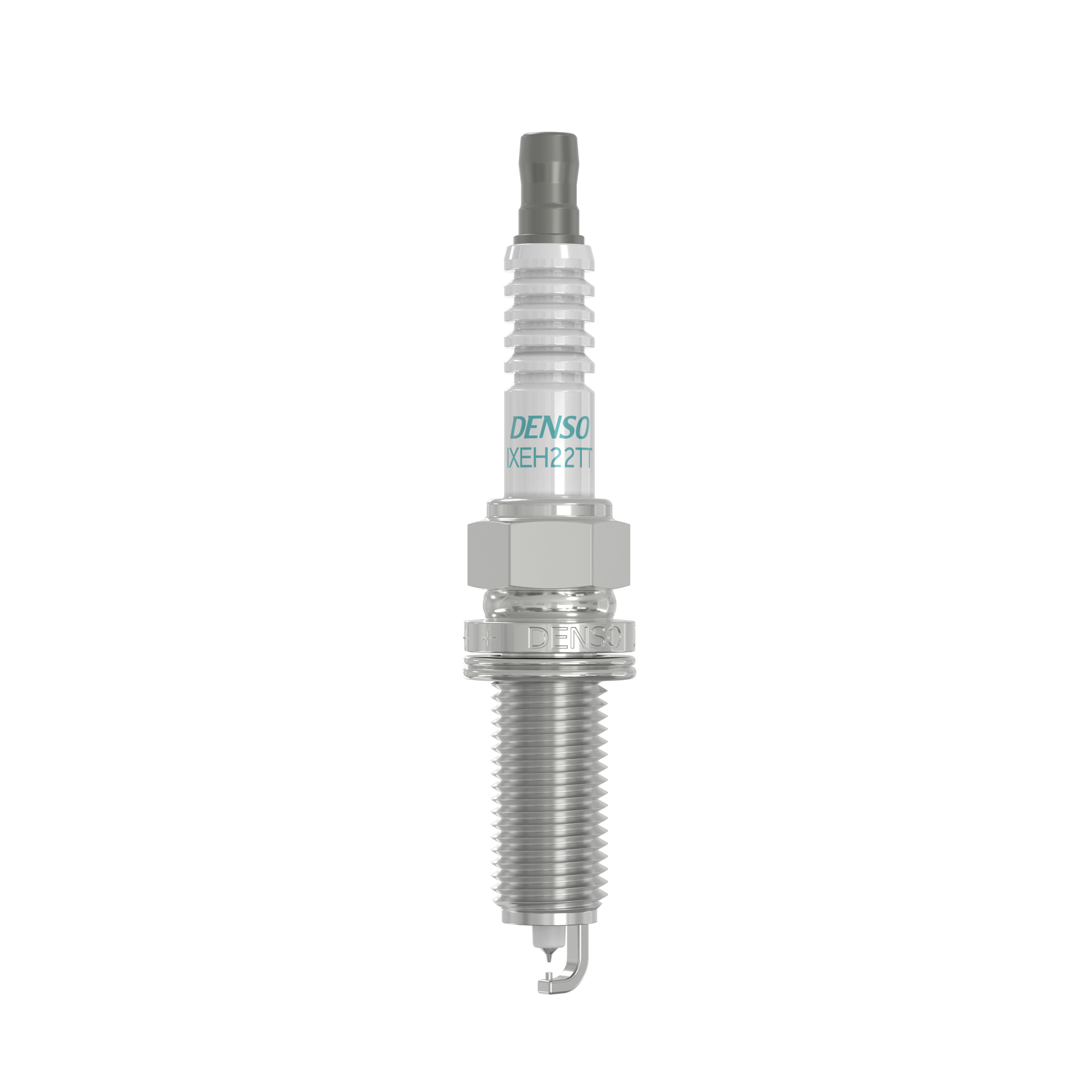

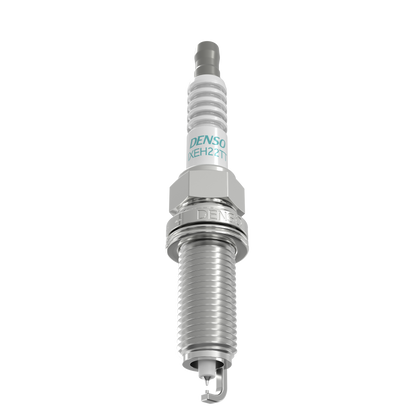

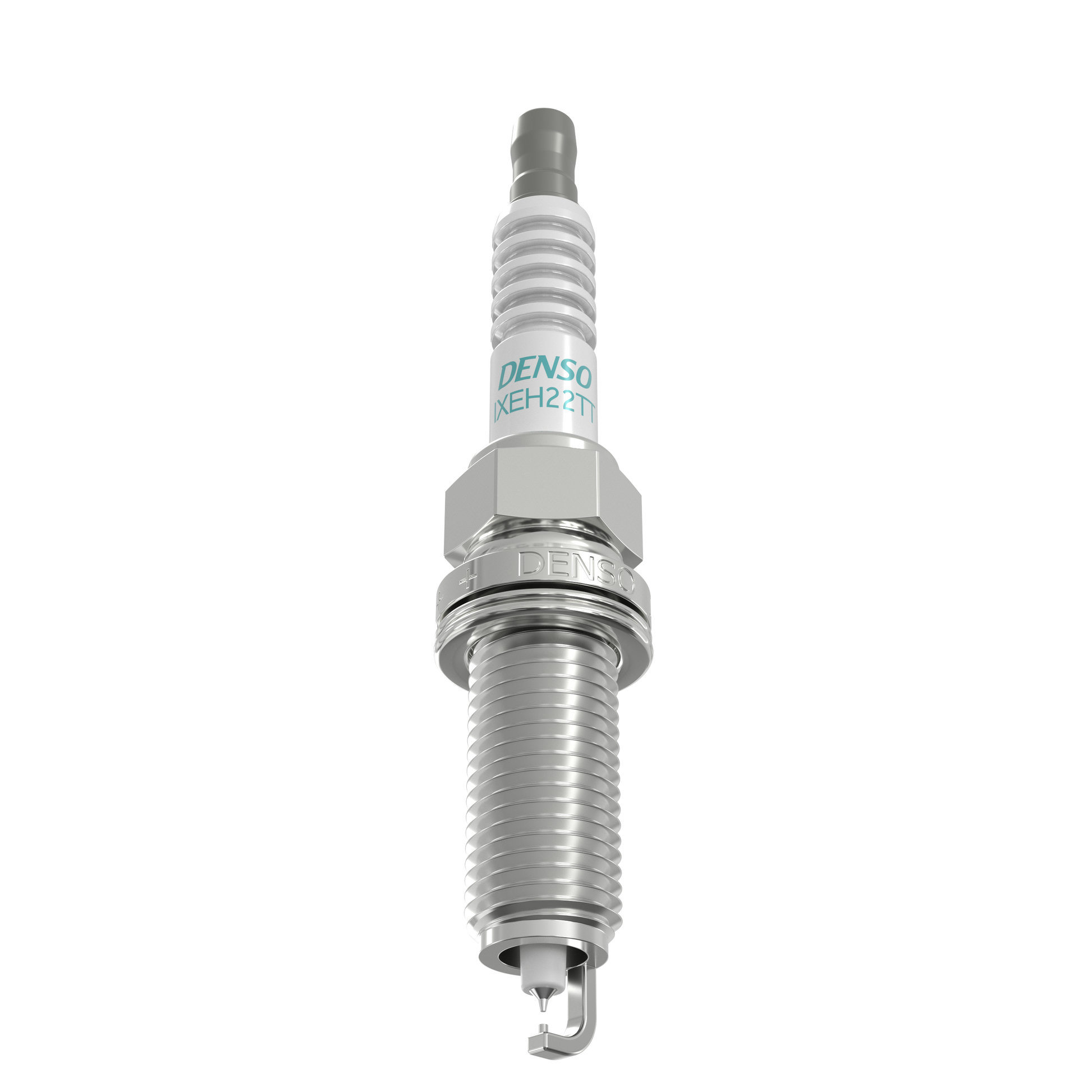

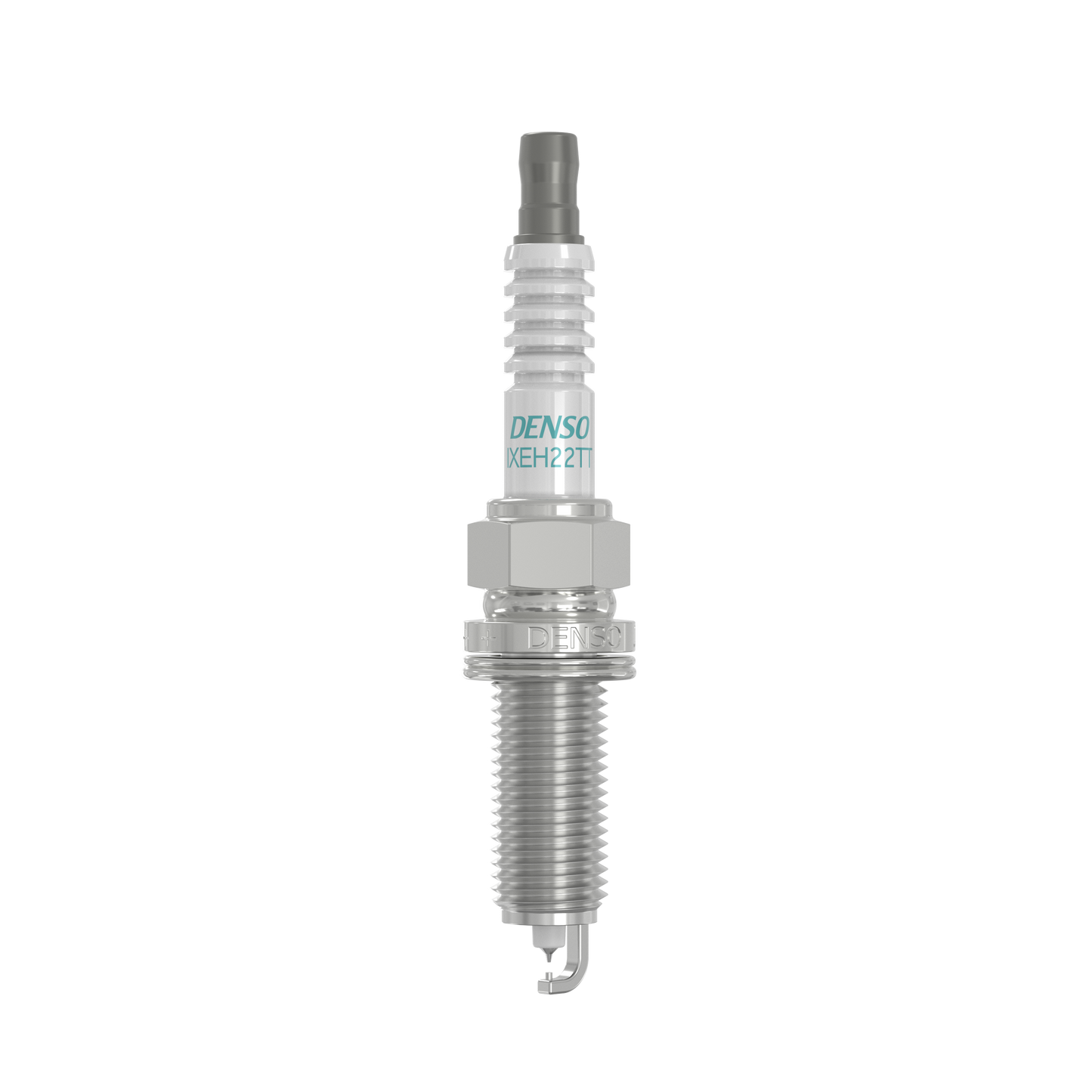

Spark Plug
- Connector type: Solid SAE
- Diam (mm): 12
- Electrode: 1 - Earthed Electrode
- Electrode Gap (mm): 1.0
- Gross Weight (g): 40
- Height Incl Packaging (mm): 25
- Hex mm: 14 mm
- Installation torque Nm: 17
- Iridium TT: IXEH22TT
- Length Incl Packaging (mm): 93
- NDE p/n_NTR: 267700-8510
- Net Weight (g): 37
- Nickel TT: -
- Projection mm: 2.5
- Short code 4: IT12
- Spark Plug 4 Pack with "#"_NTR: IXEH22TT#4

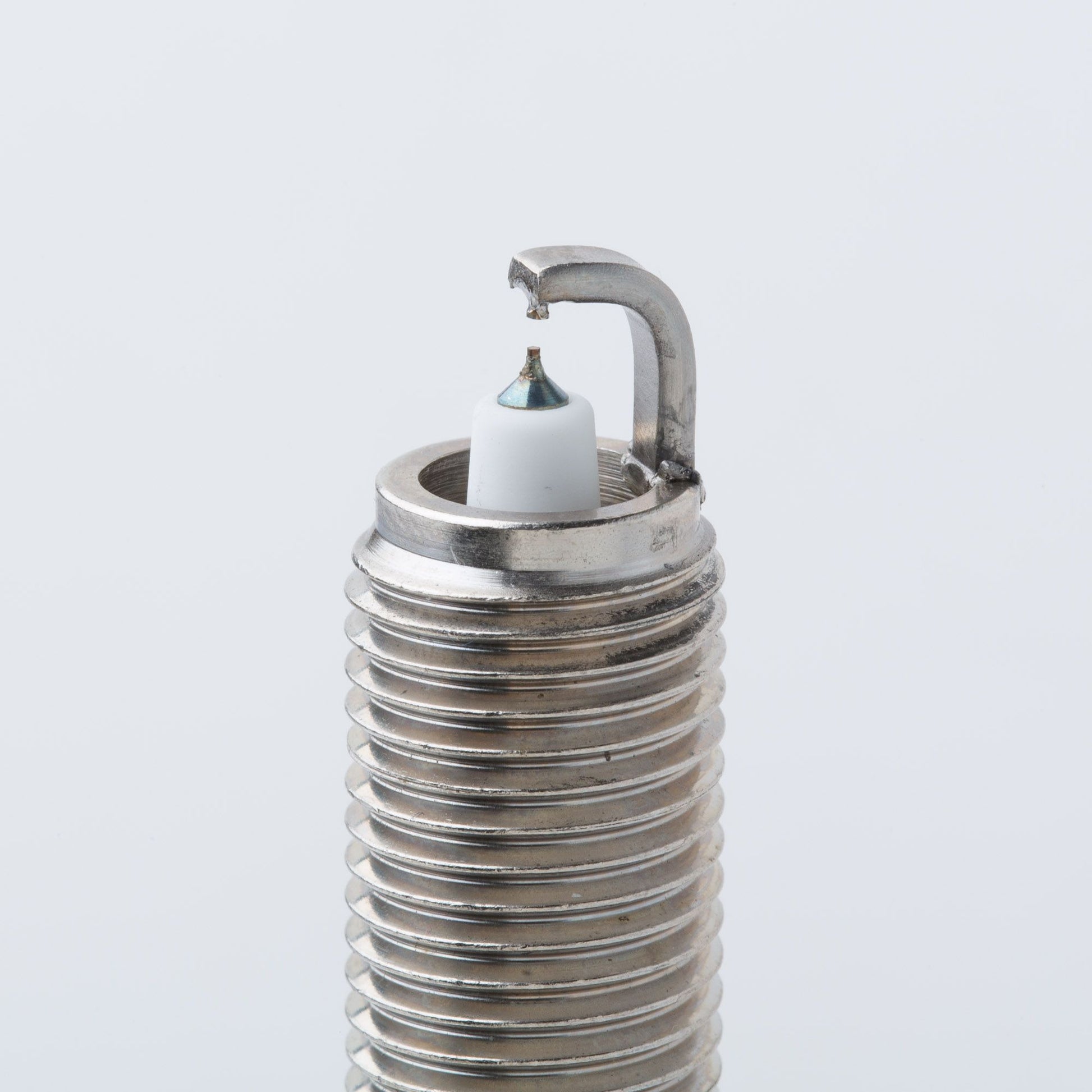

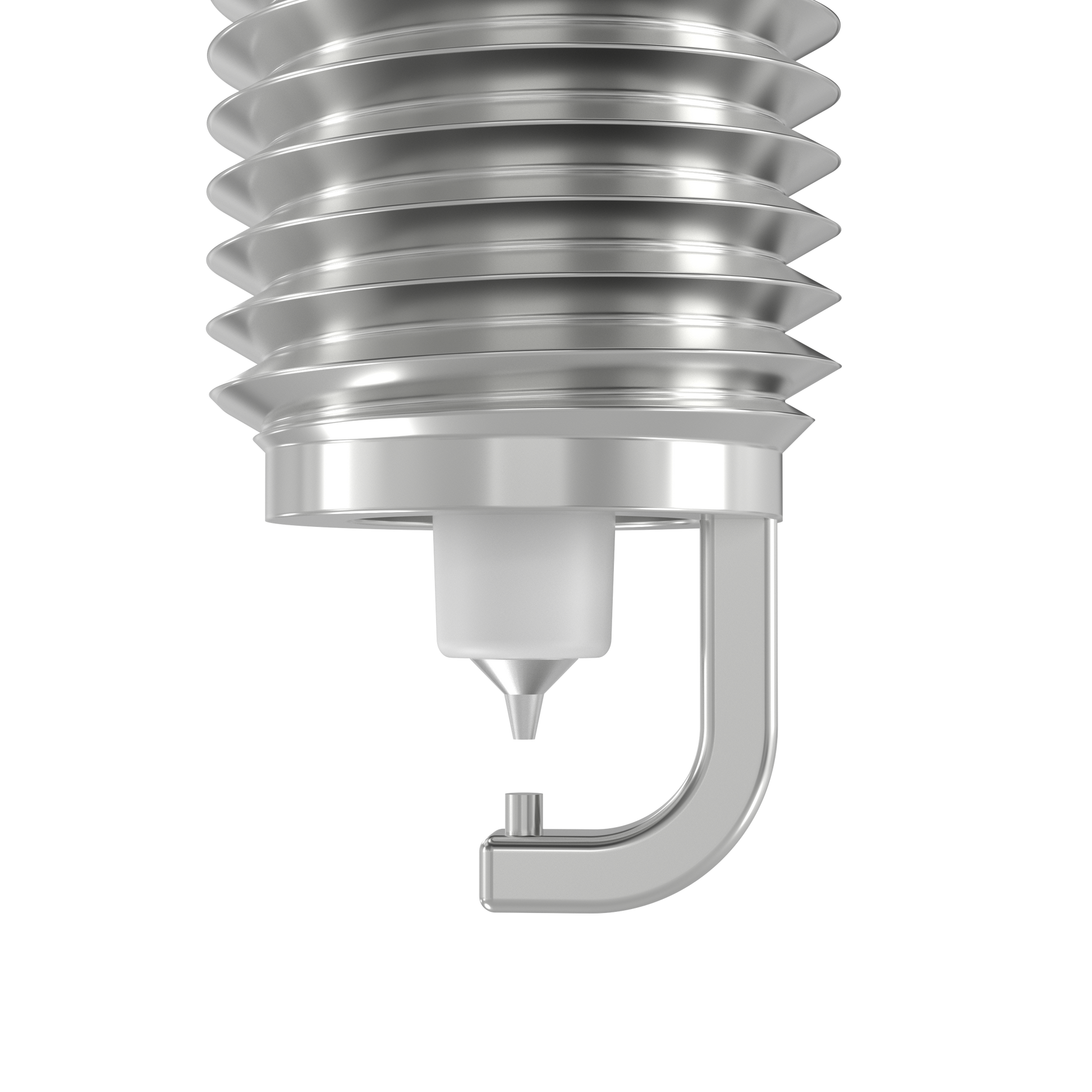

- Spark Plug: Iridium center electrode, Platinum ground electrode & resistor
- Spark Position (mm): 4.0

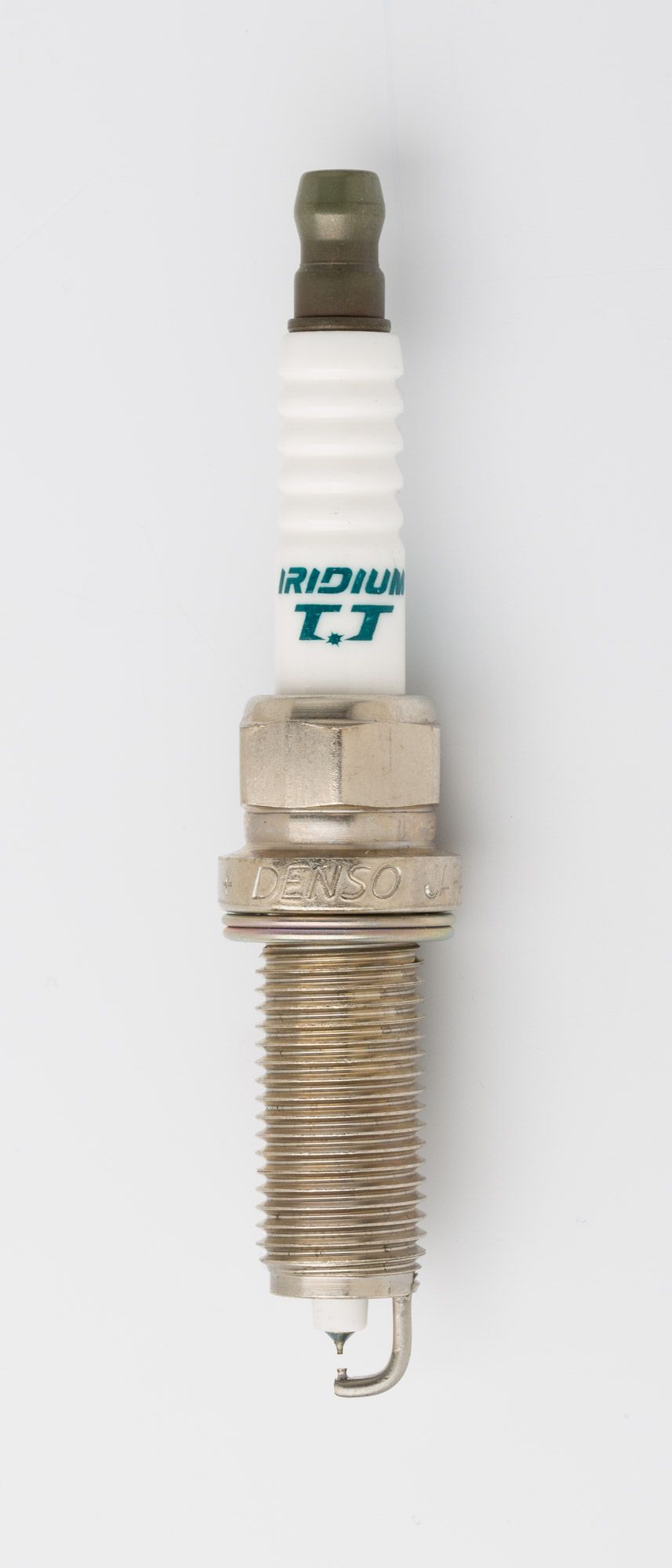

- Spec: Iridium TT
- Terminal Shape: Solid
- Thread Length (mm): 26.5
- Thread Size: M12x1.25
- TT Twin Tip: IXEH22TT
- UK Stock No: 4712
- Width Incl Packaging (mm): 25
Replaces OEM reference(s):
SUBARU: 22401AA880, SUBARU: 22401-AA880
Replaces aftermarket reference(s):
BOSCH: 0242135529, BOSCH: 0 242 135 529, BOSCH: VR 7 NII 33 X, BOSCH: VR7NII33X, CHAMPION: REA6MX, DENSO: 4712, DENSO: 47124, DENSO: 267700851, DENSO: 2677007940, DENSO: 2677008510, DENSO: 267700-7940, DENSO: 267700-8510, DENSO: 4712#4, DENSO: FC20HPR8, DENSO: FXE22HR11, DENSO: IT12, DENSO: MW267700851, DENSO: SC20HR11, DENSO: VCH20, DENSO: VFXEH22, DENSO: ZC20HPR11, KAMOKA: 7100051, NGK: 1317, NGK: 1406, NGK: 1654, NGK: 4912, NGK: 6043, NGK: 6283, NGK: 90935, NGK: 91899, NGK: 94124, NGK: DF7H11B, NGK: DF7H-11B, NGK: DILKAR7B11, NGK: DILKAR7B8, NGK: DILKAR7F8, NGK: DILKAR7Q8, NGK: DILZKAR7B11, NGK: ILKAR7B11, NGK: ILKAR7L11, NGK: ILZKAR7A, NGK: ILZKAR7A10, NGK: ILZKAR7B11
