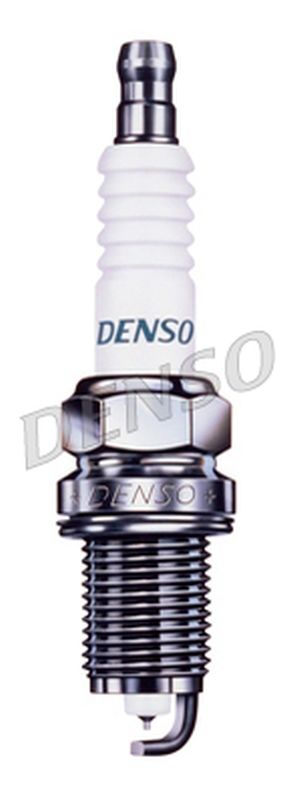

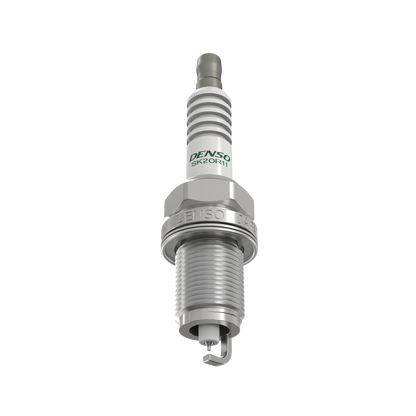

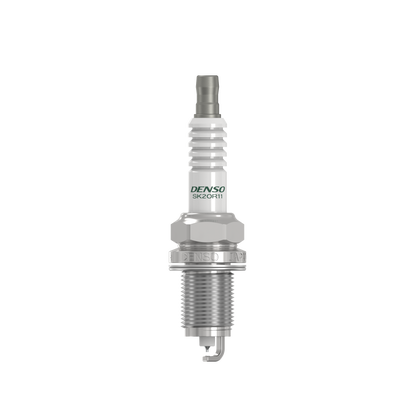

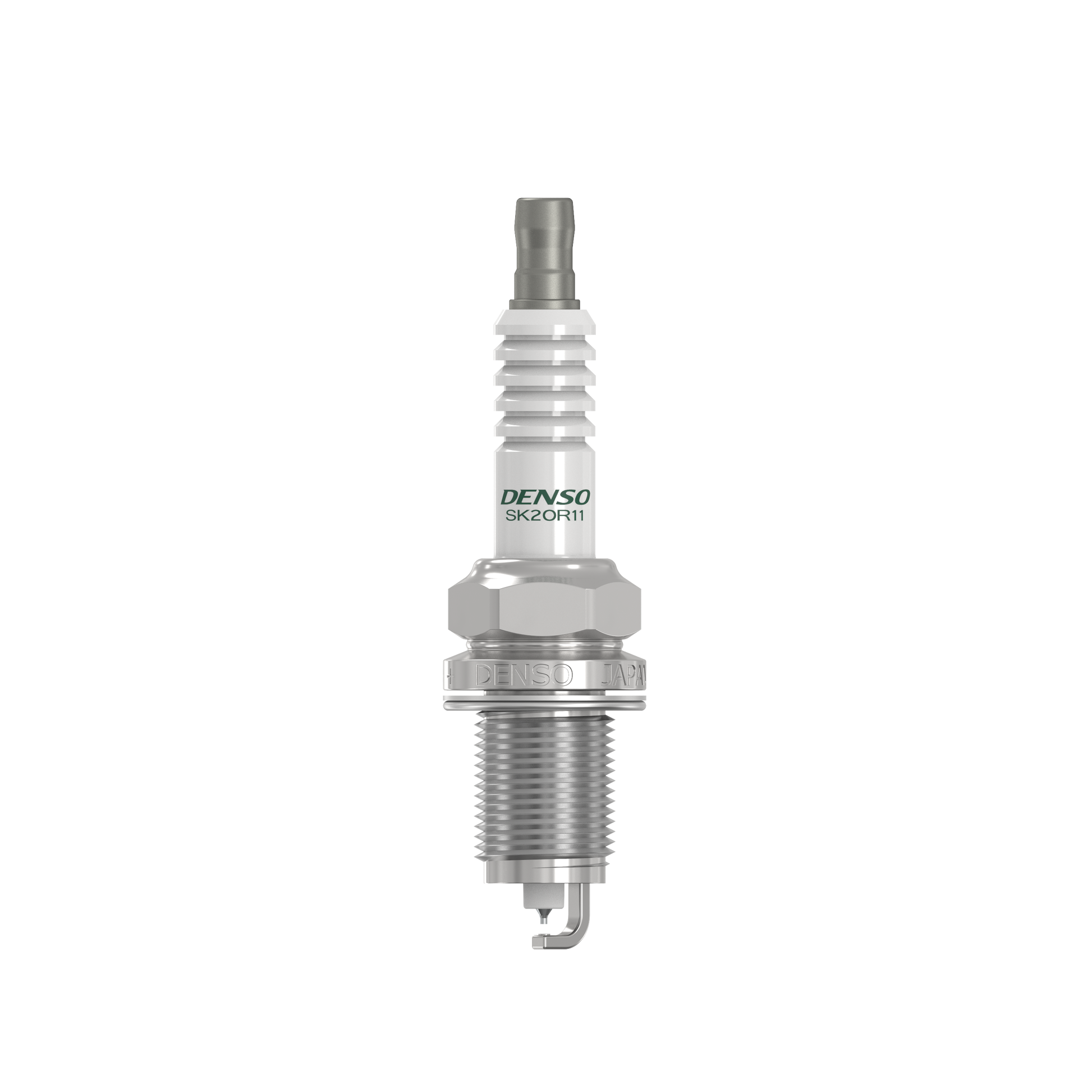

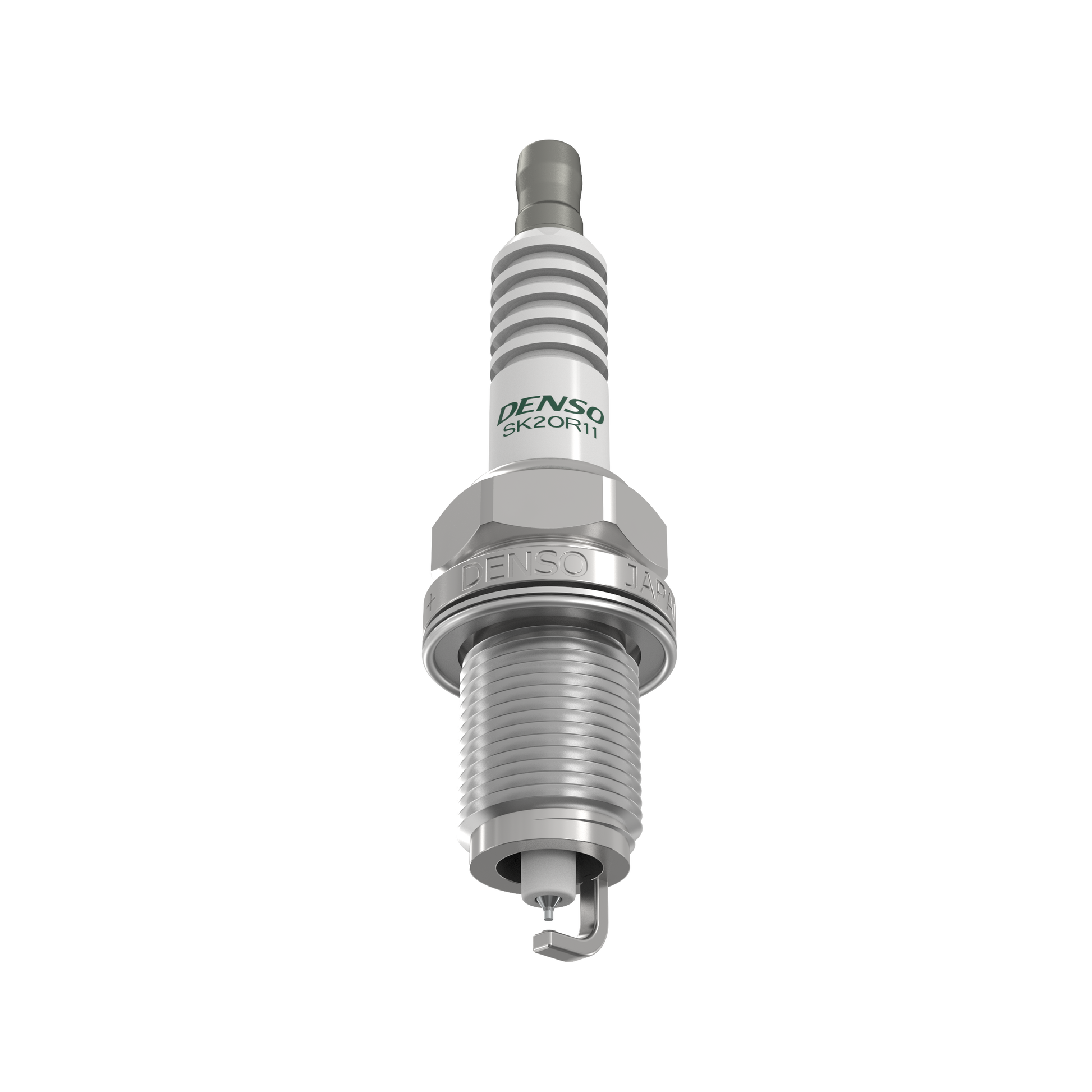

Spark Plug
- Alternative Partnumber: IK20TT
- Connector type: Solid SAE
- Diam (mm): 14
- Electrode: 1 - Earthed Electrode
- Electrode Gap (mm): 1.1
- Gross Weight (g): 46
- Height Incl Packaging (mm): 25
- Hex mm: 16 mm
- Installation torque Nm: 22
- Iridium TT: IK20TT
- Length Incl Packaging (mm): 85
- NDE p/n_NTR: 067700-8340
- Net Weight (g): 43
- Nickel TT: -
- Short code 4: S2

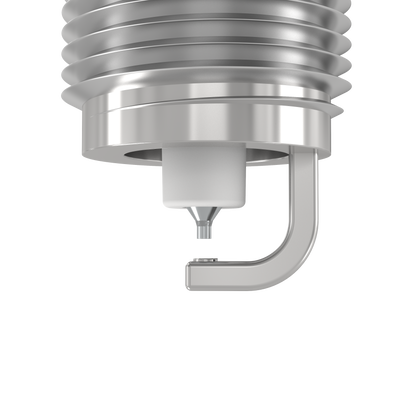

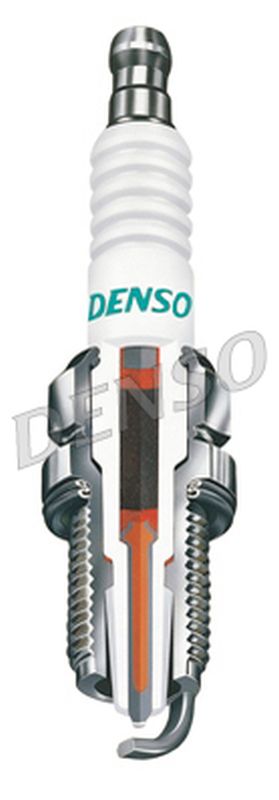

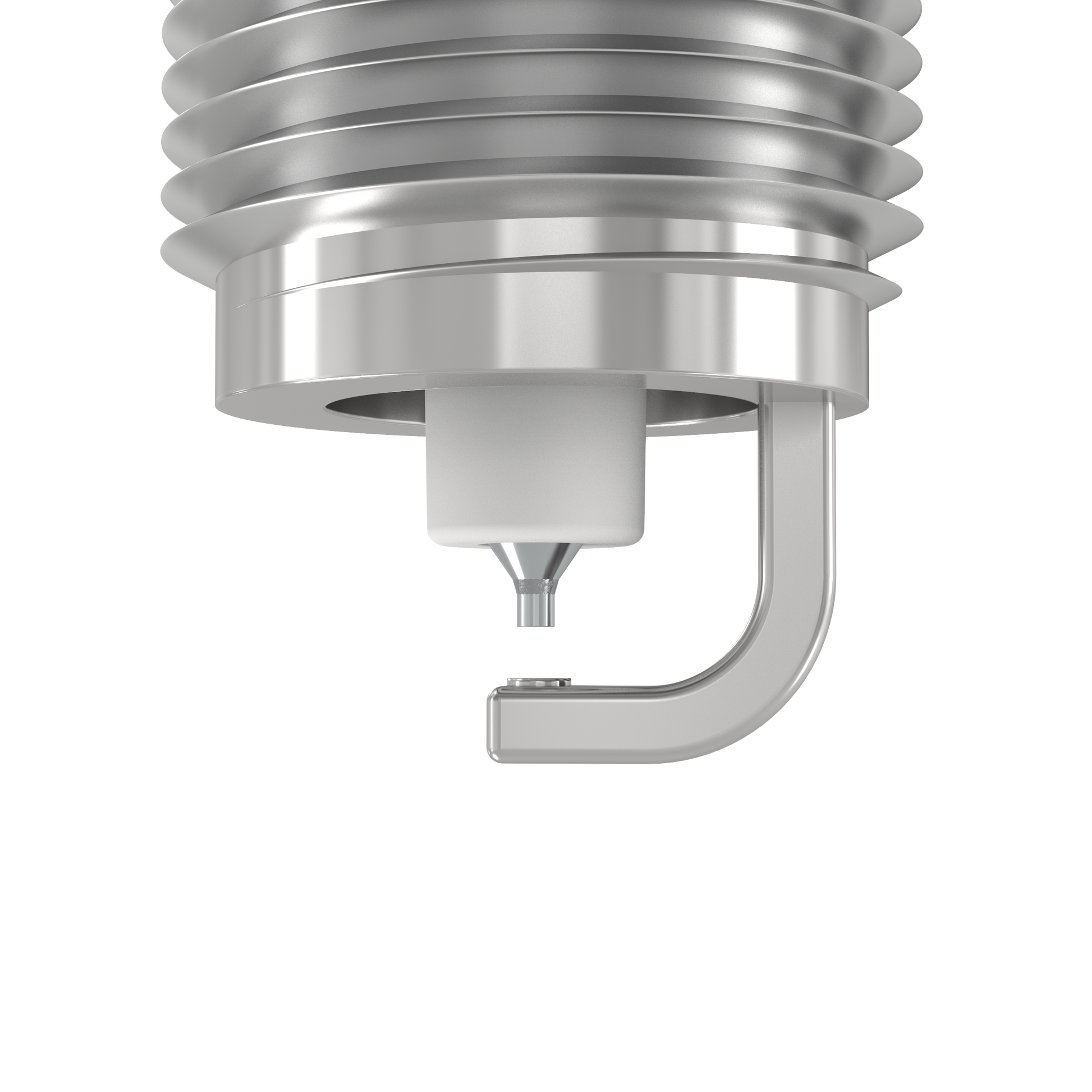

- Spark Plug: Iridium center electrode, Platinum ground electrode & resistor
- Spec: Iridium

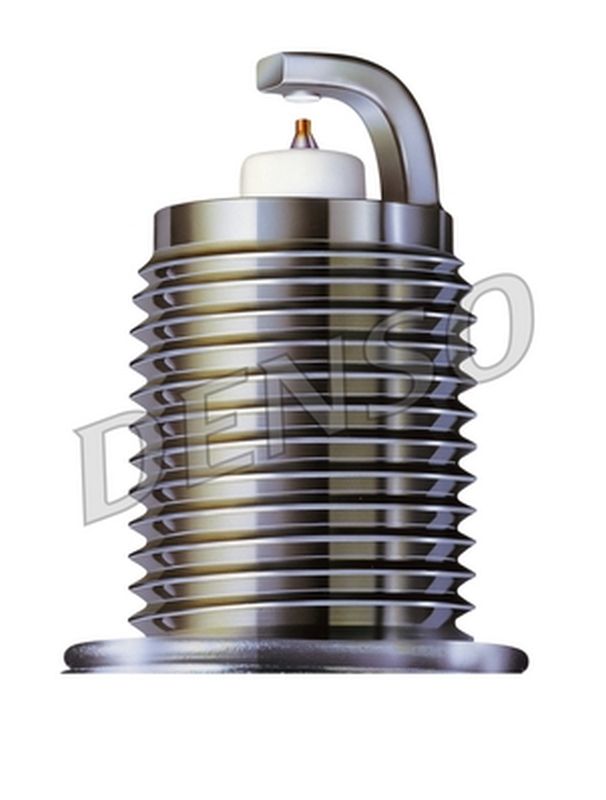

- Thread Length (mm): 19
- Thread Size: M14x1.25
- TT Twin Tip: IK20TT
- UK Stock No: 3297
- Upgrade Iridium Tough LPG: IK20TT
- Width Incl Packaging (mm): 25
Replaces OEM reference(s):
DAIHATSU: 9004851186, DAIHATSU: 90048-51186, FORD: 5R2912405AA, FORD: 5R29-12405-AA, FORD: 8R2912405BA, FORD: 8R29-12405-BA, TOYOTA: 9008091180, TOYOTA: 9091901210, TOYOTA: 9091901211, TOYOTA: 9091901237, TOYOTA: 9091901238, TOYOTA: 90080-91180, TOYOTA: 9008091180B, TOYOTA: 90080-91180-B, TOYOTA: 90919-01210, TOYOTA: 90919-01211, TOYOTA: 90919-01237, TOYOTA: 90919-01238, TOYOTA: 90919T1007, TOYOTA: 90919-T1007, TOYOTA: 90919T1007A, TOYOTA: 90919-T1007-A, TOYOTA/LEXUS: 9091901210, TOYOTA/LEXUS: 9091901237, TOYOTA/LEXUS: 90919-01210, TOYOTA/LEXUS: 90919-01237, YAMAHA: 9091901237, YAMAHA: 90919-01237
Replaces aftermarket reference(s):
BERU: 0002335926, BERU: 14 FR-7 KPUX02, BERU: 14FR7KPUX02, BERU: Z280, CHAMPION: 9806, CHAMPION: OE182, CHAMPION: OE182/R04, CHAMPION: OE182/T10, CHAMPION: OE182R04, CHAMPION: OE182T10, CHAMPION: RC89WYPB4, DENSO: 3297, DENSO: 32974, DENSO: 67700834, DENSO: 0677008340, DENSO: 067700-8340, DENSO: 3297#4, DENSO: MW2676000860, DENSO: S2, KAMOKA: 7100054, NGK: 4589, NGK: IFR6A11, NGK: IFR6T11
