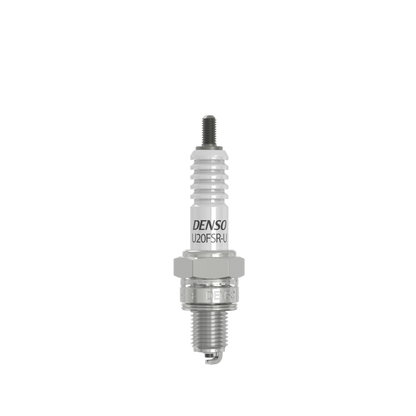

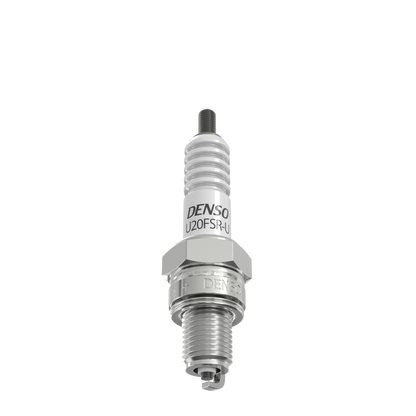

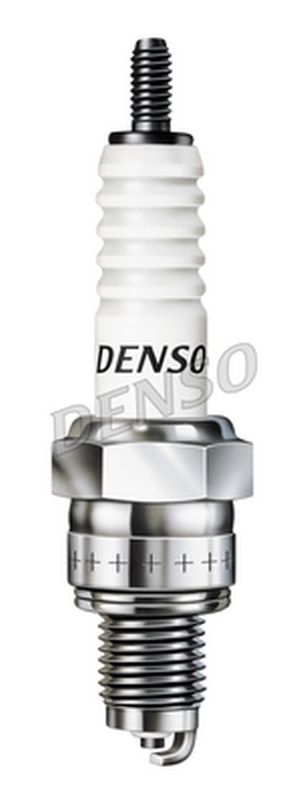

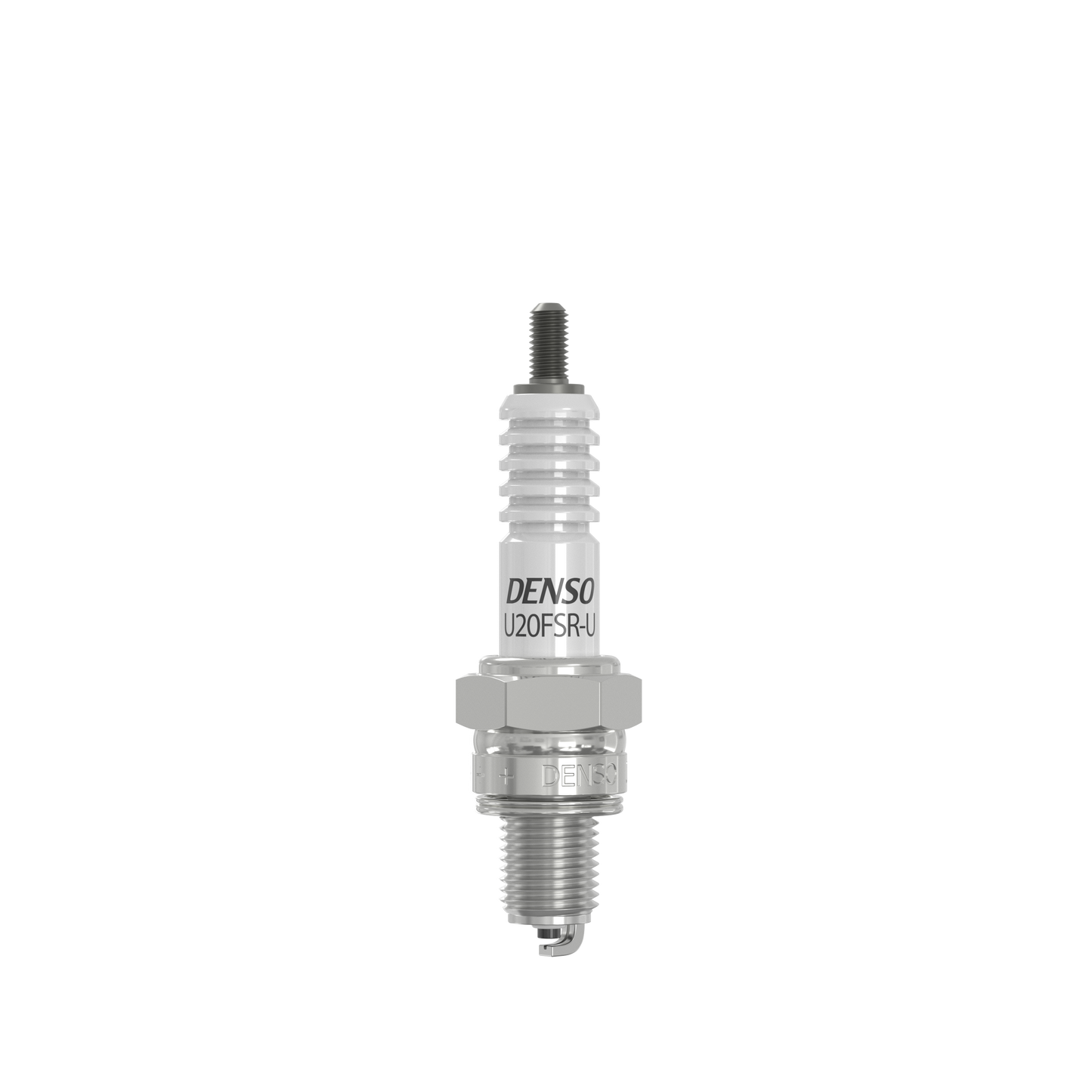

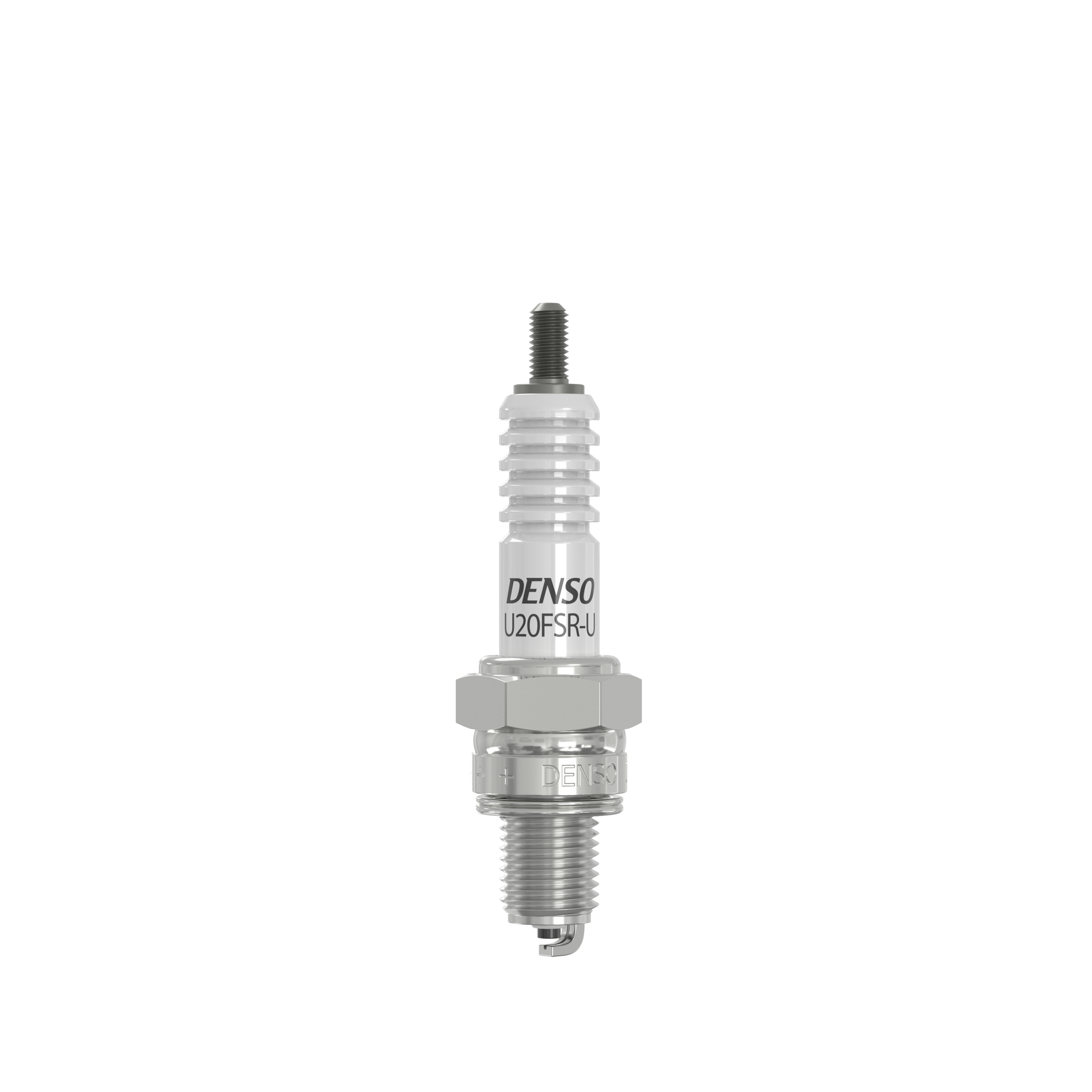

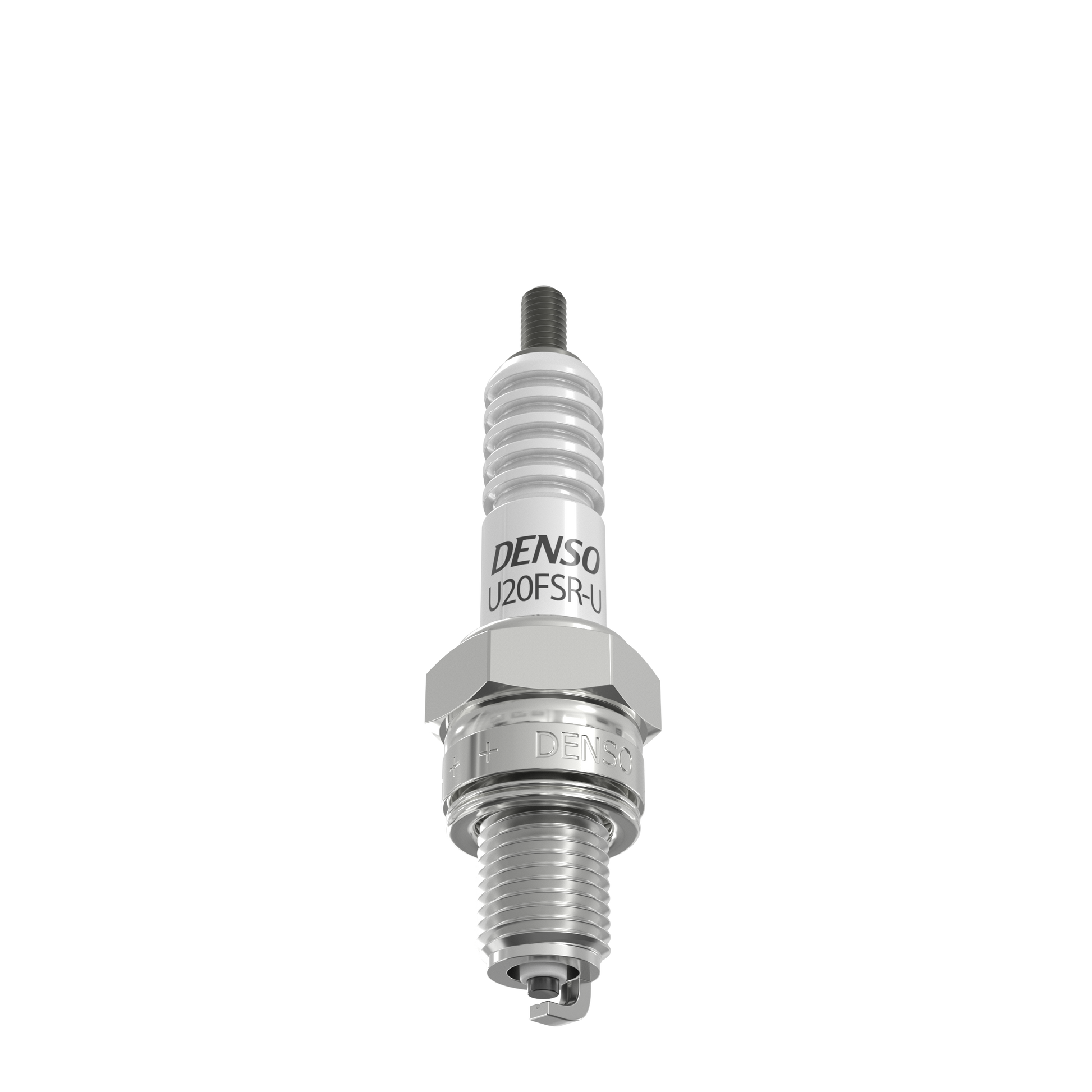

Denso Spark Plug U20FSR-U

Spark Plug

• Alternative Partnumber: IUF22
• Connector type: Thread M4
• Diam (mm): 10

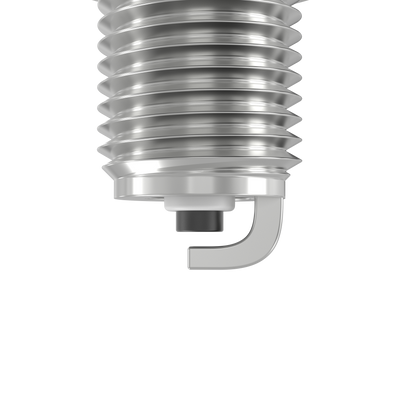

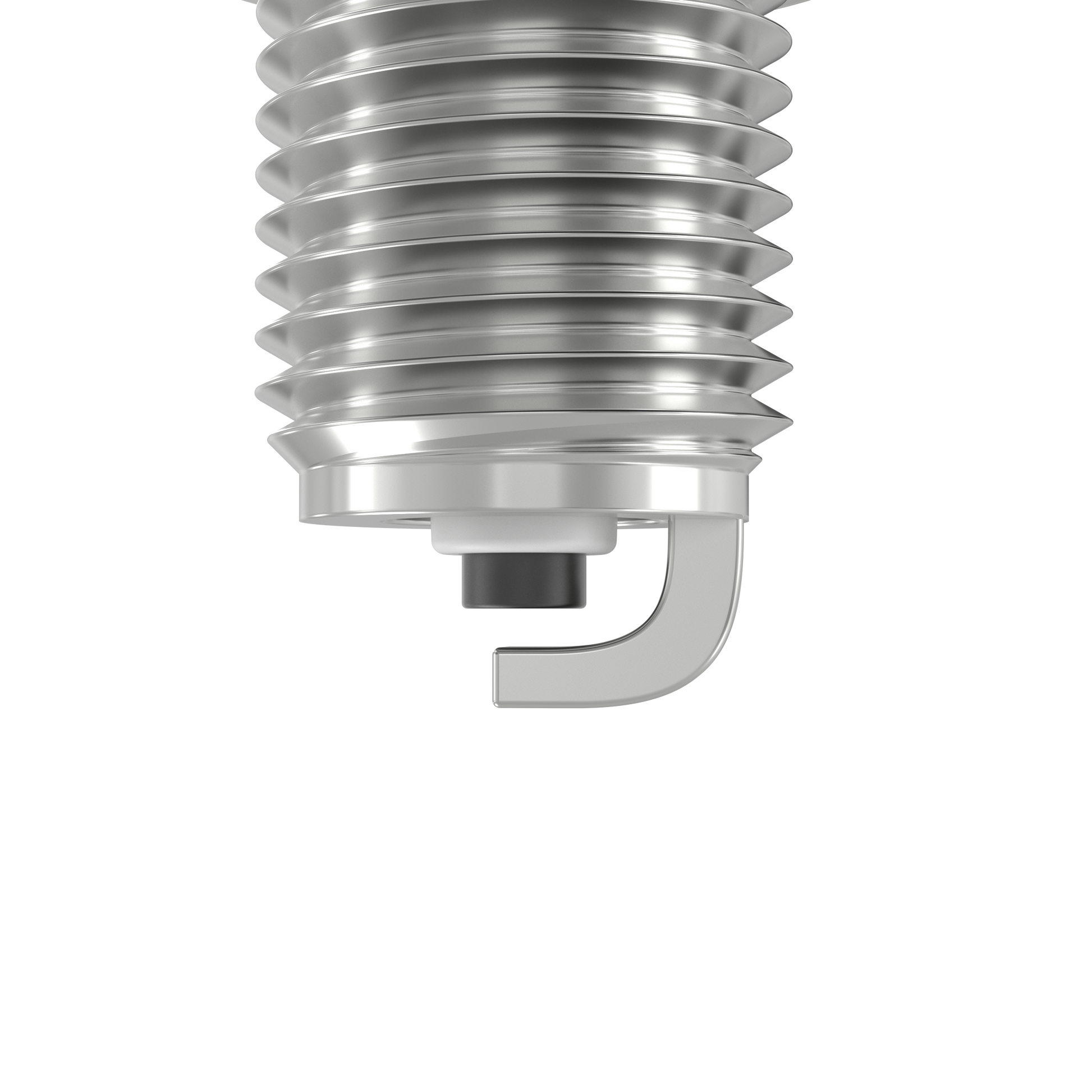

• Electrode: 1 - Earthed Electrode
• Electrode Gap (mm): 0.7
• Gross Weight (g): 31.5
• Height Incl Packaging (mm): 25
• Hex mm: 16 mm
• Installation torque Nm: 12
• Iridium Power: IUF22
• Iridium TT: -
• Length Incl Packaging (mm): 85
• NDE p/n_NTR: 067700-5590
• Net Weight (g): 28.5
• Nickel TT: -
• Spark Plug: Nickel mass electrode
• Spec: Nickel
• Thread Length (mm): 12.7
• Thread Size: M10x1.0
• UK Stock No: 4004
• Width Incl Packaging (mm): 25

Replaces OEM reference(s):
HITACHI: L14W, HONDA: 9805656713, HONDA: 9805656716, HONDA: 9805656717, HONDA: 9805656718, HONDA: 9805656726, HONDA: 980565672604, HONDA: 98056-56713, HONDA: 98056-56716, HONDA: 98056-56717, HONDA: 98056-56718, HONDA: 98056-56726, HONDA: 98056-567-2604, KAWASAKI: 920701128, KAWASAKI: 92070-1128, KAWASAKI: J4520U20FSRU, SUZUKI: 0948200294, SUZUKI: 0948200340, SUZUKI: 0948200406, SUZUKI: 0948200407, SUZUKI: 0948200407000, SUZUKI: 09482-00294, SUZUKI: 09482-00340, SUZUKI: 09482-00406, SUZUKI: 09482-00407, SUZUKI: 09482-00407-000, TACTI: V91104002, TACTI: V9110-4002, TACTI: V91104004, TACTI: V9110-4004, TOYOTA/LEXUS: 9009870023, TOYOTA/LEXUS: 90098-70023, YAMAHA: 9470000283, YAMAHA: 9470000895, YAMAHA: 9470100256, YAMAHA: 9470100282, YAMAHA: 9470100283, YAMAHA: 9470100372, YAMAHA: 9470200372, YAMAHA: 9470300213, YAMAHA: 9470300256, YAMAHA: 9470300283, YAMAHA: 9470300372, YAMAHA: 9470900372, YAMAHA: 9079END017, YAMAHA: 9079E-ND017, YAMAHA: 9079END041, YAMAHA: 9079E-ND041, YAMAHA: 94700-00283, YAMAHA: 94700-00895, YAMAHA: 94701-00256, YAMAHA: 94701-00282, YAMAHA: 94701-00283, YAMAHA: 94701-00372, YAMAHA: 94702-00372, YAMAHA: 94703-00213, YAMAHA: 94703-00256, YAMAHA: 94703-00283, YAMAHA: 947-03002-83, YAMAHA: 94703-00372, YAMAHA: 94709-00372

Replaces aftermarket reference(s):
ACDelco: S104F, BOSCH: 0241040501, BOSCH: 0241045001, BOSCH: 0241045502, BOSCH: 0242040500, BOSCH: 0 241 040 501, BOSCH: 0 241 045 001, BOSCH: 0 241 045 502, BOSCH: 0 242 040 500, BOSCH: U 5 AC, BOSCH: U 6 AC, BOSCH: U5AC, BOSCH: U6AC, BOSCH: UR 6 AC, BOSCH: UR6AC, CHAMPION: PRZ9HC, CHAMPION: PZ9HC, CHAMPION: RZ98C, CHAMPION: Z9HC, DENSO: 4004, DENSO: 67700559, DENSO: 0677005590, DENSO: 067700-5590, DENSO: JK067800736, DENSO: MW067700559, EYQUEM: T30, ISKRA: T30, MAGNETI MARELLI: CU7N, MOTORCRAFT: PV3, NGK: 2983, NGK: 4042, NGK: 6500, NGK: 7023, NGK: CR6HS, NGK: CR6HSA, NGK: CR6HSB, NGK: Q223, NHSP: A7RTC, SPLITFIRE: SF419D, TORCH: A6RC, TORCH: A6RTC, TORCH: A6TC, TORCH: T1136
