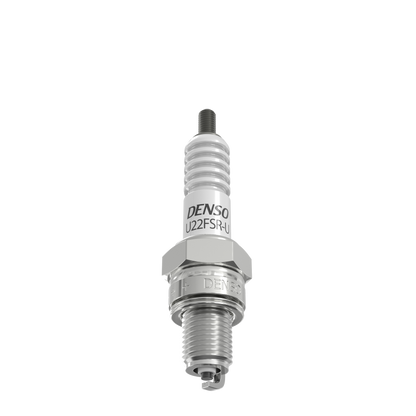

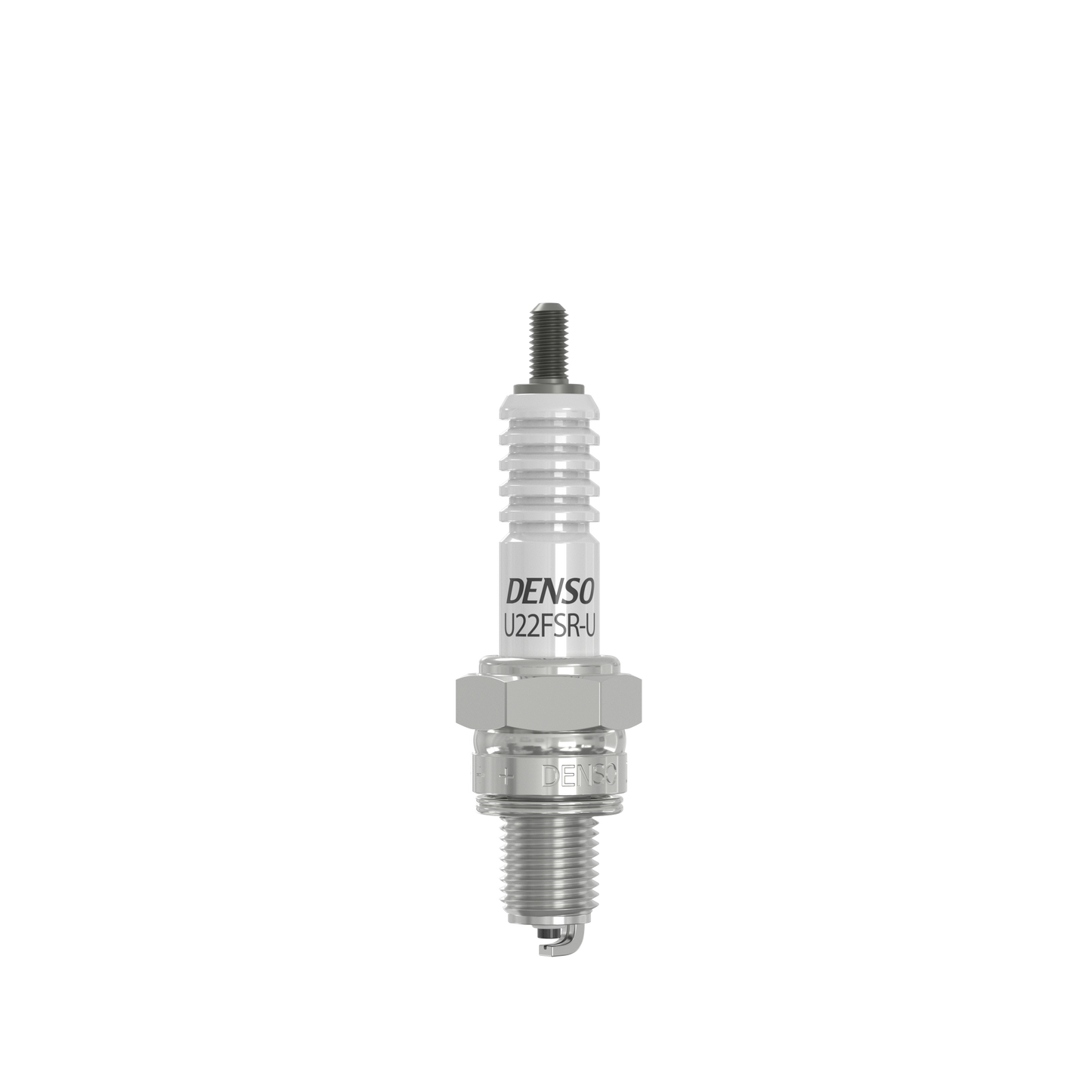

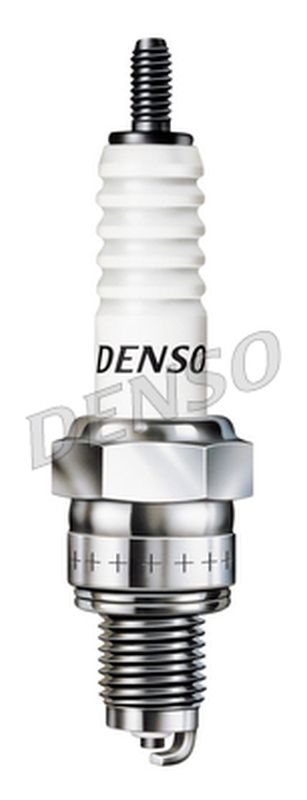

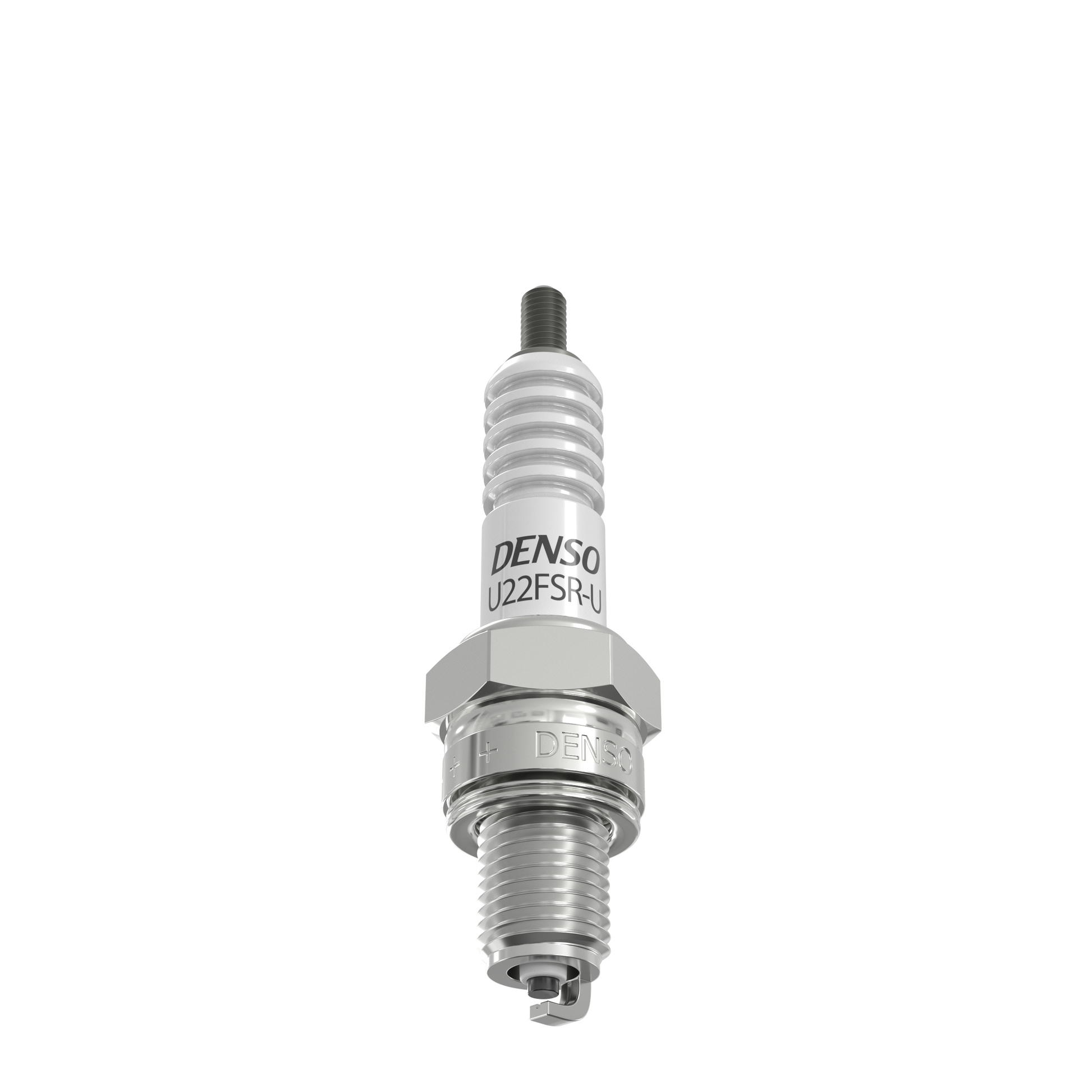

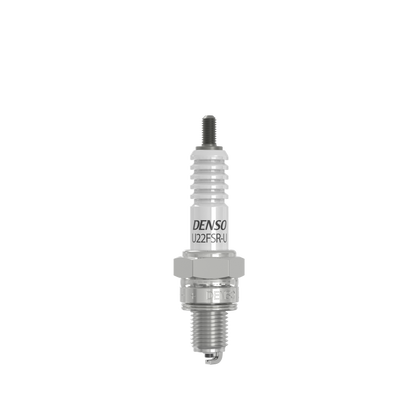

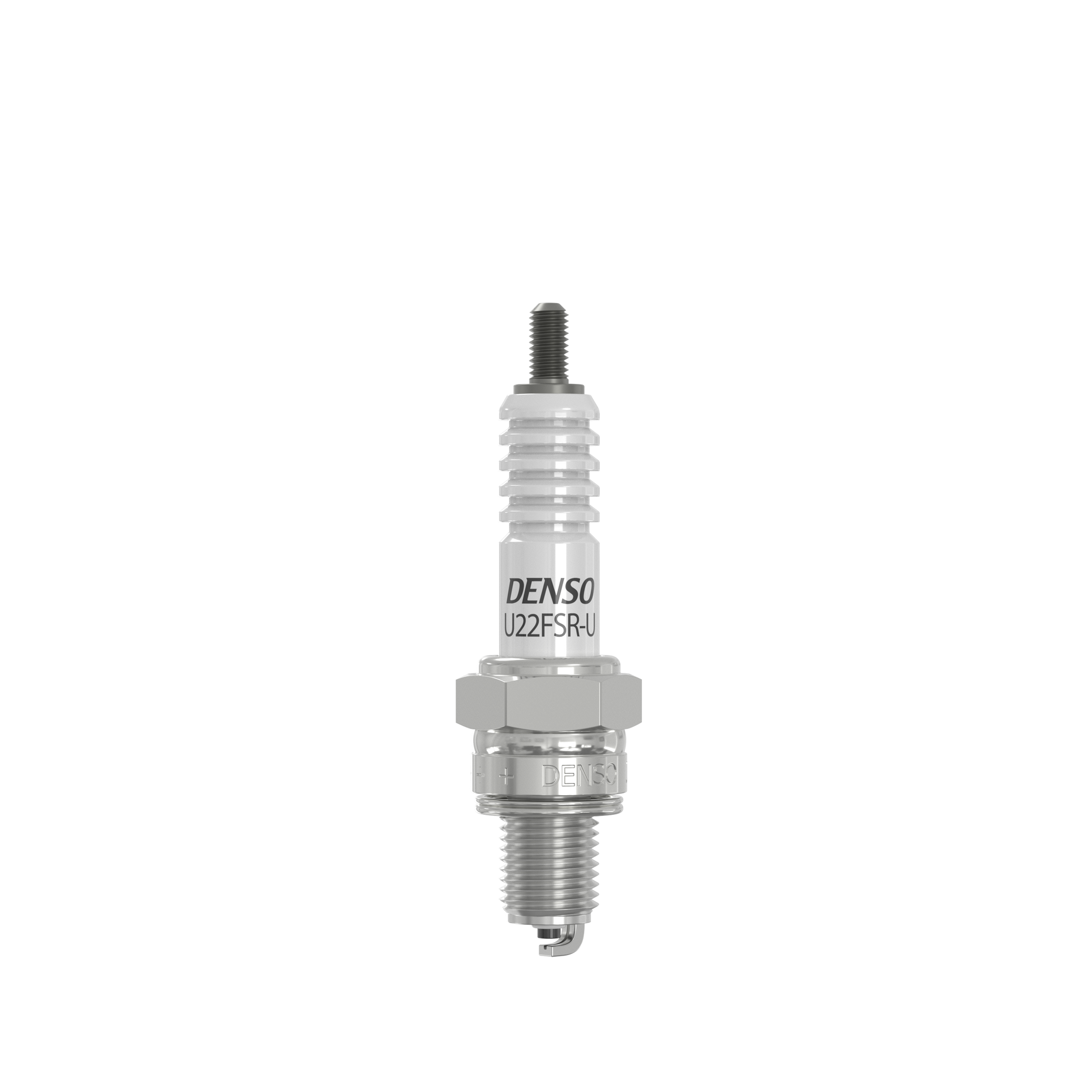

Denso Spark Plug U22FSR-U

Spark Plug

• Alternative Partnumber: IUF22
• Connector type: Thread M4
• Diam (mm): 10

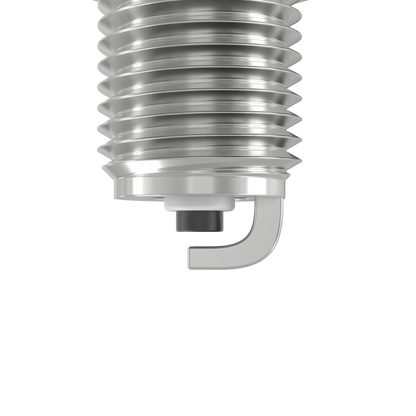

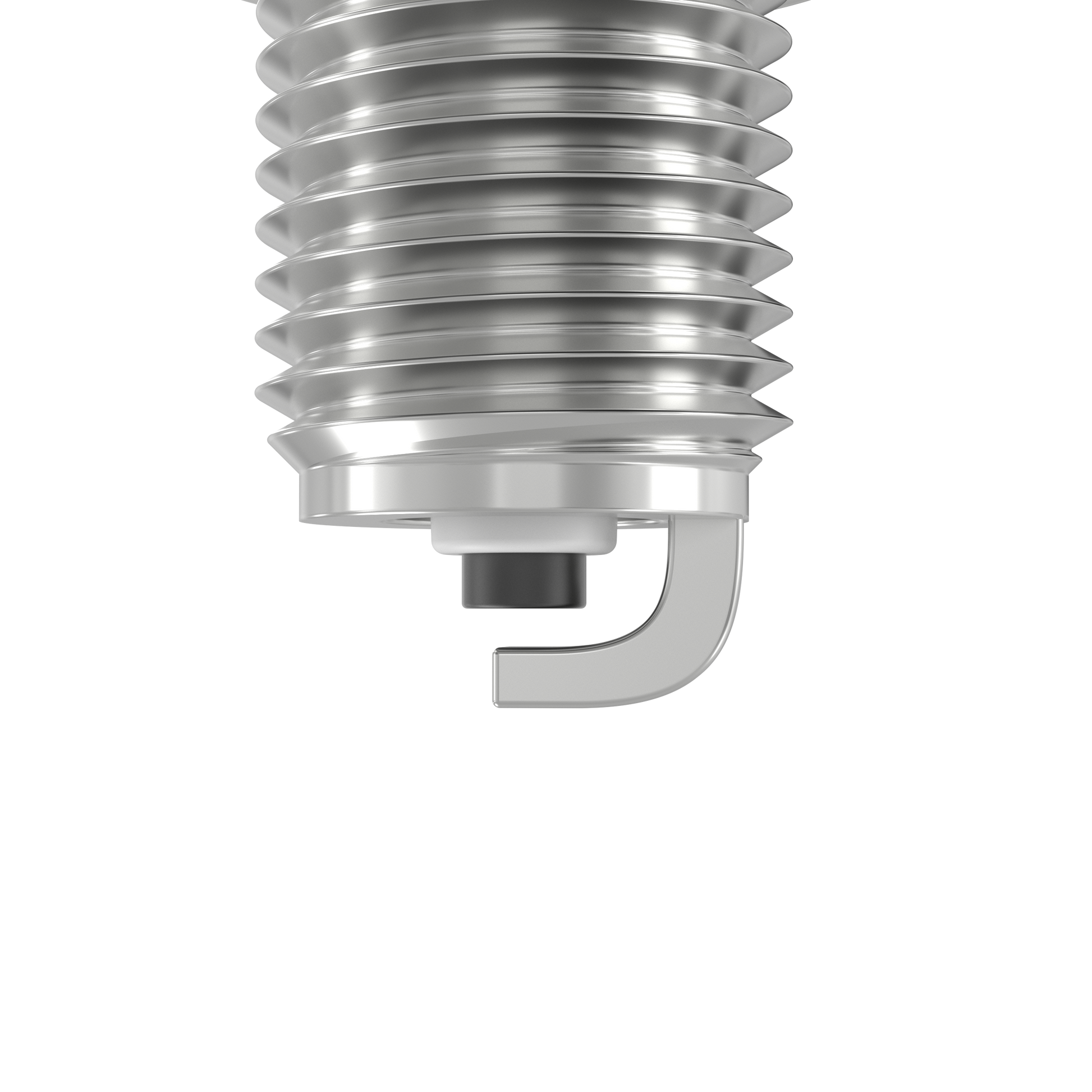

• Electrode: 1 - Earthed Electrode
• Electrode Gap (mm): 0.7
• Gross Weight (g): 31.5
• Height Incl Packaging (mm): 25
• Hex mm: 16 mm
• Installation torque Nm: 12
• Iridium Power: IUF22
• Iridium TT: -
• Length Incl Packaging (mm): 85
• NDE p/n_NTR: 067700-5600
• Net Weight (g): 28.5
• Nickel TT: -
• Spark Plug: Nickel mass electrode
• Spec: Nickel
• Thread Length (mm): 12.7
• Thread Size: M10x1.0
• UK Stock No: 4008
• Width Incl Packaging (mm): 25

Replaces OEM reference(s):
HITACHI: L13W, HONDA: 9805657713, HONDA: 9805657716, HONDA: 9805657717, HONDA: 9805657718, HONDA: 9805657726, HONDA: 9805658726, HONDA: 980565772603, HONDA: 98056-57713, HONDA: 98056-57716, HONDA: 98056-57717, HONDA: 98056-57718, HONDA: 98056-57726, HONDA: 98056-577-26, HONDA: 98056-577-2603, HONDA: 98056-58726, KAWASAKI: 920701129, KAWASAKI: 920701183, KAWASAKI: 92070-1129, KAWASAKI: 92070-1183, KAWASAKI: J4520U22FSRU, SUZUKI: 0948200314, SUZUKI: 0948200314000, SUZUKI: 09482-00314, SUZUKI: 09482-00314-000, TACTI: V91104006, TACTI: V9110-4006, TACTI: V91104008, TACTI: V9110-4008, TOYOTA/LEXUS: 9009872023, TOYOTA/LEXUS: 90098-72023, YAMAHA: 9470000265, YAMAHA: 9470000834, YAMAHA: 9470000886, YAMAHA: 9470100250, YAMAHA: 9470100254, YAMAHA: 9470100265, YAMAHA: 9470100366, YAMAHA: 9470300215, YAMAHA: 9470300254, YAMAHA: 9470300366, YAMAHA: 9079END019, YAMAHA: 9079E-ND019, YAMAHA: 9079END057, YAMAHA: 9079E-ND057, YAMAHA: 94700-00265, YAMAHA: 947-00002-65, YAMAHA: 94700-00834, YAMAHA: 94700-00886, YAMAHA: 94701-00250, YAMAHA: 94701-00254, YAMAHA: 94701-00265, YAMAHA: 94701-00366, YAMAHA: 94703-00215, YAMAHA: 94703-00254, YAMAHA: 94703-00366

Replaces aftermarket reference(s):
ACDelco: S102F, BOSCH: 0241050002, BOSCH: 0242050501, BOSCH: 0242055501, BOSCH: 0242055505, BOSCH: 0 241 050 002, BOSCH: 0 242 050 501, BOSCH: 0 242 055 501, BOSCH: 0 242 055 505, BOSCH: U 4 AC, BOSCH: U4AC, BOSCH: UR 3 AC, BOSCH: UR 4 AC, BOSCH: UR3AC, BOSCH: UR4AC, CHAMPION: PZ7HC, CHAMPION: RZ8, CHAMPION: RZ96C, CHAMPION: Z7HC, CHAMPION: Z9Y, DENSO: 4008, DENSO: 67700560, DENSO: 0677005600, DENSO: 067700-5600, DENSO: JK067800731, DENSO: MW067700560, EYQUEM: T70, EYQUEM: T850, ISKRA: T70, MOTORCRAFT: PV2, NGK: CR7HS, NGK: CR7HSA, NGK: CR7HSA9, NHSP: A7T, NHSP: A7TC, TORCH: A7RC, TORCH: A7RTC, TORCH: A7TC, TORCH: T1137, TORCH: T1137C, WLD: A7TC
