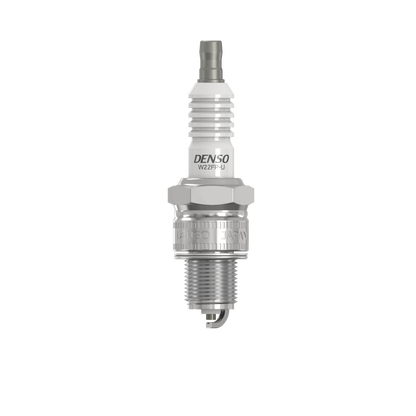

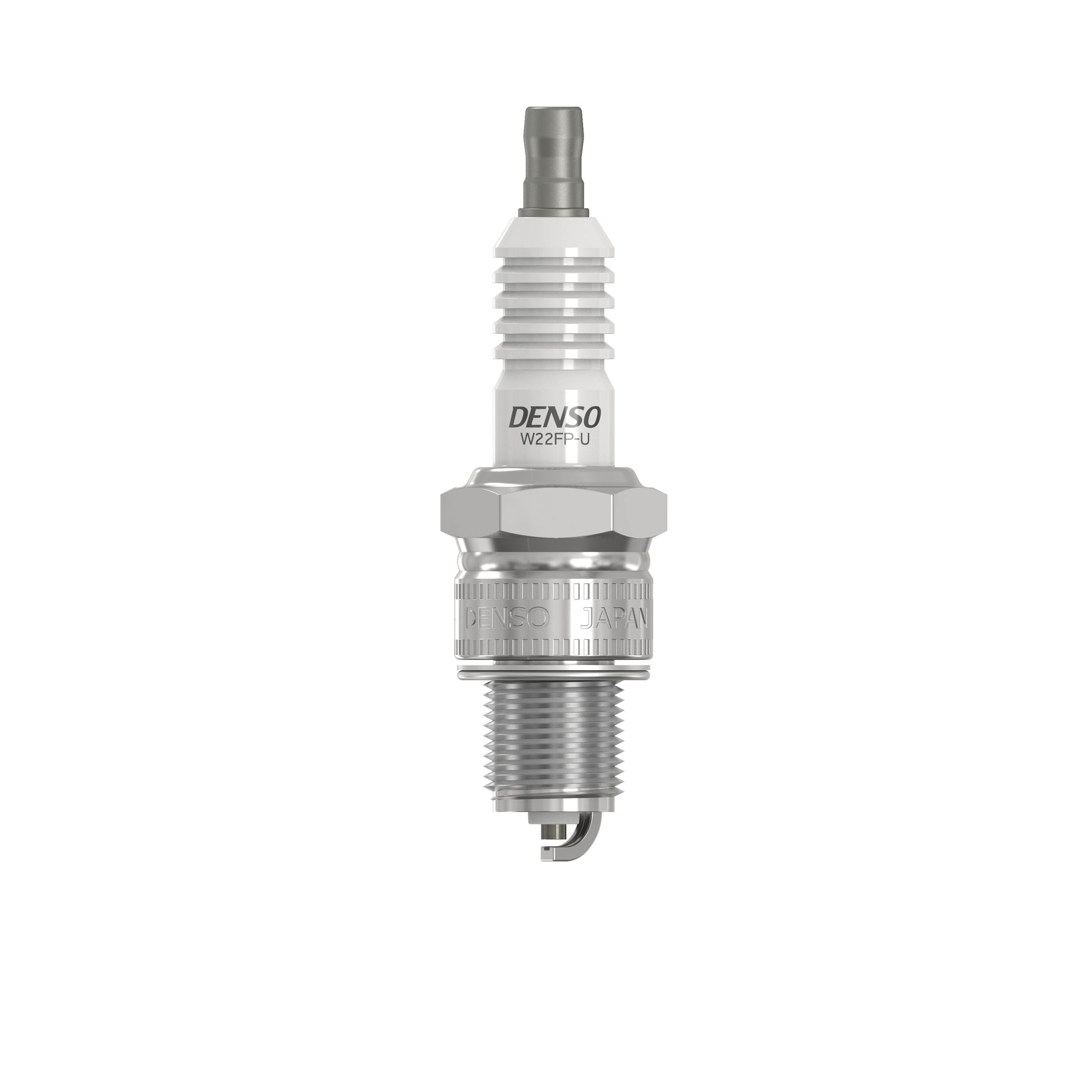

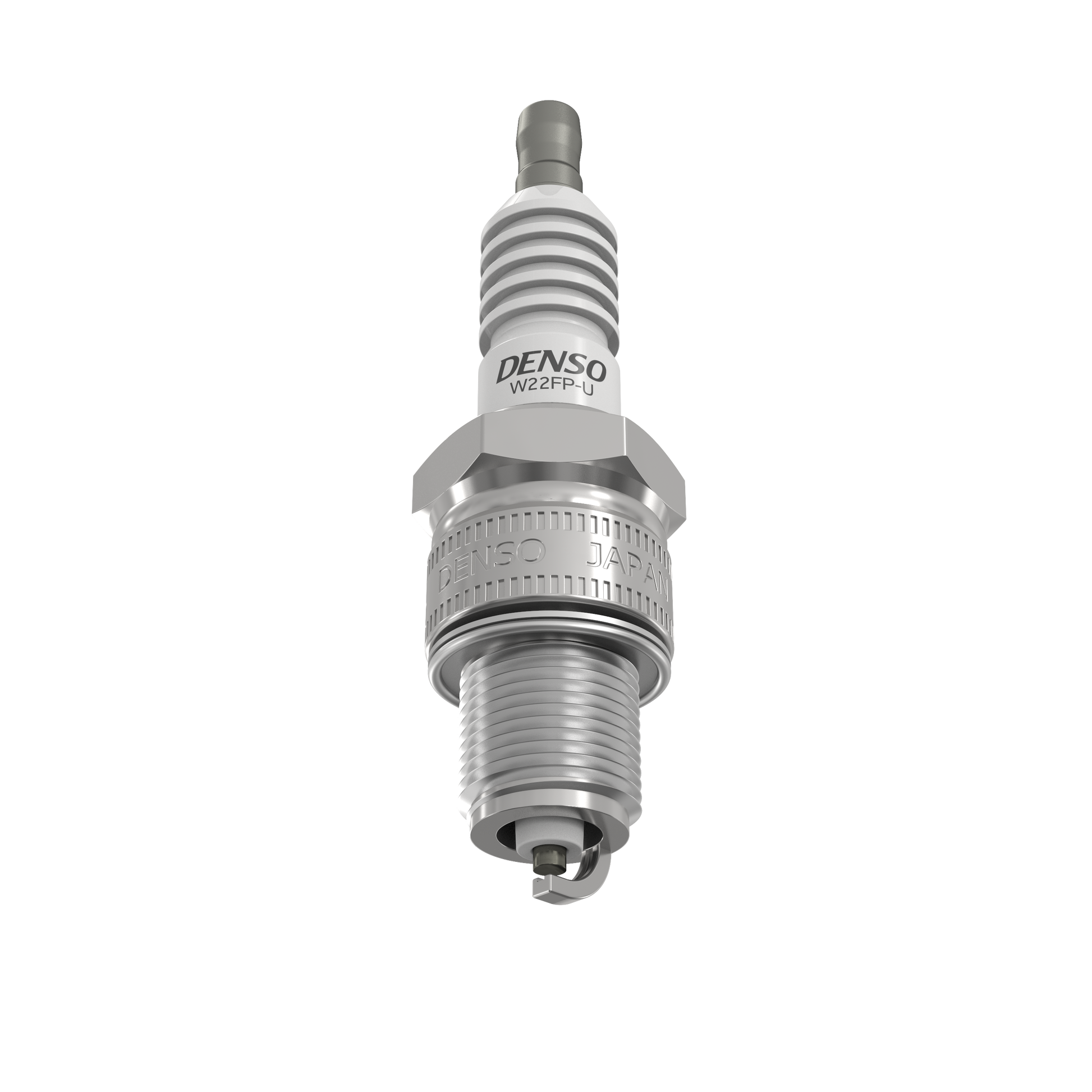

Denso Spark Plug W22FP-U

Spark Plug

• Alternative Partnumber: IWF22
• Connector type: Removable SAE
• Diam (mm): 14

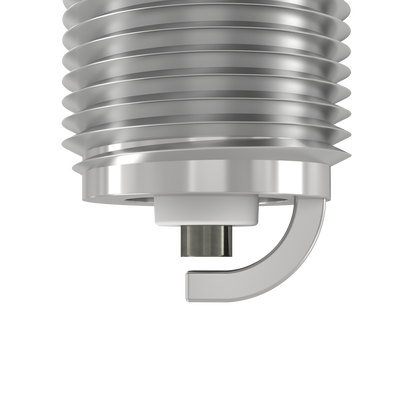

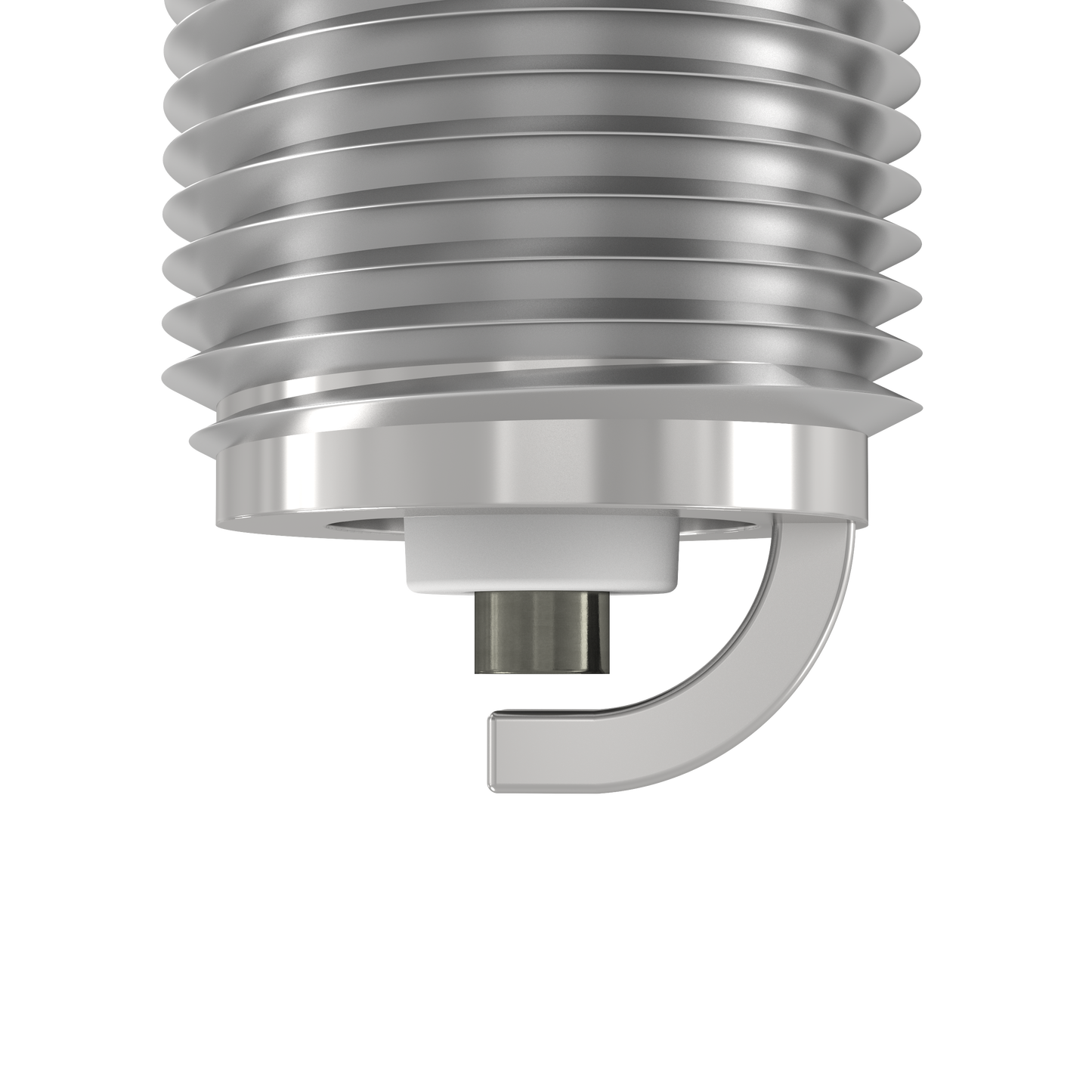

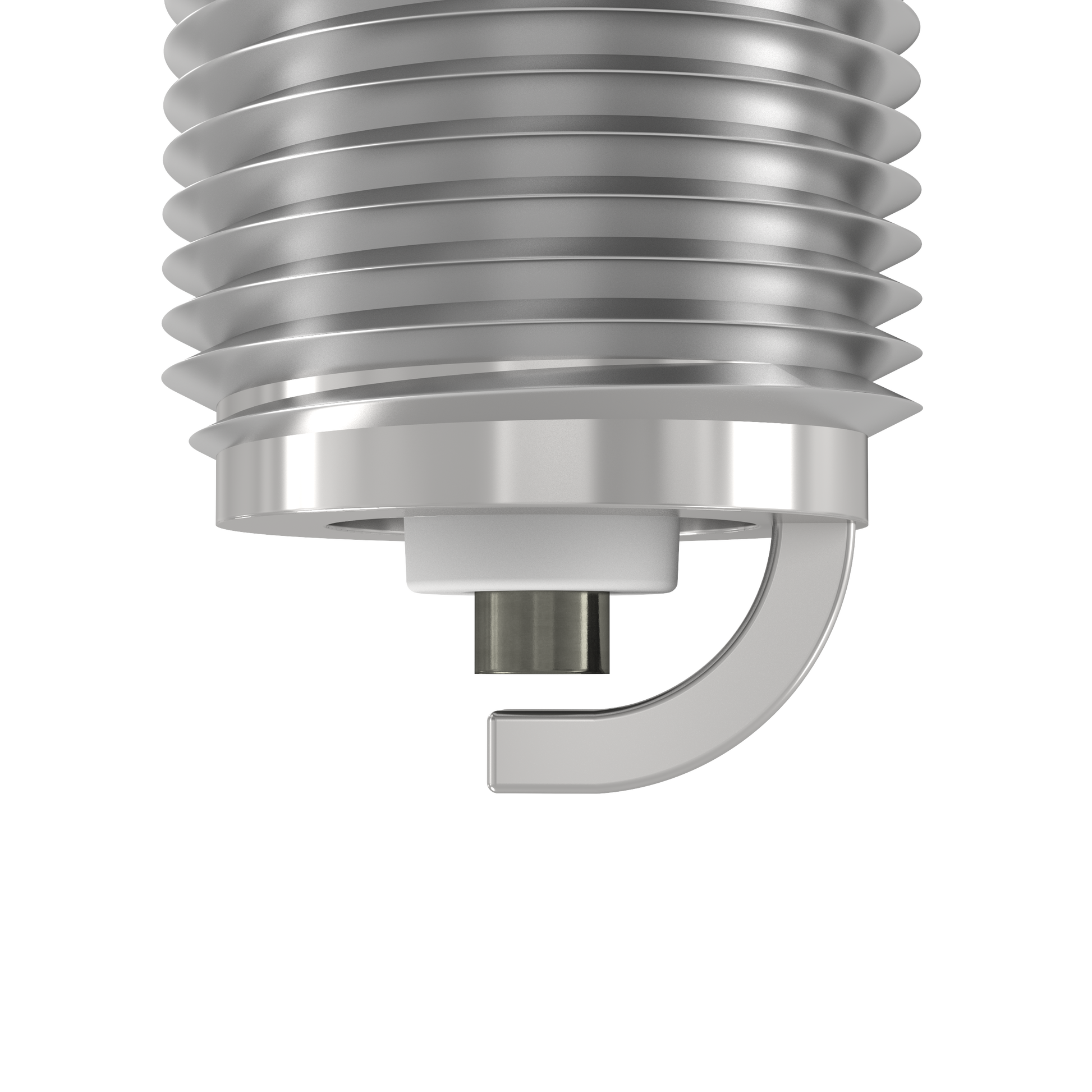

• Electrode: 1 - Earthed Electrode
• Electrode Gap (mm): 0.7
• Gross Weight (g): 55
• Height Incl Packaging (mm): 25
• Hex mm: 20.6 mm
• Installation torque Nm: 22
• Iridium Power: IWF22
• Iridium TT: -
• Length Incl Packaging (mm): 85
• NDE p/n_NTR: 067600-6151
• Net Weight (g): 52
• Nickel TT: -
• Short code 4: D74
• Spark Plug: Nickel mass electrode
• Spec: Nickel
• Thread Length (mm): 12.7
• Thread Size: M14x1.25
• UK Stock No: 4021
• Width Incl Packaging (mm): 25

Replaces OEM reference(s):
HARLEY-DAVIDSON: 4R5, KAWASAKI: 920701156, KAWASAKI: 92070-1156, SUZUKI: 0948200189, SUZUKI: 09482-00189, TOYOTA/LEXUS: 9009822515, TOYOTA/LEXUS: 90098-22515, YAMAHA: 9089078085, YAMAHA: 9470100264, YAMAHA: 9470100321, YAMAHA: 9470300264, YAMAHA: 9470300321, YAMAHA: 9079END052, YAMAHA: 9079E-ND052, YAMAHA: 908-90780-85, YAMAHA: 94701-00264, YAMAHA: 947-01003-21, YAMAHA: 94703-00264, YAMAHA: 947-03003-21

Replaces aftermarket reference(s):
CHAMPION: L7YC4, DENSO: 4021, DENSO: 67600615, DENSO: 0676006151, DENSO: 0676008900, DENSO: 067600-6151, DENSO: 067600-8900, DENSO: D74, DENSO: MW067600615, DENSO: W22FPU10, DENSO: W22FP-U10, NGK: 5111, NGK: 7829, NGK: BP7HS, NGK: BP7HS10
