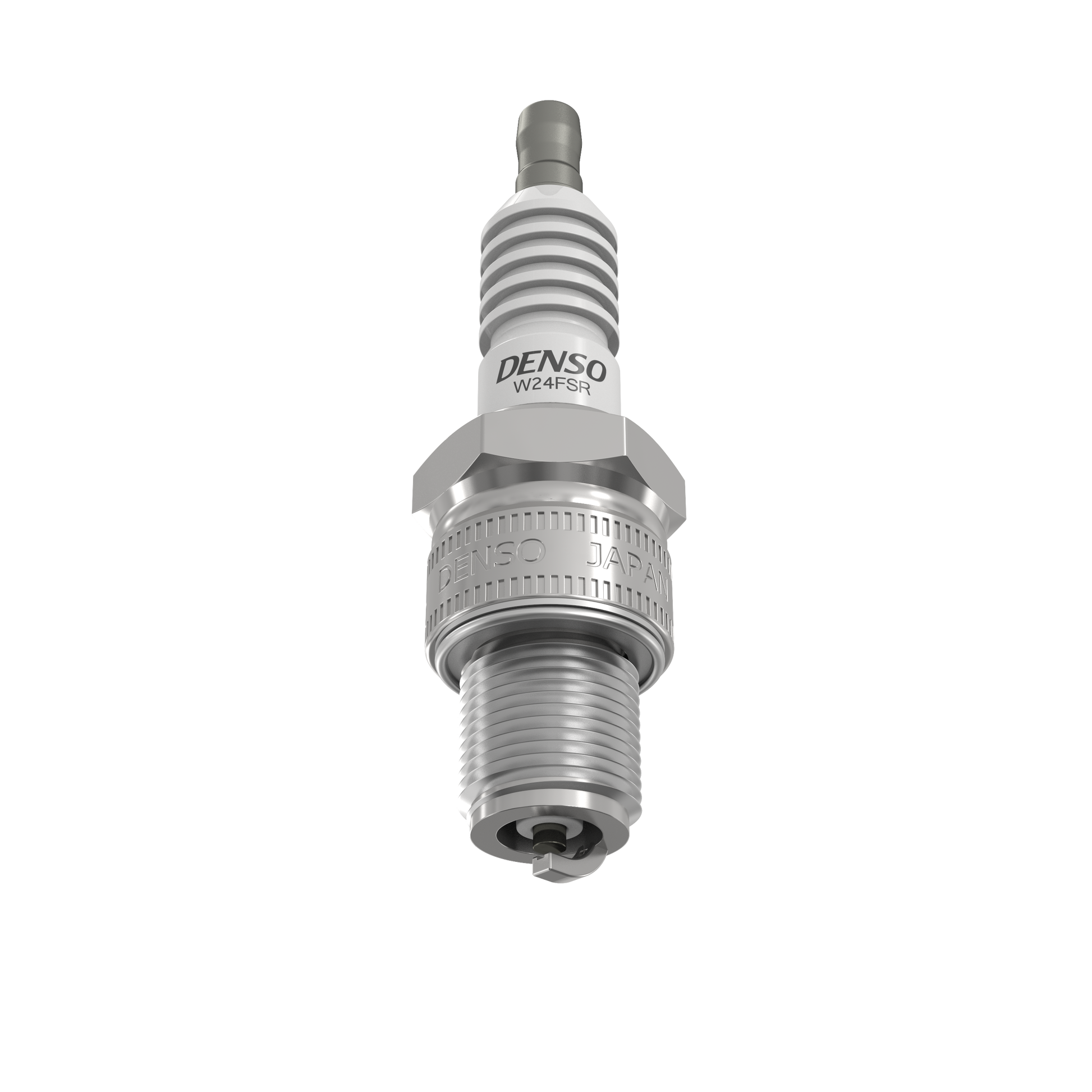

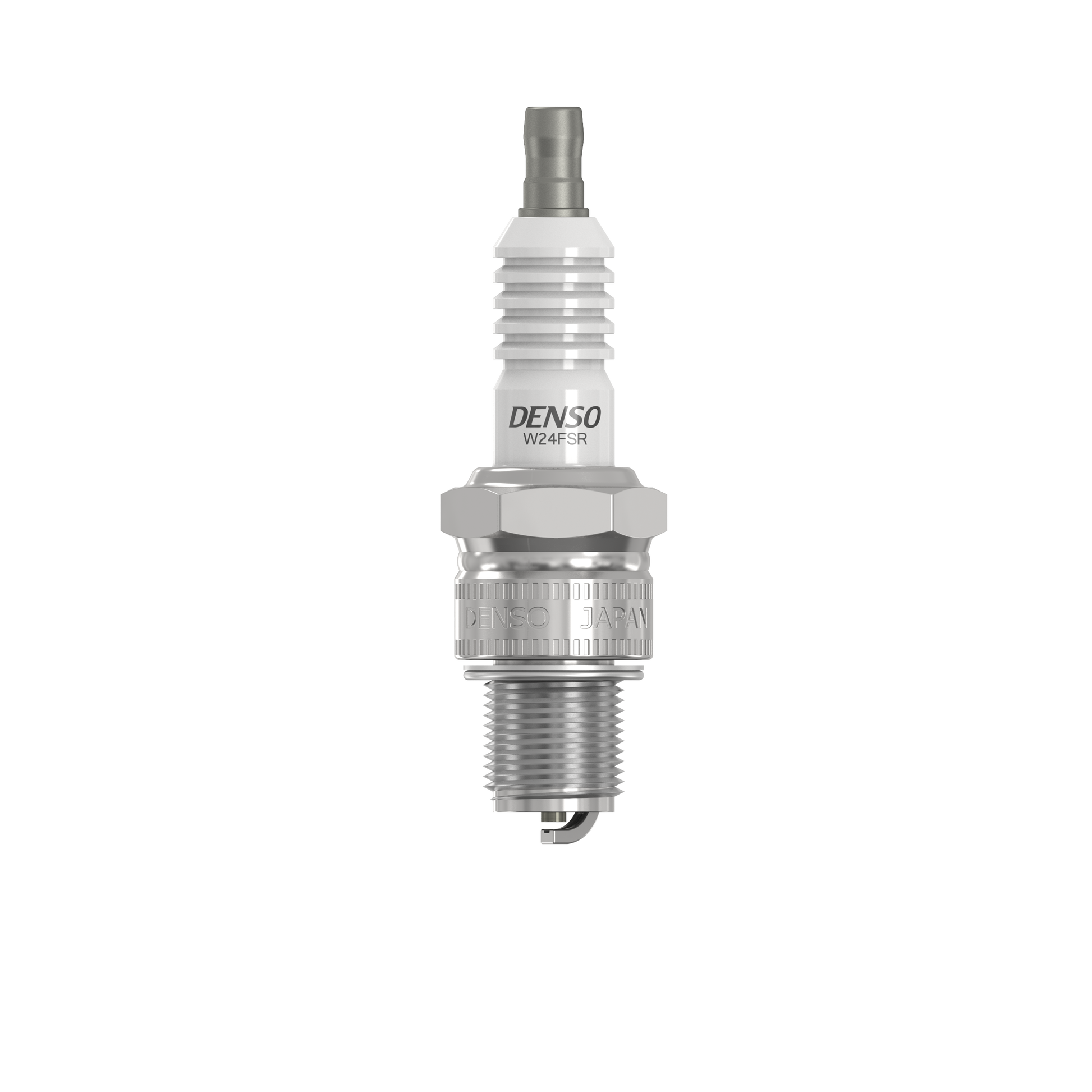

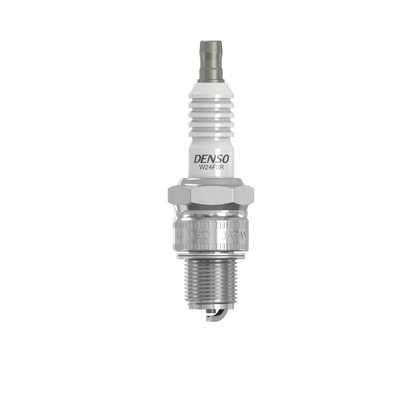

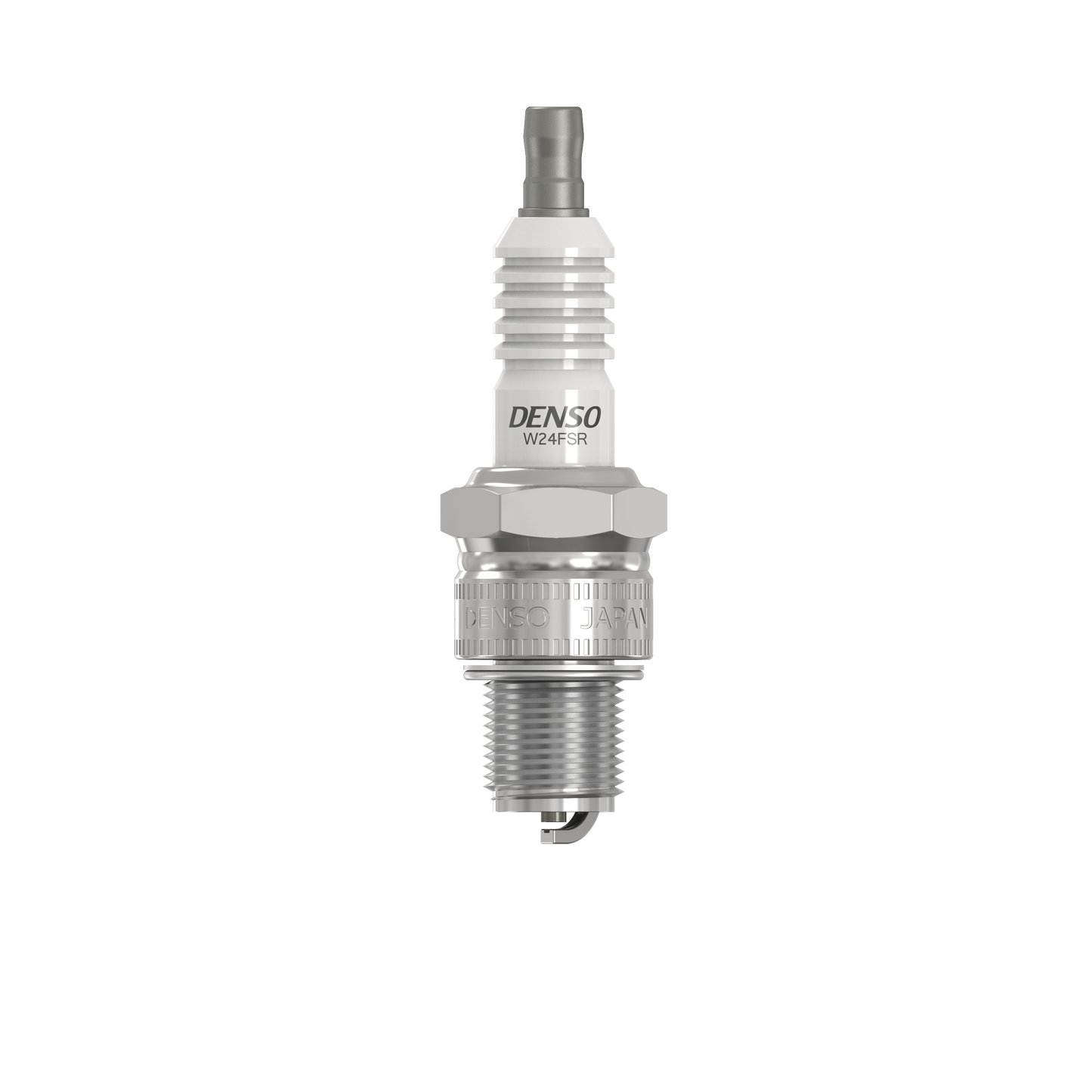

Denso Spark Plug W24FSR

Spark Plug

• Alternative Partnumber: IWF24
• Connector type: Removable SAE
• Diam (mm): 14

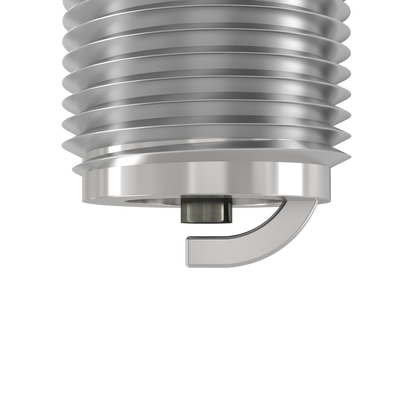

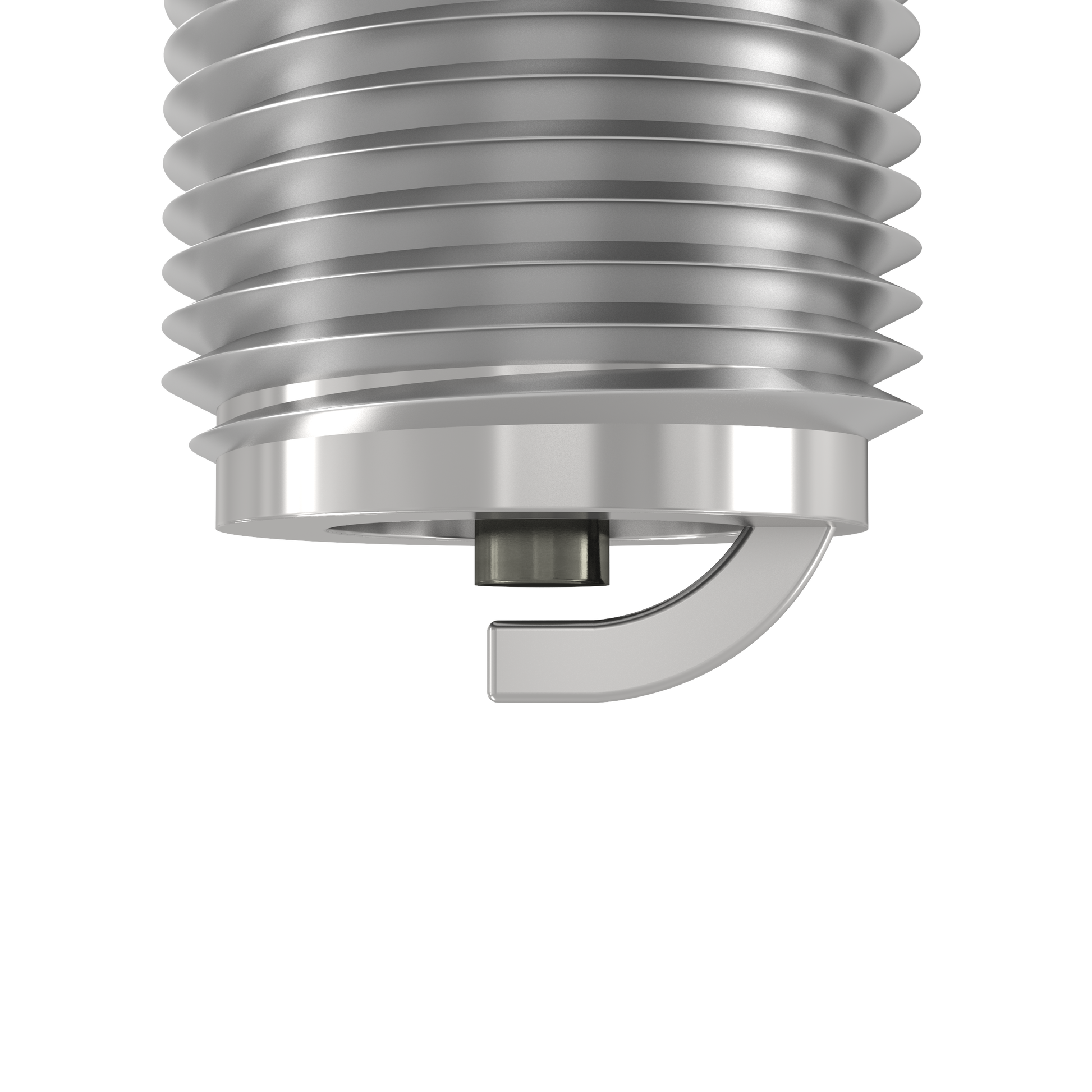

• Electrode: 1 - Earthed Electrode
• Electrode Gap (mm): 0.7
• Gross Weight (g): 55
• Height Incl Packaging (mm): 25
• Hex mm: 20.6 mm
• Installation torque Nm: 22
• Iridium Power: IWF24
• Iridium TT: -
• Length Incl Packaging (mm): 85
• NDE p/n_NTR: 067700-0861
• Net Weight (g): 52
• Nickel TT: -
• Spark Plug: Nickel mass electrode
• Spec: Nickel
• Thread Length (mm): 12.7
• Thread Size: M14x1.25
• UK Stock No: 4037
• Width Incl Packaging (mm): 25

Replaces OEM reference(s):
APRILIA: 8206871, GM: 90414815, HITACHI: M43W, HONDA: 9807658710, HONDA: 9807658716, HONDA: 9807658726, HONDA: 980765872600, HONDA: 980765872602, HONDA: 98076-58710, HONDA: 98076-58716, HONDA: 98076-587-26, HONDA: 98076-587-2600, HONDA: 98076-587-2602, KAWASAKI: J4520W24FSU10, SUBARU: 820546012, SUZUKI: 0948200057, SUZUKI: 0948200192, SUZUKI: 0948200241, SUZUKI: 0948200242, SUZUKI: 0948200250, SUZUKI: 0948200278, SUZUKI: 0948200280, SUZUKI: 0948200375, SUZUKI: 0948200241111, SUZUKI: 0948200242111, SUZUKI: 09482-00057, SUZUKI: 09482-00192, SUZUKI: 09482-00241, SUZUKI: 09482-00241-111, SUZUKI: 09482-00242, SUZUKI: 09482-00242-111, SUZUKI: 09482-00250, SUZUKI: 09482-00278, SUZUKI: 09482-00280, SUZUKI: 09482-00375, TACTI: V91104037, TACTI: V9110-4037, TACTI: V91104038, TACTI: V9110-4038, TACTI: V91106047, TACTI: V9110-6047, YAMAHA: 9079322039, YAMAHA: 9470100041, YAMAHA: 9470100160, YAMAHA: 9470100195, YAMAHA: 9470200195, YAMAHA: 9470200247, YAMAHA: 9470300041, YAMAHA: 9470300160, YAMAHA: 9470900195, YAMAHA: 9470900247, YAMAHA: 90793-22039, YAMAHA: 9079END006, YAMAHA: 9079E-ND006, YAMAHA: 9079END007, YAMAHA: 9079E-ND007, YAMAHA: 9079END013, YAMAHA: 9079E-ND013, YAMAHA: 9079END014, YAMAHA: 9079E-ND014, YAMAHA: 94701-00041, YAMAHA: 94701-00160, YAMAHA: 94701-00195, YAMAHA: 94702-00195, YAMAHA: 94702-00247, YAMAHA: 94703-00041, YAMAHA: 94703-00160, YAMAHA: 94709-00195, YAMAHA: 94709-00247

Replaces aftermarket reference(s):
ACCEL: ACC8HS, ACCEL: ACCR8HS, ACDelco: M41FF, ACDelco: R41CF, ACDelco: R41F, ACDelco: S412FR, ACDelco: S41F, ACDelco: S41FR, BERU: 0001450702, BERU: 14 Z-4 AU, BERU: 143A1, BERU: 143AU, BERU: 144A1, BERU: 14Z3AU, BERU: 14Z4AU, BERU: Z39, BOSCH: 0241248531, BOSCH: 0241256512, BOSCH: 0241256519, BOSCH: 0242250506, BOSCH: 0242250803, BOSCH: 0 241 248 531, BOSCH: 0 241 256 512, BOSCH: 0 241 256 519, BOSCH: 0 242 250 506, BOSCH: 0 242 250 803, BOSCH: W 3 AC, BOSCH: W 4 AC, BOSCH: W3AC, BOSCH: W4AC, BOSCH: WR 4 AC, BOSCH: WR4AC, CHAMPION: L78, CHAMPION: L78C, CHAMPION: QL16V, CHAMPION: QL78C, CHAMPION: RL4J, CHAMPION: RL78, CHAMPION: RL78C, CHAMPION: UL81C, CHAMPION: UL81J, DENSO: 4037, DENSO: 67700086, DENSO: 0677000860, DENSO: 0677000861, DENSO: 0677008170, DENSO: 067700-0860, DENSO: 067700-0861, DENSO: 067700-8170, DENSO: MW067700086, EYQUEM: 1000, EYQUEM: 100M, EYQUEM: F100, EYQUEM: R1000, ISKRA: F100, ISKRA: F100RS, ISKRA: F100S, LODGE: S3, MAGNETI MARELLI: CW9N, MAGNETI MARELLI: CW9NJ, MAGNETI MARELLI: CWC9NJ, MOTORCRAFT: AE901, MOTORCRAFT: AE901X, NGK: 1134, NGK: 1157, NGK: 4322, NGK: 4915, NGK: 5510, NGK: 6715, NGK: 7204, NGK: 7637, NGK: 7697, NGK: B77HC, NGK: BR8HCS10, NGK: BR8HS, NGK: BR8HS10, NGK: Q212, SPLITFIRE: SF409B, TORCH: E8C, TORCH: E8RC, VALEO: 232, VALEO: 233
