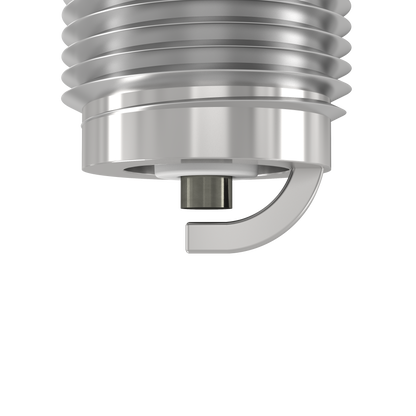

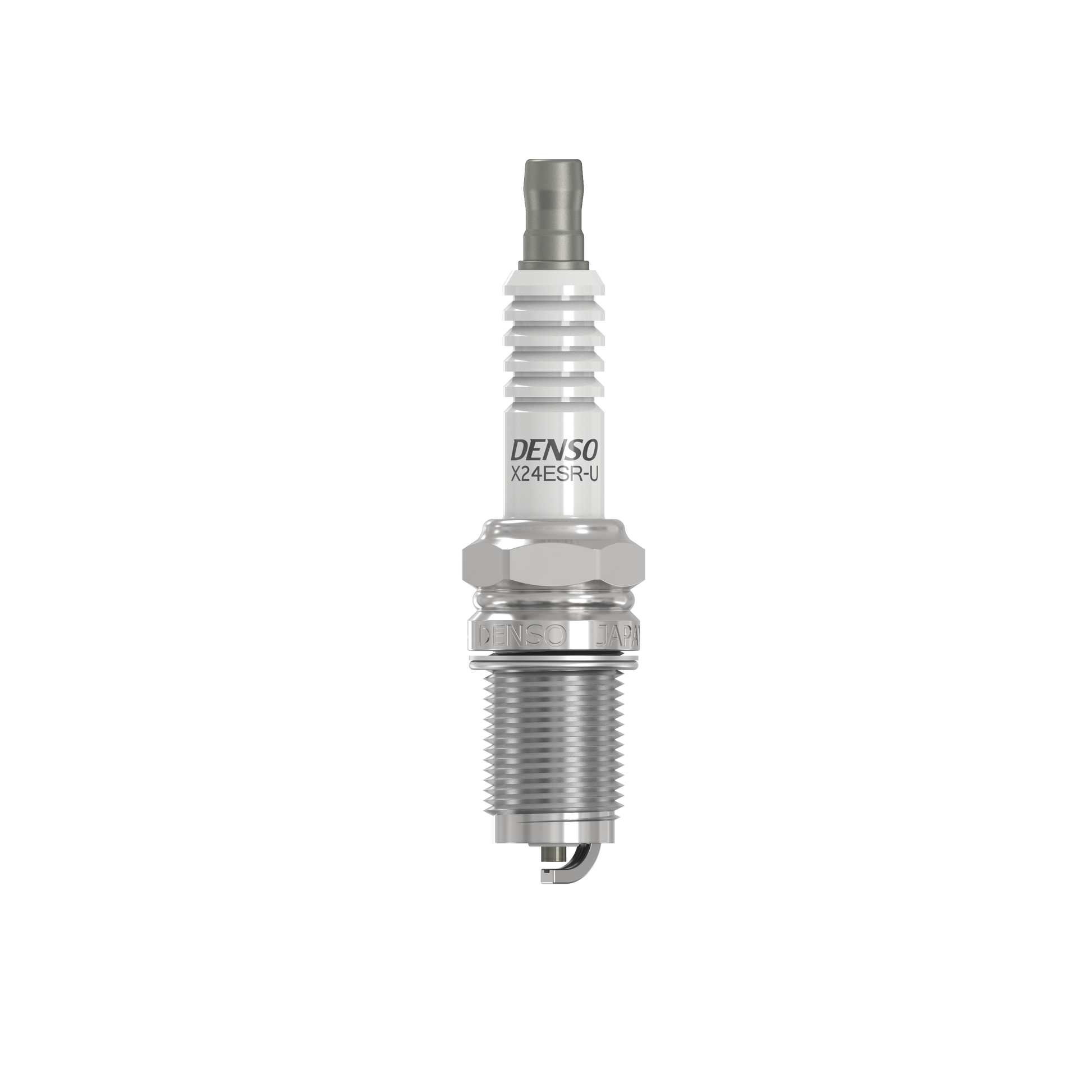

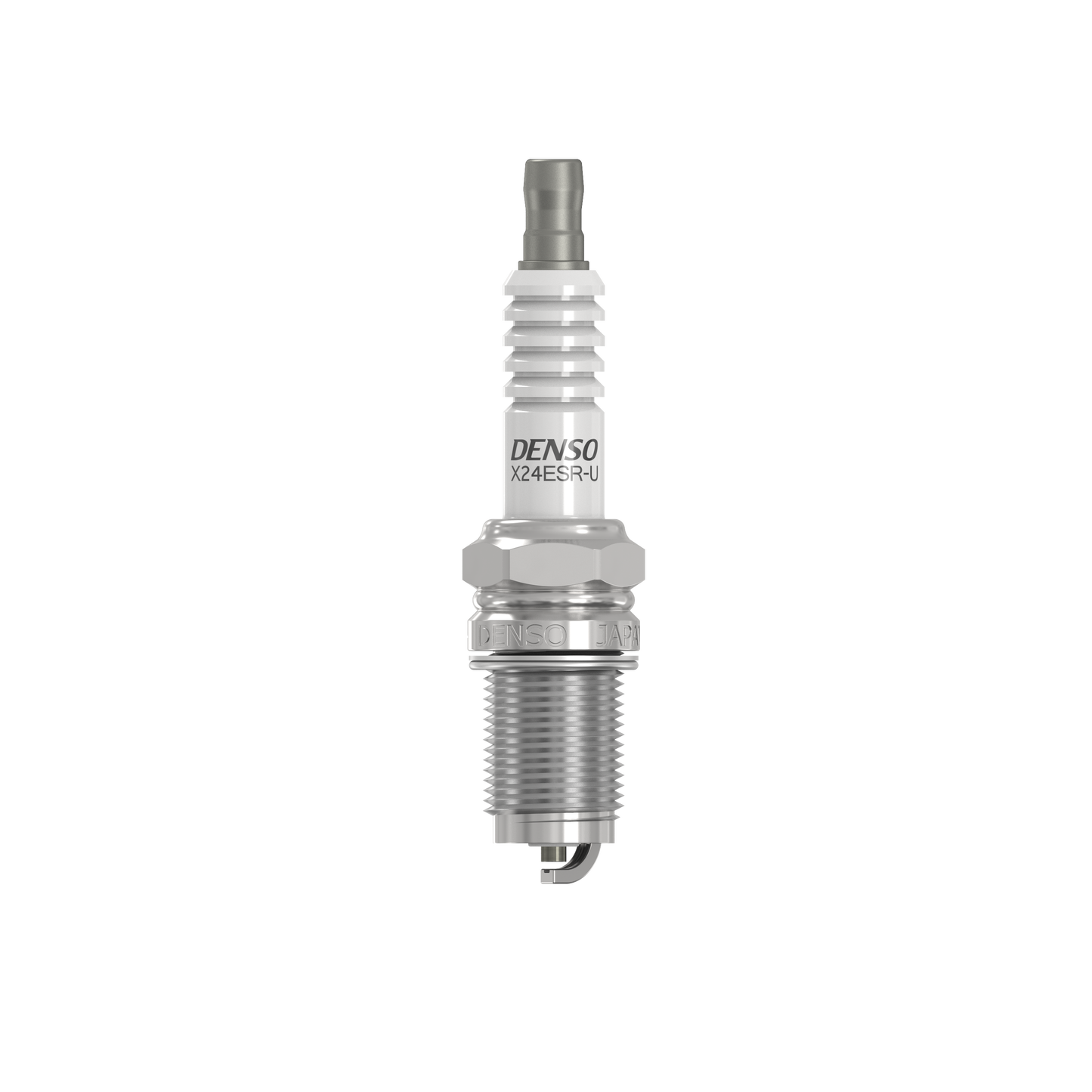

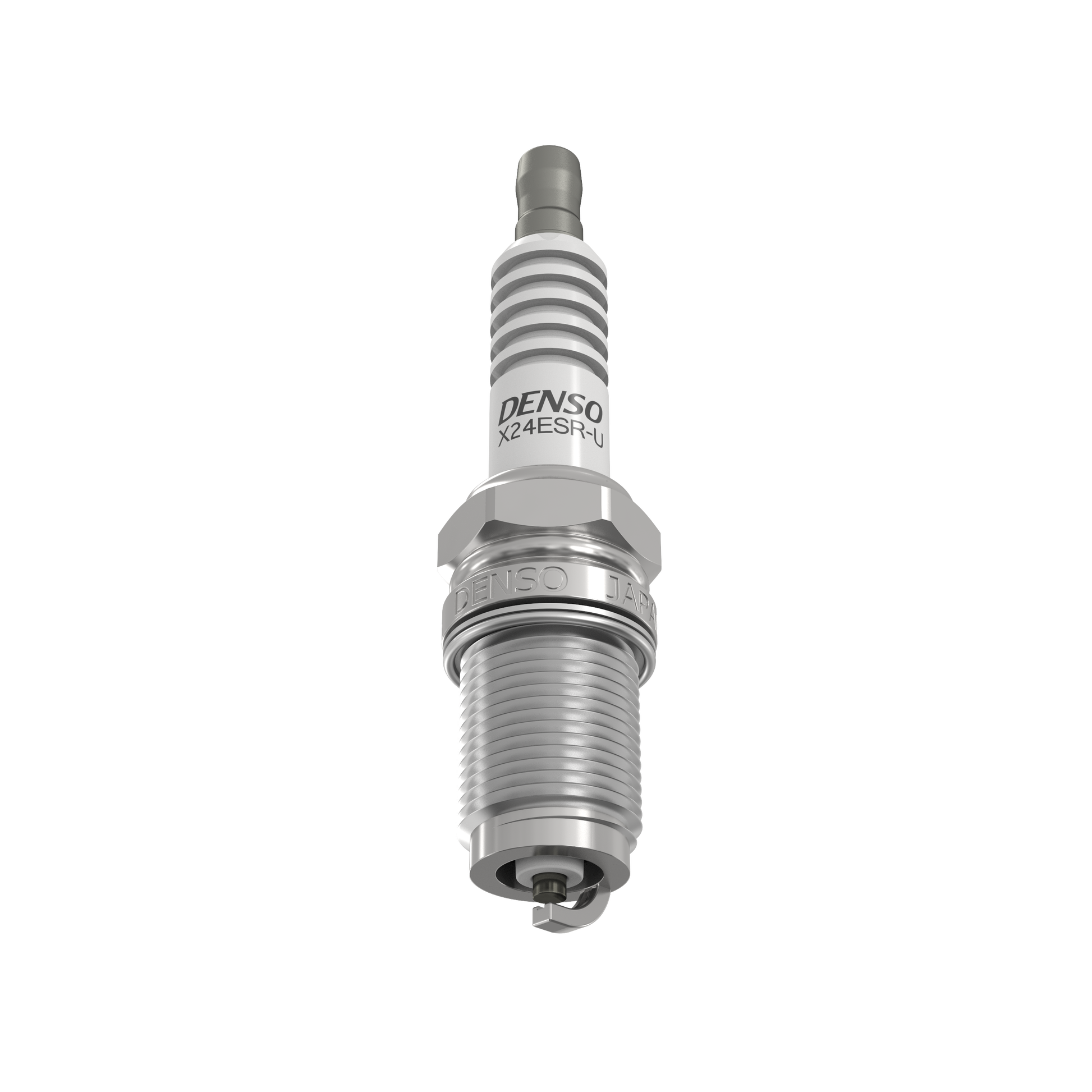

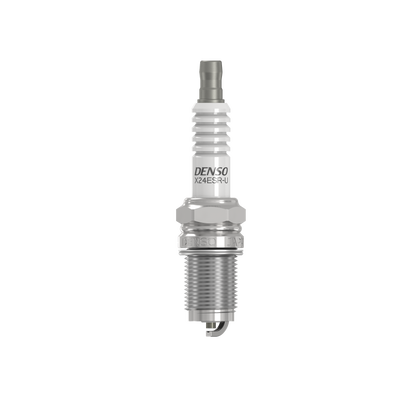

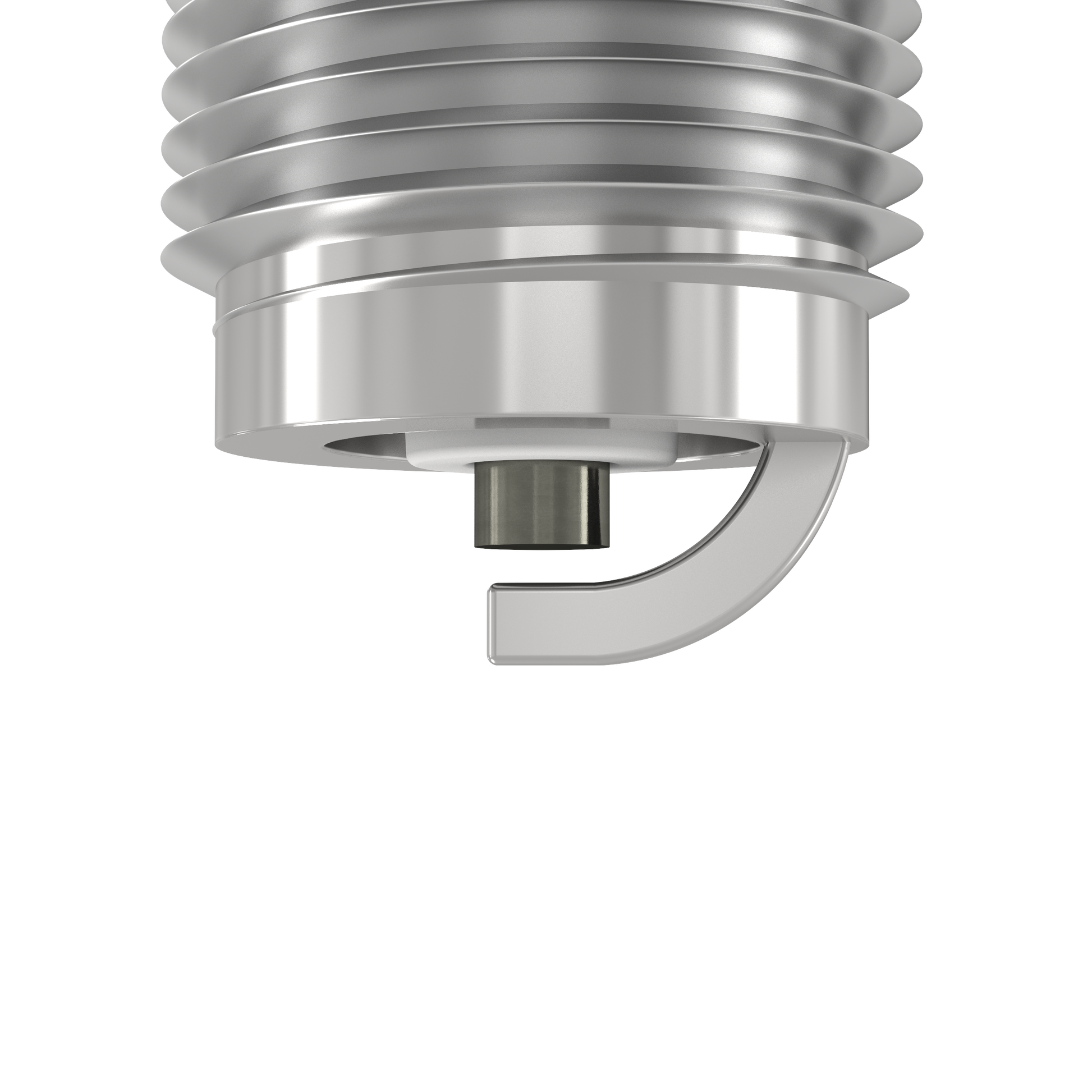

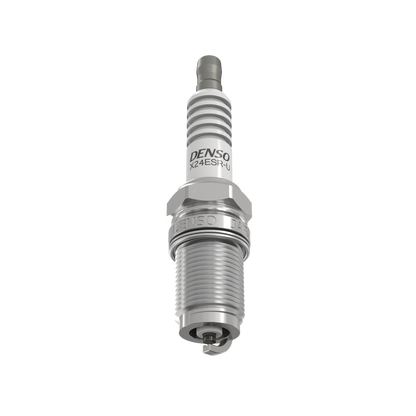

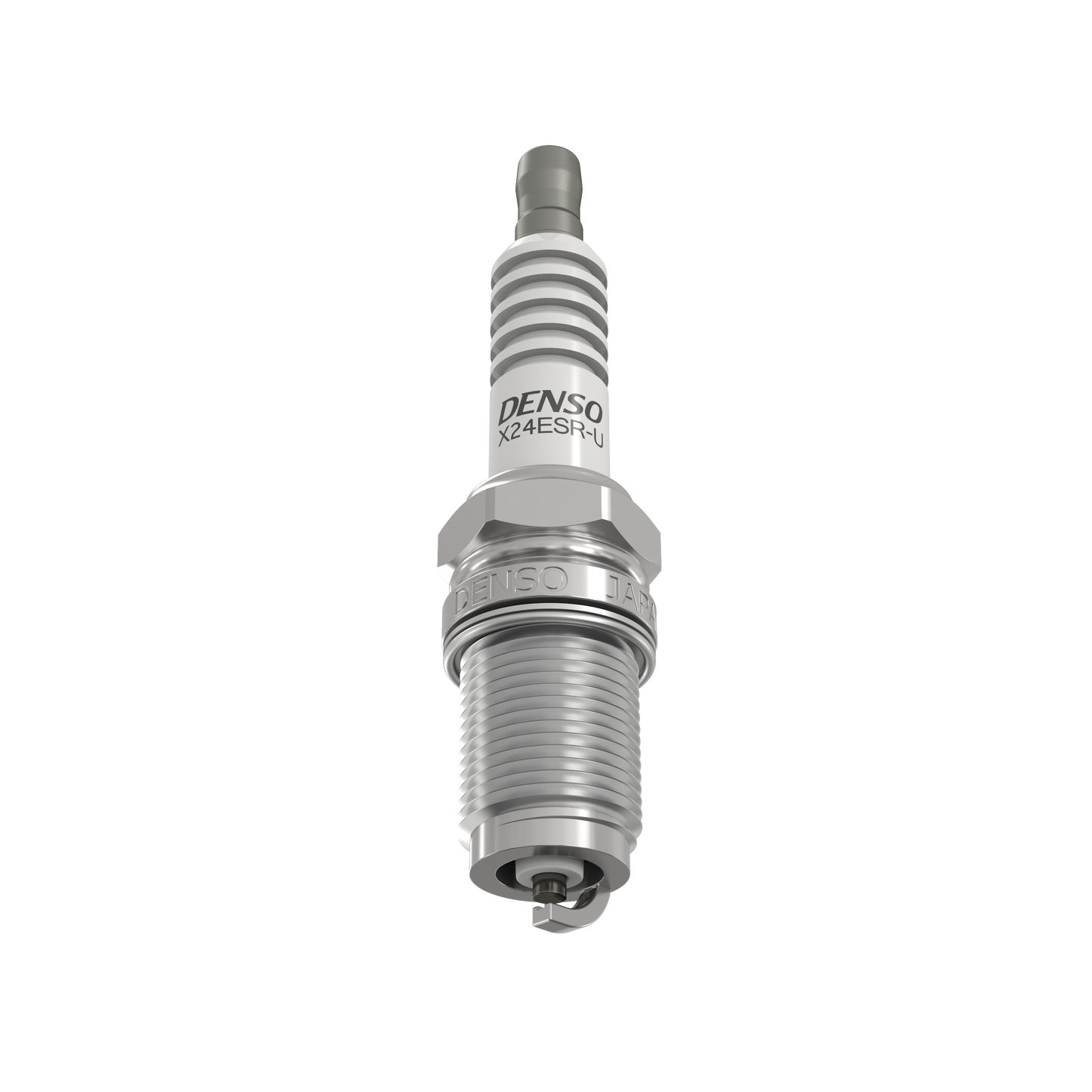

Denso Spark Plug X24ESR-U

Spark Plug

• Alternative Partnumber: IX24
• Connector type: Thread M4
• Diam (mm): 12
• Electrode: 1 - Earthed Electrode
• Electrode Gap (mm): 0.7
• Gross Weight (g): 42.5
• Height Incl Packaging (mm): 25
• Hex mm: 18 mm
• Installation torque Nm: 17
• Iridium Power: IX24
• Iridium TT: -
• Length Incl Packaging (mm): 85
• NDE p/n_NTR: 067700-5080
• Net Weight (g): 39.5
• Nickel TT: -
• Spark Plug: Nickel mass electrode
• Spec: Nickel
• Thread Length (mm): 19
• Thread Size: M12x1.25
• UK Stock No: 4101
• Width Incl Packaging (mm): 25

Replaces OEM reference(s):
APRILIA: 0297542, BMW: 2343144, BMW: 7664404, BMW: 12122343144, BMW: 12127664404, BMW: 12 12 2 343 144, BMW: 12 12 7 664 404, BMW: 2 343 144, BMW: 7 664 404, HITACHI: L23W, HONDA: 9806938716, HONDA: 9806938719, HONDA: 9806958717, HONDA: 9806958726, HONDA: 980695872603, HONDA: 98069-38716, HONDA: 98069-38719, HONDA: 98069-58717, HONDA: 98069-58726, HONDA: 98069-587-26, HONDA: 98069-587-2603, HONDA: ZH980003000, HONDA: ZH98000-3000, KAWASAKI: 920701010, KAWASAKI: 920701020, KAWASAKI: 92070-1010, KAWASAKI: 92070-1020, KAWASAKI: J4520X24ESRU, KAWASAKI: J4520X24ESU, PORSCHE: 99917017690, SUZUKI: 0948200144, SUZUKI: 0948200145, SUZUKI: 0948200149, SUZUKI: 0948200223, SUZUKI: 0948200399, SUZUKI: 09482-00144, SUZUKI: 09482-00145, SUZUKI: 09482-00149, SUZUKI: 09482-00223, SUZUKI: 09482-00399, TACTI: V91104099, TACTI: V9110-4099, TACTI: V91104101, TACTI: V9110-4101, TOYOTA/LEXUS: 9009824475, TOYOTA/LEXUS: 90098-24475, YAMAHA: 9470000222, YAMAHA: 9470100157, YAMAHA: 9470100203, YAMAHA: 9470100222, YAMAHA: 9470100333, YAMAHA: 9470200801, YAMAHA: 9470300157, YAMAHA: 9470300181, YAMAHA: 9470300203, YAMAHA: 9470300222, YAMAHA: 9470300333, YAMAHA: 9470302222, YAMAHA: 9079END039, YAMAHA: 9079E-ND039, YAMAHA: 9079END044, YAMAHA: 9079E-ND044, YAMAHA: 94700-00222, YAMAHA: 94701-00157, YAMAHA: 94701-00203, YAMAHA: 94701-00222, YAMAHA: 947-01002-22, YAMAHA: 94701-00333, YAMAHA: 94702-00801, YAMAHA: 94703-00157, YAMAHA: 94703-00181, YAMAHA: 94703-00203, YAMAHA: 94703-00222, YAMAHA: 947-03002-22, YAMAHA: 94703-00333, YAMAHA: 947-03022-22

Replaces aftermarket reference(s):
ACCEL: 842, ACDelco: S121XL, BOSCH: 0241150504, BOSCH: 0242140500, BOSCH: 0242150501, BOSCH: 0 241 150 504, BOSCH: 0 242 140 500, BOSCH: 0 242 150 501, BOSCH: X 4 CC, BOSCH: X4CC, BOSCH: XR 4 CS, BOSCH: XR 6 CC, BOSCH: XR4CS, BOSCH: XR6CC, CHAMPION: A5HC, CHAMPION: A6, CHAMPION: A6YC, CHAMPION: A8Y, CHAMPION: R6, CHAMPION: RAX94C, DENSO: 4101, DENSO: 67700508, DENSO: 0677005080, DENSO: 067700-5080, DENSO: JK067800761, DENSO: MW067700508, EYQUEM: D900L, EYQUEM: TWE270, ISKRA: TWE270, MOTORCRAFT: HG2, MOTORCRAFT: HG2C, NGK: 1117, NGK: 2556, NGK: 2923, NGK: 4855, NGK: 7162, NGK: D8ESL, NGK: DR8EA, NGK: DR8EB, NGK: DR8ESL, NGK: Q216, NGK: Q218, NHSP: D8RTC, NHSP: D8T, NHSP: D8TC, TORCH: D8C, TORCH: D8RC, TORCH: D8RTC, TORCH: D8TC, WLD: D8EA, WLD: D8RTC, WLD: D8TC
