Description
Halogen-Insert, headlight - 24/12V - rectangular - Reference number: 17.5 - Fitting - ECE-R20/E1 24523/SAE/ECE-R7 - Lens Colour: Crystal clear - Plug: Male - right - Quantity: 1
HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the eyes of the vehicle and therefore an essential safety feature when driving and working at night.

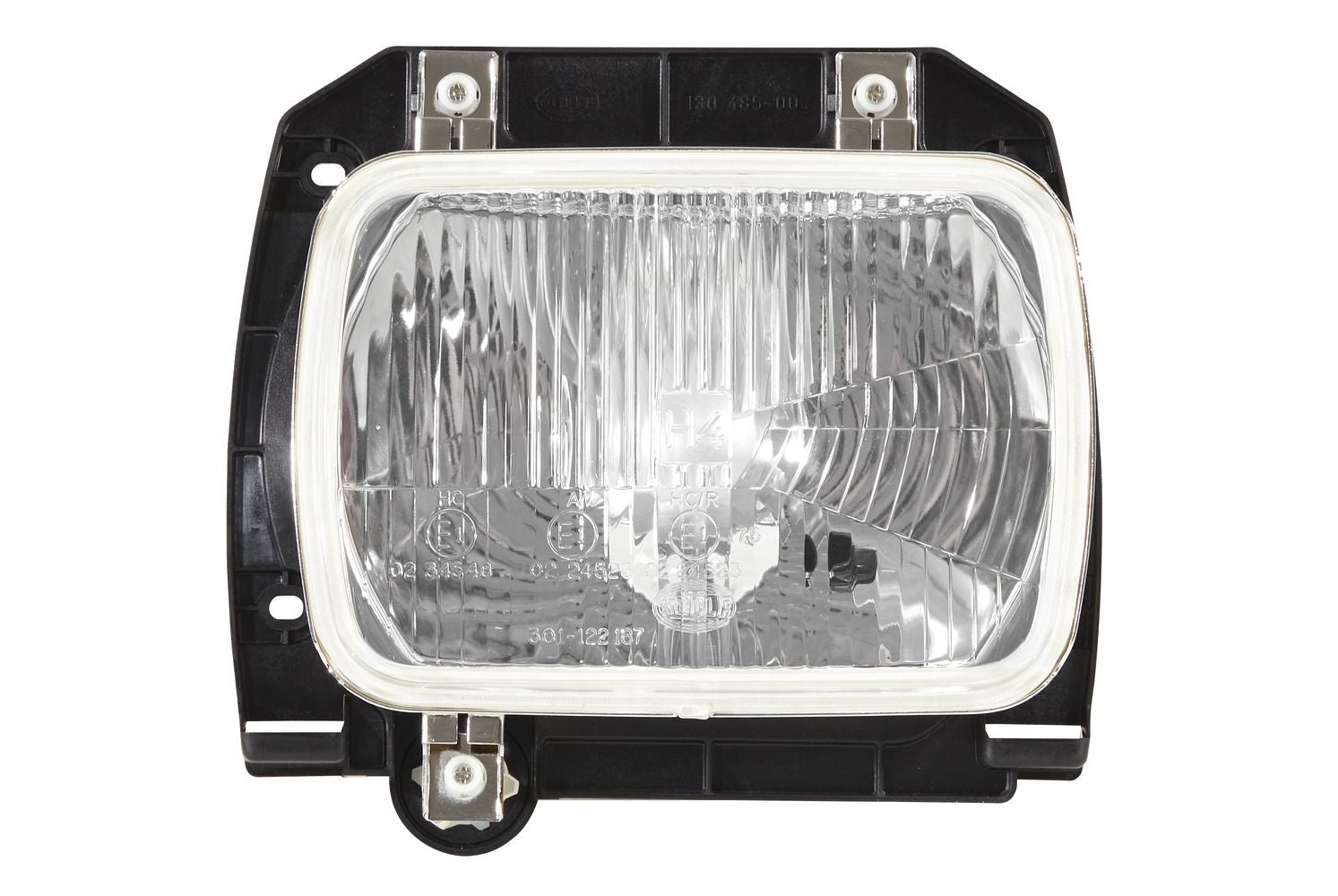

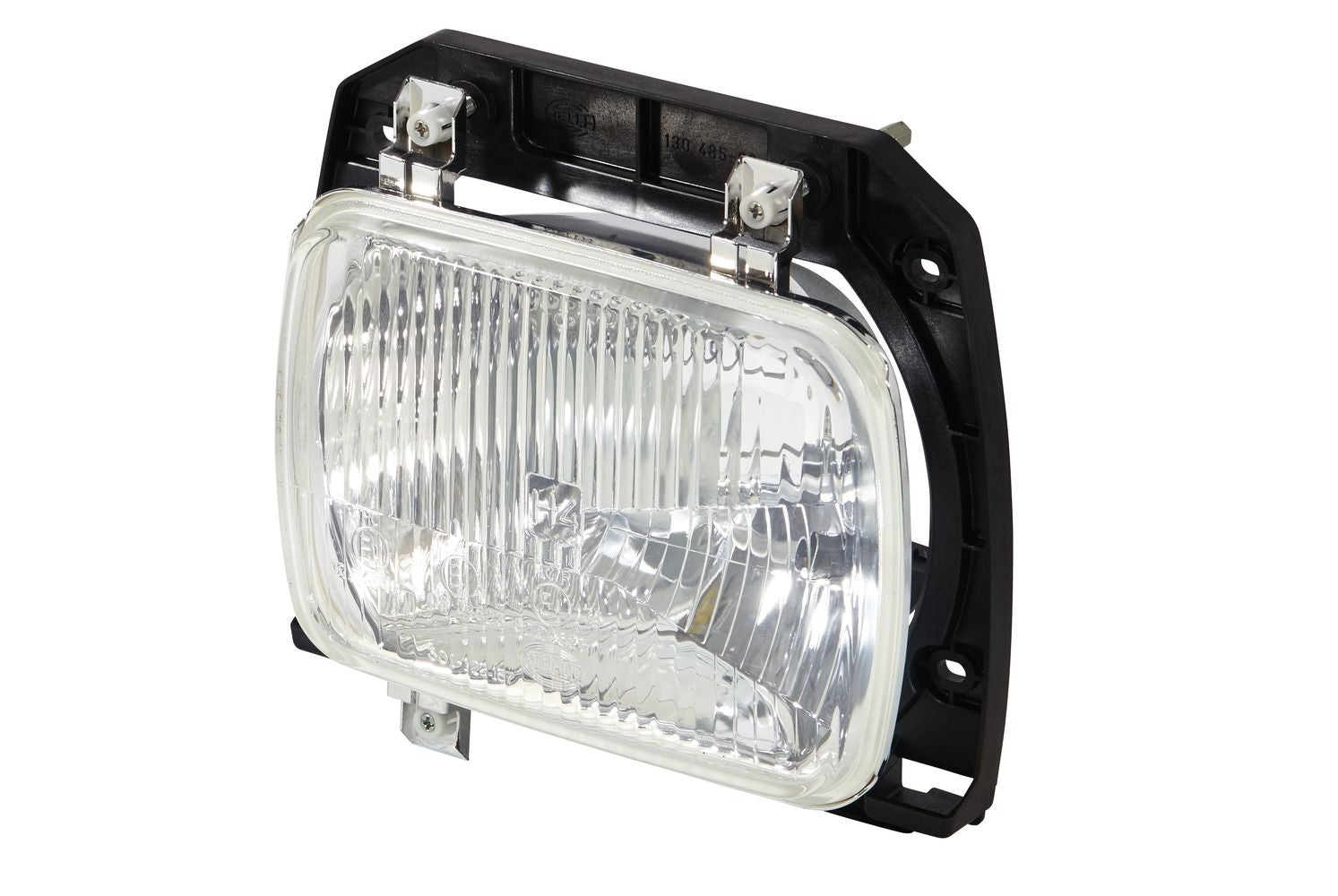

Headlamp insert for halogen main headlamp for installation (right) - for right-hand traffic, with ECE approval
The headlamp insert has 3 light functions: Low beam / High beam / Position light
Lamp type: H4/T4W, with cap, support frame and adjustment elements, without bulbs
Width: 190mm - Height: 142mm - Depth: 140mm - Lamp Type: T4W/H4 - with adjuster - without bulbs/with holding frame
Light functions: 3 - with low beam/with position light/with high beam
for right-hand traffic - Appr. stamp: ECE-R20/E1 24523/SAE/ECE-R7
Housing Colour: Grey - Diffusing Lens Material: Glass
Item Attributes:
Mounting Type: Fitting
Fastening Type: Three-point mounting
Light Design: Halogen
Lamp Type: H4 / T4W
Voltage: 12 V / 24 V

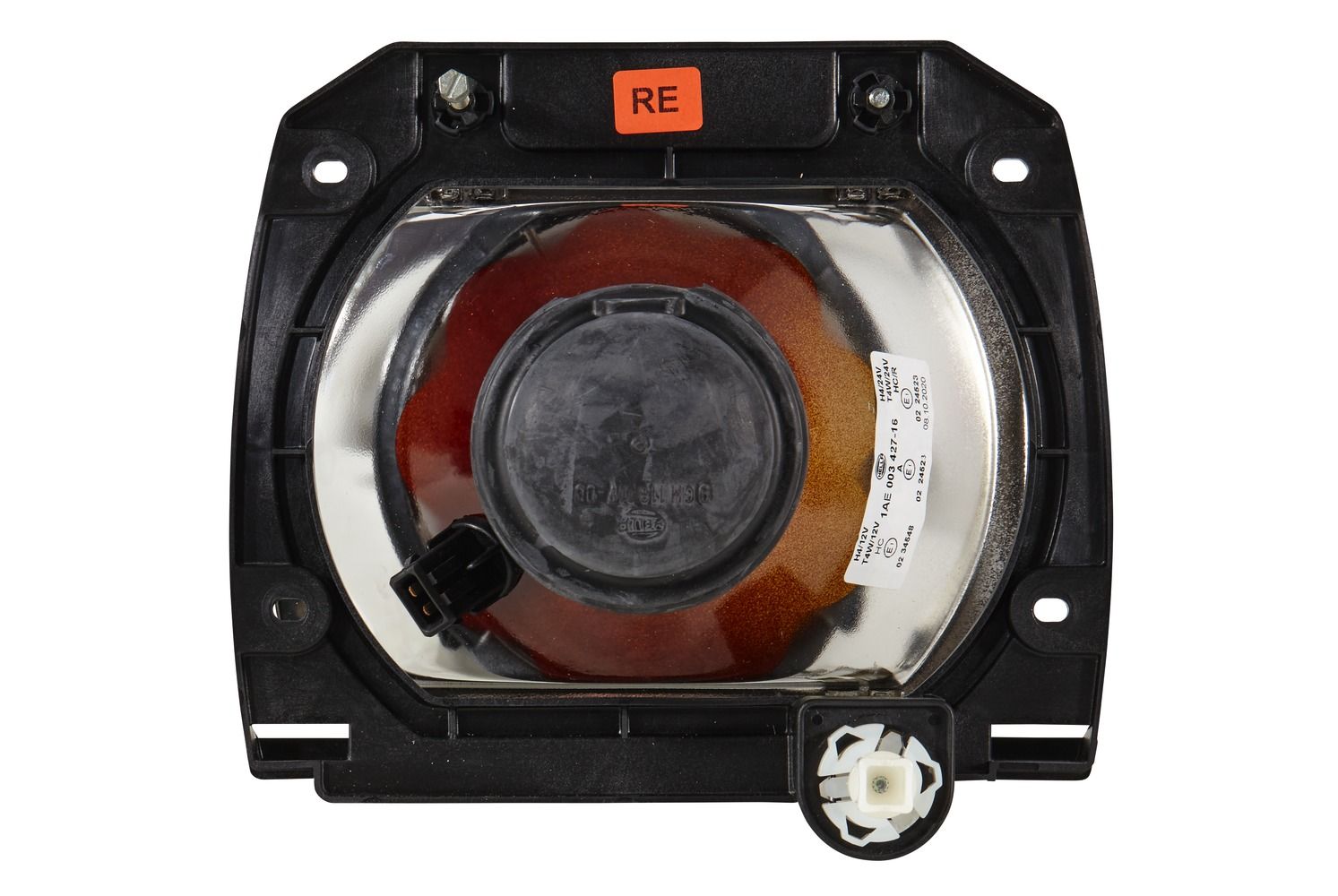

Fitting Position: right
Height: 142 mm
Width: 190 mm
Depth: 140 mm
Light Function: with high beam / with position light / with low beam
Light functions: 3
Appr. stamp: ECE-R7 / ECE-R20 / E1 24523 / SAE

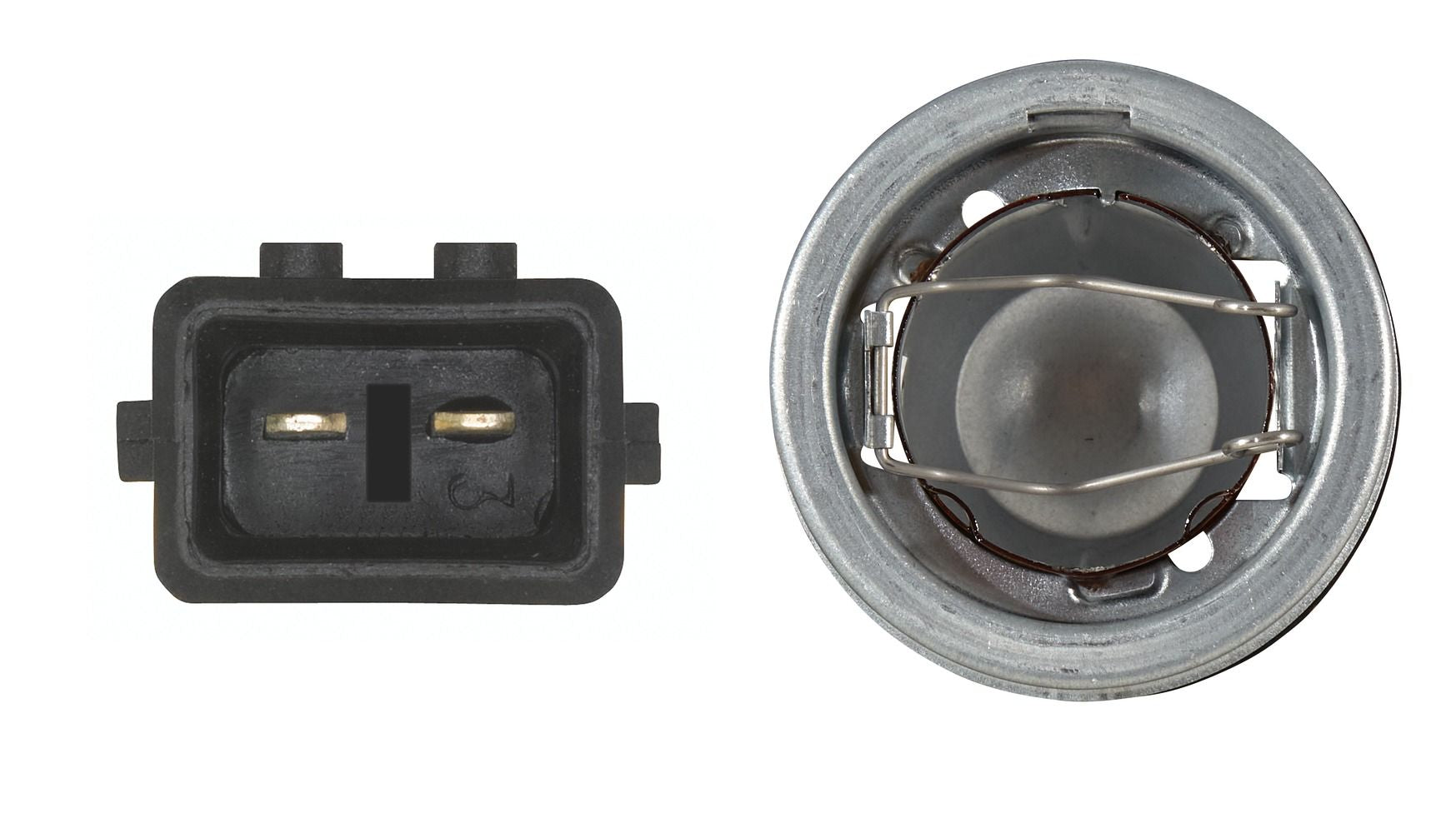

Plug: Male
Reference number: 17.5
Left-hand/Right-hand Traffic: for right-hand traffic
Lens Colour: Crystal clear
Housing Colour: Grey
Illuminated Area: 190 x 132 mm
Shape: rectangular
Diffusing Lens Material: Glass
Supplementary Article/Info 2: with holding frame / without bulbs

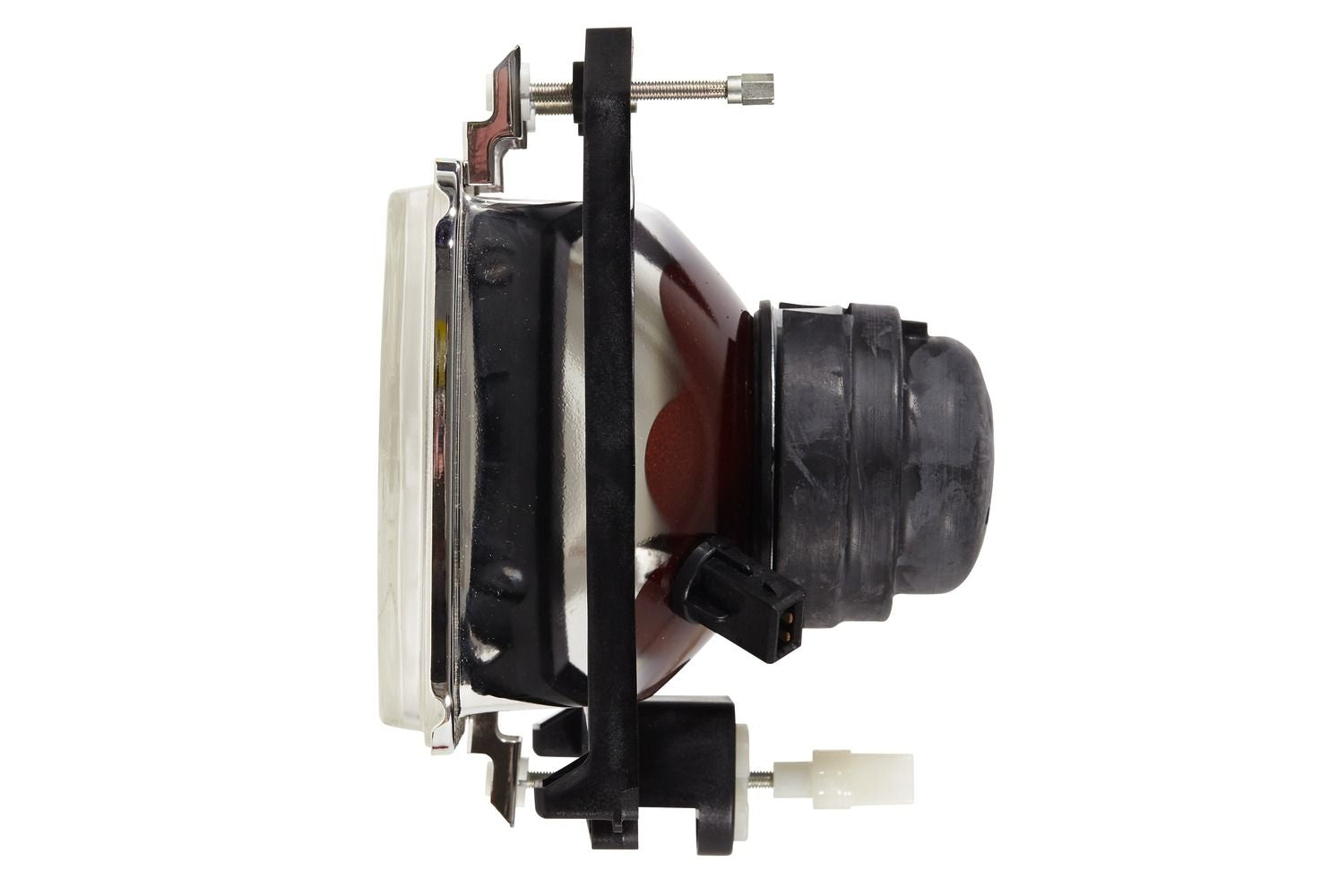

Supplementary Article/Supplementary Info: with adjuster
Quantity: 1
Assembly by qualified personnel required!
