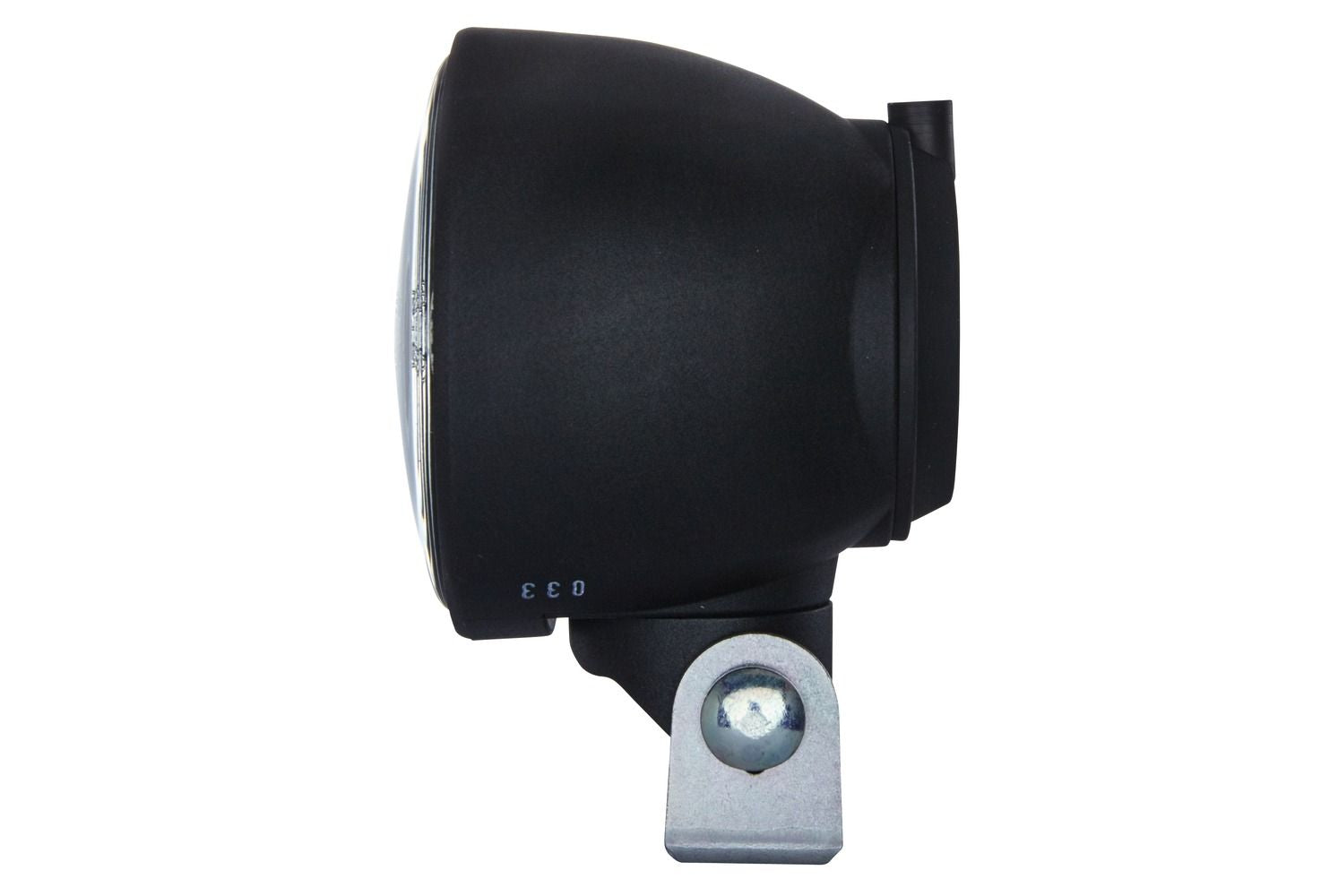

Halogen-Worklight - Modul 70 - 12/24V

Halogen-Worklight - Modul 70 - 12/24V - mounting/Bolted - Suspended/Swivelling Mounting Bracket - Short distance lighting - Plug: open cable ends

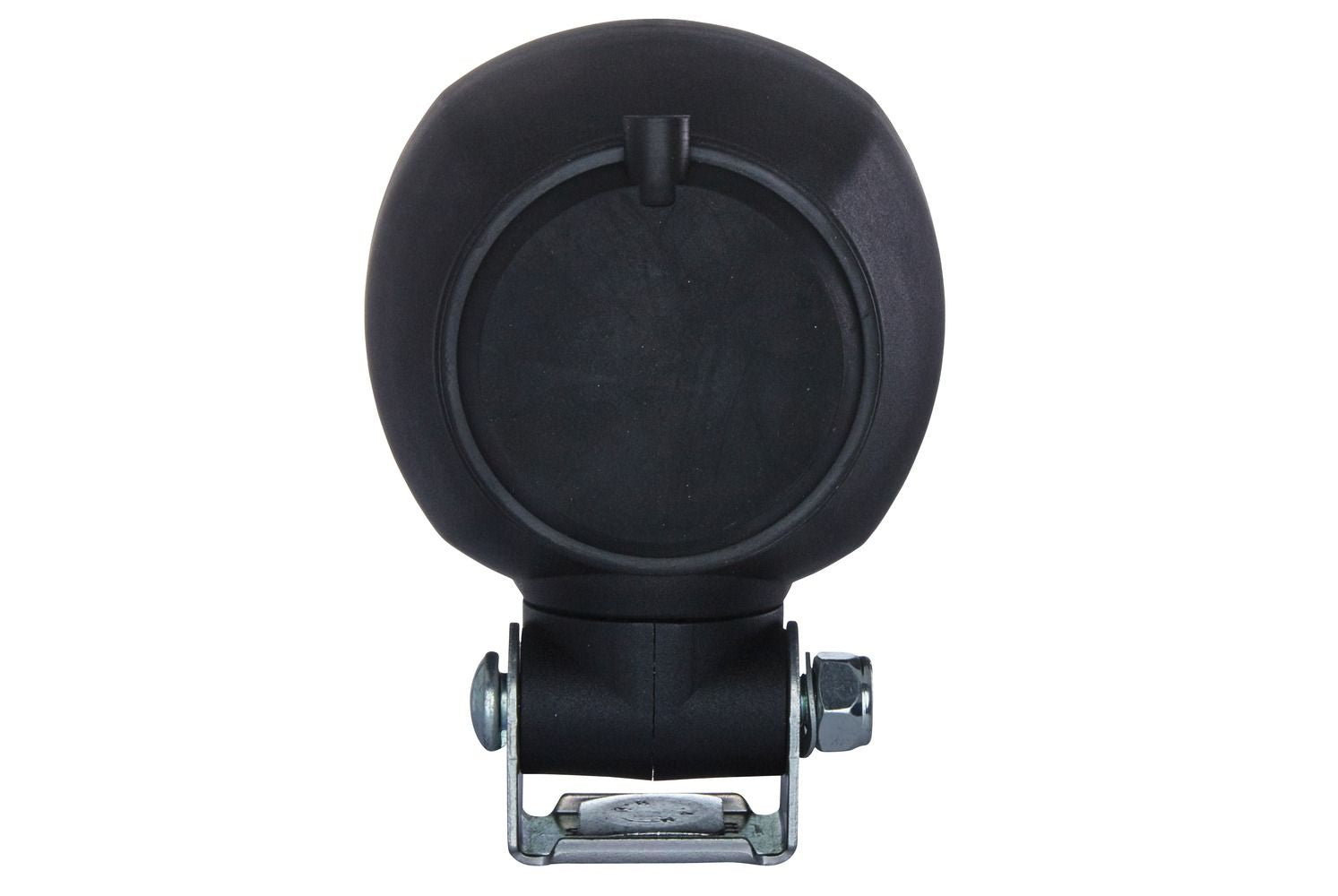

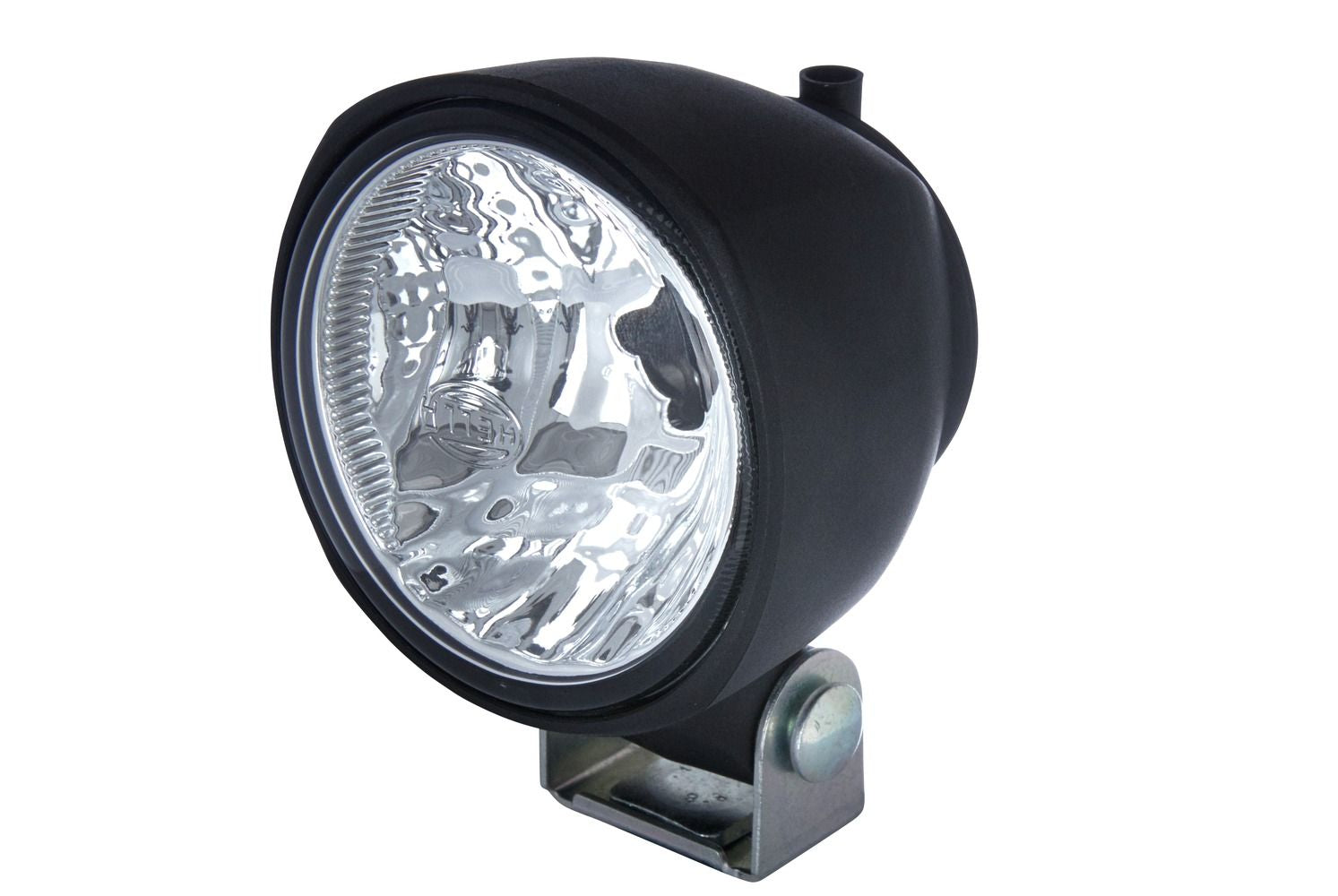

The Module 70 with H3 bulb is a compact worklight with an extremely small installation space. Despite its small size, the die-cast aluminium free-form reflector produces excellent light output. Thanks to the optics-free, hardened diffusing lens, the unit shines with the most modern design. Versions for illuminating the near working area or with long-range illumination are optionally available. The robust headlamp housing is made of glass-fibre reinforced plastic and is resistant to acid and corrosion. Due to its compact dimensions, the worklight can be used universally. The housing is firmly glued to the reflector and the diffusing lens. The cable exit is via a rubber cap that can be removed for bulb replacement. Fast, tool-free bulb replacement is guaranteed with all versions. This headlamp is available as a surface-mounted (depending on the version: upright or suspended) and also as a recessed version.

Modul 70 with H3 bulb is a compact worklight with an extremely small installation space.
Despite its small size, the free-form die-cast aluminium reflector provides excellent light output.
The robust headlamp housing is made of glass fibre reinforced plastic and is acid and corrosion resistant.
Lamp Type: H3 - Power consumption: 35/70W

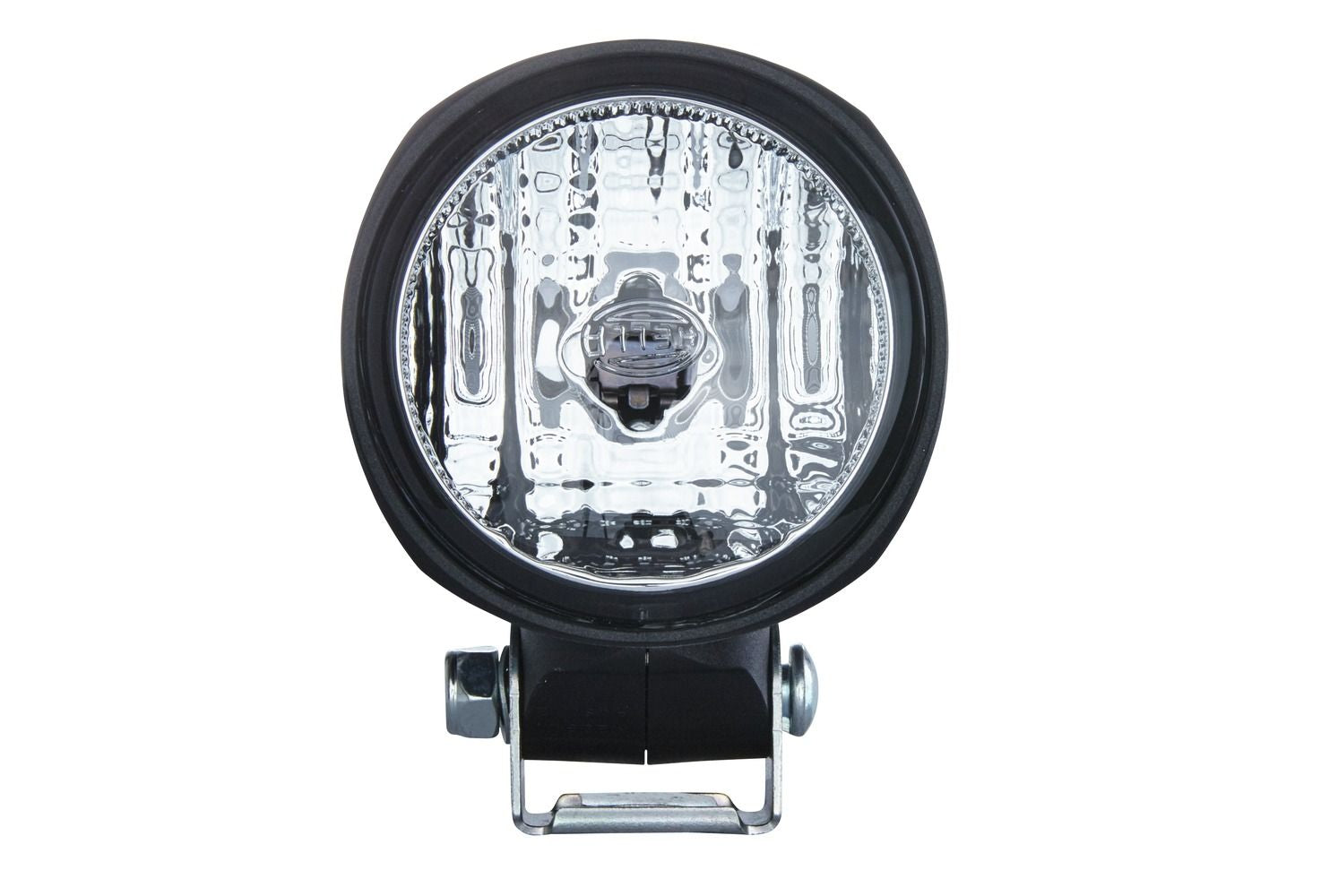

Patterned diffusing lens
Prot.type (IP Code): IP5K9K
Synthetic Material Housing - Housing Colour: Black - Diffusing Lens Material: Polyamid 12

Item Attributes:
Mounting Type: Bolted / mounting

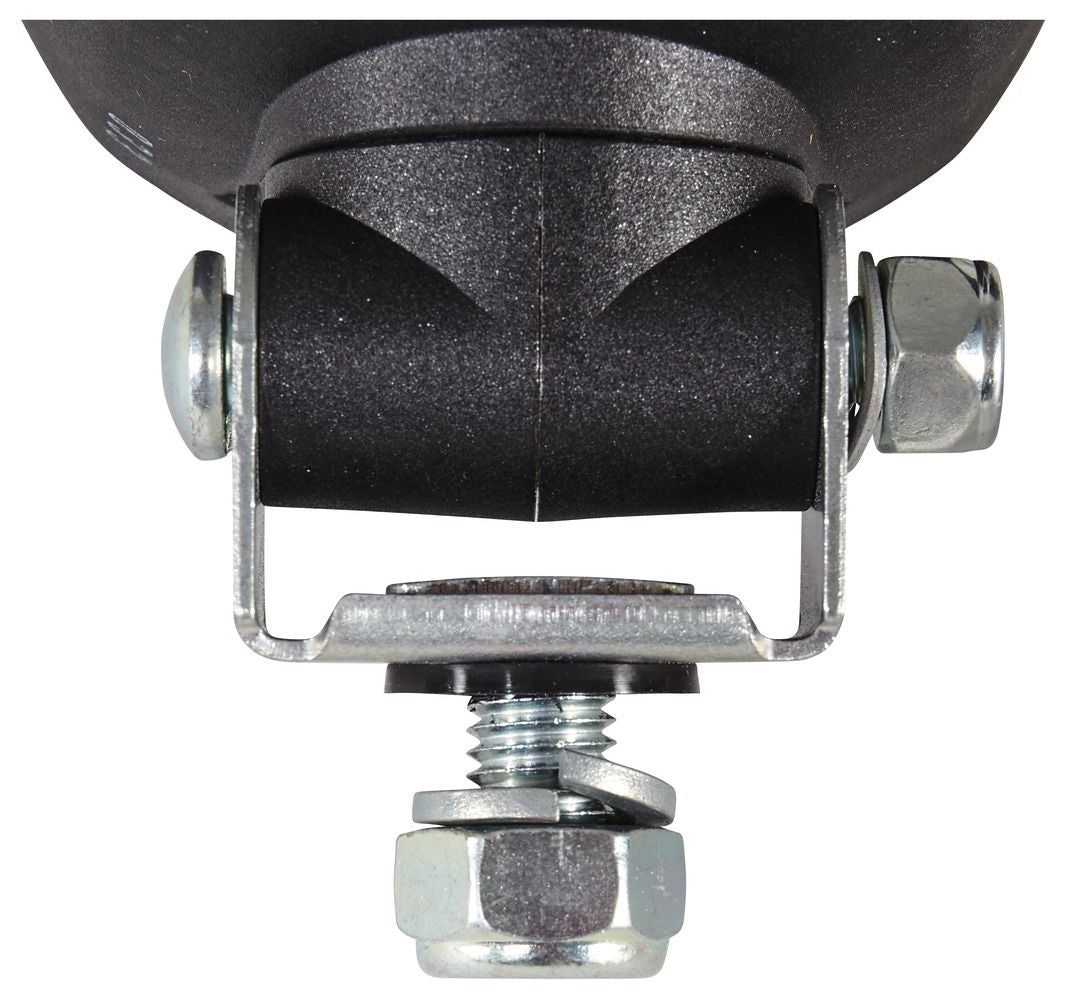

Fastening Type: Suspended / Swivelling Mounting Bracket
Light Design: Halogen
Lamp Type: H3
Voltage: 12 V / 24 V
Height: 113 mm
Width: 83 mm
Depth: 76 mm
Light Distribution: Short distance lighting
Plug: open cable ends
Prot.type (IP Code): IP5K9K
Power consumption: 35 W / 70 W
Supplementary Article/Info 2: without cable / with rubber grommet / without bulbs
Housing Type: Synthetic Material Housing
Housing Colour: Black
Diffusing Lens Material: Polyamid 12
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!
