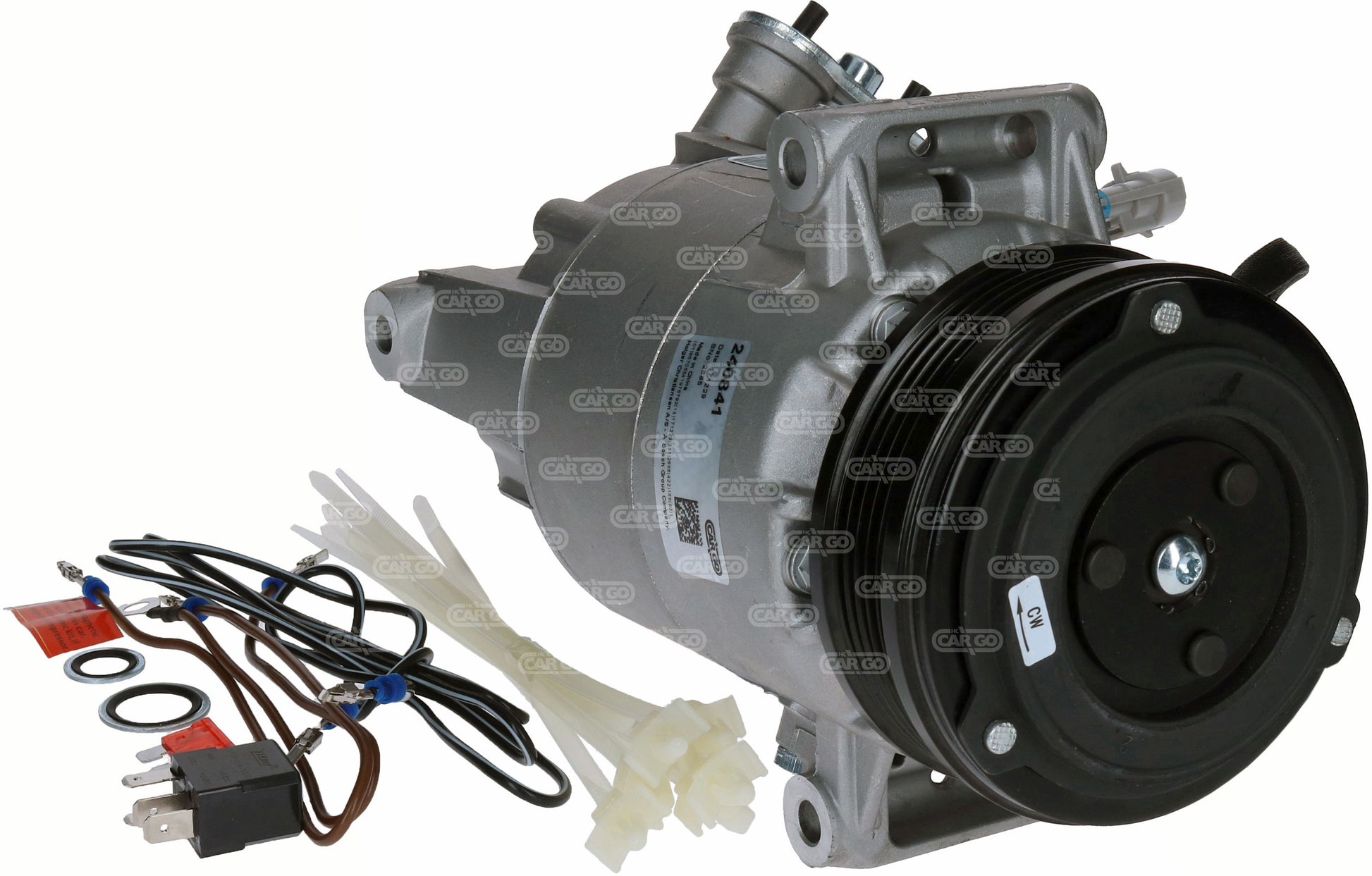

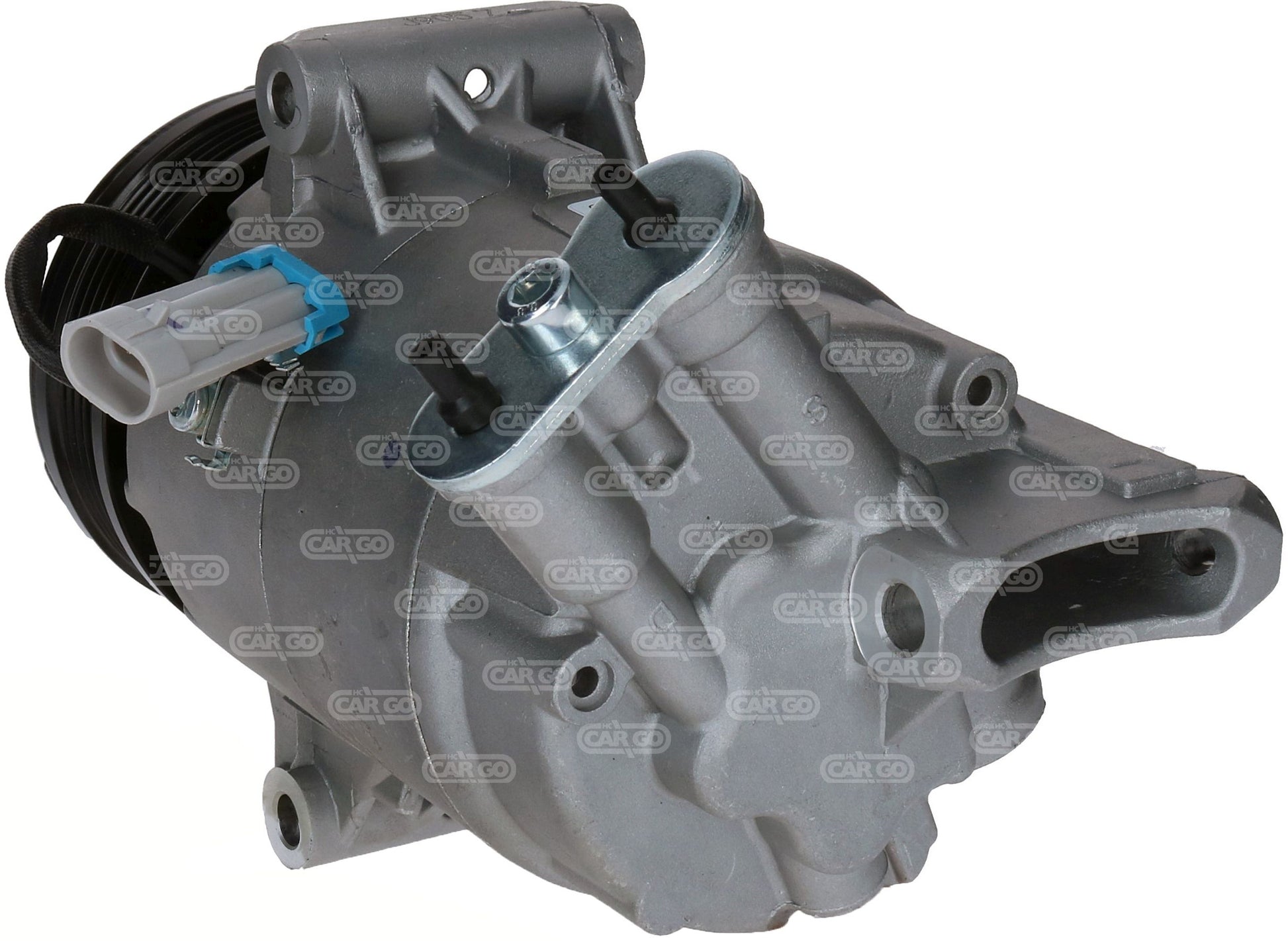

HC Cargo Aircon Compressor 240841

Voltage: 12
Family type: CVC
Mount. holes/front 2: 9.00
Dist. between holes 1: 70.00
Dist. between holes 2: 70.00
Dist. between holes 3: 70.00
Dist. between mount. bracket/hole: 141.00
Dist. between mount. bracket/hole 2: 141.00
Dist. between mount. bracket/hole 3: 138.00
Position: 58
Position 2: 52
Length mm: 230.30
Rotation: CW
Inlet: 17.80
Outlet: 11.90
Pulley Dist. B1: 56.00
Pulley Dist. B2: 41.50
Pulley Grooves: 5
Pulley type: SP
Pulley OD mm: 105.00
Oil type: PAG 46
Oil capacity: 150 ml.
Refrigerant: R134a
O-ring: w/
Source: N/A
Remarks: IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.

Replaces OEM reference(s):
Delphi 13297442, General motor 1139068, General motor 1854259, General motor 13297437, General motor R1580053, Opel 1139068, Opel 1854170, Opel 1854172, Opel 1854397, Opel 1854418, Opel 1854437, Opel 1854528, Opel 1854534, Opel 6854059, Opel 6854062, Opel 6854088, Opel 13124750, Opel 13286085, Opel 13322147, Opel 13415378, Opel 24466994, Opel 93168625, Opel 93168627, Opel 93169381, Opel 93176127, Opel 93196859, Opel 93196865, Opel 95515263, Opel 95516512, Opel 95517233, Opel 383601234, Remy (delco) DAC8600261, Valeo 699362, Valeo 699862, Vauxhall se Opel 1139074, Vauxhall se Opel 1854188, Vauxhall se Opel 6854062, Vauxhall se Opel 93169375, Vauxhall se Opel 93187227, Vauxhall se Opel 94711789, Vauxhall se Opel 96168625, Vauxhall se Opel R1580071, Vauxhall se Opel R1580077

Replaces aftermarket reference(s):
Ava (Quality Cooling) OLAK428, Ava (Quality Cooling) OLK428, Delphi TSP0155449, Delphi TSP0155461, Elstock 51-0247, Elstock 51-0424, FrigAir 92080004, Hella 8FK351135-301, Hella 8FK351135-401, Hella 8FK351135-801, NRF 32426, Teamec 8600261, Teamec 8600273, Waeco 8880100244
