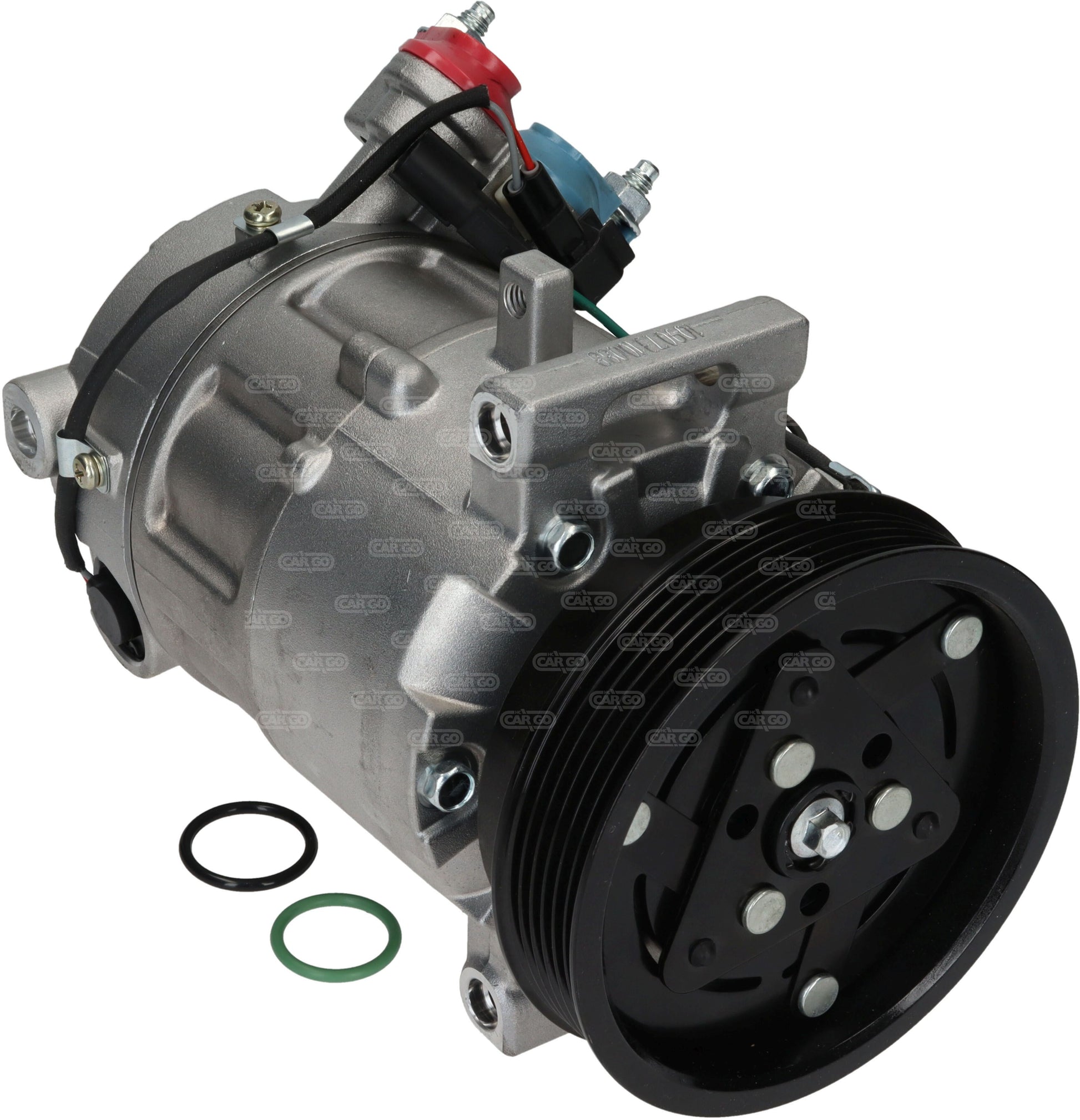

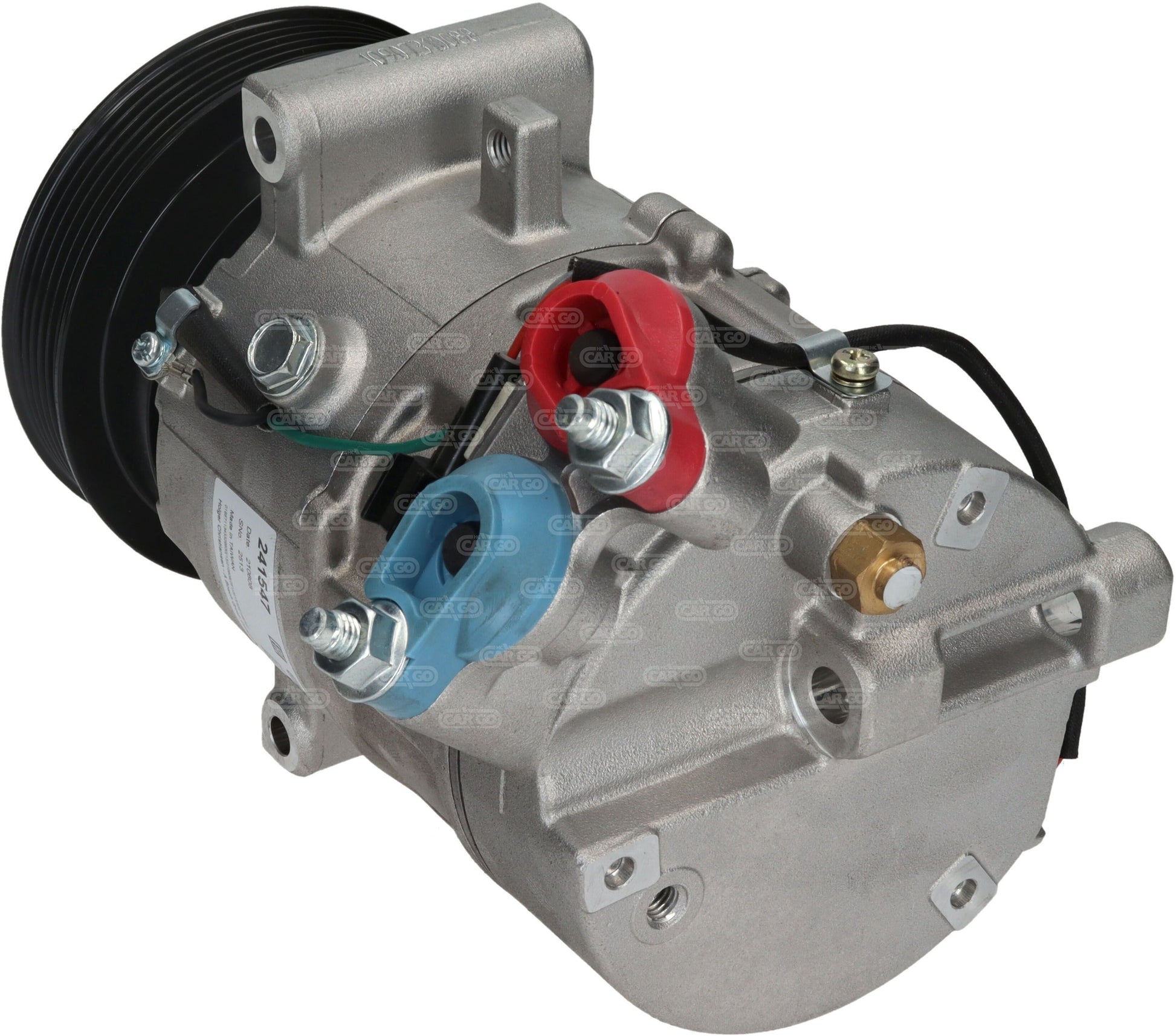

HC Cargo Aircon Compressor 241547

Voltage: 12
Family type: PXC16
Mount. holes/front 2: 10.00
Dist. between holes 1: 70.00
Dist. between holes 2: 70.00
Dist. between holes 3: 70.00
Dist. between mount. bracket/hole: 141.00
Dist. between mount. bracket/hole 3: 138.00
Position: 52
Position 2: 58
Length mm: 233.00
Inlet: 20.60
Outlet: 18.10
Pulley Dist. B1: 62.50
Pulley Dist. B2: 44.50
Pulley Grooves: 6
Pulley type: SP
Pulley OD mm: 120.00
Pulley: w/
Oil type: PAG 46yf
Oil capacity: 80 ml.
Refrigerant: R1234yf
Remarks: IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.

Replaces OEM reference(s):
Sanden PXC16-1632, Sanden PXC16-8722, Sanden SNE-10-8852, Sanden SNE-12-8852, Volvo 31404446, Volvo 36002152
