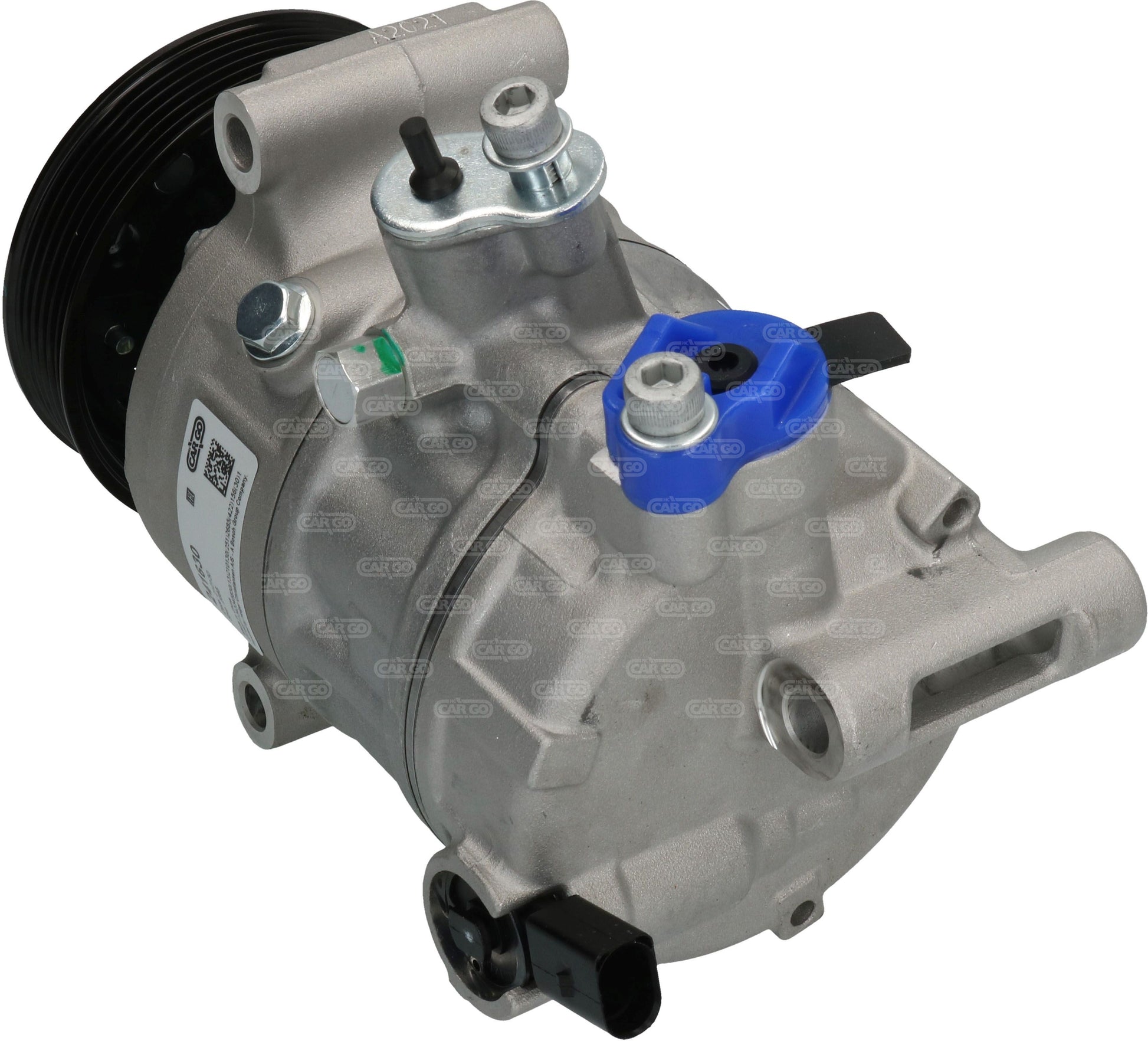

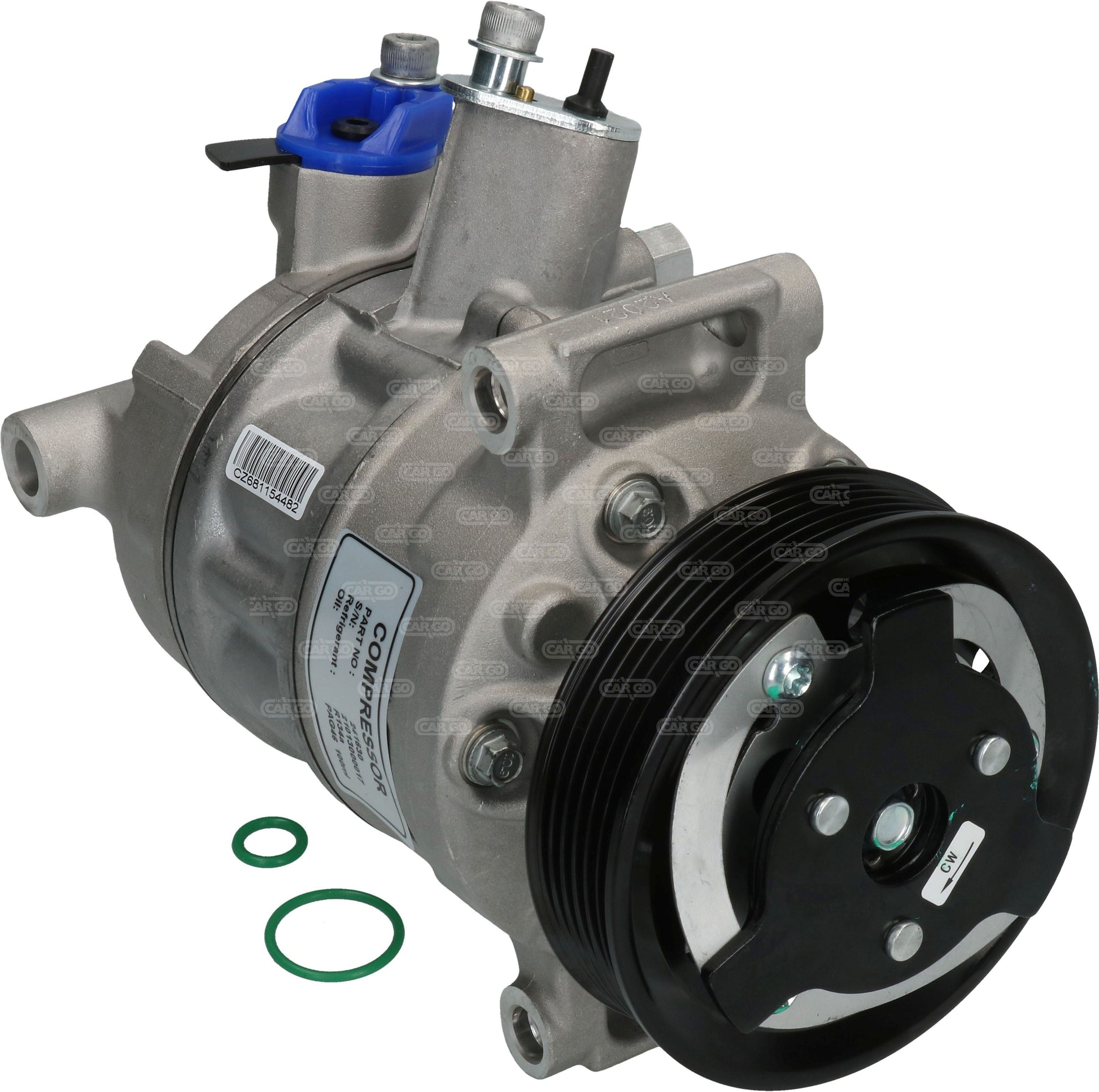

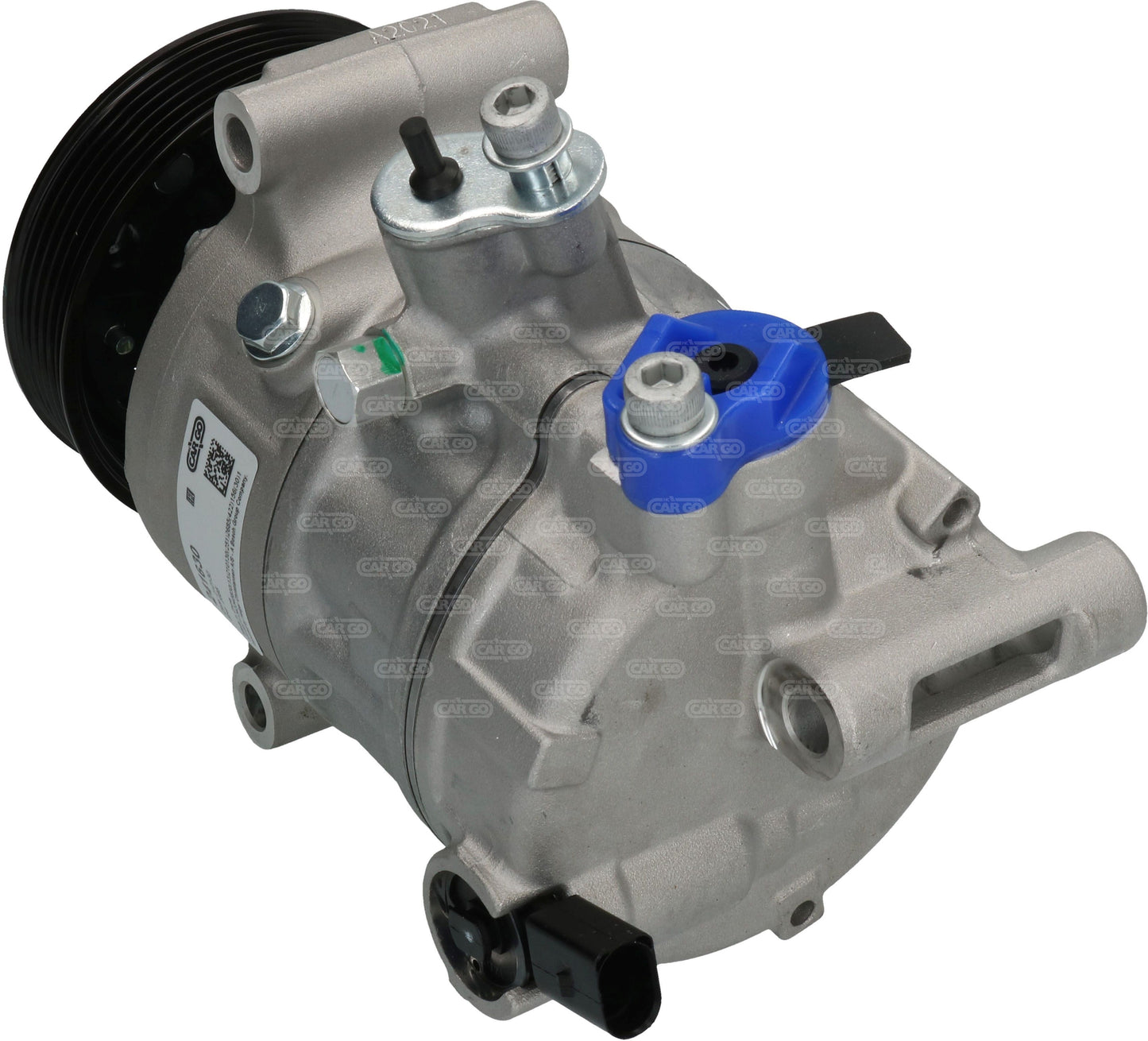

HC Cargo Aircon Compressor 241630

Voltage: 12
Family type: PXE14
Mount. holes/front 2: 9.50
Dist. between holes 1: 70.00
Dist. between holes 2: 70.00
Dist. between holes 3: 70.00
Dist. between mount. bracket/hole: 141.00
Dist. between mount. bracket/hole 3: 138.00
Position: 59
Position 2: 57
Length mm: 233.00
Rotation: CW
Inlet: 28.40
Outlet: 15.40
Pulley Dist. B1: 59.50
Pulley Dist. B2: 41.50
Pulley Grooves: 6
Pulley type: SP
Pulley OD mm: 110.00
Pulley: w/
Oil type: PAG 46
Oil capacity: 110 ml.
Refrigerant: R134a
O-ring: w/o
Remarks: IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.

Replaces OEM reference(s):
Denso 447150-2870, Sanden PXE14-1702, Sanden PXE14-1703, Sanden PXE14-1706, Sanden PXE14-1707, Sanden PXE14-1721, Sanden PXE14-1722, Sanden PXE14-1782, Sanden PXE14-8422, Sanden PXE14-8833, Sanden PXE1782, Volkswagen 5K0820803C, Volkswagen 5K0820803G, Volkswagen 5K0820803J
