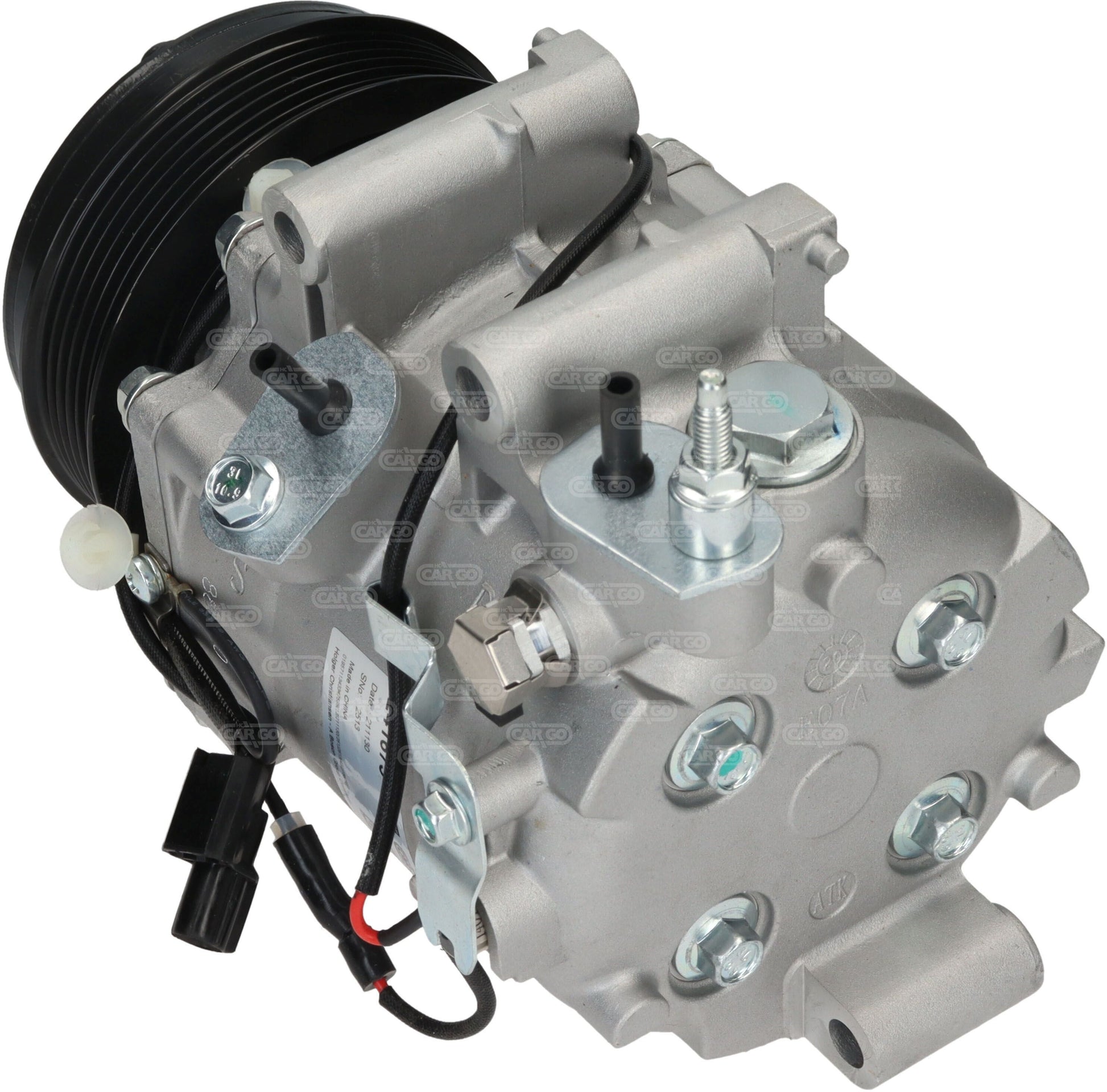

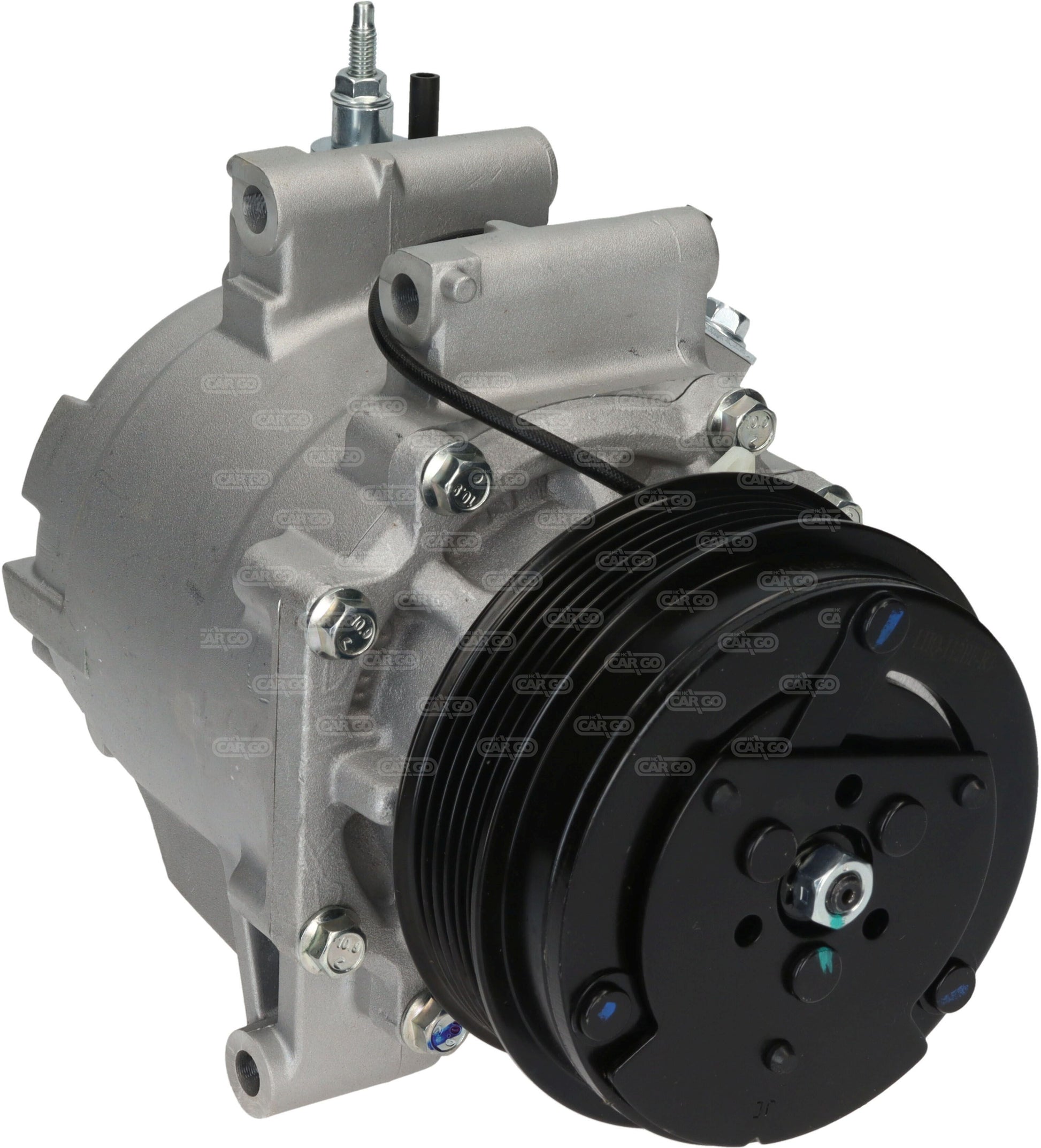

HC Cargo Aircon Compressor 241675

Voltage: 12
Family type: TRSE09
Mount. holes/front 2: 8.50
Dist. between holes 1: 65.00
Dist. between holes 3: 65.00
Dist. between holes 4: 40.00
Dist. between mount. bracket/hole: 107.00
Dist. between mount. bracket/hole 2: 54.00
Dist. between mount. bracket/hole 4: 129.00
Position: 58
Position 2: 54
Inlet: 18.30
Outlet: 15.50
Pulley Dist. B1: 75.00
Pulley Dist. B2: 57.50
Pulley Grooves: 6
Pulley type: SP
Pulley OD mm: 112.00
Pulley: w/
Oil type: PAG 46
Oil capacity: 75 ml.
Refrigerant: R134a
O-ring: w/
Remarks: IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.

Replaces OEM reference(s):
Honda 38810-1RA-Y01, Honda 38810-R1A-Y01, Sanden TRSE09-3773
