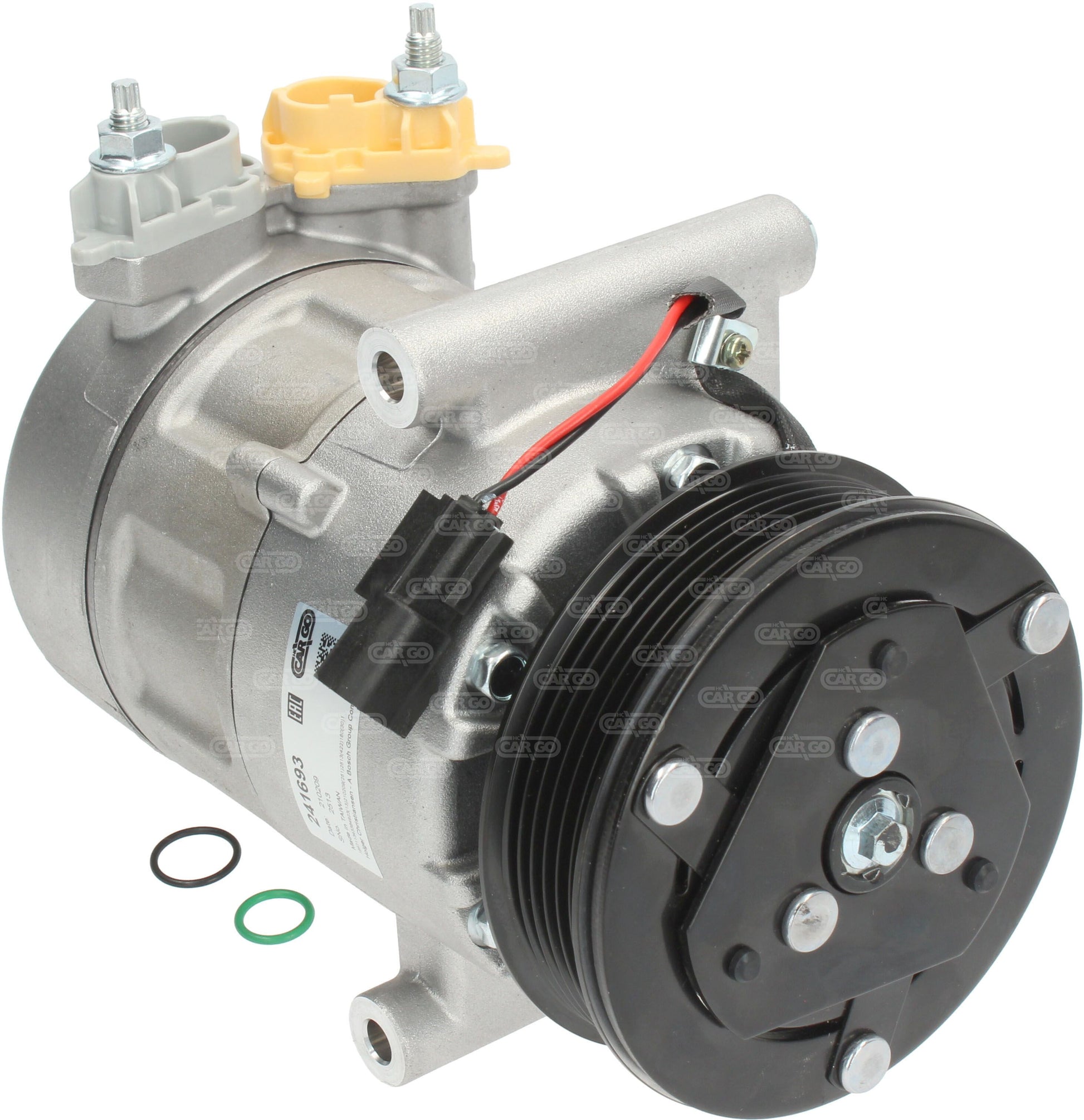

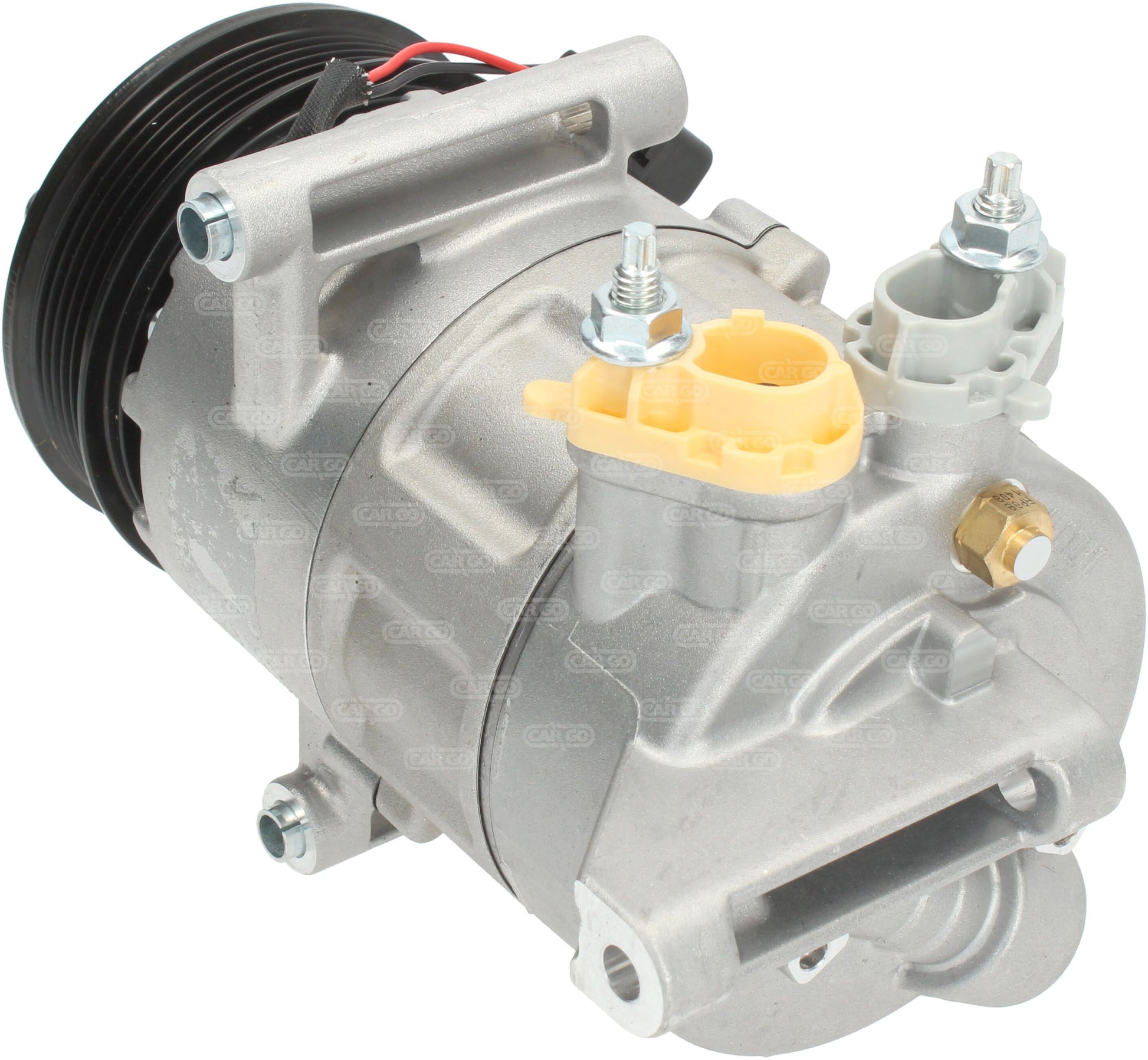

HC Cargo Aircon Compressor 241693

Voltage: 12
Family type: 7VS19IC
Mount. holes/front 2: 8.50
Dist. between holes 1: 95.00
Dist. between holes 2: 95.00
Dist. between holes 3: 95.00
Dist. between mount. bracket/hole: 141.00
Dist. between mount. bracket/hole 2: 141.00
Dist. between mount. bracket/hole 3: 138.00
Position: 2
Position 2: 58
Length mm: 245.00
Inlet: 22.60
Outlet: 18.40
Pulley Dist. B1: 76.00
Pulley Dist. B2: 58.00
Pulley Grooves: 6
Pulley type: SP
Pulley OD mm: 108.00
Pulley: w/
Oil type: PAG 46-H
Oil capacity: 160 ml.
Refrigerant: R1234yf
O-ring: w/
Remarks: IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.

Replaces OEM reference(s):
Ford 1770253, Ford 1827895, Ford 2011501, Ford 2025223, Ford 2026598, Ford 2058176, Ford 2308188, Ford 2355740, Ford BK2119D629AC, Ford BK2119D629AD, Ford BK2119D629AE, Ford BK2119D629AF, Ford BK2119D629AG, Ford BK2211D629AE, Ford BK2211D629AF, Ford DG9H-19D629-FF, Ford REBK2119D629AF

Replaces aftermarket reference(s):
FrigAir 94060039, Mahle ACP1387000P, Nissens 890217, NRF 320082
