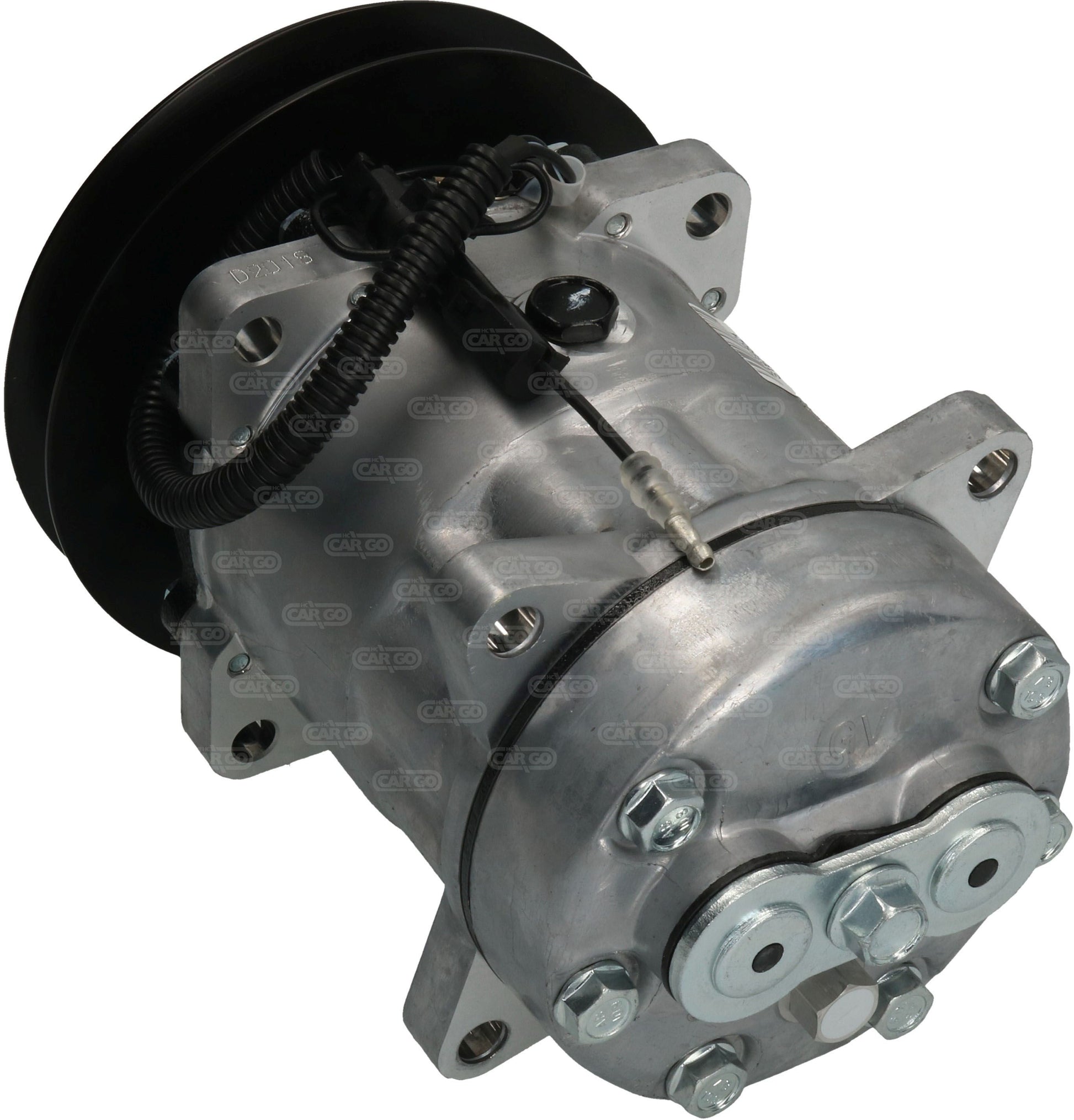

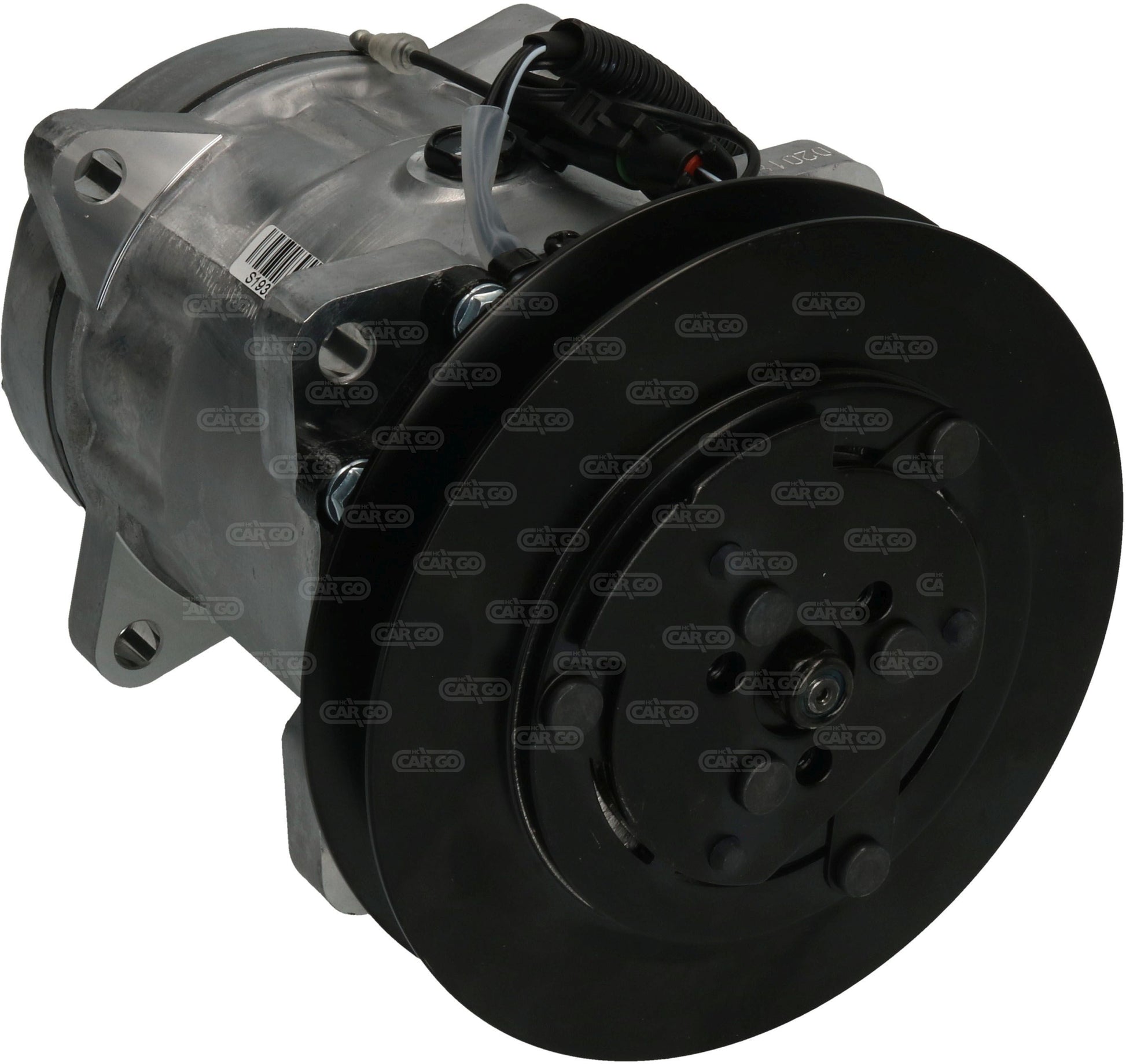

HC Cargo Aircon Compressor 241889

Voltage: 12
Family type: SD7H15
Mount. holes/front 2: 10.00
Mount. holes/front: 10.00
Dist. between holes 1: 104.00
Dist. between holes 2: 104.00
Dist. between holes 3: 104.00
Dist. between holes 4: 104.00
Dist. between mount. bracket/hole: 83.30
Dist. between mount. bracket/hole 2: 83.30
Position: 45
Position 2: 15
Rear Cover Type: GV
Length mm: 226.00
Rotation: CW
Inlet: 16.60
Outlet: 16.40
Pulley Dist. B1: 39.50
Pulley Dist. B2: 39.50
Pulley Grooves: 1
Pulley type: SP
Pulley OD mm: 159.00
Oil type: PAG 46
Refrigerant: R134a
O-ring: w/o
Remarks: IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.

Replaces OEM reference(s):
General motor 4434678, General motor 93161916, Sanden 75R89372, Sanden SD7H15-4866
