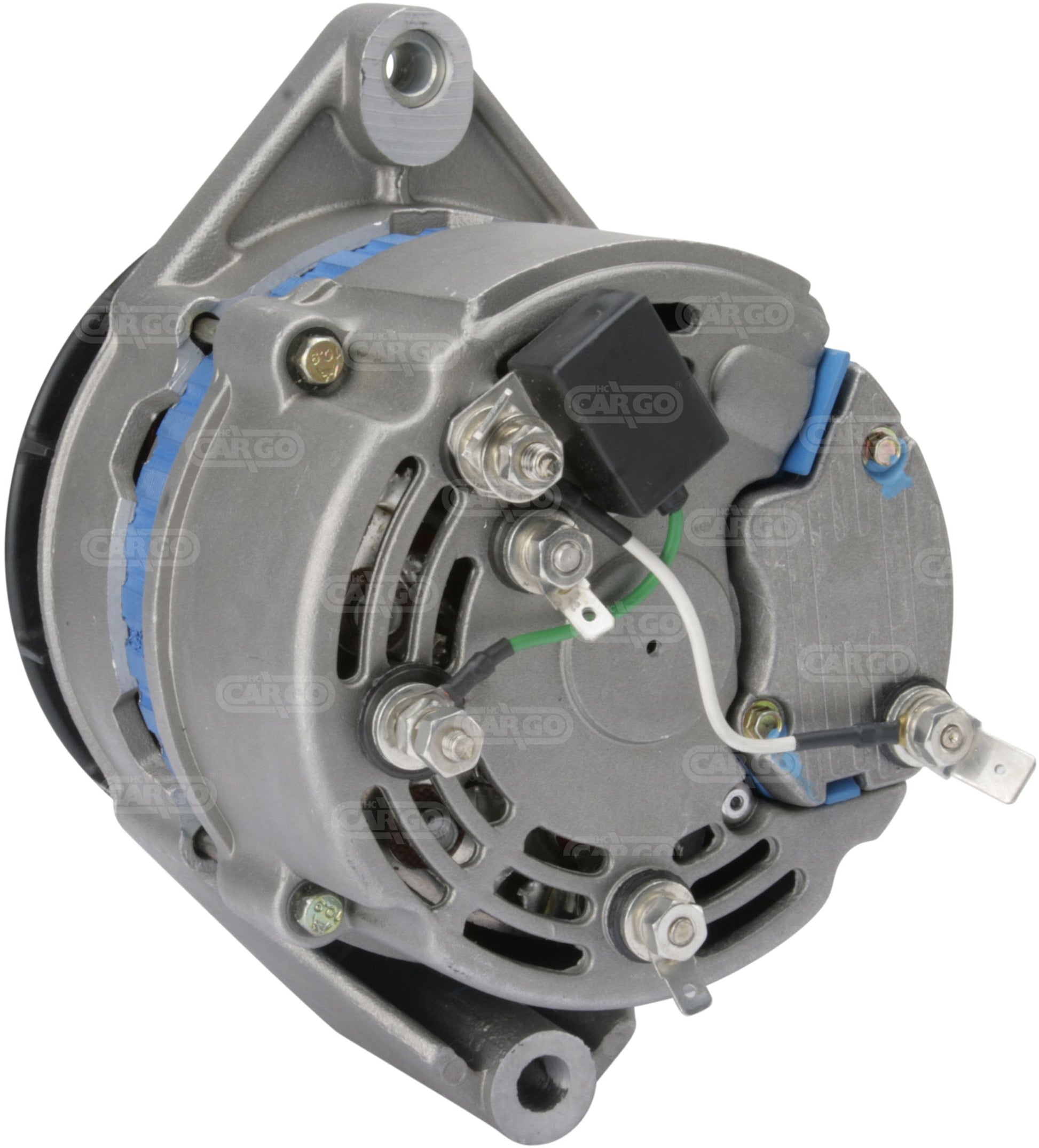

HC-Cargo Alternator for Daf 55A F032111295

Shaft dia. 19.00 mm.

Voltage: 28
Amp: 55
Insulated return: Yes
Terminal: W
Width/holder arm: 76.20
Bracket hole: 11.30
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole: 10.30
Radius: 90.00
Radius 2: 94.50
B+: M5
Position/B+ in min.: 42
D+ Size: 6.30
Rotation: CW
W plug type: M6
Total length mm: 189.00
Pulley: w/o
Regulator type: IR
Prod. info: BN/OE
Remarks: Shaft dia. 19.00 mm.

Replaces OEM reference(s):
Butec 854477, Butec 857612, Butec 857621, Butec 857626, Butec 857633, Butec 857638, Butec 858085, Butec 858693, Butec 859437, Butec 859438, Butec 859440, Butec 859544, Butec 859605, Butec 860052, Butec 860627, Butec 860628, Butec 860629, Butec 880624, Butec 880626, Butec 880655, Butec 880627Z, Butec a5524/30, Butec a5524/37, Butec a5524/46, Butec a5524/56, Butec a5524/58, Butec lna5524/0, Butec lna5524/1, Butec lna5524/2, Butec lna5524/3, Butec lna5524/7, CAV 1266450, CAV 1266530, CAV 1266720, CAV 1268520, CAV 1268560, CAV 1268580, CAV 1268590, CAV 1268610, CAV 1268620, CAV 1268650, CAV 1268660, CAV 1268690, CAV 1268590C, CAV 1268590M, CAV 1268600m, CAV 1268630M, CAV ac5rs-24, HC-PARTS ca1193ir, Perkins 2871A003, Prestolite 859327

Replaces aftermarket reference(s):
Ac delco DRA3603, Ac delco DRA3608, AD Kühner 301193RI, Autostarter Poland A9351S, Bowers - HCUK BAO3309, Casco CAL11600, Casco CAL11601, Casco CAL11602, Dansk Renoveringsindustri 237.103.354, Dansk Renoveringsindustri 500.147.554, Elstock 48-0508, Elstock 48-3780, Elstock 48-3844, Hella 8el737213-001, lucas lra02511, lucas lrb00606, lucas lrb00627, lucas lrb00628, lucas lrb00630, Pos Service Holland 706.006.055, Prestolite - HCUK 66021507, Spidan 5624, Wood Auto ALT21000, Wood Auto ALT32005, Wood Auto ALT32009, Wood Auto ALT32013
