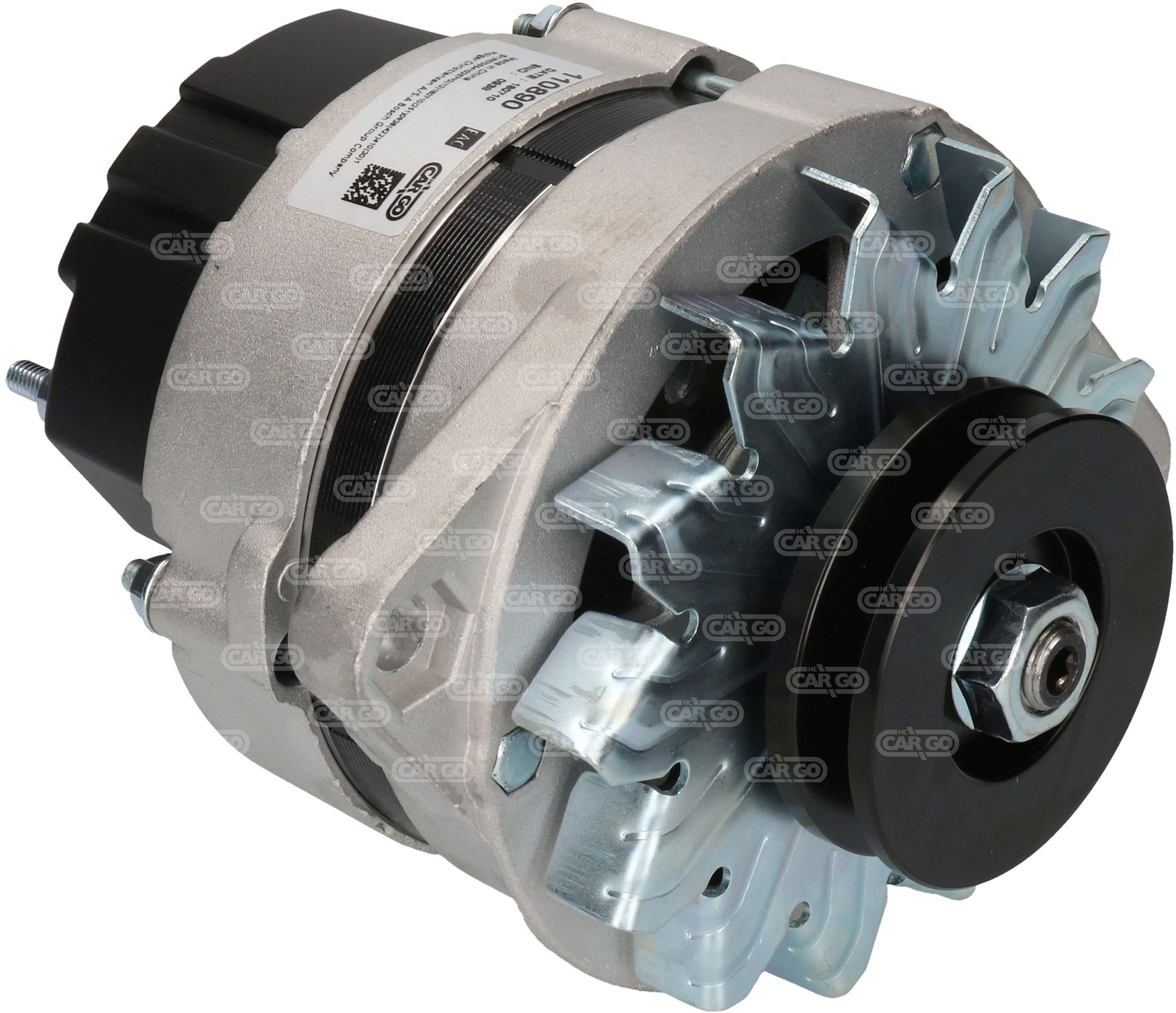

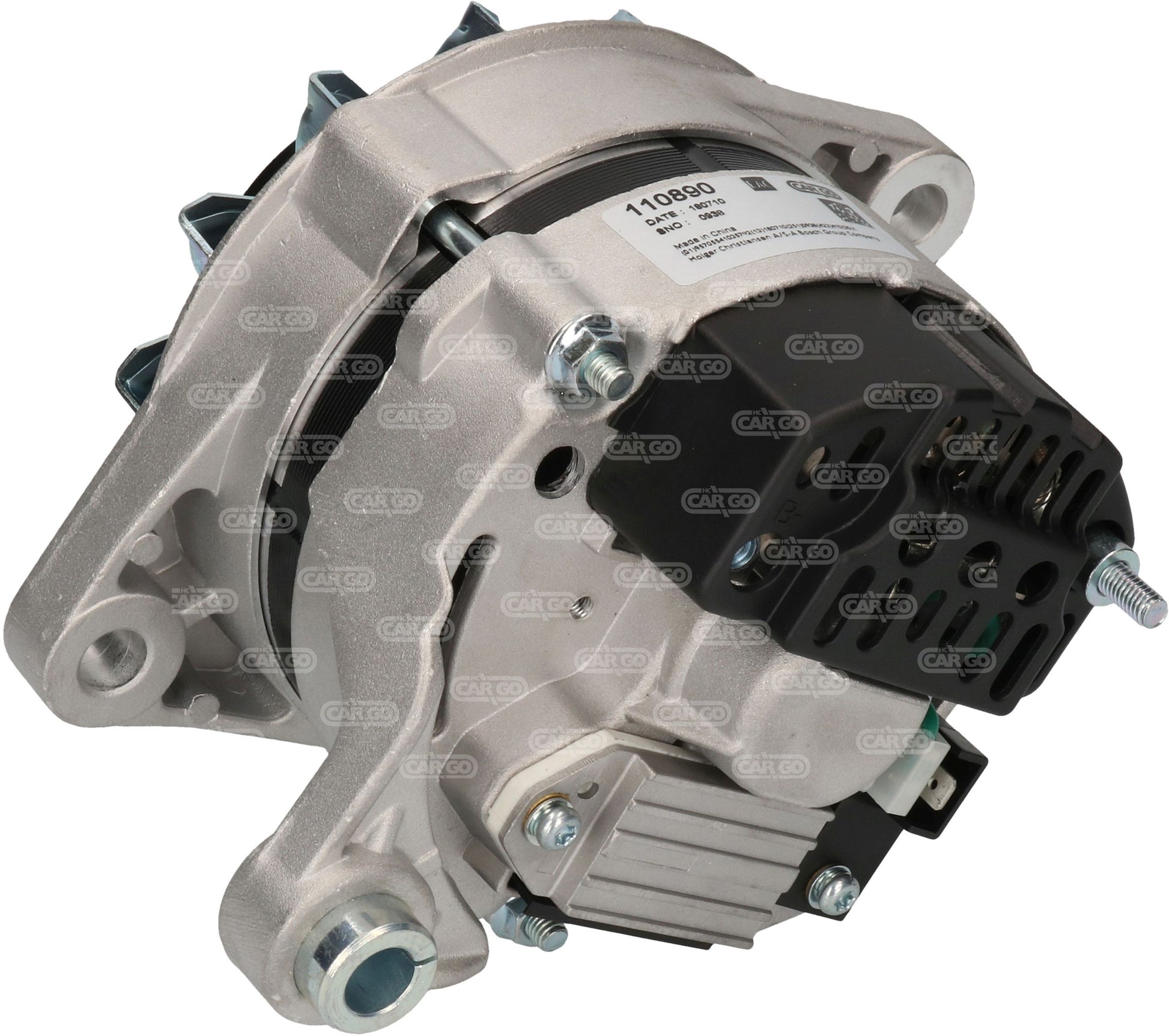

HC-Cargo Alternator for Fiat 55A F032110890

Voltage: 14
Amp: 55
Pulley dist.: 49.00
Width/holder arm: 17.00
Mount. bracket dist.: 63.00
Bracket hole: 12.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole: 11.00
Pulley dia.: 75.00
Grooves/pulley: 1
Radius: 84.50
Radius 2: 80.50
B+: M6
Position/B+ in min.: 60
D+ Size: 6.30
Rotation: CW
Total length mm: 169.00
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Alfa romeo
fiat
iveco
lamborghini
massey ferguson
same
seat

Replaces OEM reference(s):
Alfa Romeo 116760506000, Alfa Romeo 116760506100, Alfa Romeo 11676050600000, Alfa Romeo 11676050610000, Bosch 0120400914, Bosch 0120400943, Bosch 0120489021, Bosch 0120489107, Bosch 0120489134, Bosch 0120489146, Bosch 0120489147, Bosch 0120489151, Bosch 0120489763, Bosch 0120489770, Bosch 0120489838, Bosch 9120331881, Case 1416763, Case 1530354C1, Chrysler 038520131A, Chrysler 38520131A, Claas 6005706646, Claas CT6005706646, DAF 1516552R, Efel 10910, Fiat 2022612, Fiat 4242730, Fiat 4263584, Fiat 4263983, Fiat 0000004285622, Fiat 4285622, Fiat 4306041, Fiat 0000004382200, Fiat 0004386883, Fiat 0000004424346, Fiat 0000004474904, Fiat 4721589, Fiat 4721591, Fiat 4721592, Fiat 4731839, Fiat 4731841, Fiat 4731842, Fiat 4750583, Fiat 4769911, Fiat 0000004787665, Fiat 4787673, Fiat 4808503, Fiat 4808505, Fiat 0000004849157, Fiat 5927870, Fiat 0000005962647, Fiat 0005970230, Fiat 0000005976915, Fiat 5992148, Fiat 0000007575998, Fiat 0000046231723, Fiat 0000046231725, Fiat 0000046231751, Fiat 46231786, Fiat 77515411, HC-PARTS ca316ir, Iveco 4769910, KHD 04731651, KHD 4731651, KHD 04731652, KHD 4731652, LAMBORGHINI (S+L+H) 294391300, LAMBORGHINI (S+L+H) 294392400, lucas 61920269, Magneti Marelli 30680353, Magneti Marelli 63304807, Magneti Marelli 63305506, Magneti Marelli 63305526, Magneti Marelli 63305536, Magneti Marelli 63305606, Magneti Marelli 63307236, Magneti Marelli 63307506, Magneti Marelli 63307526, Magneti Marelli 63307536, Magneti Marelli 63307841, Magneti Marelli 63320023, Magneti Marelli 63320100, Magneti Marelli 63321041, Magneti Marelli 63321180, Magneti Marelli 943320023, Magneti Marelli 943356353, Mahle Letrika 11.201.112, Mahle Letrika 11.201.242, Mahle Letrika 11.201.306, Mahle Letrika 11.201.457, Mahle Letrika aak1135, Mahle Letrika AAK3560, Mahle Letrika aak4140, Mako 063320023000, Mako 063321042000, Motorola 9al5050k, Remy (delco) 19025046, Same 294391, Same 294392200, Same 294395600, Valeo 2950500, Vm 3.852.2236F, Volkswagen 0004769911

Replaces aftermarket reference(s):
Ac delco dra0970, Ac delco DRA0970X, Ac delco dra0980, Ac delco dra2121, AD Kühner 30316RI, Autostarter Poland A4030PR, Autostarter Poland A4039, Autostarter Poland A4092, Autostarter Poland A9234, Bosch 0986030970, Bosch 0986030971, Bosch 0986030980, Bosch 0986032111, Bosch 0986032120, Bosch 0986033230, Bosch 0986121174, Bosch 0986121183, Bosch USA AL911X, Bosch USA AL914X, Bowers - HCUK BAO3030, Bowers - HCUK BAO3045, Bowers - HCUK BAO3105, Bowers - HCUK BAO3145, Casco CAL30113, Cevam 4264, Dansk Renoveringsindustri 218.102.552, Dansk Renoveringsindustri 218.111.552, Dansk Renoveringsindustri 218.123.552, Dansk Renoveringsindustri 518.118.552, Elstock 28-0517, Elstock 28-0773, Elstock 28-0982, Elstock 28-1510, ERA S.p.A Italia 210295, ERA S.p.A Italia 210295A, ERA S.p.A Italia 210313, ERA S.p.A Italia 210313A, ERA S.p.A Italia 210637, ERA S.p.A Italia 210637A, FARCOM 118046, Friesen 10-30.970, Friesen 19-30.970, Friesen 19-30.980, Friesen 22-32.121, Friesen 9030970, Hella 8el725718-001, Hella Timefit 8EL011711-641, Herth & Buss 32033890, Lester 13205, lucas lra00137, lucas lra00456, lucas lra00459, lucas lra00712, lucas lra00779, lucas lra00821, lucas lra00870, lucas lra00910, lucas lra00912, Magneti Marelli 063320023, Magneti Marelli 063320023010, Magneti Marelli 063321011, Magneti Marelli 063321021, Magneti Marelli 063321021010, Magneti Marelli 063321041, Magneti Marelli 063321041010, Magneti Marelli 063321042, Magneti Marelli 063321042010, Magneti Marelli 943356380010, Mahle Letrika ia0071, Mahle Letrika ia0112, Mahle Letrika ia0306, Mahle Letrika ia0327, Mahle Letrika IA0457, Mahle Letrika ia0571, Mahle Letrika MG127, Mahle Letrika MG150, Mahle Letrika MG189, Mahle Letrika MG43, PIC 202-116, PIC 220-366A, PIC 220-391, PIC 220-391A, PIC 282-154, PIC 282-172, Pos Service Holland 105.007.055, Pos Service Holland 105.012.055, QX Components - HCUK QA1100, Sovereign - HCUK SA487, Sovereign - HCUK SA498, Sovereign - HCUK SA499, Spidan 3208, Sud Est 55558, Sud Est 55684, Sud Est 55695, Sud Est 56145, Unipoint ALT-H016, Unipoint Bosch F042A0H016, Valeo 436105, Valeo 436111, Valeo 436112, Valeo 436237, Valeo va132, Valeo va162, Valeo va207, Valeo va301, Wai 11103R, Wai 1-1337-01BO, Wai 1-1338-01BO, Wai 1-1950-45BO, Wai 12583N, Wai 12583R, Wai 13075R, Wai 13204N, Wood Auto DENDAN608, Wood Auto DENDAN609
