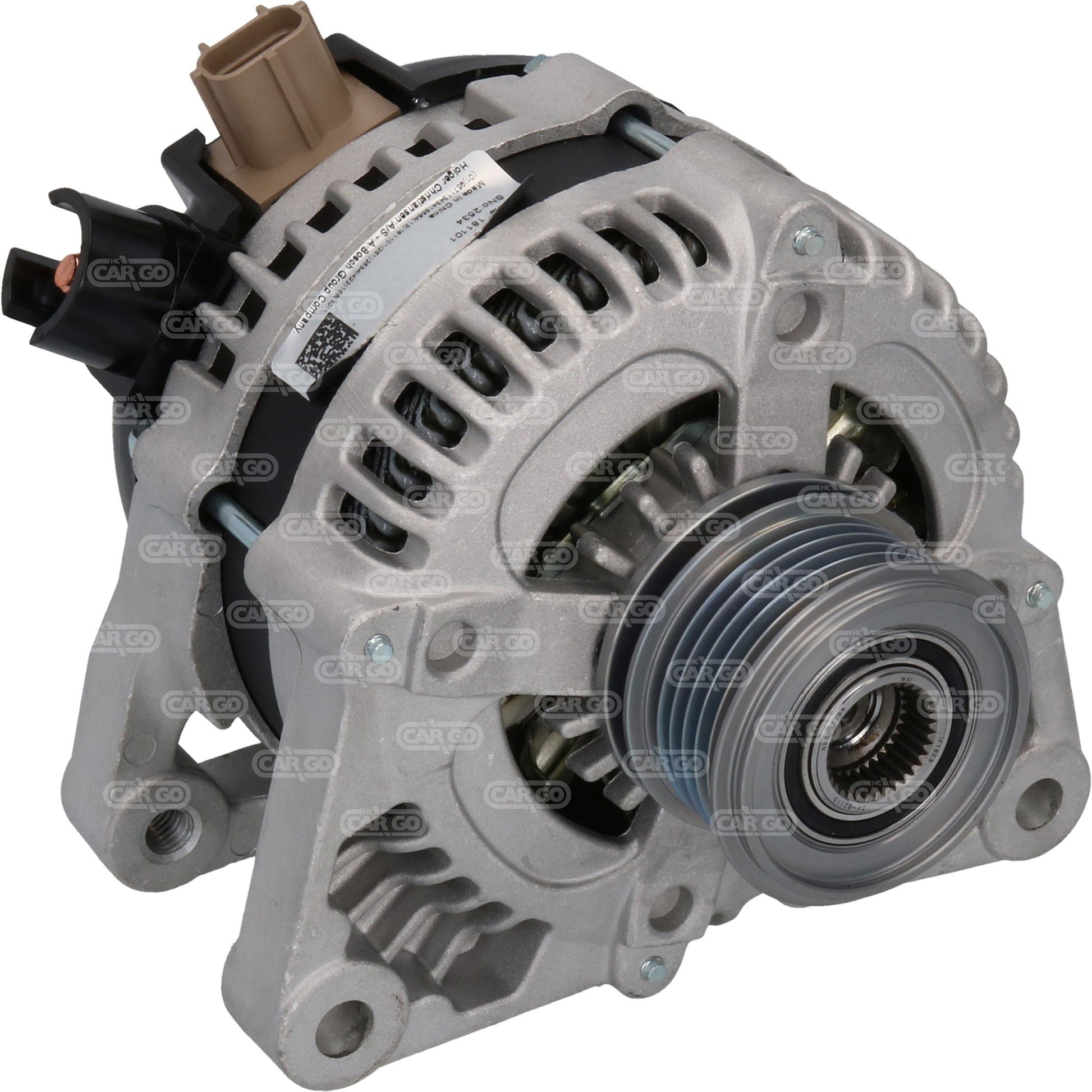

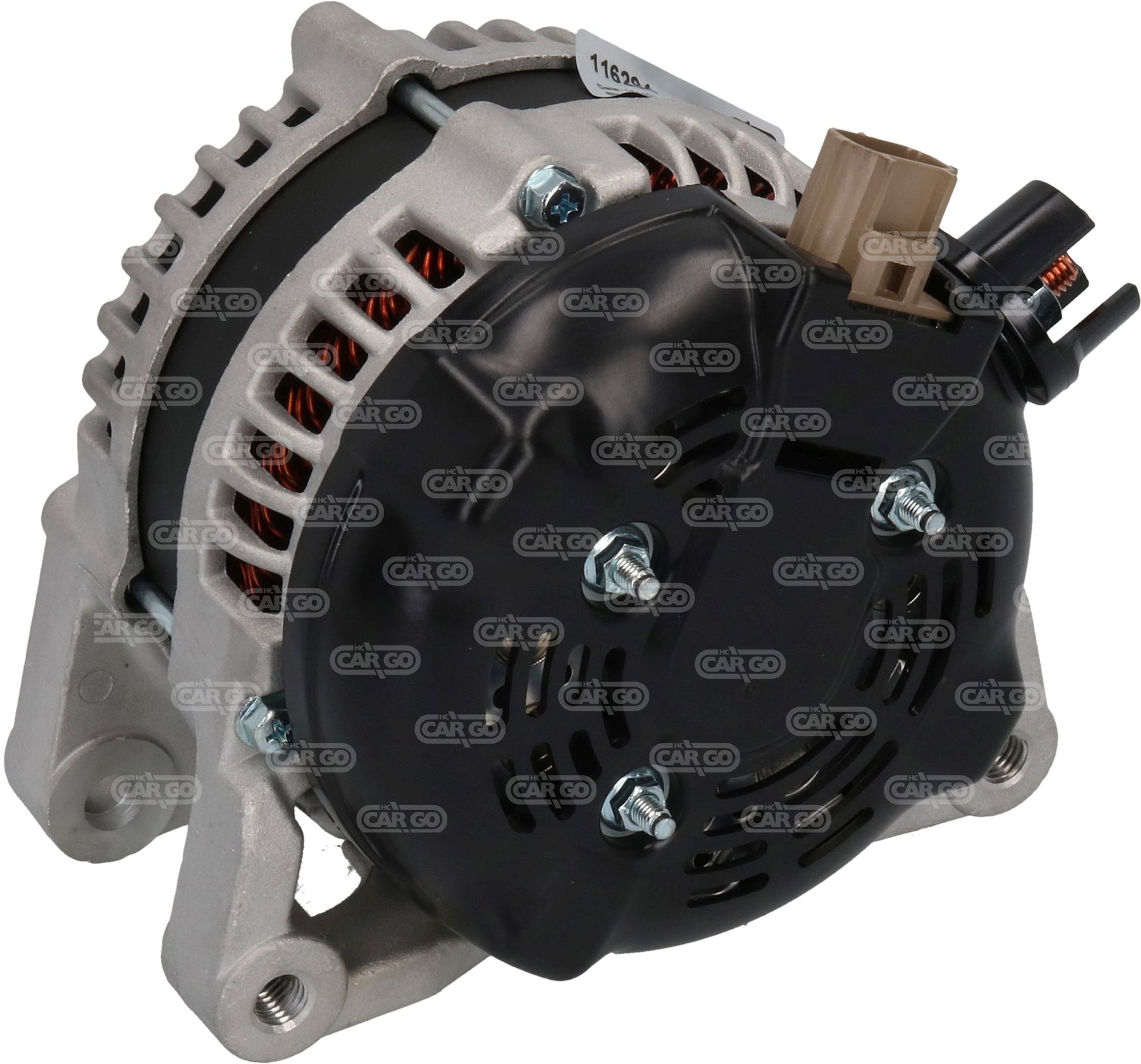

HC-Cargo Alternator for Ford 150A F032116294

Voltage: 14
Amp: 150
Pulley dist.: 42.50
Width/holder arm: 21.00
Mount. bracket dist.: 45.00
Bracket hole: 10.00
Belt. adj. brackethole pos.: 47
Belt. adj. bracket hole: 10.50
Belt. adj. bracket hole 2: M10
Pulley dia.: 54.50
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 2
D+ Size: Plug
Rotation: CW
Plug no.: PL57
Total length mm: 168.00
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Servicing: Ford
Mazda
Volvo

Replaces OEM reference(s):
Denso 104210-2710, Denso 104210-3520, Denso 104210-3521, Denso 104210-3522, Denso 104210-3523, Denso 104210-3524, Denso 104210-5710, Denso 104210-5711, Ford 1229259, Ford 1255711, Ford 1477738, Ford 1676843, Ford 1704085, Ford 1708322, Ford 1748630, Ford 1757315, Ford 3M5T10300YA, Ford 3m5t10300yb, Ford 3M5T10300YC, Ford 3m5t10300yd, Ford 3M5T10300YE, Ford 8M5T10300YA, Ford 8M5T10300YB, Ford R6ZCC, Ford RE3M5T10300YD, Ford RE4M5T10300UD, HC-PARTS ca1834ir, Magneti Marelli 63377416, Volvo 8603183, Volvo 30667068, Volvo 30795423, Volvo 31285593, Volvo 31285595, Volvo 31288155, Volvo 36000599, Volvo 36002577, Volvo 36050997

Replaces aftermarket reference(s):
Ac delco DRA1533, Ac delco DRA4239, Ac delco DRA4239X, AD Kühner 301834RI, Autostarter Poland A6018, Autostarter Poland A6018PR, Autostarter Poland A6265(DENSO), Autostarter Poland A6265PR, Autostarter Poland A6265SR, Bosch 0986049071, Casco CAL40195, Cevam 4717, Dansk Renoveringsindustri 219.164.1502, Denso DAN1118, Denso DAN930, Elstock 27-4933, ERA S.p.A Italia 210358, ERA S.p.A Italia 210358A, FARCOM 112409, Hella 8EL738211-331, Hella Timefit 8EL011711-801, Herth & Buss 32118710, lucas LRA02815, Magneti Marelli 063377416, Magneti Marelli 063377416010, Magneti Marelli man7416, Pos Service Holland 595.587.150, Unipoint ALT-H162, Unipoint Bosch F042A0H162, Valeo 200003, Valeo 440411, Valeo 443071, Valeo 747051, Valeo 747112, Valeo 747837, Valeo 747912, Wai 20674N, Wai 23821R, Wai 23821R-OE, Wood Auto DENDAN930
