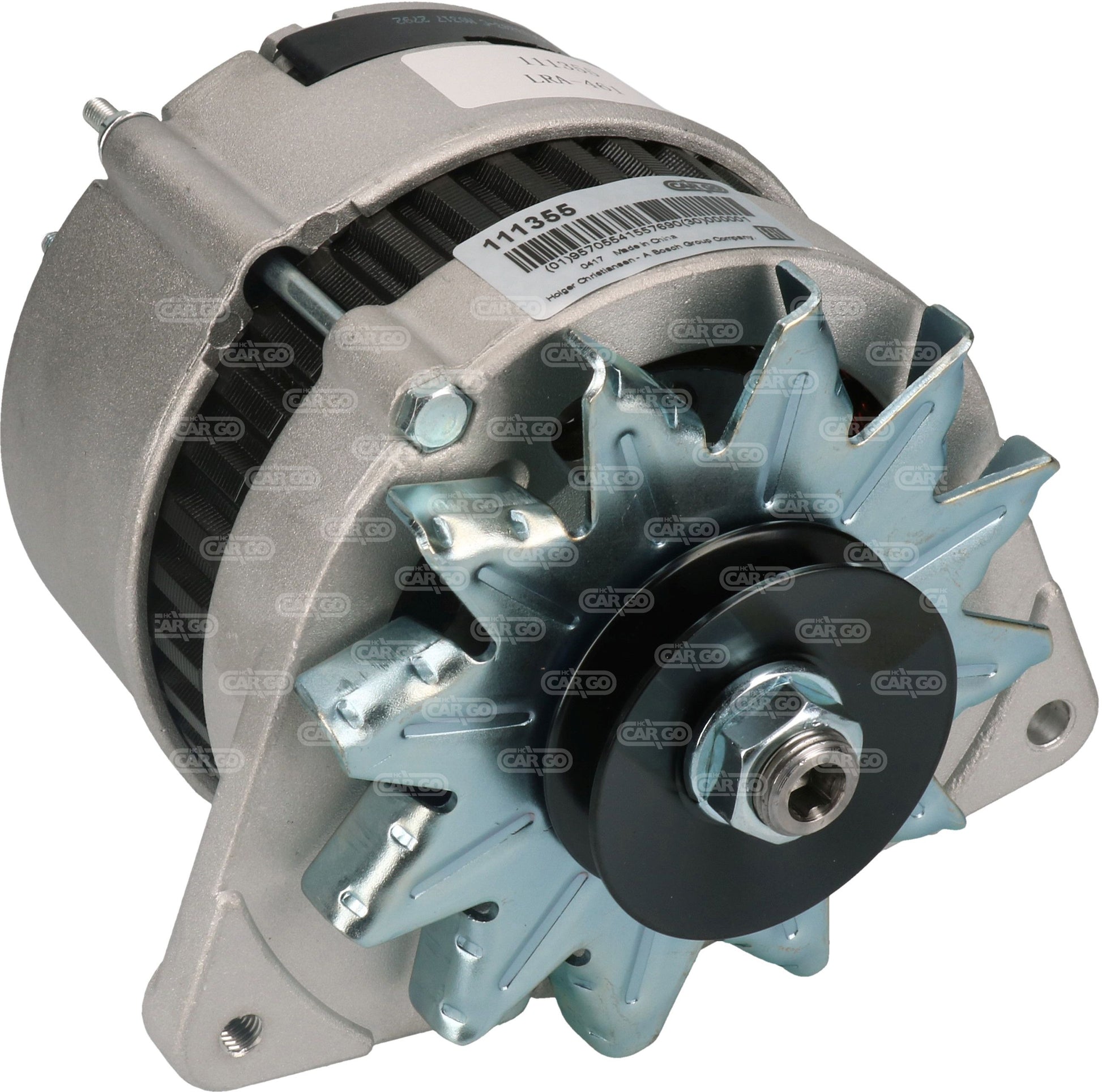

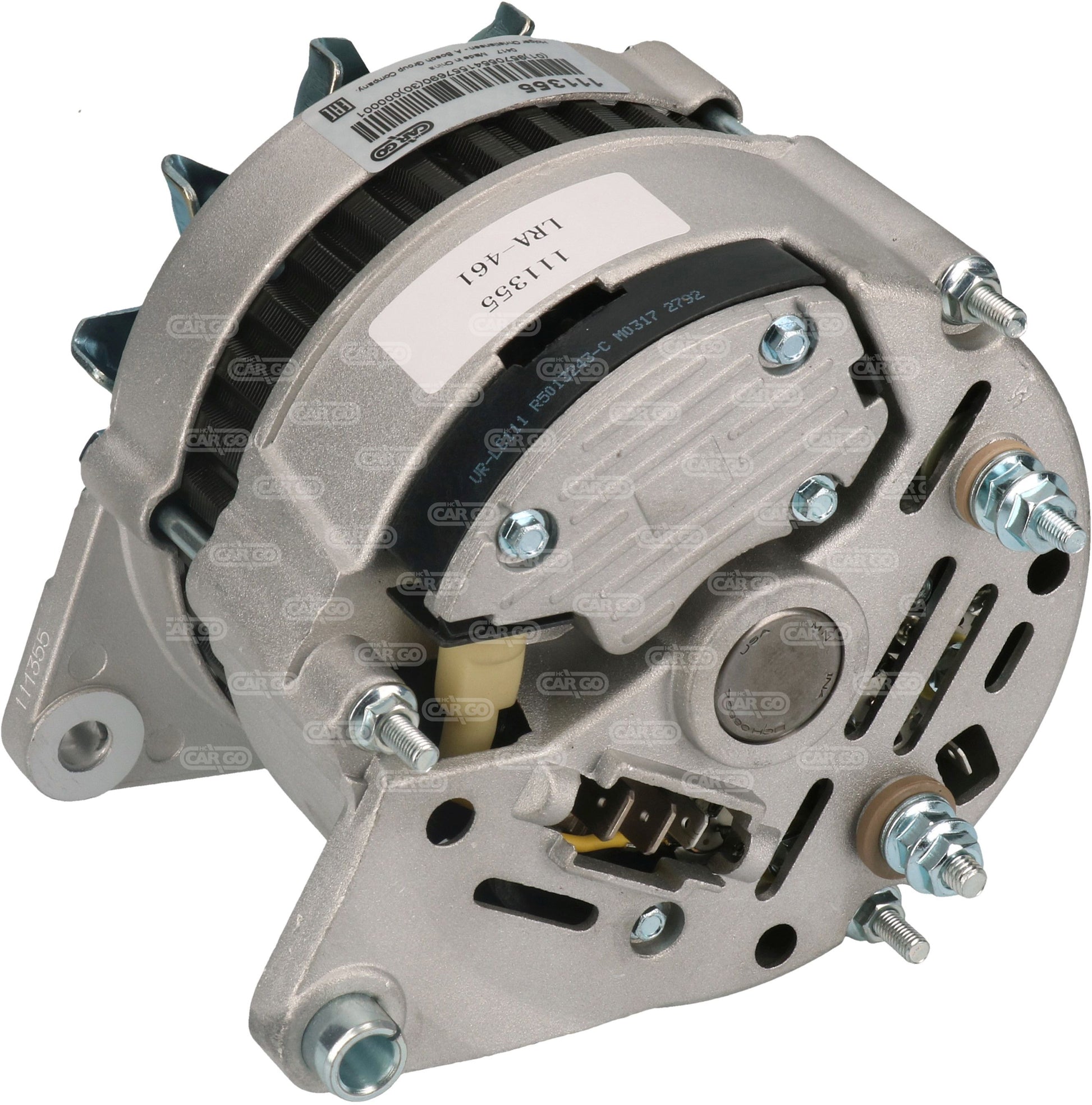

HC-Cargo Alternator for Ford 55A F032111355

Voltage: 14
Amp: 65
Terminal: W
Pulley dist.: 37.00
Width/holder arm: 11.50
Mount. bracket dist.: 81.00
Bracket hole: 8.30
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole: M8
Pulley dia.: 66.00
Grooves/pulley: 1
Radius: 86.50
Radius 2: 82.00
B+: M6-6.30
Position/B+ in min.: 11
D+ Size: M5
Rotation: CW
Plug no.: PL22
W plug type: M5
Total length mm: 163.50
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Austin
Rover
Nissan MG
Massey Ferguson
New Holland
Dronningborg
Valmet

Replaces OEM reference(s):
AGCO 46446700, AGCO 83632800, AGCO 836664064, AGCO 836666723, AGCO 701910M91, AGCO C000900010190, AGCO D46446700, AGCO V836666723, Bosch 0120489293, Bosch 0120489384, Bosch 0120489385, Butec 858776, Case 84530361, Case K311696, HC-PARTS ca564ir, Jcb 71426100, Jcb 332/F7240, Jcb 333/G6698, Jcb 714-01003, Jcb 714-10800, Jcb 714-20400, Jcb 714-40148, Jcb 714-40476, lucas 24158, lucas 24202, lucas 24209, lucas 24245, lucas 24291, lucas 24294, lucas 24356, lucas 24387, lucas 24390, lucas 54022176, lucas 54022200, lucas 54022382, lucas 54022408, lucas 54022428, lucas 54022579, lucas 54022639, lucas 54022642, lucas 54022647, lucas 54022752, lucas 24156a, lucas 24157E, lucas 24158a, lucas 24158B, lucas 24158d, lucas 24161d, lucas 24200a, lucas 24209a, lucas 24209b, lucas 24245a, lucas 24245B, lucas 24262a, lucas 24291a, lucas 24294a, lucas 24294B, lucas 24356a, Magneti Marelli 63324245, Magneti Marelli 63324387, Mahle Letrika 11.201.578, Mahle Letrika 11.201.810, Mahle Letrika 11.203.097, Mahle Letrika aak3369, Mahle Letrika aak4523, Mahle Letrika AAK4598, Massey Ferguson 3611931M91, Massey Ferguson 3819359M91, Massey Ferguson 3930504r1, Massey Ferguson 3930504R91, Perkins 185046360, Perkins 1475922N91, Perkins 2871A160, Rover Group yle10067, Rover Group yle101570, Rover Group yle101580, Valeo 2541290, Valeo 2541400, Valmet 50273, Valmet 83632800, Valmet 836664064, Valmet VPF8085

Replaces aftermarket reference(s):
Ac delco dra3294, Ac delco DRA3925, AD Kühner 301346RI, AD Kühner 30564RI, Autostarter Poland A4113, Autostarter Poland A9231, Autostarter Poland A9231(LETRIKA), Bosch 0986044591, Bowers - HCUK BAO3003, Bowers - HCUK BAO3011, Bowers - HCUK BAO3123, Dansk Renoveringsindustri 214.104.652, Dansk Renoveringsindustri 214.108.652, Dansk Renoveringsindustri 219.104.552, Dansk Renoveringsindustri 500.136.652, Dansk Renoveringsindustri 544.101.702, Elstock 28-1629, Elstock 28-1777, Elstock 28-2543, Elstock 28-3751, Elstock 28-4693, ERA S.p.A Italia 210188, ERA S.p.A Italia 210188A, ERA S.p.A Italia 210204, ERA S.p.A Italia 210204A, FARCOM 119823, Hella 8el725855-001, Hella Timefit 8EL012427-401, Lester 12088, Lester 12306, Lester 12307, lucas LEA0036, lucas LEA0134, lucas lra00451, lucas lra00461, lucas lra00958, lucas LRA01888, lucas LRA02222, Magneti Marelli 054022639, Magneti Marelli 054022642, Magneti Marelli 054022642010, Magneti Marelli 054022647, Magneti Marelli 063324245, Magneti Marelli 063324294, Magneti Marelli 063324387, Mahle Letrika IA0470, Mahle Letrika IA0810, Mahle Letrika MG176, Mahle Letrika MG212, Mahle Letrika MG238, Mahle Letrika MG656, PIC 208-405, PIC 208-406, PIC 280-337, Pos Service Holland 655.001.070, Prestolite - HCUK 20510110, Prestolite - HCUK 66021543, Prestolite - HCUK PBNA0582, QUINTON HAZELL-HCUK FRA636, QX Components - HCUK QA1515, Sovereign - HCUK SA401, Sovereign - HCUK SA483, Sovereign - HCUK SA727, Spidan 5150, Sud Est 56081, Sud Est 56091, Valeo 436273, Valeo va140, Wai 12088N-1G, Wai 12144R, Wai 12365N, Wai 1-2621-01LU, Wai 13918, Wood Auto ALT10039, Wood Auto ALT4028
