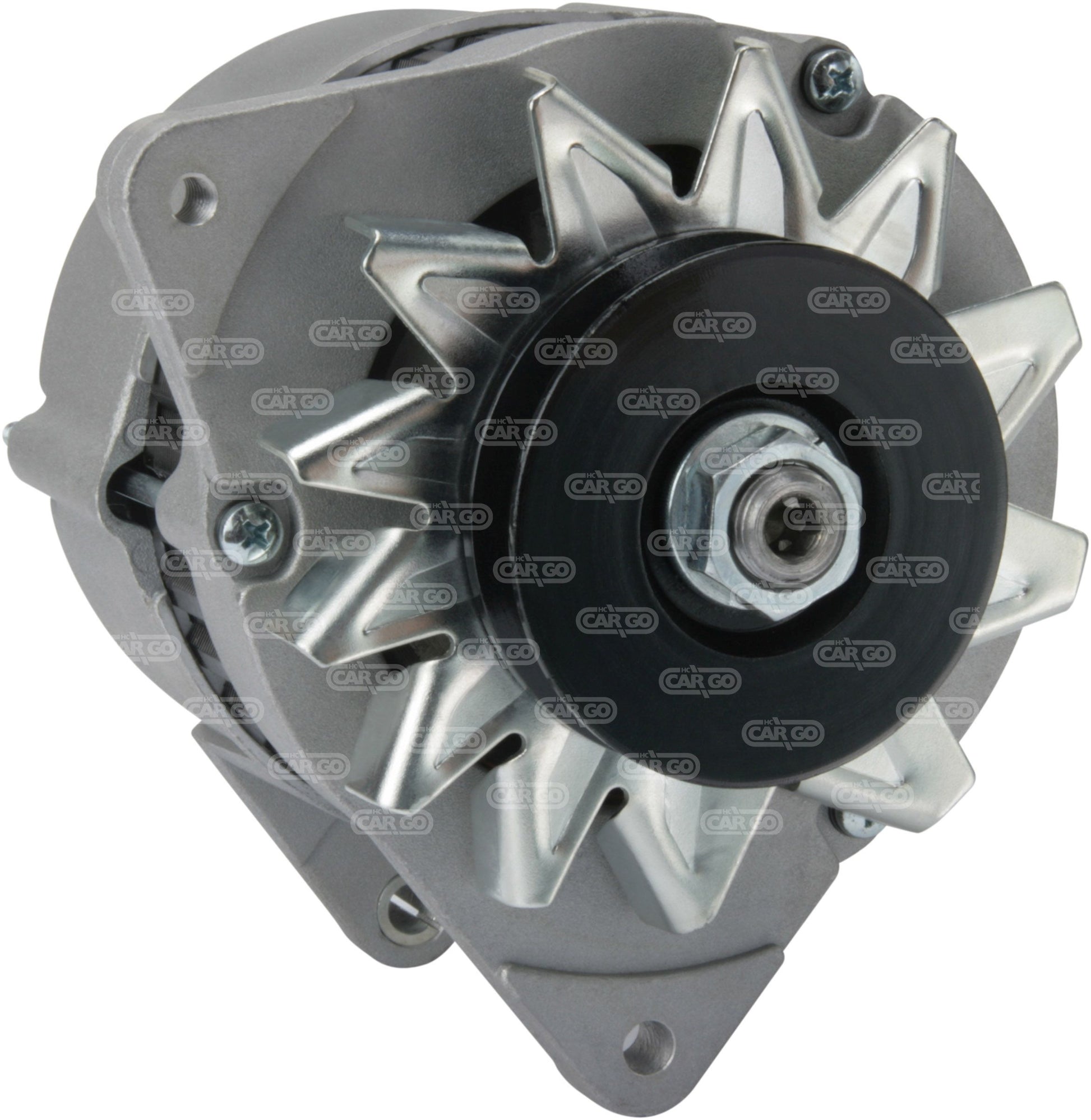

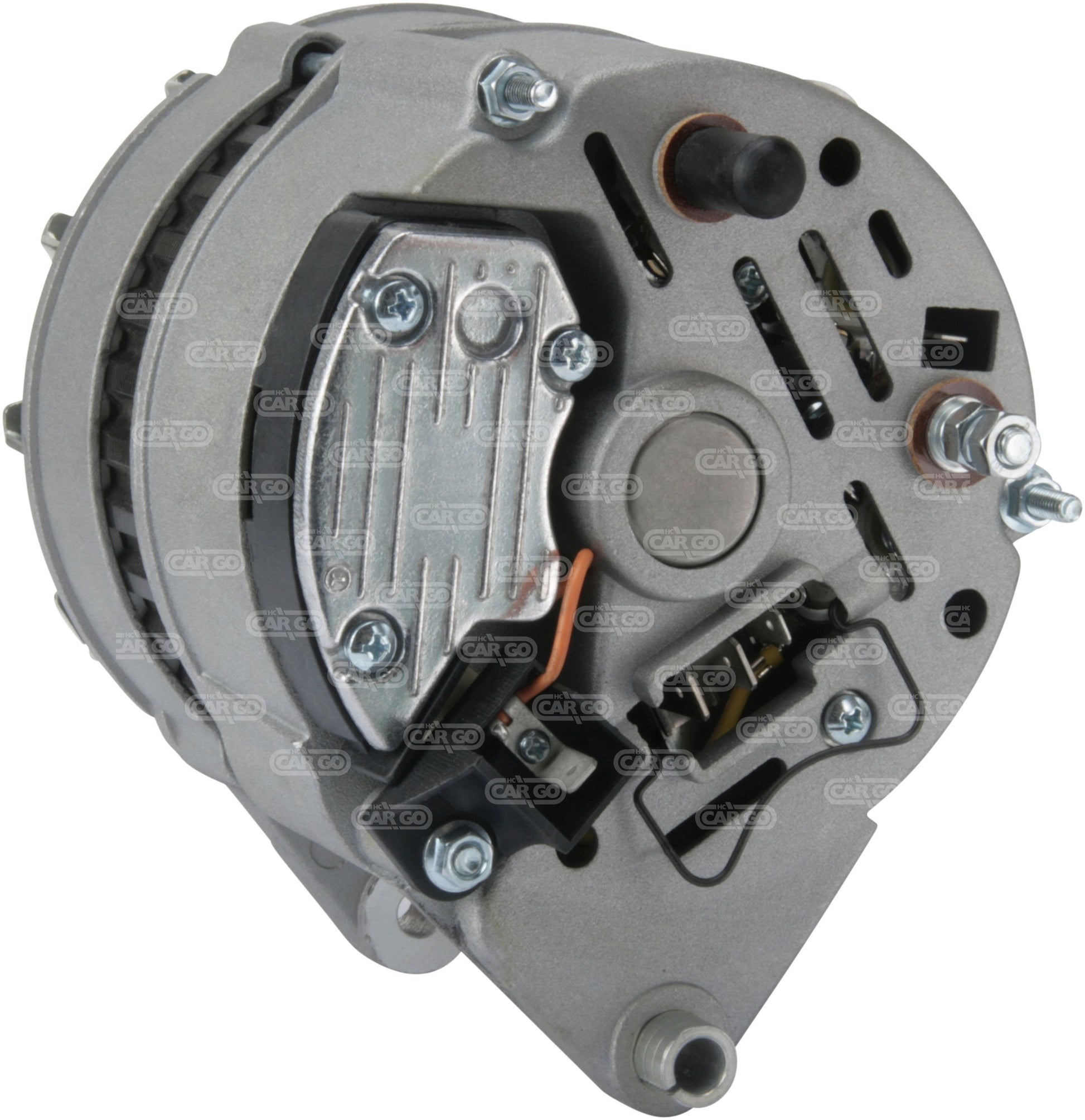

HC-Cargo Alternator for Ford 70A F032111740

w/ battery temp. sensor terminal. Make sure battery temp. sensor circuit is present, for correct function !!

Voltage: 14
Amp: 70
Terminal: BS/W
Pulley dist.: 36.00
Width/holder arm: 11.00
Mount. bracket dist.: 82.70
Bracket hole: 8.50
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole: M8
Pulley dia.: 80.00
Grooves/pulley: 1
Radius: 86.00
Radius 2: 86.00
B+: M6
Position/B+ in min.: 14
D+ Size: 6.30
Rotation: CW
Plug no.: PL22
W plug type: M5
Total length mm: 167.00
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Ford
Remarks: w/ battery temp. sensor terminal. Make sure battery temp. sensor circuit is present
for correct function !!

Replaces OEM reference(s):
Claas 6005706653, Claas CT6005706653, Ford E4NN10B376AA, Ford E4NN10B376AB, Ford e7nn10b376aa, Ford e7nn10b376ab, Ford e7nn10b376ba, Ford e7nn10b376bb, HC-PARTS ca1330ir, Landrover se Rover Group STC1753, lucas 24186, lucas 24250, lucas 24274, lucas 24400, lucas 24448, lucas 54022337, lucas 24186a, lucas 24186b, lucas 24186D, lucas 24250a, lucas 24250B, lucas 24274a, Magneti Marelli 63324274, Mahle Letrika 11.201.503, Mahle Letrika 11.201.504, Mahle Letrika AAK1343, Mahle Letrika AAK1344, New Holland 81863039, New Holland 81868798, New Holland E3NN10B376AA, New Holland E3NN10B376AB, Perkins 2871A159, Rover Group PRC5449, Rover Group RTC5053, Valmet 835339189

Replaces aftermarket reference(s):
Ac delco dra3434, Ac delco DRA3837, AD Kühner 30707RI, Autostarter Poland A4040, Bosch 0986044751, Bosch Blue F042306029, Bosch Blue F042306032, Dansk Renoveringsindustri 214.102.752, Dansk Renoveringsindustri 220.101.702, Elstock 28-1602, Elstock 28-3757, Hella 8el737507-001, Lester 12047, Lester 12091, lucas LEA0121, lucas LEA121, lucas lra00522, lucas LRA01303, Magneti Marelli 063324274, Mahle Letrika IA0504, Mahle Letrika MG283, PIC 280-310, PIC 280-330, PIC 910-718, QX Components - HCUK QA1425, Sovereign - HCUK SA600, Spidan 5982, Unipoint ALT-4039, Unipoint Bosch F042A06032, Wai 12090N, Wai 13436R, Wood Auto ALT16027, Wood Auto ALT16034, Wood Auto ALT4034S
