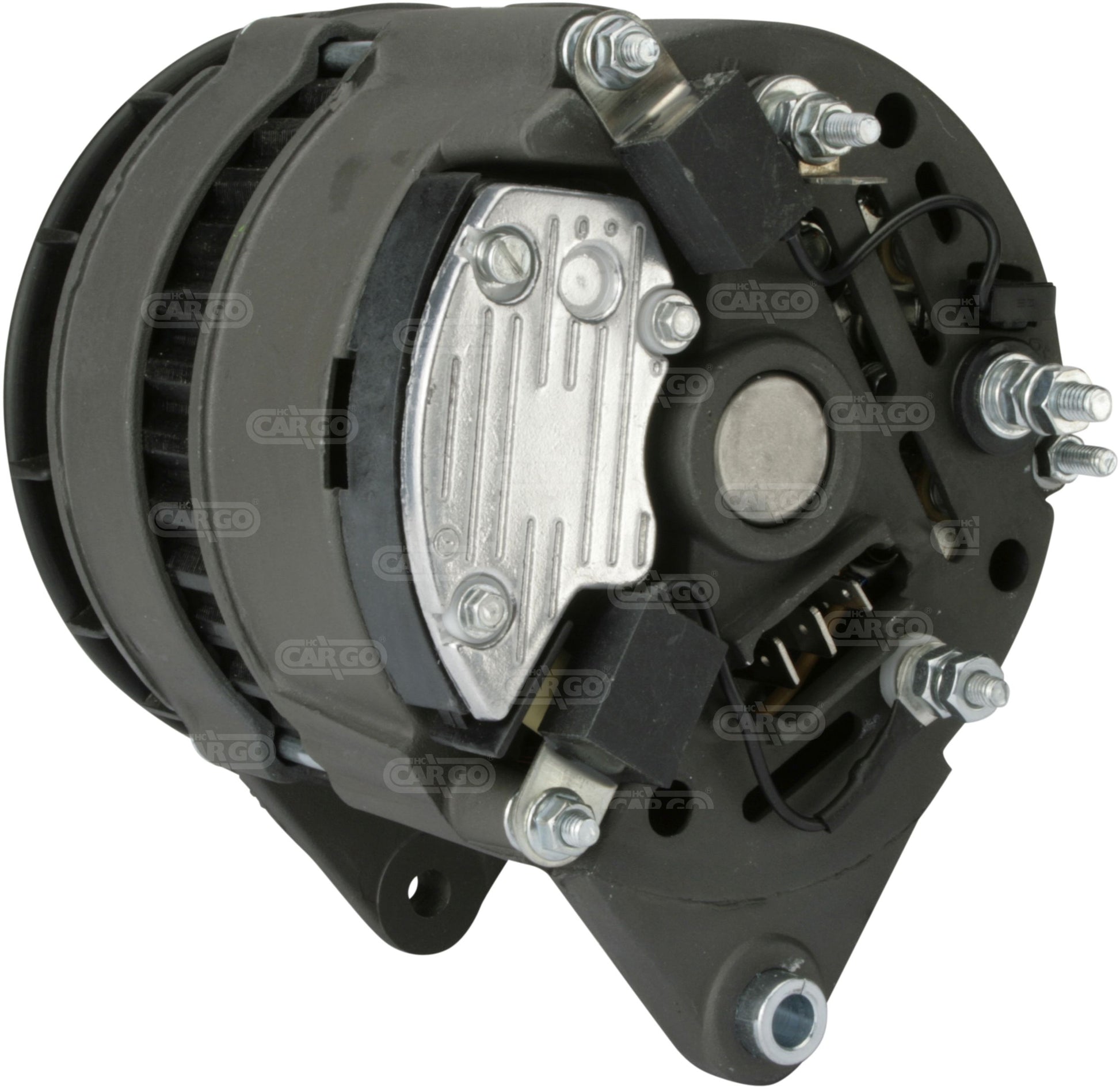

HC-Cargo Alternator for Ford 80A F032112112

Voltage: 14
Amp: 70
Insulated return: Yes
Terminal: W
Pulley dist.: 45.00
Width/holder arm: 11.50
Mount. bracket dist.: 82.50
Bracket hole: 8.20
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole: M8
Pulley dia.: 81.50
Grooves/pulley: 1
Radius: 86.00
Radius 2: 86.00
B+: M6
Position/B+ in min.: 13
D+ Size: Plug
Rotation: CW/CCW
Plug no.: PL22
W plug type: M5-6.30
Total length mm: 170.50
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Sabre
Yanmar

Replaces OEM reference(s):
AGCO 836666738, Jcb 714-16700, Jcb 714-40018, LISTER PETTER 36202344, lucas 47020055, lucas 47020057, lucas 47020059, lucas 47020065, lucas 47020067, lucas 47020068, lucas 47020084, lucas 47020086, lucas 47020088, lucas 47020089, lucas 57020057, lucas 2871a152, lucas 2871a157, Mahle Letrika 11.201.332, Mahle Letrika 11.201.832, Mahle Letrika aak3301, Motorola 510-810, Motorola 510-811, Motorola 510-812, Motorola 510-813, Motorola 510-822, Motorola 510-824, Motorola 510-825, Motorola 510-826, Motorola 510-842, Motorola 510-859, Motorola 9ar2723p, Motorola 9ar2724p, Motorola 9ar2732p, Motorola 9ar2733p, Motorola 9ar2734p, Motorola 9ar2735p, Motorola 9ar2744p, Motorola 9ar2745p, Motorola 9ar2746p, Motorola 9ar2747p, Motorola 9ar2831p, Motorola 9ar2854p, Motorola 9ar2958, Motorola 9ar2958p, Motorola 9ar2999p, Perkins 40082, Perkins 2871A145, Perkins 2871a602, Valeo 2927440, Valeo 2928580, Valeo 2929580

Replaces aftermarket reference(s):
AD Kühner 301201RI, Bosch USA AL5003N, Casco CAL11113, Dansk Renoveringsindustri 218.116.702, Dansk Renoveringsindustri 519.104.702, Elstock 28-0533, FARCOM 119497, Friesen 00-37.120, Hella 8el737275-001, Lester 12154, Lester 12292, Lester 12405, lucas LEA0437, lucas lra00807, lucas LRA01178, Mahle Letrika ia0332, Mahle Letrika ia0633, Mahle Letrika IA0832, Mahle Letrika MG159, Mahle Letrika MG249, Mahle Letrika MG50, Mahle Letrika MG668, PIC 204-103, PIC 204-103A, PIC 210-247, PIC 210-277, PIC 210-357, Pos Service Holland 595.033.090, Pos Service Holland 705.015.065, Pos Service Holland 815.030.070, Prestolite - HCUK 66021535, Prestolite - HCUK 66021587, Spidan 5632, Sud Est 75844, Valeo 510823, Wai 12154N-OE, Wai 13905, Wai 2154N-OE, Wood Auto ALT23014
