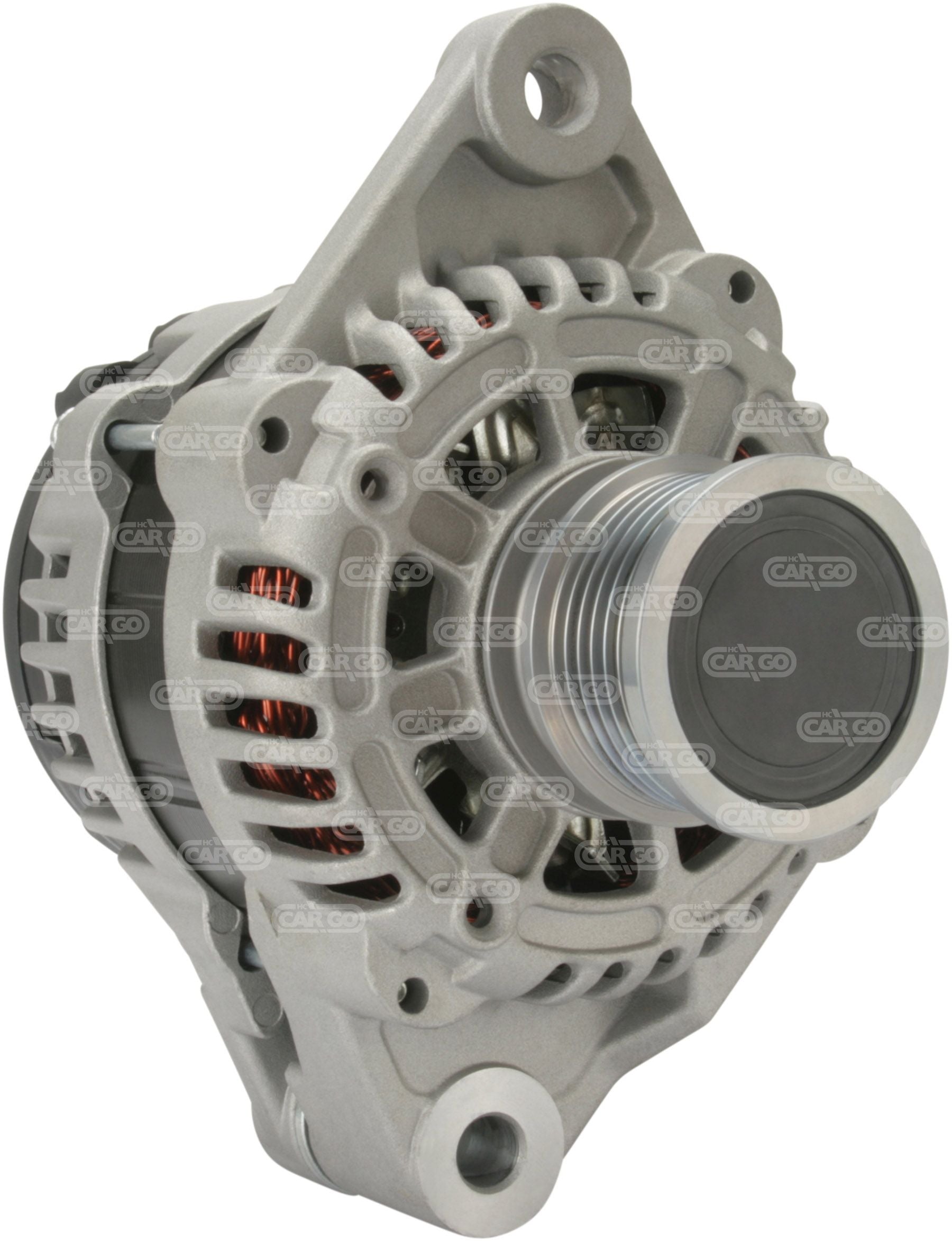

HC-Cargo Alternator for Opel 100A F032115526

Voltage: 14
Amp: 100
Pulley dist.: 57.00
Width/holder arm: 18.00
Bracket hole: 12.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole: 12.00
Pulley dia.: 53.00
Grooves/pulley: 6
Radius: 83.00
Radius 2: 81.00
B+: M8
Position/B+ in min.: 40
Rotation: CW
Plug no.: PL180
Total length mm: 196.00
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering

Replaces OEM reference(s):
Opel 1202236, Opel 1204643, Opel 13502583, Opel 13579668, Opel 95519835

Replaces aftermarket reference(s):
Ac delco DRA1373, AD Kühner 302005RI, Autostarter Poland A1029PR, Bosch 0986083450, Casco CAL42110, Cevam 4746, Dansk Renoveringsindustri 228.183.1002, Dansk Renoveringsindustri 228.192.1002, Elstock 28-5969, FARCOM 112891, FARCOM 113299, Hella Timefit 8EL012430-581, lucas LRA03357, Pos Service Holland 135.593.100, Valeo 440989, Valeo 443068, Valeo 443144
