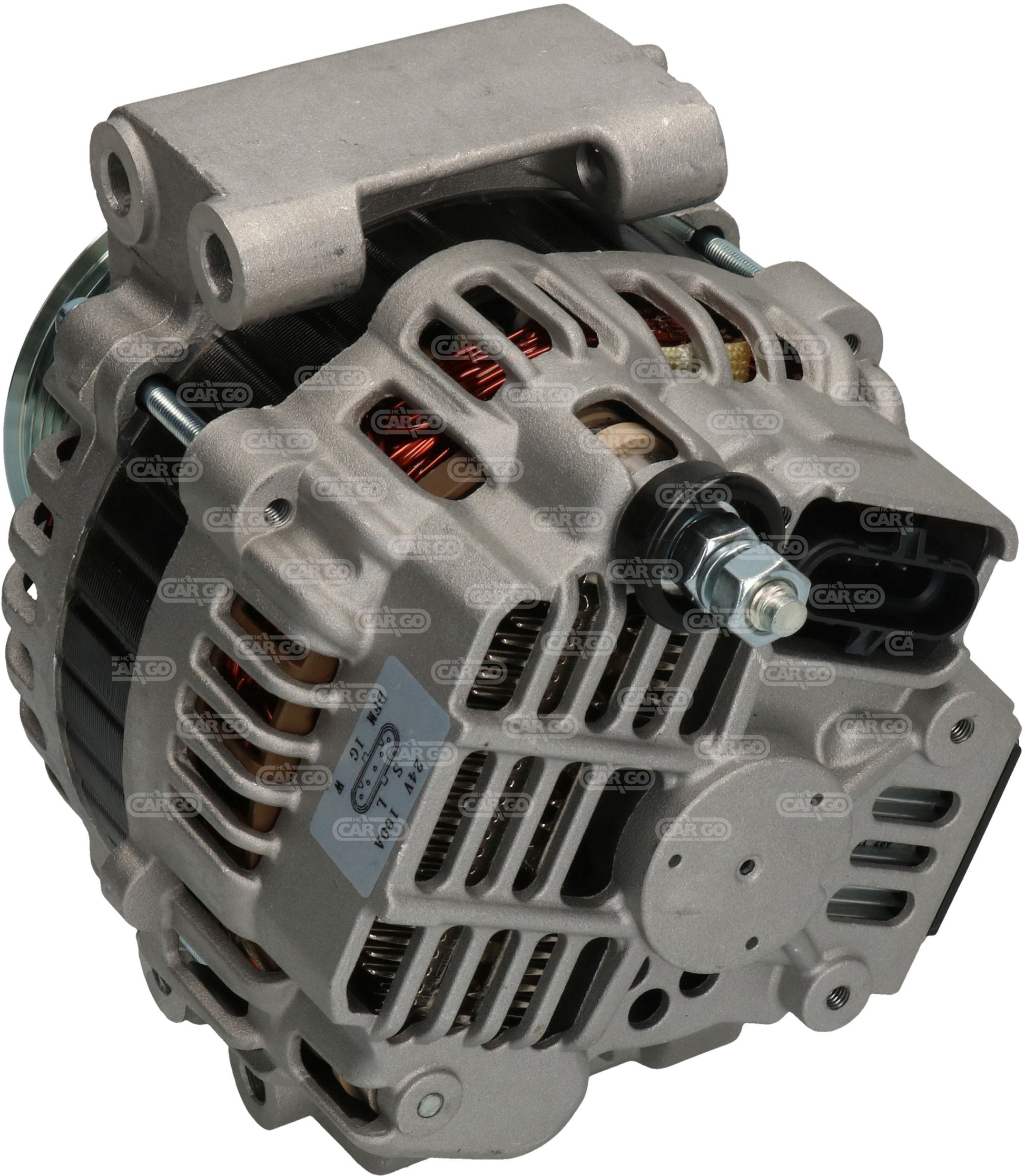

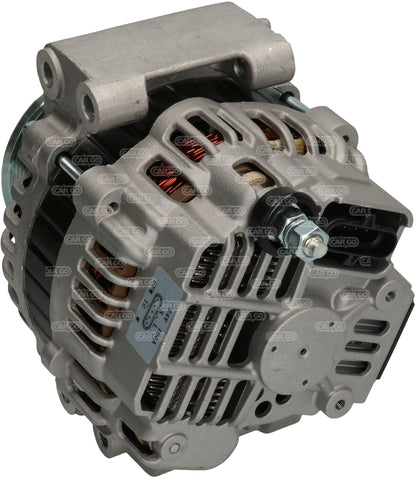

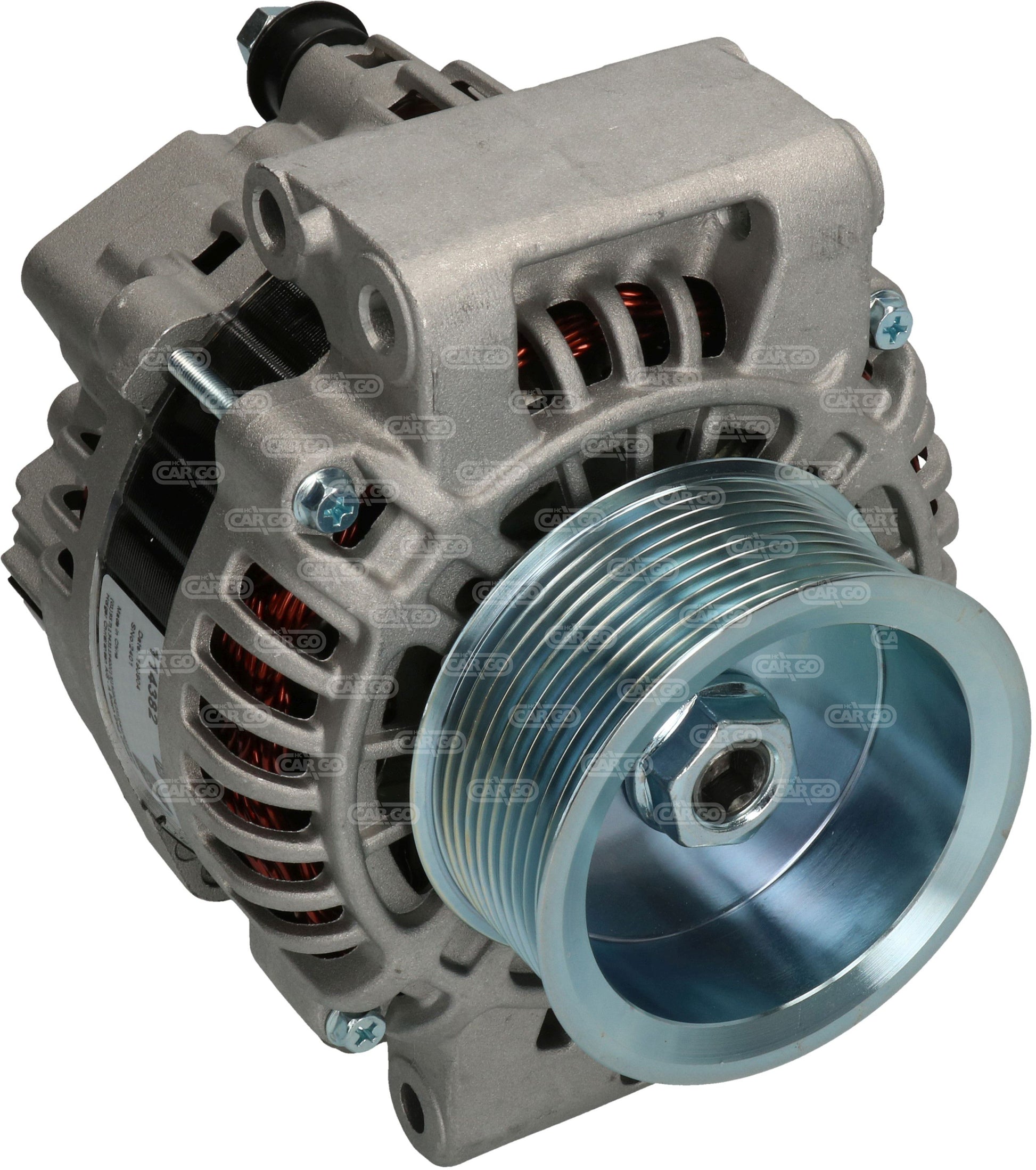

HC-Cargo Alternator for Scania 100A F032114382

Voltage: 28
Amp: 100
Pulley dist.: 20.50
Mount. bracket dist.: 35.50
Bracket hole: 8.00
Belt. adj. bracket hole: 8.00
Belt. adj. bracket hole 2: 9.00
Pulley dia.: 88.00
Grooves/pulley: 10
Radius: 79.00
Radius 2: 78.00
B+: M8
Position/B+ in min.: 59
D+ Size: Plug
Rotation: CW
Plug no.: PL200
W plug type: Plug
Total length mm: 195.00
Communication: PWM
Pulley: SP
Fan: IF
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering

Replaces OEM reference(s):
Bosch 1986A00866, Mitsubishi A004TR5691, Mitsubishi A004TR5691ZT, Mitsubishi A4TR5691, Mitsubishi A4TR5691AM, Mitsubishi A4TR5691ZT, Scania 573015, Scania 1884268, Scania 1888010, Scania 2395908, Scania 2398368

Replaces aftermarket reference(s):
Ac delco DRA1117, Ac delco DRA1117N, Autostarter Poland A5331, Autostarter Poland A5331(MITSUBISHI), Autostarter Poland A5331SR, Bosch 0986084790, Casco CAL35629, Dansk Renoveringsindustri 532.116.1004, Elstock 48-6767, ERA S.p.A Italia 210917, ERA S.p.A Italia 210917A, Kutnak Automotive 723423/M, lucas LRA03706, Mahle Letrika MG935, Pos Service Holland 916.509.100, Prestolite - HCUK 861298, Valeo 202105, Valeo 443230, Valeo 444400, Wai 20290N
