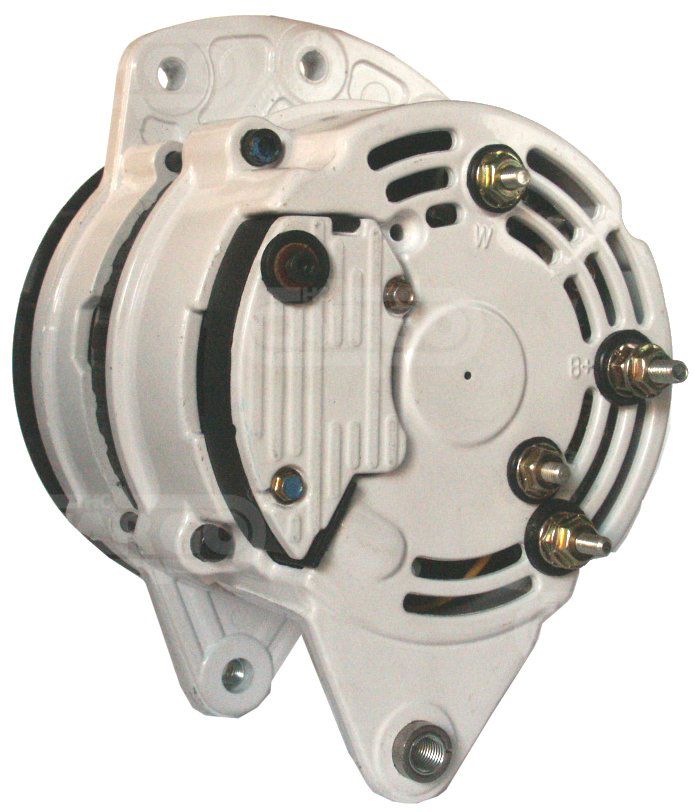

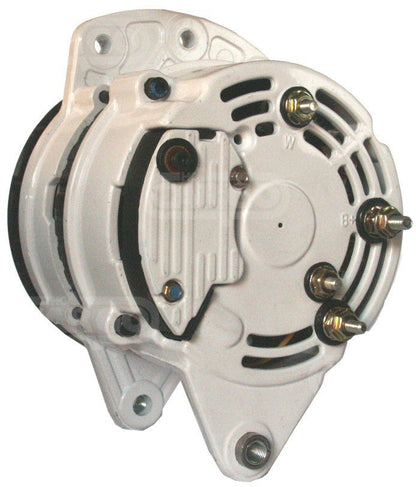

HC-Cargo Alternator for Universal 90A F032113152

For right and left mounting.

Voltage: 14
Amp: 90
Insulated return: Yes
Terminal: W
Pulley dist.: 44.50
Width/holder arm: 13.50
Mount. bracket dist.: 82.20
Bracket hole: 8.00
Belt. adj. brackethole pos.: 55
Belt. adj. brackethole pos. 3: 5
Belt. adj. brackethole pos. 2: 60
Belt. adj. bracket hole: 8.20
Belt. adj. bracket hole 2: 8.20
Belt. adj. bracket hole 3: 8.20
Pulley dia.: 71.50
Grooves/pulley: 1
Radius: 90.00
Radius 2: 86.00
Radius 3: 86.00
Radius 4: 86.00
B+: M6
Position/B+ in min.: 15
D+ Size: M5-6.30
Rotation: CW/CCW
W plug type: M5-6.30
Total length mm: 181.00
Pulley: P
Regulator type: IR
Servicing: Marine
Remarks: For right and left mounting.

Replaces OEM reference(s):
lucas NAB9000M

Replaces aftermarket reference(s):
Pos Service Holland 015.002.090, Prestolite - HCUK 66021590M, Wai 12526N, Wai 12526N-OE
