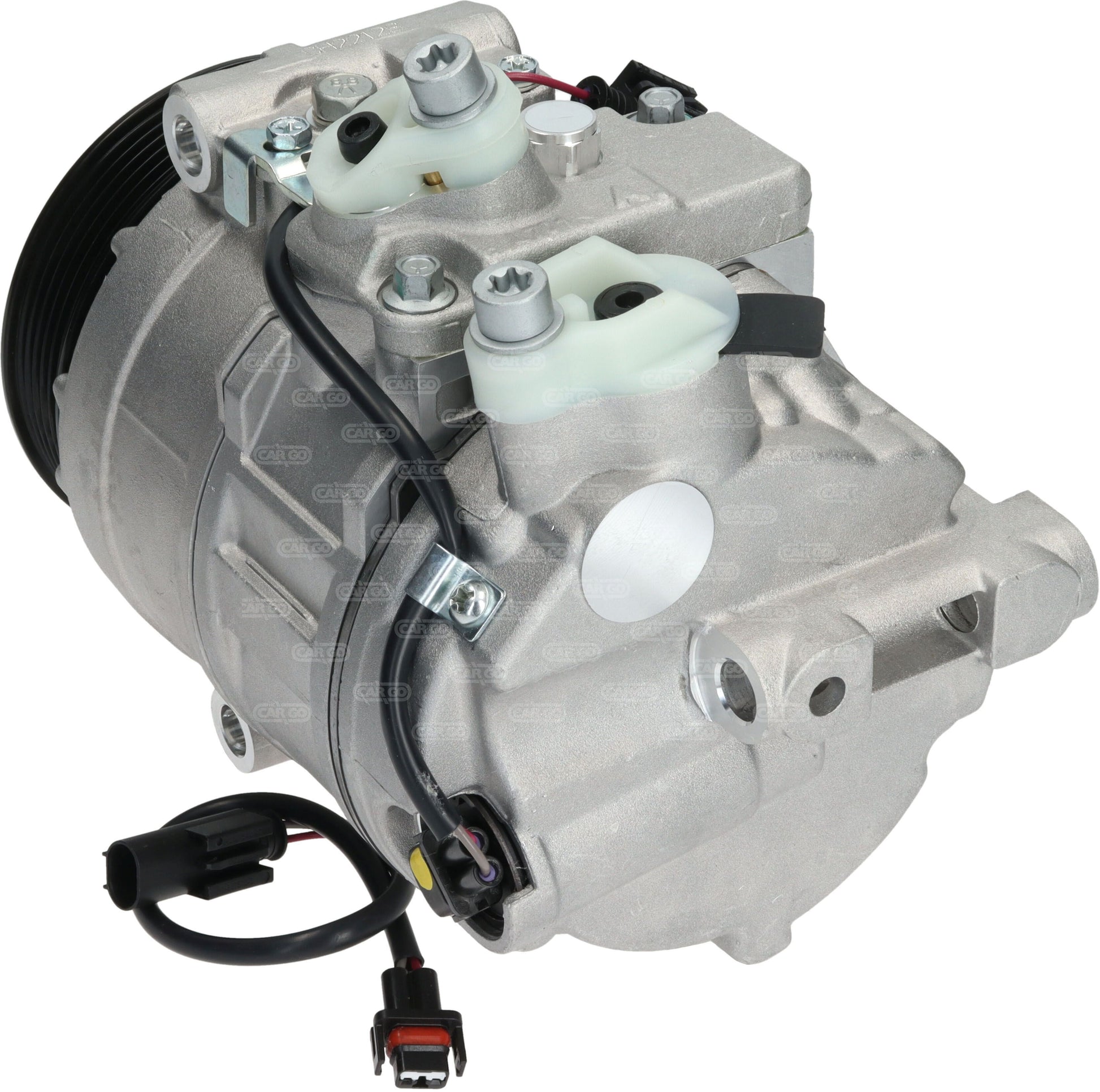

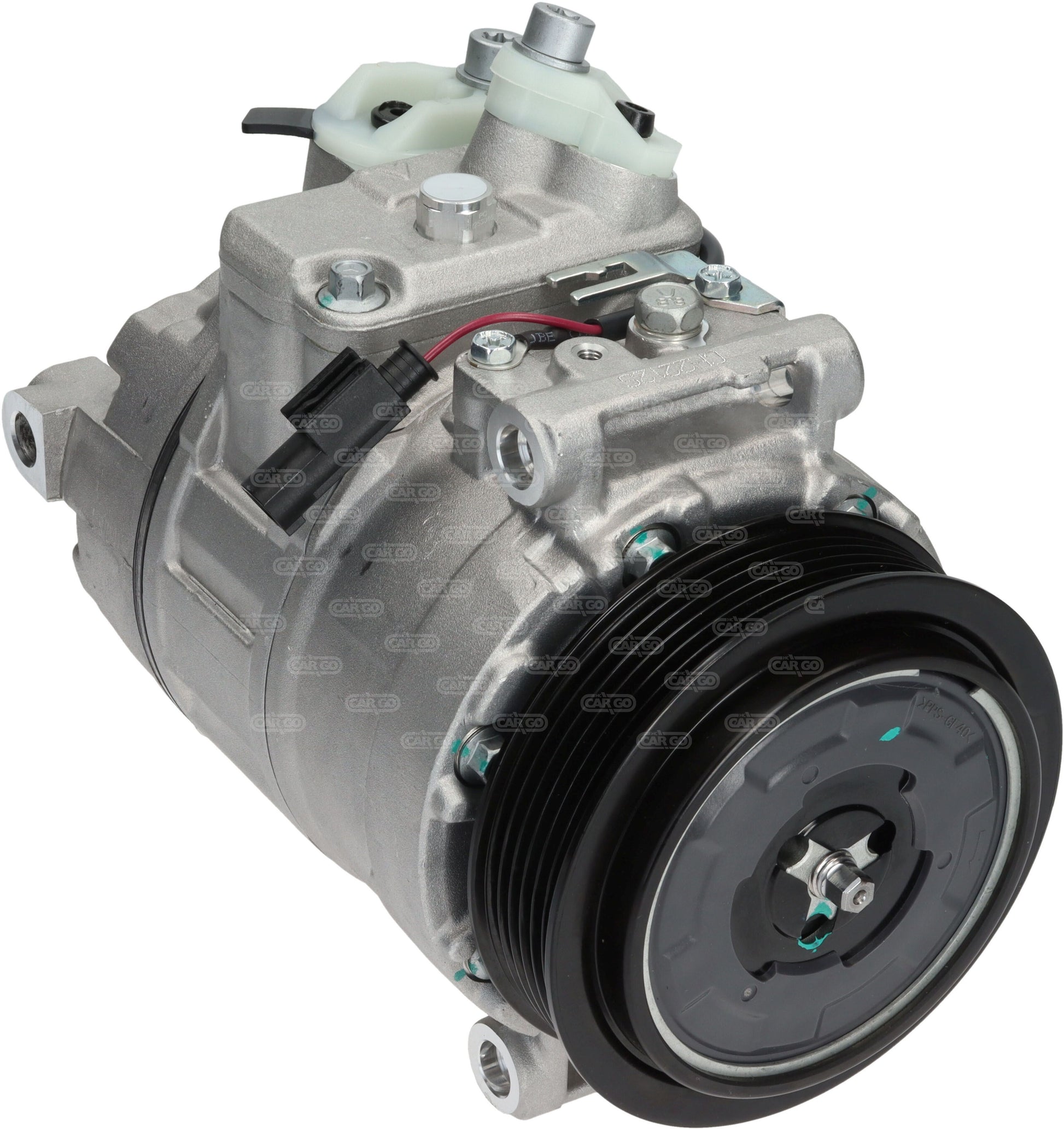

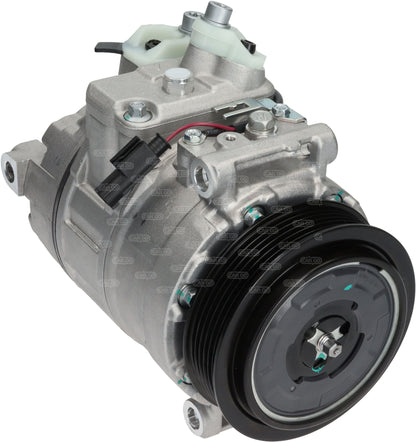

Description
Voltage: 12
Family type: 6SEU16C
Mount. holes/front 2: 9.00
Dist. between holes 1: 70.00
Dist. between holes 2: 70.00
Dist. between holes 3: 73.00
Dist. between mount. bracket/hole: 141.00
Dist. between mount. bracket/hole 3: 138.00
Position: 58
Position 2: 56
Length mm: 214.00
Rotation: CW
Inlet: 28.40
Outlet: 13.70
Pulley Dist. B1: 44.70
Pulley Dist. B2: 26.90
Pulley Grooves: 6
Pulley type: SP
Pulley OD mm: 110.00
Pulley: w/
Oil type: PAG 46
Oil capacity: 170 ml
Refrigerant: R134a
O-ring: w/o
Remarks: IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.
Replaces OEM reference(s):
Denso 4711678, Denso 4471501260, Denso 4471501950, Denso 4471902180, Denso 4471906550, Denso 4471908370, Denso 4472601300, Mercedes Benz 0012305011, Mercedes Benz 0022303411, Mercedes Benz 0022307311, Mercedes Benz a0012305011, Mercedes Benz A0022306611
Replaces aftermarket reference(s):
Elstock 51-0142, Hella 8FK351114-351, NRF 32214
