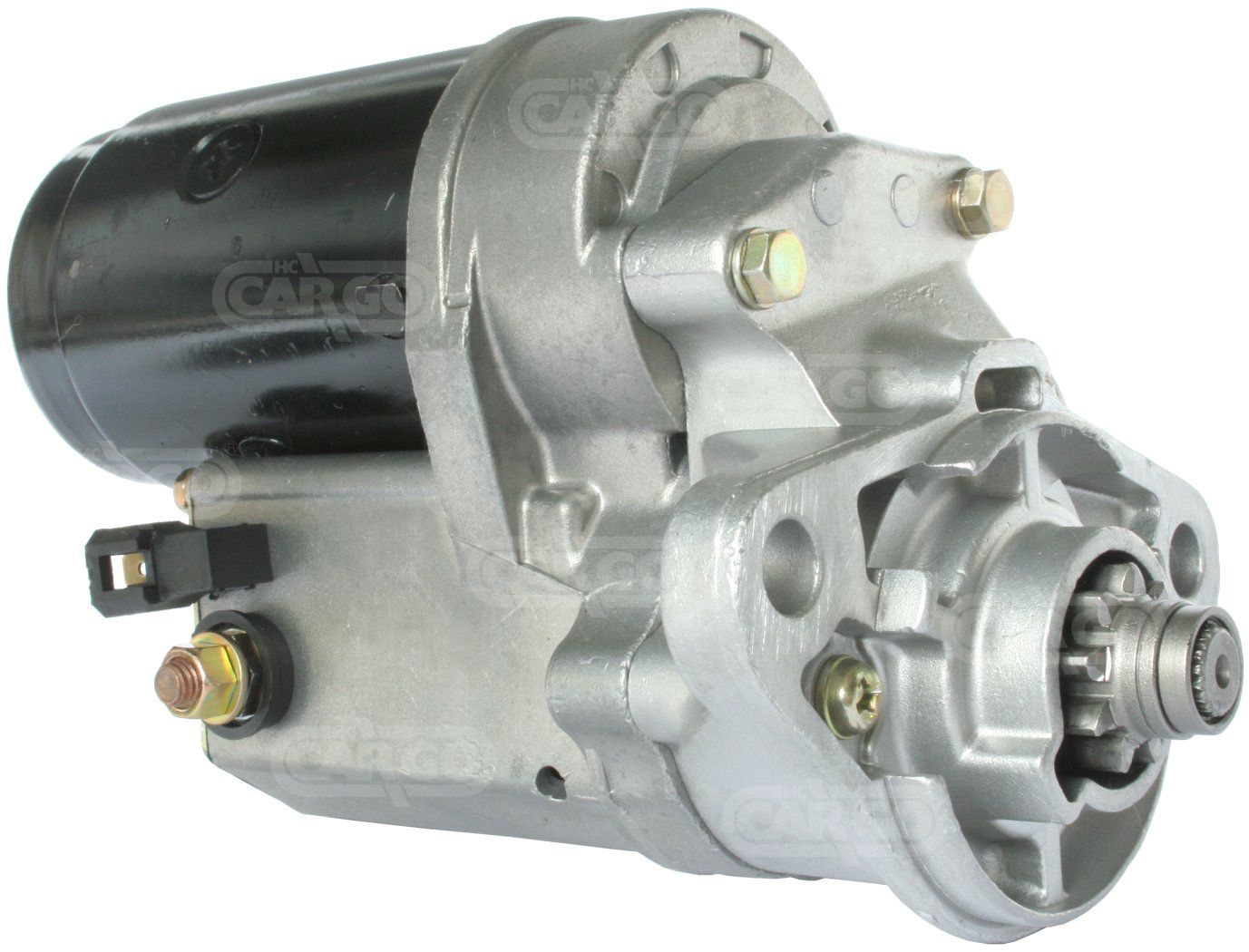

HC Cargo Starter Motor 110396

Voltage: 12
kW: 1.4
No./teeth: 9
Rotation: CW
Gear type: GR
Mount. flange: 74.00
B+: M8
No./mount. holes: 2 (0)
Drive dist.: 20.00
Mount. hole 1 mm: 10.50
Mount. hole 2 mm: 10.50
Dist./back: 152.00
Dist./front: 32.00
Terminal 50: 6.30
Position/50: 40
Dist. mm: 112.00
Total length mm: 189.00
Drive type: Steel
Prod. info: BN

Replaces OEM reference(s):
Denso 028000-1621, Denso 028000-1623, Denso 028000-1940, Denso 028000-1941, Denso 028000-2250, Denso 028000-2251, Denso 028000-2261, Denso 028000-2262, Denso 028000-2263, Denso 028000-2330, Denso 028000-3090, Denso 028000-3091, Denso 028000-3100, Denso 028000-3101, Denso 028000-3600, Denso 028000-3601, Denso 028000-3602, Denso 028000-3603, Denso 028000-3604, Denso 028000-4340, Denso 028000-4341, Denso 028000-4342, Denso 028000-4343, Denso 028000-4530, Denso 028000-4532, Denso 028000-7620, Denso 028000-7621, Denso 028000-9860, Denso 028000-9861, HC-PARTS js383, Magneti Marelli 943254024010, Toyota 28100-41010, Toyota 28100-41011, Toyota 28100-41012, Toyota 28100-41013, Toyota 28100-41020, Toyota 28100-41030, Toyota 28100-41060, Toyota 28100-42010, Toyota 28100-42011, Toyota 28100-42021, Toyota 28100-44010, Toyota 28100-44040, Toyota 28100-44041, Toyota 28100-44050, Toyota 28100-45020, Toyota 28100-45021, Toyota 28100-45022, Toyota 28100-45023, Toyota 28100-45030, Toyota 28100-45031, Toyota 28100-45032, Toyota 28100-45033, Toyota 28100-45050

Replaces aftermarket reference(s):
Ac delco drs3254, Ac delco drs3561, Ace CM-16236, AD Kühner 20382, AD Kühner 20383, ATK, Holland ats-176, ATK, Holland ats-176-1, ATK, Holland ats-176-2, ATK, Holland ats-203, Bosch 0986012041, Bosch 0986012051, Bosch 0986013561, Bosch 0986014391, Bosch USA SR104X, Bosch USA SR109X, Bosch USA SR123X, Dansk Renoveringsindustri 335.015.092, Dansk Renoveringsindustri 335.108.092, Dansk Renoveringsindustri 335.211.092, Elstock 25-0230, Elstock 25-1049, FARCOM 103209, FARCOM 103252, Friesen 39-52.203, Friesen 39-52.204, Friesen 39-52.212, Friesen 39-52.227, Friesen 39-52.229, Friesen 39-52.253, Friesen 8052212, Hella 8ea726471-001, Hella 8ea730247-001, Herth & Buss J5212012, Herth & Buss J5212027, Lester 16220, Lester 16586, Lester 16823, lucas lrs00281, Magneti Marelli 943254076010, Magneti Marelli 944280522120, PIC 190-007, PIC 190-230, PIC 190-230A, PIC 190-230B, Prestolite - HCUK 20500429, Prestolite - HCUK PBNS0429, QX Components - HCUK QS1441, Sovereign - HCUK SS390, Spidan 1319, Spidan 4235, Sud Est 11387, Sud Est 11502, Valeo 458623, Wai 16823, Wai 16823R, Wai 2-1029-ND, Wai 2-1029-ND-1, Wai 2-1030-ND, Wai 2-1031-ND, Wood Auto STR70043
