Description
Voltage: 12
kW: 1.7
No./teeth: 10
Rotation: CCW
Gear type: GR

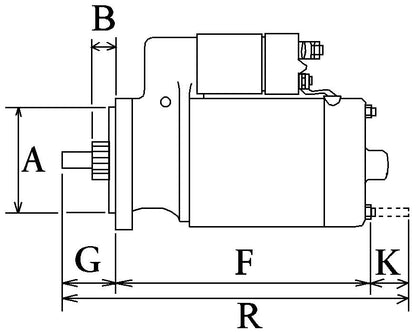

Mount. flange: 76.20
B+: M8

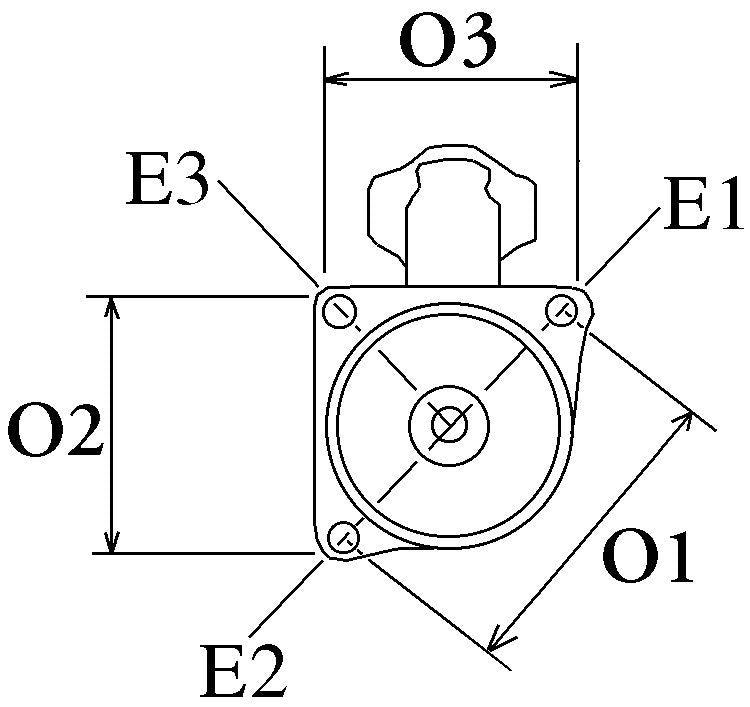

No./mount. holes: 2 (0)
Drive dist.: 42.50
Mount. hole 1 mm: 11.00
Mount. hole 2 mm: 11.00

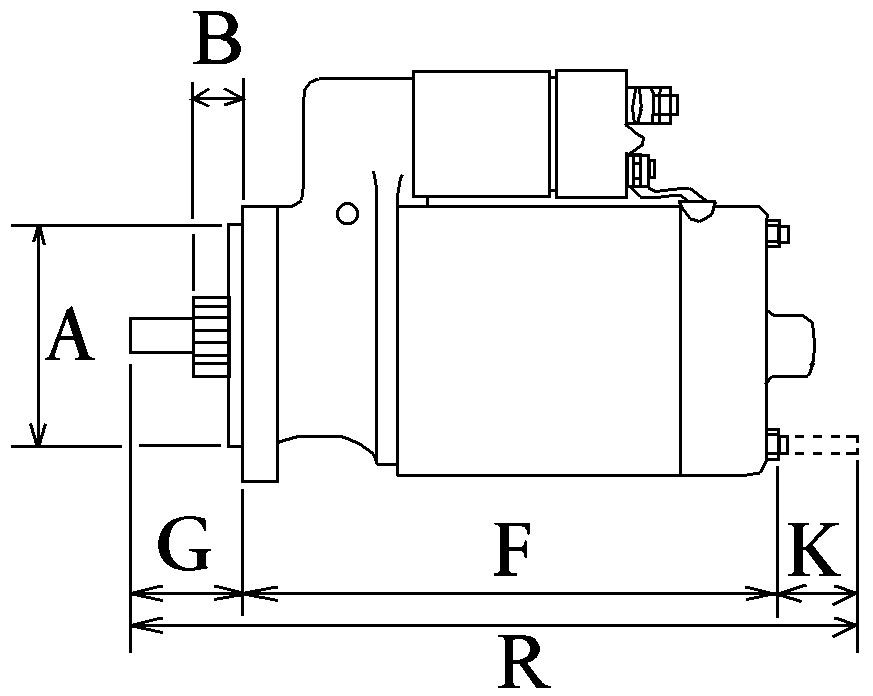

Dist./back: 183.00
Dist./front: 46.50
Terminal 50: 4.80
Position/50: 15
Dist. mm: 119.00
Total length mm: 242.00
Drive type: Steel
Prod. info: BN
Replaces OEM reference(s):
Volkswagen 02E911023H, Volkswagen 02E911023HX
Replaces aftermarket reference(s):
Ac delco DRT0280, Ac delco DRT0280X, AD Kühner 101286, Autostarter
Poland S0253, Autostarter Poland S0253PR, Autostarter Poland S0253R,
Bosch 0001123016, Bosch 0001123017, Bosch 1986S00803, Bosch 0986020280,
Bosch 0986020287, Casco CST10256, Cevam 3041, Dansk Renoveringsindustri
311.203.102, Denso DSN3008, Elstock 25-3218, ERA S.p.A Italia 220606,
ERA S.p.A Italia 220606A, FARCOM 105281, Friesen 8020280, HC-PARTS
cs1286,lucas lrs01672, Magneti Marelli 063521230160, Magneti Marelli
944280202800, Magneti Marelli MSN2106, PlusLine: 0.001.123.016+, PSH:
300.549.102.010, SEG: 0001.123.016, Unipoint STR-H054, Unipoint Bosch
F042S0H054, Valeo 201060, Wai 17971N, Wai 17971R, Wood Auto STR50252
