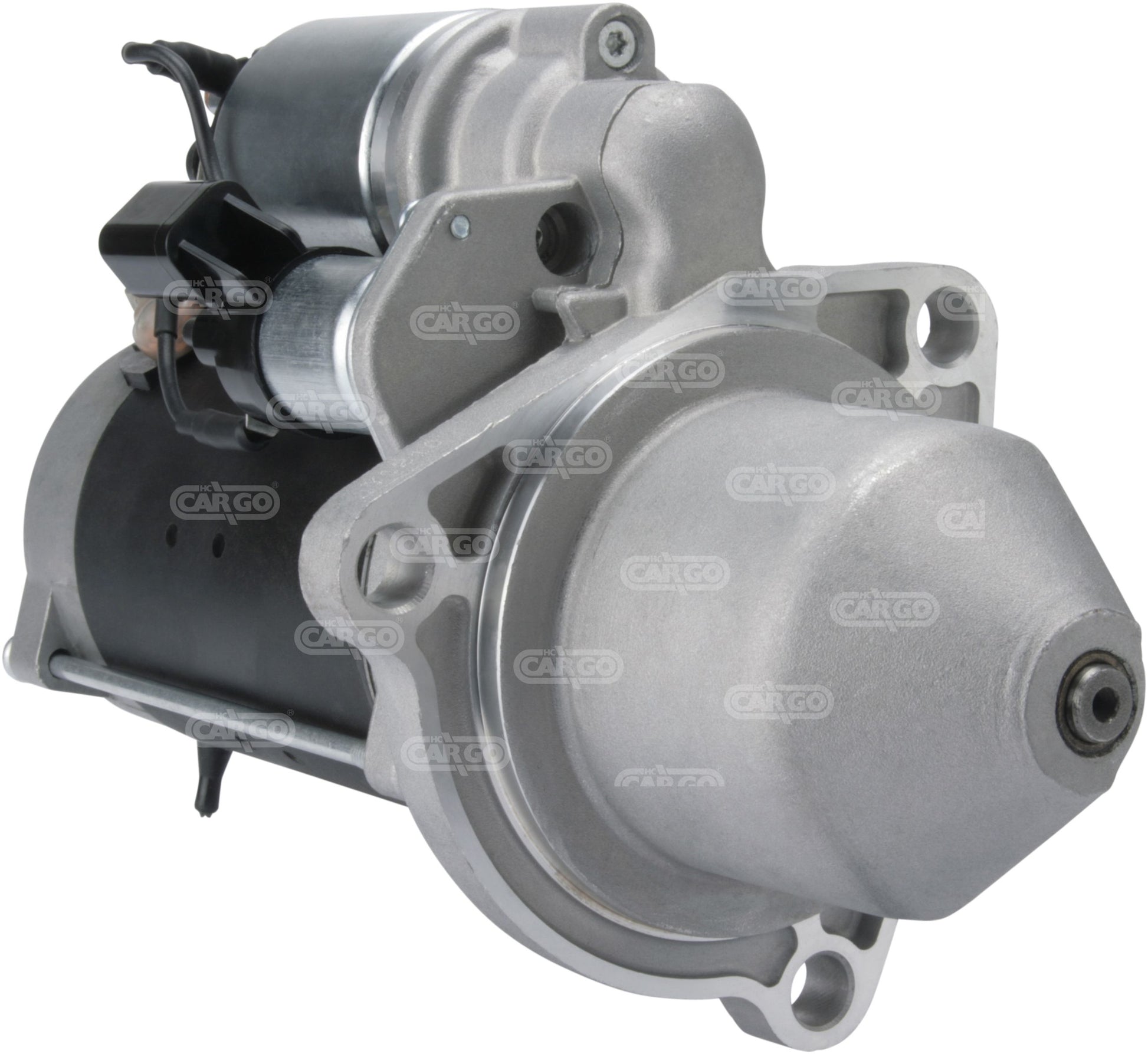

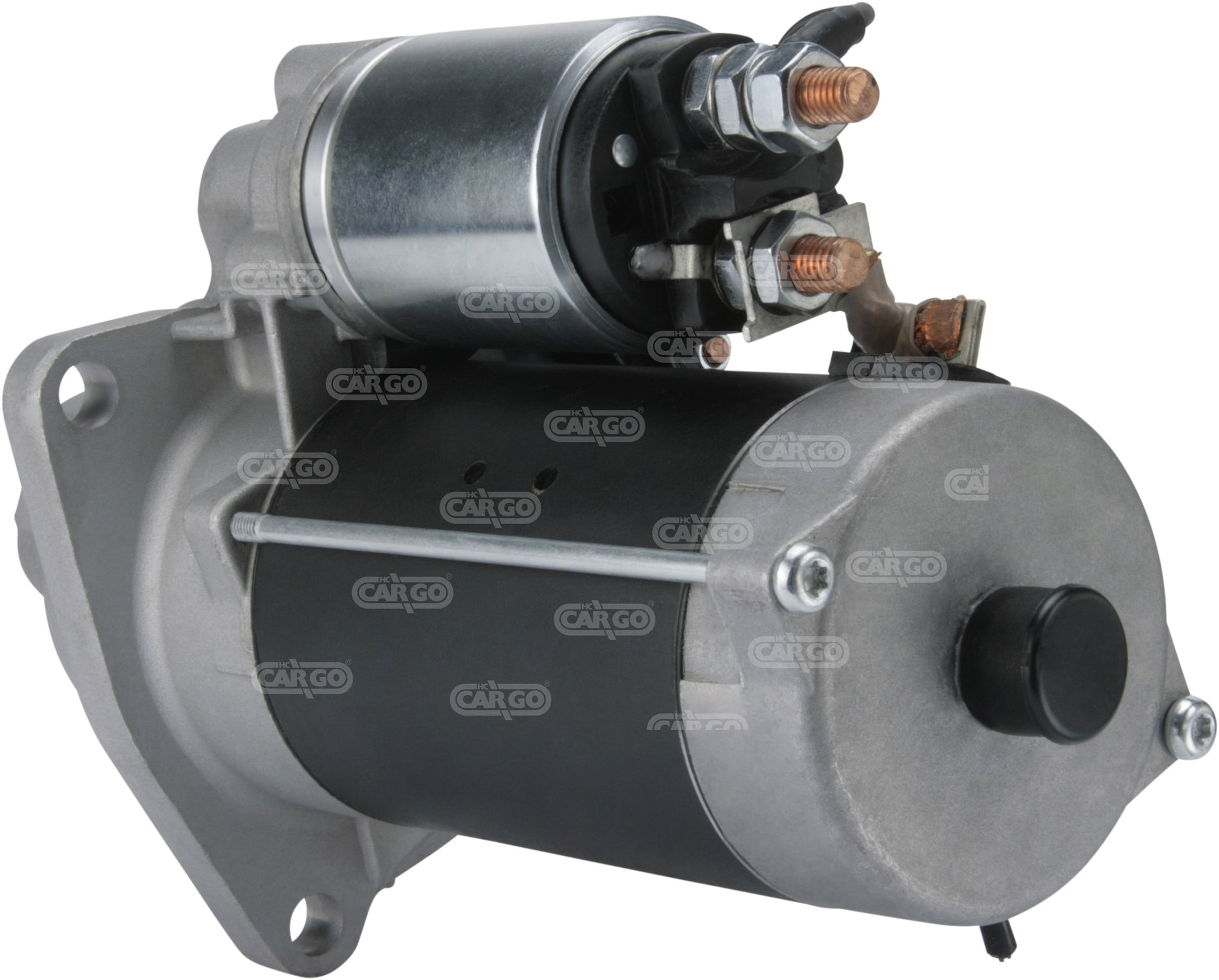

HC-Cargo Starter Motor for Daf 4.0 kw F032114069

w/ safety switch.

Voltage: 24
kW: 4.0
No./teeth: 11
Rotation: CW
Gear type: DD/GR
Mount. flange: 110.00
B+: M10
No./mount. holes: 3 (0)
Drive dist.: 48.00
Mount. hole 1 mm: 13.50
Mount. hole 2 mm: 13.50
Mount. hole 3 mm: 13.50
Dist./back: 208.00
Dist./front: 97.00
Terminal 50: Plug
Position/50: 10
Dist. mm: 127.00
Dist. 2: 127.00
Dist. 3: 127.00
Total length mm: 318.00
Drive type: Steel
Prod. info: BN
Remarks: w/ safety switch.

Replaces OEM reference(s):
Bosch 0001231036, Bosch 0001231040, Bosch 0001263003, Bosch 0001263004, Bosch 0001263053, Bosch 0001263054, Bosch 1986S10080, DAF 1633811, DAF 1725900, DAF 1826120, DAF 1956092, HC-PARTS cs1486

Replaces aftermarket reference(s):
Ac delco DRS0414, AD Kühner 254371, Autostarter Poland S0184, Autostarter Poland S0258, Bosch 0986025890, Casco CST10781, Dansk Renoveringsindustri 646.018.114, ERA S.p.A Italia 220724, ERA S.p.A Italia 220724A, FARCOM 106782, Hella Timefit 8EA012586-621, lucas LRS02457, Mahle Letrika MS768, Prestolite - HCUK 861040, Prestolite - HCUK M93R3093SE, Valeo 203008, Valeo 438591, Valeo 460268, Wai 30197N
