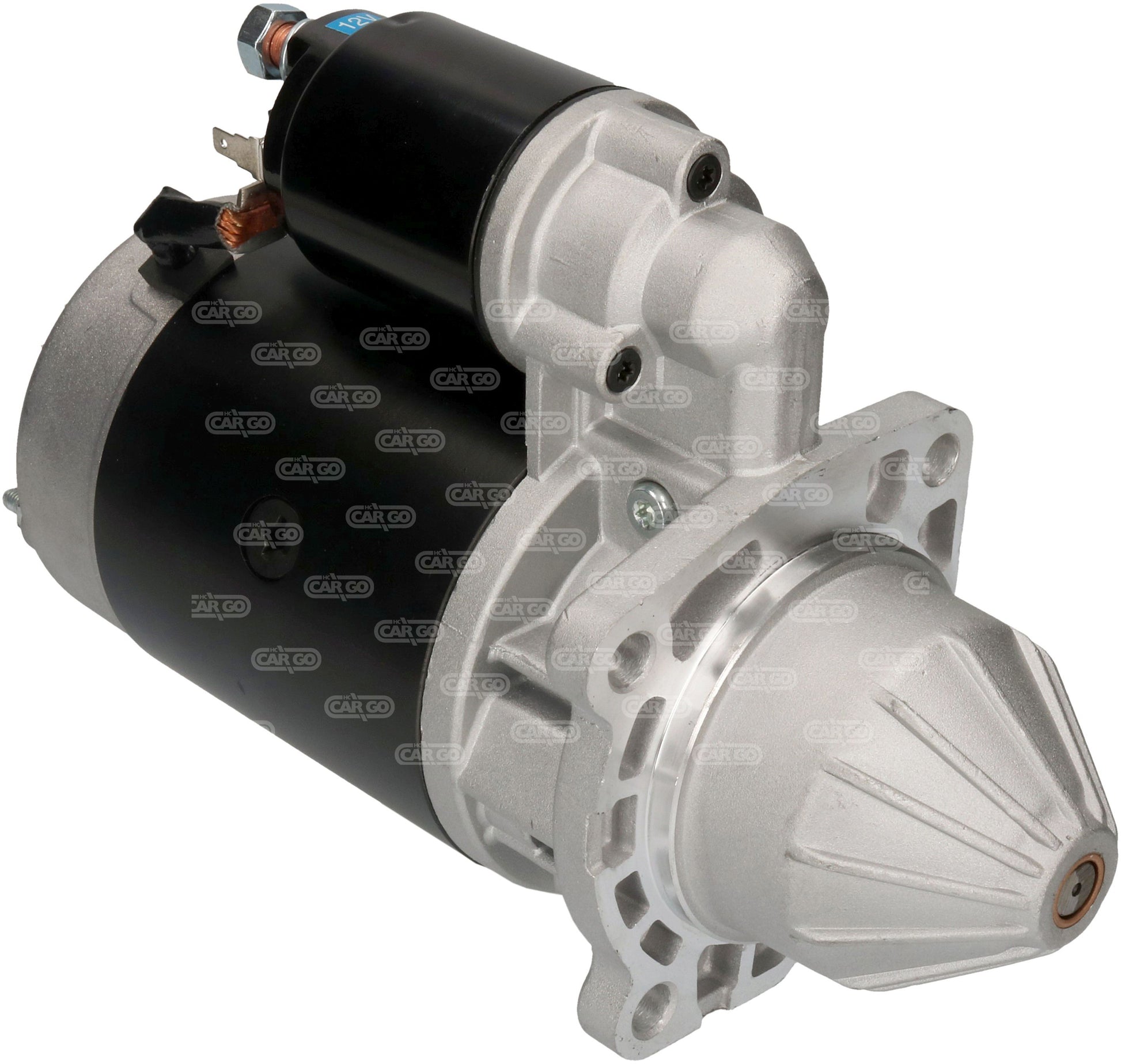

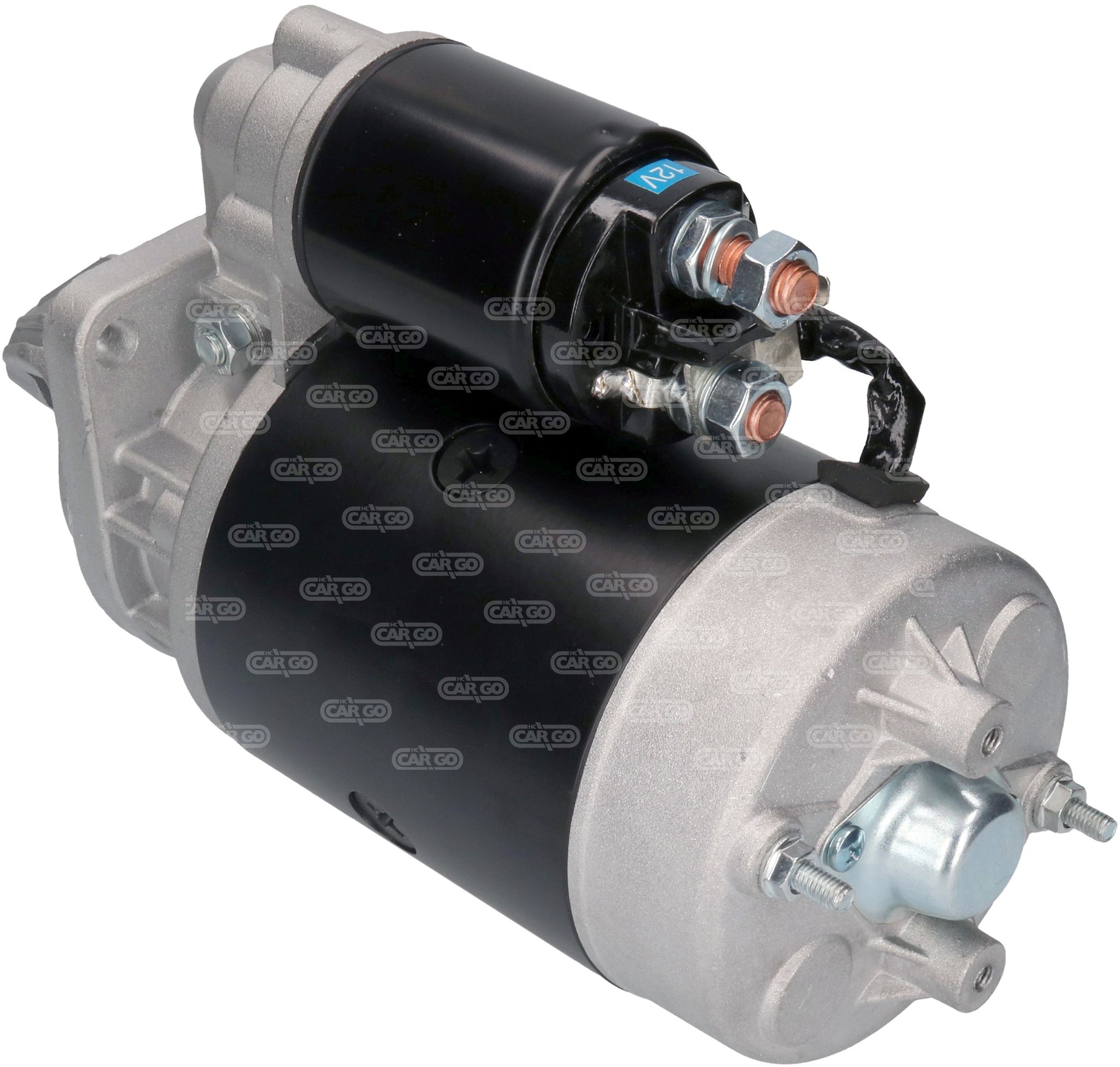

HC-Cargo Starter Motor for Deutz 3.0 kw F032116312

Bosch Type.

Voltage: 12
kW: 2.7
No./teeth: 9
Rotation: CW
Gear type: DD
Mount. flange: 89.00
B+: M10
No./mount. holes: 3 (0)
Drive dist.: 28.00
Mount. hole 1 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 3 mm: 11.00
Dist./back: 216.00
Dist./front: 72.00
Terminal 50: 6.30
Position/50: 15
Dist. mm: 127.00
Dist. 2: 90.00
Dist. 3: 90.00
Total length mm: 293.00
Remarks: Bosch Type.

Replaces OEM reference(s):
Bosch 0001358027, Bosch 0001358044, Bosch 0001358046, Bosch 0001358049, Bosch 0001358073, Bosch 0001358305, Bosch 0001359003, Bosch 0001359012, Bosch 0001359027, Bosch 0001359046, Bosch 0001359049, Bosch 0001359073, Bosch 0001359078, Bosch 0001362016, Bosch 0001362034, Bosch 0001362091, Bosch 0001362305, Bosch 1986S00992, Clark 6005030686, Fendt X830100007, KHD B5R12X4H7622, Liebherr 6104024, Magneton (Pal/Skoda) 9142803, POCLAIN M0041572, STEINBOCK 017769, ZETTELMEYER 70756112

Replaces aftermarket reference(s):
Ac delco drs0990, Ac delco drs1060, Ac delco drs1140, Ac delco drs1143, Ac delco drs1200, Ac delco DRS3680, AD Kühner 10103, AD Kühner 10114, Autostarter Poland S0115, Autostarter Poland S4032, Bosch 0986010990, Bosch 0986011140, Bosch 0986011200, Bosch 0986013680, Bosch 0986019543, Bosch 0986019547, Bosch 0986019567, Casco CST10449, Casco CST21100, Dansk Renoveringsindustri 600.002.092, Dansk Renoveringsindustri 600.002.112, Elstock 25-0037, Elstock 25-0155, Elstock 25-0157, Elstock 25-0282, ERA S.p.A Italia 220011, ERA S.p.A Italia 220011A, Friesen 88-10.990, Friesen 88-11.140, Friesen 88-13.680, Hella 8ea725962-001, Hella 8ea725967-001, Hella Timefit 8EA011610-941, lucas LES0038, lucas lrs00762, lucas lrs00921, lucas LRS01057, Magneti Marelli 063523623, Magneti Marelli 063523623050, Magneti Marelli 943252071, Magneti Marelli 943252071010, Magneti Marelli 943252204, Magneti Marelli 943252204010, Magneti Marelli 943252217, Magneti Marelli MSR683, Magneti Marelli MSR697, Magneti Marelli MSR707, Mahle Letrika is0551, Mahle Letrika is0552, POWER MAX 8212960, Prestolite - HCUK 20500762, Spidan 1607, Spidan 4004, Sud Est 33334, Sud Est 33421, Sud Est 33884, Valeo 436077, Wai 17074N, Wai 17075N, Wai 17075R
