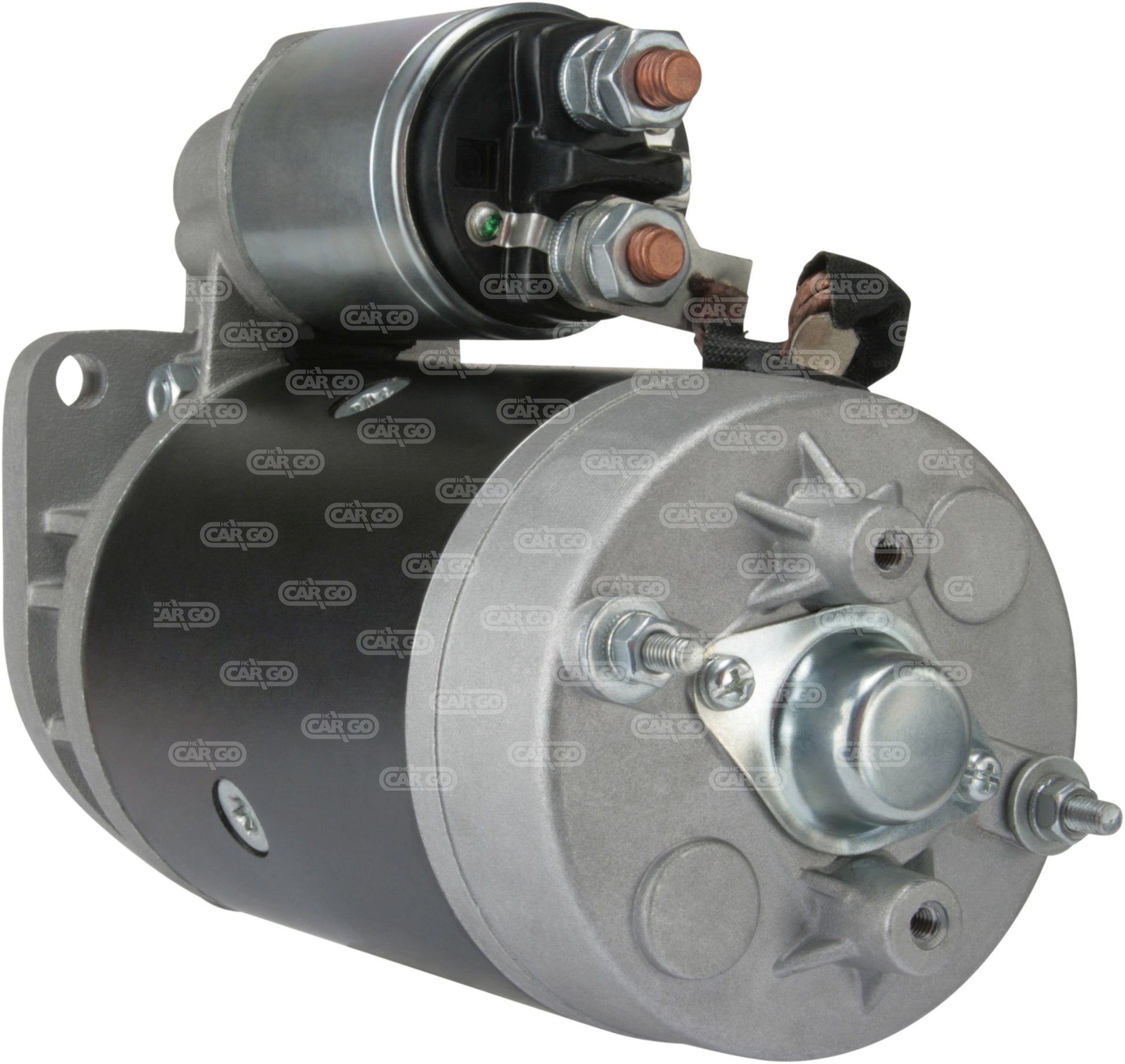

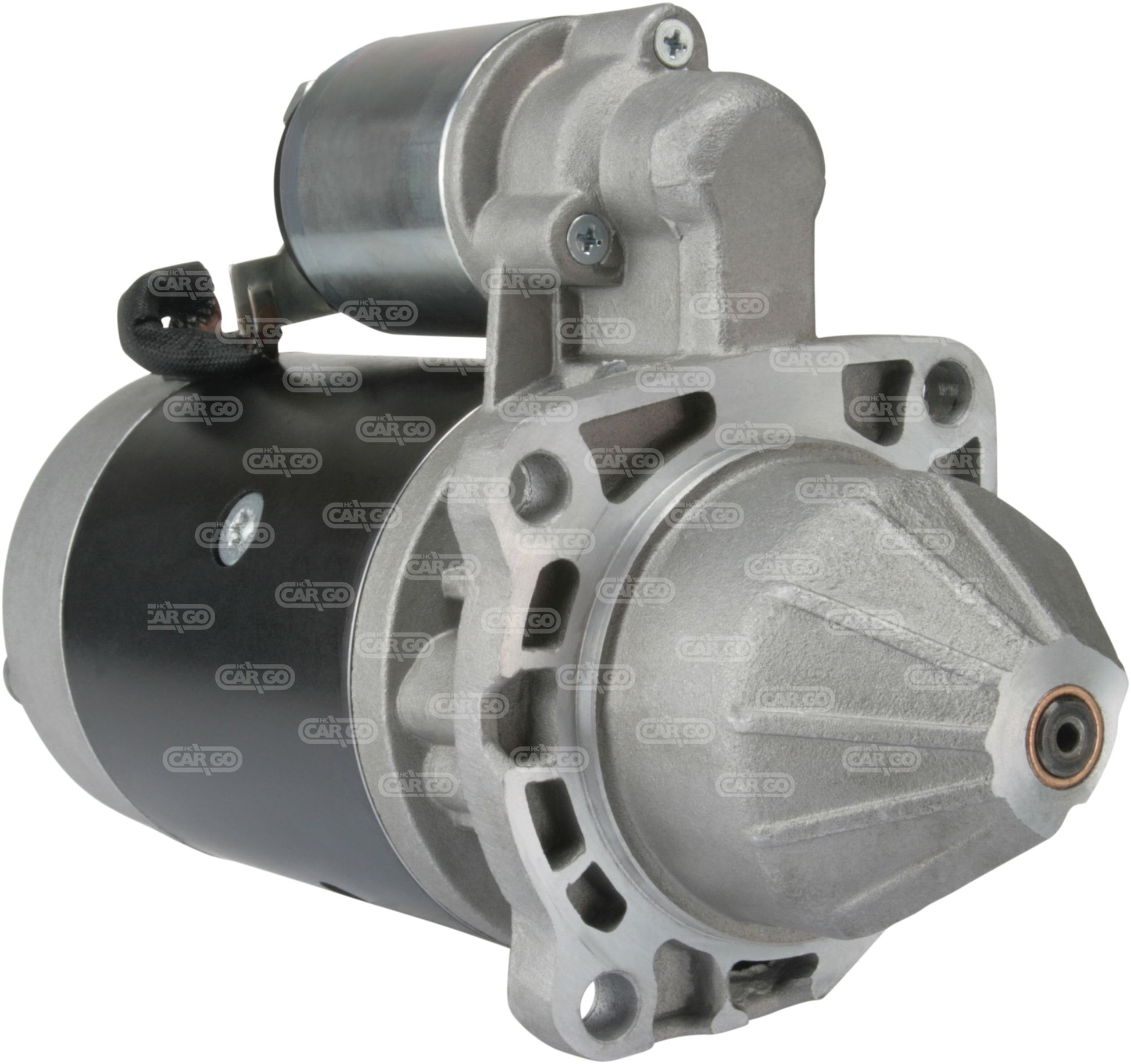

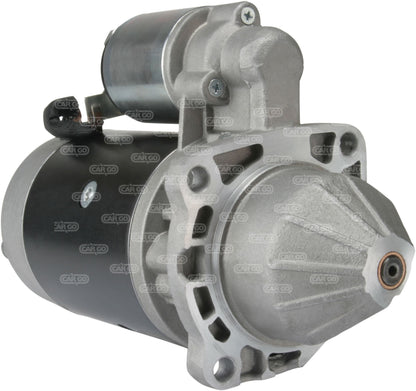

HC-Cargo Starter Motor for Deutz 3.1 kw F032112555

Voltage: 12
kW: 3.1
No./teeth: 9
Rotation: CW
Gear type: DD
Mount. flange: 89.00
B+: M10
No./mount. holes: 3 (0)
Drive dist.: 28.50
Mount. hole 1 mm: 10.50
Mount. hole 2 mm: 10.50
Mount. hole 3 mm: 10.50
Dist./back: 229.50
Dist./front: 73.00
Terminal 50: M4
Position/50: 15
Dist. mm: 127.00
Dist. 2: 90.00
Dist. 3: 90.00
Total length mm: 303.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN

Replaces OEM reference(s):
AGCO C000900060120, Bomag 05712907, Bosch 0001230014, Bosch 0001369014, Bosch 0001369024, Fendt F119900060010, Fendt F716903060040, HC-PARTS cs887, KHD 01179318, KHD 1179318, KHD 01179319, KHD 1179319, KHD 01180805, KHD 1180805, Magneton (Pal/Skoda) 9142803, Mahle Letrika 11.130.567, Mahle Letrika azj3179

Replaces aftermarket reference(s):
Ac delco drs6550, Ac delco DRS6550N, Ac delco DRS9020, AD Kühner 101130, AD Kühner 10887, Autostarter Poland S0174, Bosch 0986016550, Bosch 0986016557, Bosch USA SR994ZX, Bowers - HCUK BSO7181, Casco CST10361, Dansk Renoveringsindustri 688.015.092, Elstock 25-2110, ERA S.p.A Italia 220787, ERA S.p.A Italia 220787A, FARCOM 104790, Friesen 88-16.550, Hella 8ea737086-001, Herth & Buss 42016550, Lester 18026, lucas lrs00987, Magneti Marelli 943252299, Mahle Letrika is0567, Mahle Letrika MS308, PIC 120-590, PIC 182-120, Spidan 4150, Sud Est 33885, Wai 18026N, Wai 18232N, Wai 2-1889-BO, Wood Auto STR22060
