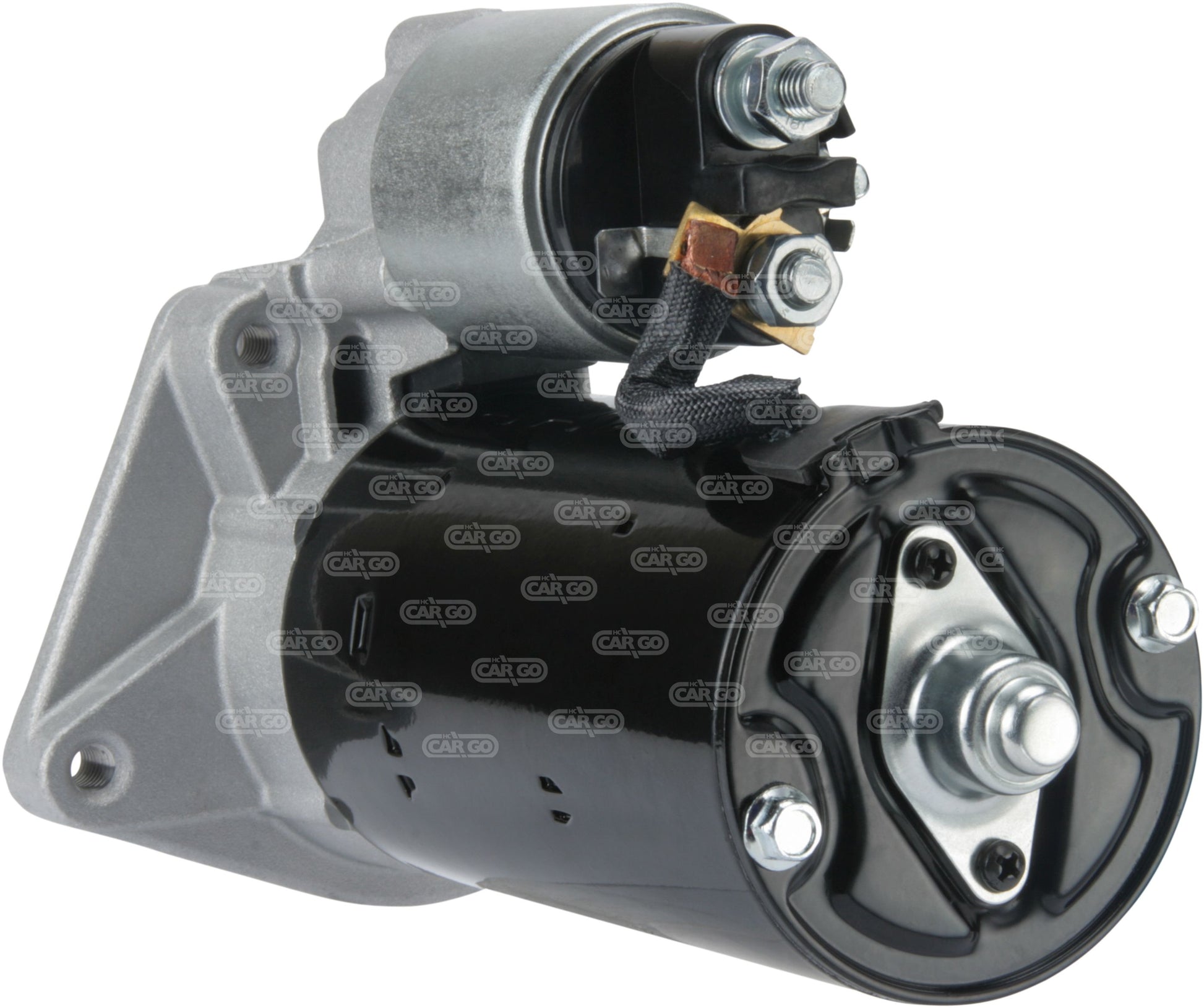

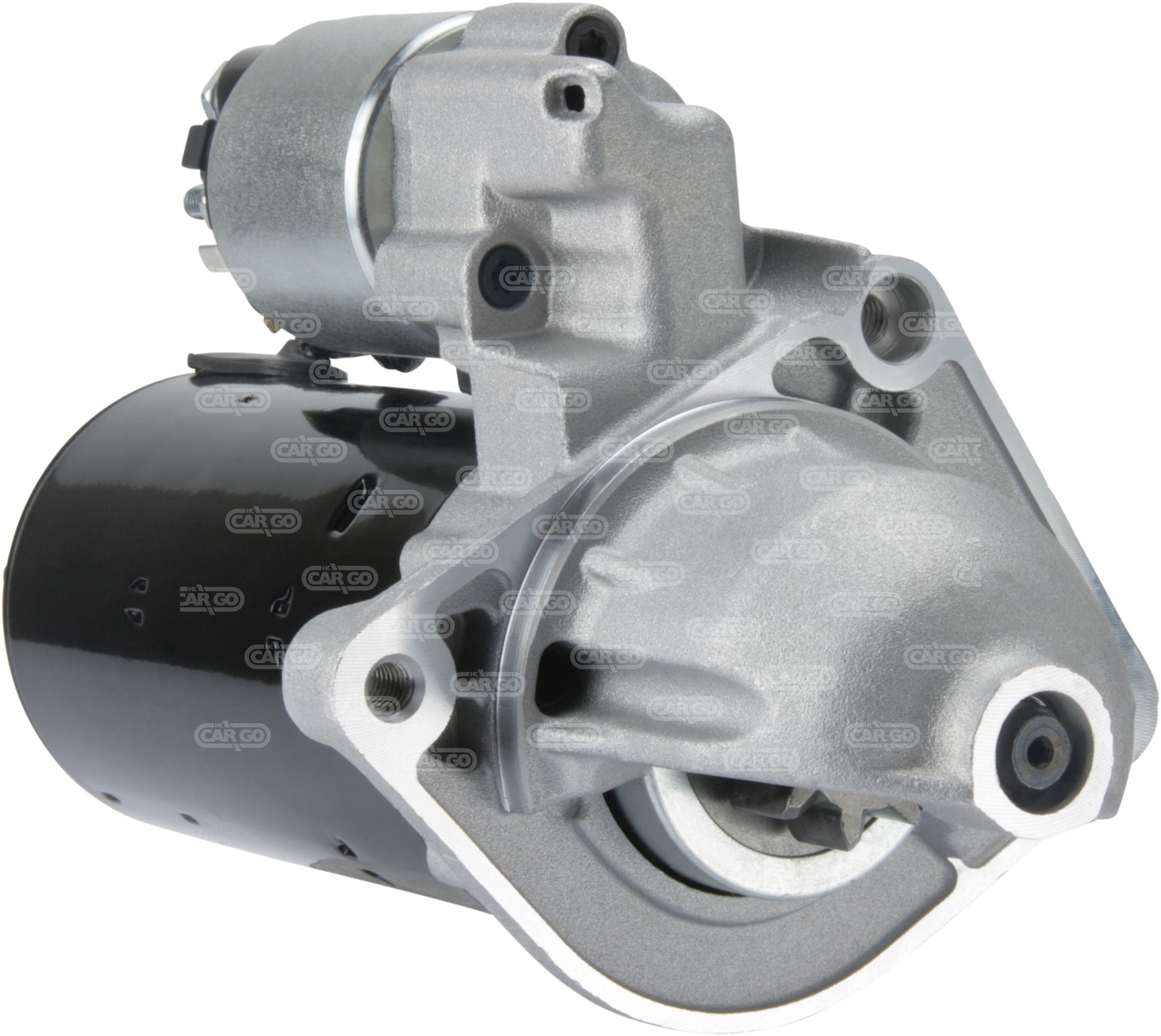

HC-Cargo Starter Motor for Iveco 2.5 kw F032112441

A: 81.00-84.00 mm.

Voltage: 12
kW: 2.3
No./teeth: 9
Rotation: CW
Gear type: GR
Mount. flange: 84.00
B+: M8
No./mount. holes: 3 (3)
Drive dist.: 27.00
Mount. hole 1 mm: M8
Mount. hole 2 mm: M8
Mount. hole 3 mm: M8
Dist./back: 187.00
Dist./front: 67.00
Terminal 50: M6
Position/50: 15
Dist. mm: 72.00
Dist. 2: 121.50
Dist. 3: 95.00
Total length mm: 258.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Remarks: A: 81.00-84.00 mm.

Replaces OEM reference(s):
Bosch 0001109306, Bosch 0001109307, Bosch 0001109371, Bosch 0001109375, Bosch 0001109376, Bosch 0001109462, Bosch 0001223003, Bosch 0001223007, Bosch 0001223024, Bosch 1986S00016, Bosch 1986S00757, Bosch 1986S10034, Bosch F000AL0143, Bosch F000AL0149, DAF 1516689R, HC-PARTS cs1203, Iveco 0000002994100, Iveco 2994100, Iveco 2995990, Iveco 42498717, Iveco 50408688, Iveco 0000069502571, Iveco 69502571, Iveco 500059592, Iveco 500307724, Iveco 504086888, Iveco 504201467, Iveco 97336488EB, Mahle Letrika 11.131.560, Mahle Letrika AZE6526, Mitsubishi MK666919, Renault 5001849990, Renault 7700377051

Replaces aftermarket reference(s):
Ac delco DRS0185, Ac delco DRS0185N, Ac delco DRS0185X, Ac delco DRS8490, Ac delco DRS8950, Ac delco DRS8950X, AD Kühner 101203, Autostarter Poland S0099, Autostarter Poland S0099PR, Autostarter Poland S0099SR, Autostarter Poland S0614(BOSCH), Autostarter Poland S0614PR, Autostarter Poland S0614S, Birkson BK10.N23003, Bosch 0986018490, Bosch 0986018950, Bosch 0986018953, Bosch 0986024833, Bosch Blue F042200159, Bosch Blue F042202535, Bowers - HCUK BSO7299, Casco CST10164, Casco CST10511, Cevam 3020, Dansk Renoveringsindustri 318.081.092, Dansk Renoveringsindustri 330.026.092, Elstock 25-2411, ERA S.p.A Italia 220156, ERA S.p.A Italia 220156A, ERA S.p.A Italia 220435, ERA S.p.A Italia 220435A, FARCOM 104740, FARCOM 106653, Friesen 8018490, Hella Timefit 8EA011350-021, Hella Timefit 8EA011610-111, Herth & Buss 42018950, lucas LRS01471, Magneti Marelli 063521093070, Magneti Marelli 063522230240, Magneti Marelli msn2009, Mahle Letrika is1164, Mahle Letrika MS114, Pos Service Holland 500.598.093, POWER MAX 8212449, Prestolite - HCUK 20513043, Prestolite - HCUK PBNS3043, Unipoint STR-2245, Unipoint STR-B201, Unipoint Bosch F032US0054, Unipoint Bosch F042S02174, Unipoint Bosch F042S02195, Valeo 201142, Valeo 438487, Valeo 458208, Valeo 458280, Valeo 726198, Wai 32471N, Wai 32471R, Wood Auto STR20027, Wood Auto STR22125, Wood Auto STR50379
