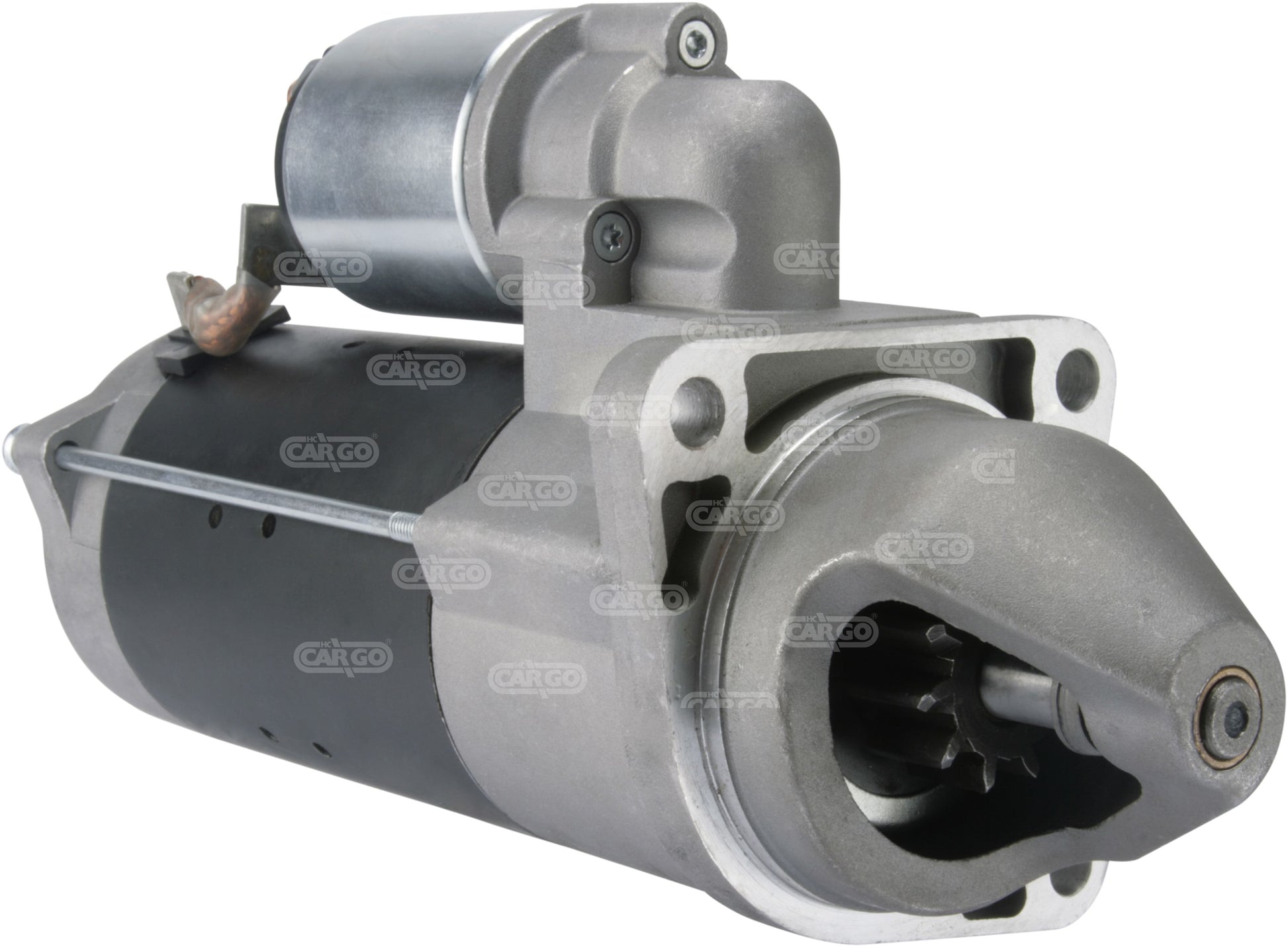

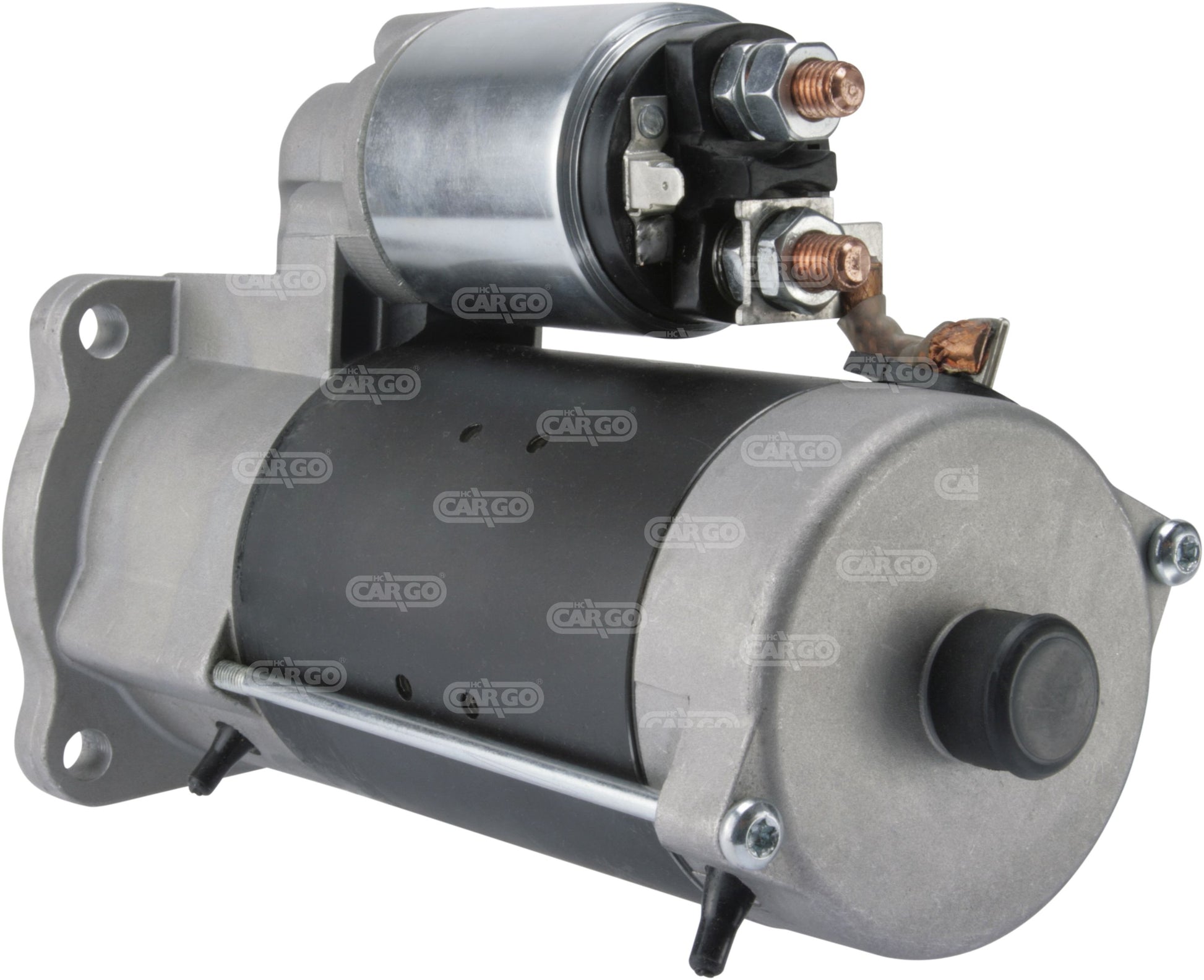

HC-Cargo Starter Motor for Iveco 4.0 kw F032114196

Voltage: 24
kW: 4.0
No./teeth: 10
Rotation: CW
Gear type: GR
Mount. flange: 89.00
B+: M10
No./mount. holes: 3 (0)
Drive dist.: 27.50
Mount. hole 1 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 3 mm: 11.00
Dist./back: 227.50
Dist./front: 75.00
Terminal 50: M4-6.30
Position/50: 45
Dist. mm: 90.00
Dist. 2: 127.00
Dist. 3: 90.00
Total length mm: 317.00

Replaces OEM reference(s):
Bosch 0001231026, Bosch 0001231027, Bosch 0001251005, Bosch 0001251006, Bosch 0001263019, Bosch 0001263020, Bosch 1986S10038, Case 2852405, Fiat 504385577, HC-PARTS cs1536, Iveco 500389863, Iveco 0000504036695, Iveco 504036695, Iveco 504385577, Iveco 0005801577136, Iveco 5801577136, Mahle Letrika AZF4295, New Holland 2852405, New Holland 2852478, New Holland 84377568

Replaces aftermarket reference(s):
Ac delco DRS0027, Ac delco DRS0028, AD Kühner 254204, AD Kühner 255238, Autostarter Poland S0179, Autostarter Poland S0201, Autostarter Poland S0865S, Bosch 0986025530, Casco CST10677, Casco CST10680, Cevam 8095, Dansk Renoveringsindustri 618.041.104, Elstock 45-4203, ERA S.p.A Italia 220751, ERA S.p.A Italia 220751A, lucas LRS02531, Magneti Marelli 063522310260, Magneti Marelli 063522630200, Mahle Letrika IS1341, Mahle Letrika MS239, Pos Service Holland 501.505.103, Pos Service Holland 501.506.103, Pos Service Holland 501.516.103, Wai 19400N, Wai 19796N
