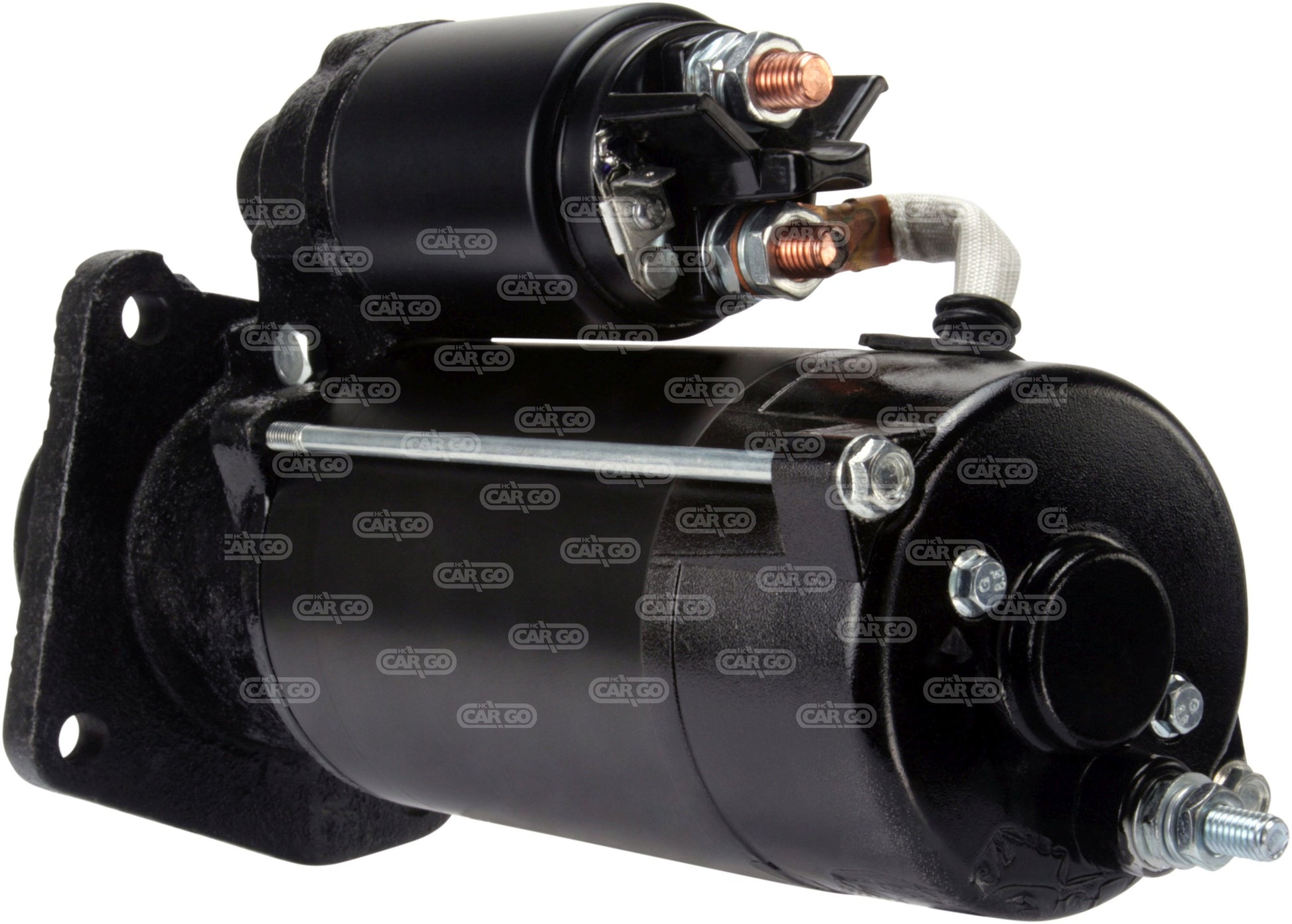

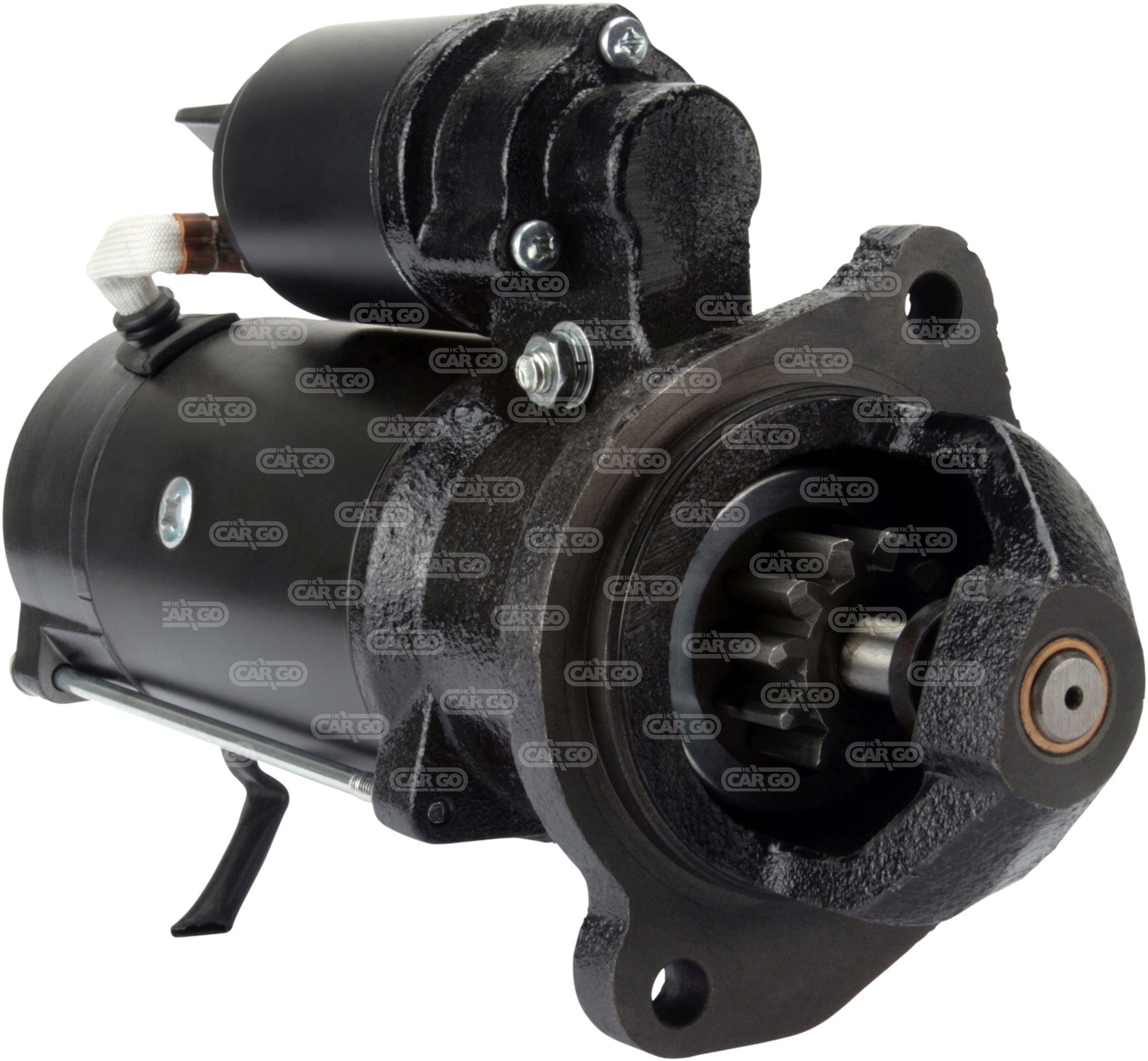

HC-Cargo Starter Motor for JCB 4.2 kw F032114264

Voltage: 12
kW: 4.2
No./teeth: 11
Rotation: CW
Gear type: GR
Mount. flange: 89.00
B+: M10
No./mount. holes: 3 (0)
Drive dist.: 21.00
Mount. hole 1 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 3 mm: 11.00
Dist./back: 247.00
Dist./front: 69.50
B-: M8
Position/b-: 30
Thread length mm: 19.00
Terminal 50: M4-6.30
Position/50: 40
Dist. mm: 89.50
Dist. 2: 87.50
Dist. 3: 127.00
Total length mm: 349.50

Replaces OEM reference(s):
Jcb 320-09022, Jcb 320-09026, Jcb 320-09032, Jcb 320-09035, Jcb 320-09144, Jcb 320-09346, Jcb 320-09409, Jcb 320-09452, Jcb 320-09454, Mahle Letrika 11.131.292, Mahle Letrika 11.131.697, Mahle Letrika 11.131.711, Mahle Letrika 11.131.848, Mahle Letrika AZF4181, Mahle Letrika AZF4186, Mahle Letrika AZF4224, Mahle Letrika AZF4576

Replaces aftermarket reference(s):
Ac delco DRS0117, AD Kühner 254560, Autostarter Poland S9173, Autostarter Poland S9173(LETRIKA), Casco CST21133, Cevam 8441, Dansk Renoveringsindustri 600.237.112, Elstock 25-4161, Mahle Letrika IS1105, Mahle Letrika MS84, Prestolite - HCUK S5009L, Wai 30230N
