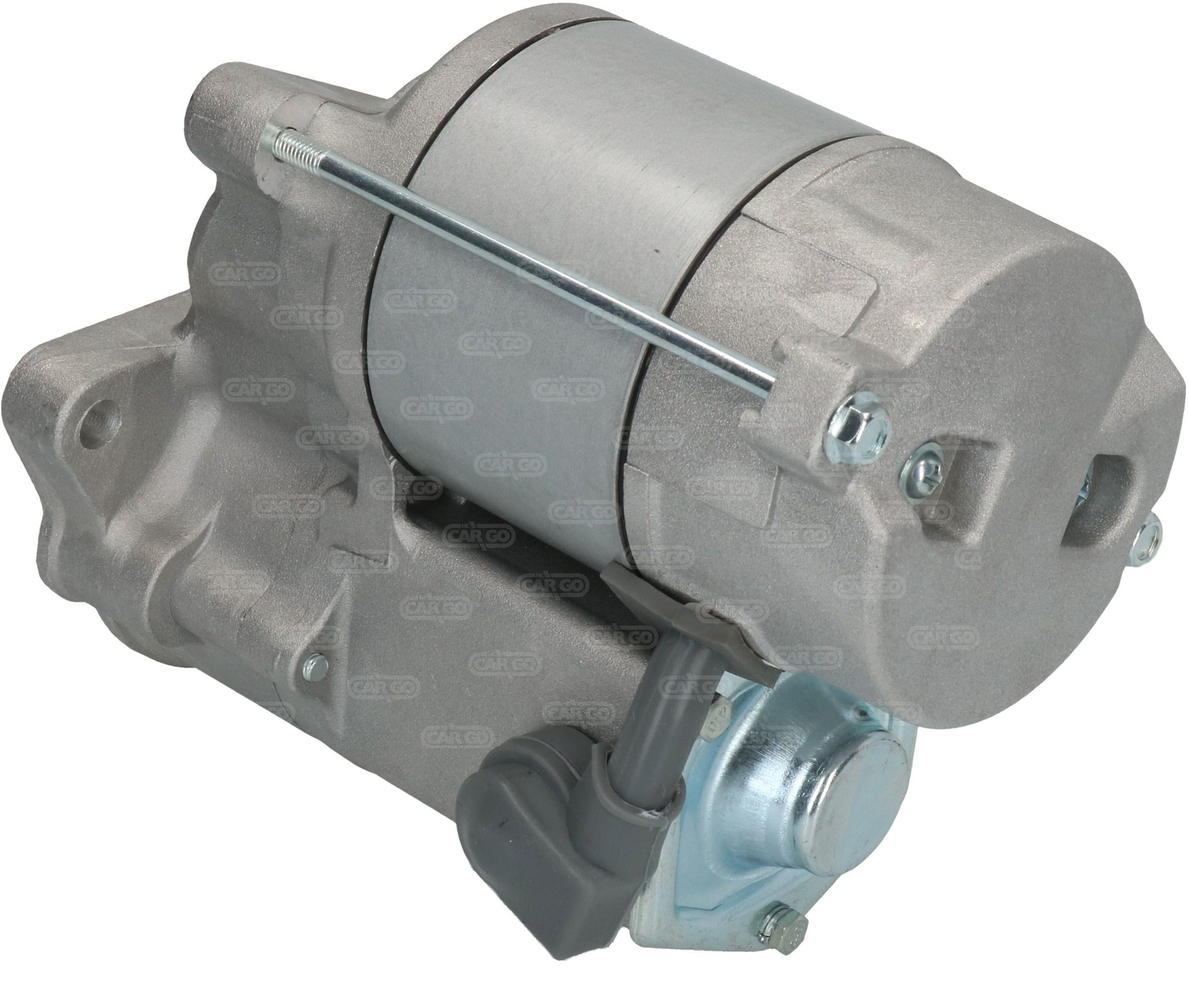

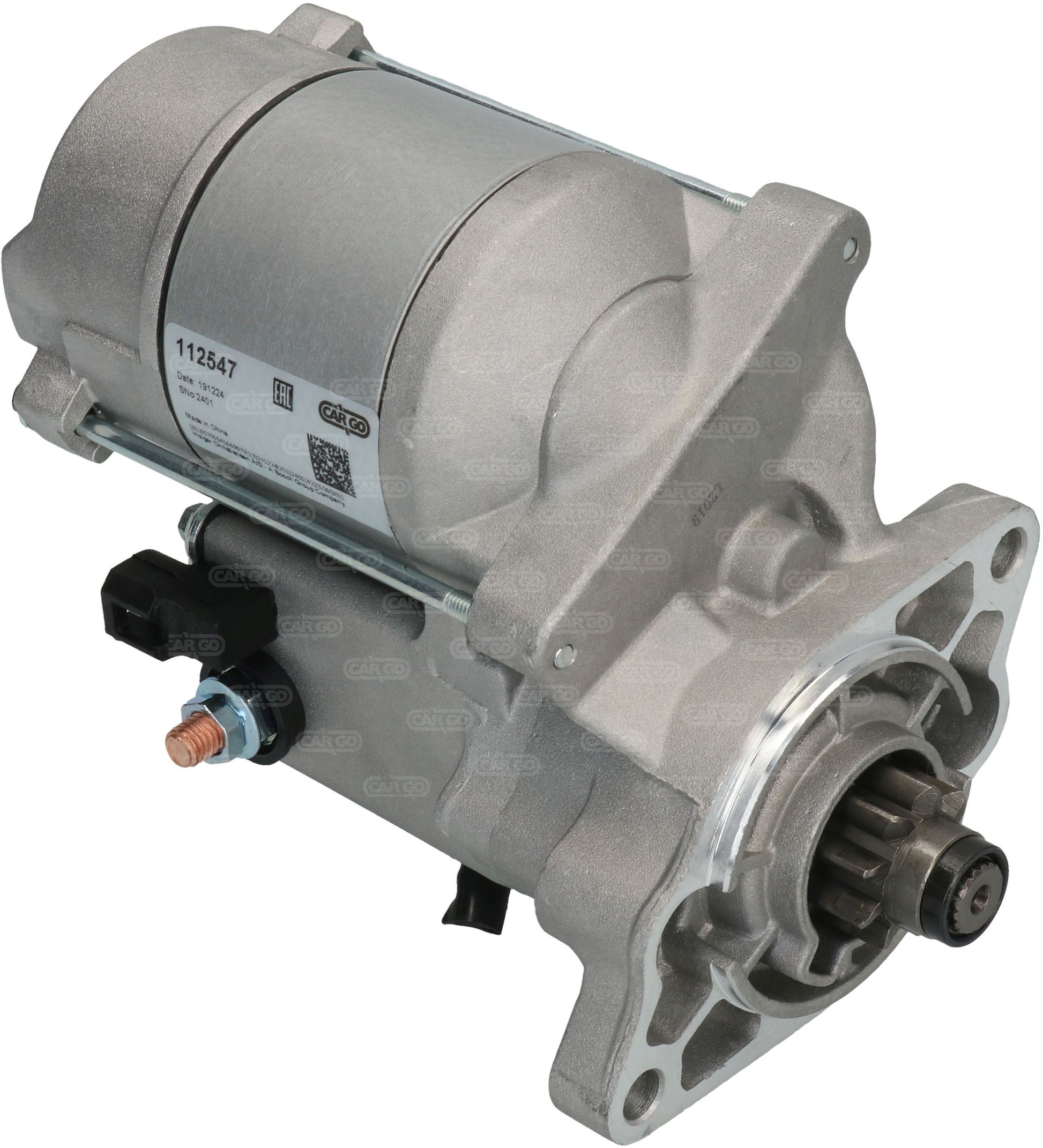

HC-Cargo Starter Motor for Kubota 1.4 kw F032112547

May be supplied with or without nosecone, both are interchangeable.

Voltage: 12
kW: 1.4
No./teeth: 9
13
Rotation: CW
Gear type: GR
Mount. flange: 66.00
Position/B+: 60
B+: M8
No./mount. holes: 2 (0)
Drive dist.: 18.00
Mount. hole 1 mm: 9.00
Mount. hole 2 mm: 9.00
Dist./back: 160.00
Dist./front: 51.50
Terminal 50: 6.30
Position/50: 45
Dist. mm: 110.00
Total length mm: 211.50
Drive type: Steel
Prod. info: BN
Remarks: May be supplied with or without nosecone
both are interchangeable.

Replaces OEM reference(s):
Denso 228000-7610, Denso 228000-7611, Kubota 17423-63010, Kubota 17423-63012, Kubota K7561-61810

Replaces aftermarket reference(s):
Autostarter Poland S6274S, Bosch Blue F042000183, Casco CST40185, Dansk Renoveringsindustri 683.039.092, Dansk Renoveringsindustri 683.040.132, Denso DSN2087, Elstock 25-4444, Lester 112547, PIC 190-6128, Unipoint STR-8090, Unipoint Bosch F042S00183, Wai 18413N, Wai 18419N, Wai 2-2656-ND, Wood Auto STR30046, Wood Auto STR70073, Wood Auto STR8090
