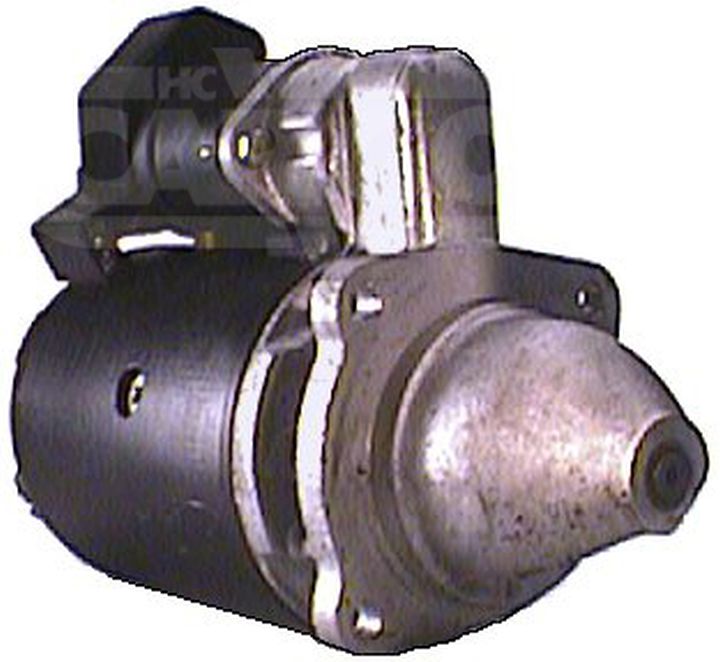

HC-Cargo Starter Motor for Perkins 2.8 kw F032110565

4 KW: HC-CARGO 115392.

Voltage: 12
kW: 2.8
No./teeth: 10
Rotation: CW
Gear type: DD
Mount. flange: 89.00
B+: M8
No./mount. holes: 3 (0)
Drive dist.: 29.50
Mount. hole 1 mm: 10.80
Mount. hole 2 mm: 10.80
Mount. hole 3 mm: 10.80
Dist./back: 229.00
Dist./front: 77.50
B-: M8
Position/b-: 10
Thread length mm: 17.00
Terminal 50: 6.30
Position/50: 10
Dist. mm: 127.00
Dist. 2: 90.00
Dist. 3: 90.00
Total length mm: 313.00
Drive type: Steel
Prod. info: BN
Remarks: 4 KW: HC-CARGO 115392.

Replaces OEM reference(s):
AGCO C000900060070, AGCO C000900060220, Bosch 0001367040, Bosch 9004475058, Case 323319A1, Case 388187A1, Case 388187A2, Claas 6005700081, Claas 6005706624, Claas CT6005700081, Claas CT6005706624, Ducellier 6233, Ducellier 538502, Ducellier 538505, HC-PARTS cs201, Hitachi s12-73, Hitachi s13-73, Hitachi s13-73b, Hitachi s13-74, Jcb 26358, Jcb 26414, Jcb 27519, Jcb 26358A, lucas 26274, lucas 26323, lucas 26345, lucas 26366, lucas 26406, lucas 26410, lucas 27510, lucas 27515, lucas 27523, lucas 27529, lucas 27539, lucas 27572, lucas 27578, lucas 27583, lucas 27594, lucas 27599, lucas 27606, lucas 54243441, lucas 54265233, lucas 26323a, lucas 26341a, lucas 26345a, lucas 26345b, lucas 26345d, lucas 26345E, lucas 26345j, lucas 26366a, lucas 26366f, lucas 26410a, lucas 26410b, lucas 26925193a, lucas 26925519a, lucas 27510E, lucas 27523a, lucas 27523d, lucas 27539a, lucas 27539f, lucas 27572a, lucas 27572b, lucas 27583A, lucas 27583D, lucas nsb529, lucas nsb531, lucas nsb540, Magneti Marelli 63227479, Magneti Marelli mt68s, Magneton (Pal/Skoda) 9142804, Mahle Letrika 11.130.076, Mahle Letrika 11.130.200, Mahle Letrika 11.130.373, Mahle Letrika 11.130.386, Mahle Letrika 11.130.411, Mahle Letrika 11.130.419, Mahle Letrika 11.130.509, Mahle Letrika 11.130.629, Mahle Letrika 11.130.807, Mahle Letrika 11.130.872, Mahle Letrika 11.130.904, Mahle Letrika 11.132.159, Mahle Letrika AZE4244, Mahle Letrika azj0405, Mahle Letrika azj3105, Mahle Letrika azj3117, Mahle Letrika azj3121, Mahle Letrika azj3144, Mahle Letrika azj3203, Mahle Letrika AZJ3305, Mahle Letrika AZJ3330, Mahle Letrika azj3536, Mahle Letrika azj3598, Massey Ferguson 1691806R1, Massey Ferguson 1860093M2, Massey Ferguson 1868285M1, Massey Ferguson 1868285M2, Massey Ferguson 1868285M3, Massey Ferguson 1868285R3, Massey Ferguson 1868287T, Massey Ferguson 3516094M1, Massey Ferguson 3519400M1, Massey Ferguson 3519400M92, Massey Ferguson 3542185M91, Massey Ferguson 3542185M92, Massey Ferguson 3546391M91, Massey Ferguson 3597372M2, Massey Ferguson 3597372R2, Massey Ferguson 3763362M91, Massey Ferguson 3930506R1, Massey Ferguson 3930509R1, Massey Ferguson 706022A1, Massey Ferguson 909971R2, Perkins 2873003, Perkins 2873004, Perkins 26410r, Perkins 2873006T, Perkins 2873A032, Perkins 2873d001, Perkins 2873D002, Remy (delco) 19024817, Renault 6005003154, Renault 7700011850, URSUS 7017954M1, Valeo 1447731, Valeo d11e137, Valeo d11e154, Valeo d11e15h

Replaces aftermarket reference(s):
Ac delco drs3287, Ac delco drs3333, Ac delco DRS3395, AD Kühner 10201, Autostarter Poland S0802S, Autostarter Poland S4002, Autostarter Poland S4005, Autostarter Poland S9021, Bosch 0986023190, Bowers - HCUK BSO7011, Casco CST21104, Casco CST21111, Casco CST21138, Casco CST21148, Casco CST25103, Dansk Renoveringsindustri 300.024.092, Dansk Renoveringsindustri 344.002.102, Dansk Renoveringsindustri 344.007.102, Dansk Renoveringsindustri 644.004.102, Elstock 25-0041, Elstock 25-1410, ERA S.p.A Italia 220739, ERA S.p.A Italia 220739A, Friesen 8055232, Hella 8ea726027-001, Hella Timefit 8EA012526-981, Lester 17072, Lester 18289, lucas LES0013, lucas LES0019, lucas lrs00170, lucas lrs00173, lucas lrs00215, lucas lrs00232, lucas LRS00519, Magneti Marelli 943216817, Mahle Letrika IS0411, Mahle Letrika is0509, Mahle Letrika is0629, Mahle Letrika IS1378, Mahle Letrika MS21, Mahle Letrika MS282, Mahle Letrika MS315, Mahle Letrika MS345, Mahle Letrika MS385, Mahle Letrika MS395, Mahle Letrika MS548, PIC 104-277, PIC 108-237, PIC 108-237A, PIC 180-309, PIC 180-310, PIC 180-349, PIC 180-349A, PIC 180-349B, PIC 180-349C, PIC 180-349E, PIC 180-349F, PIC 182-121, PIC 900-842, PIC 902-373, Pos Service Holland 650.501.103, Pos Service Holland 650.504.103, POWER MAX 8212679, Prestolite - HCUK 66925090, Spidan 4019, Sud Est 33395, Sud Est 33477, Unipoint STR-H007, Unipoint Bosch F042S0H007, Valeo 433316, Valeo 436072, Wai 16670N, Wai 17072N, Wai 17264R, Wai 17645N, Wai 17652N, Wai 18289N, Wai 18482N, Wai 2-2281-LU, Wai 30617N, Wood Auto STR25013, Wood Auto STR25032
