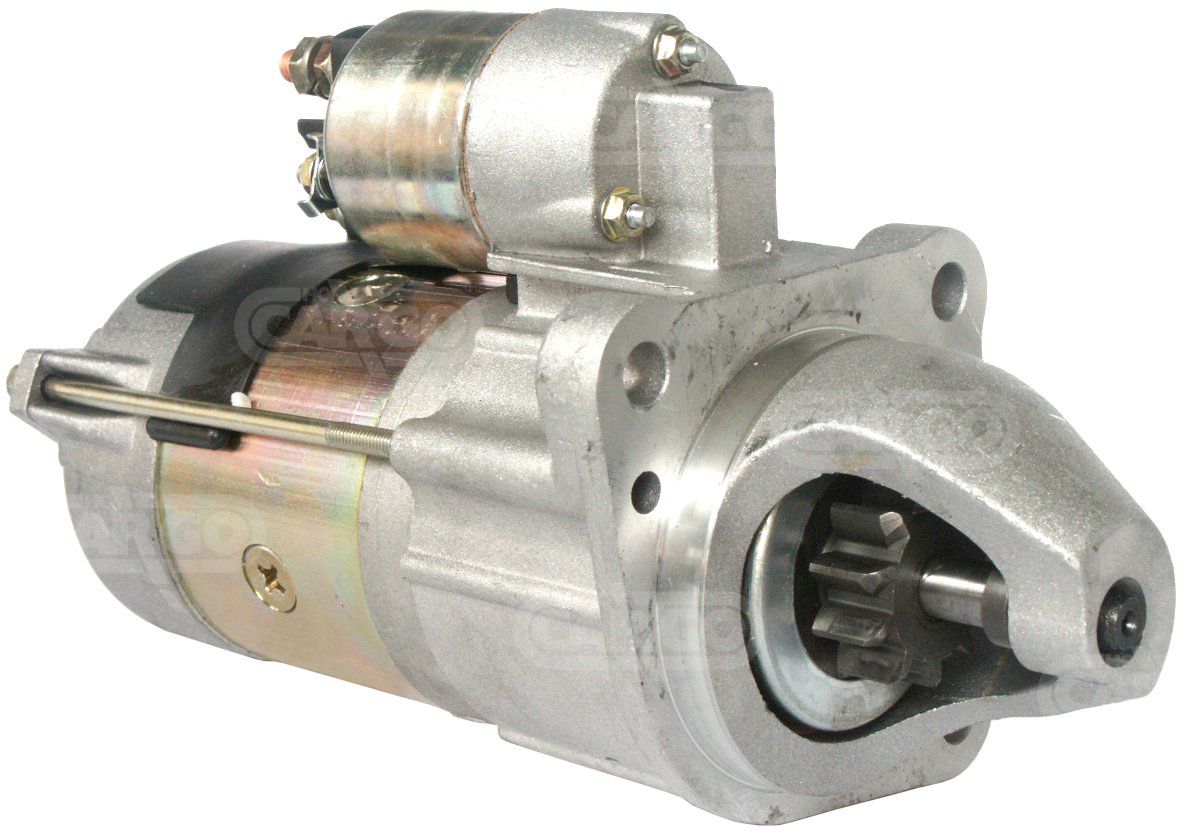

HC-Cargo Starter Motor for Perkins 3.0 kw F032113654

Optional use HC-CARGO 115389, 4.2 kW.

Voltage: 12
kW: 3.0
No./teeth: 10
Rotation: CW
Gear type: GR
Mount. flange: 89.00
Position/B+: 60
B+: M8
No./mount. holes: 3 (0)
Drive dist.: 30.50
Mount. hole 1 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 3 mm: 11.00
Dist./back: 194.00
Dist./front: 68.00
B-: M8
Position/b-: 7
Thread length mm: 20.00
Terminal 50: M6
Position/50: 20
Dist. mm: 89.50
Dist. 2: 126.50
Dist. 3: 89.50
Total length mm: 292.00
Drive type: Steel
Prod. info: BN
Info: HC-CARGO 113654 is a Marelli/Denso version
and cannot replace the Iskra version (HC-CARGO 114387).
Remarks: Optional use HC-CARGO 115389
4.2 kW.

Replaces OEM reference(s):
Caterpillar 312-7539, Denso 428000-1380, Magneti Marelli 63280040, Magneti Marelli 40003A, Manitou 702284, Manitou 781742, Manitou 788129, Perkins 2873k404

Replaces aftermarket reference(s):
AD Kühner 254194, Autostarter Poland S4029, Autostarter Poland S9172, Bowers - HCUK BSO7310, ERA S.p.A Italia 220814, ERA S.p.A Italia 220814A, Lester 18941, lucas LES0272, Magneti Marelli MSN8040, Wai 18941N-IK
