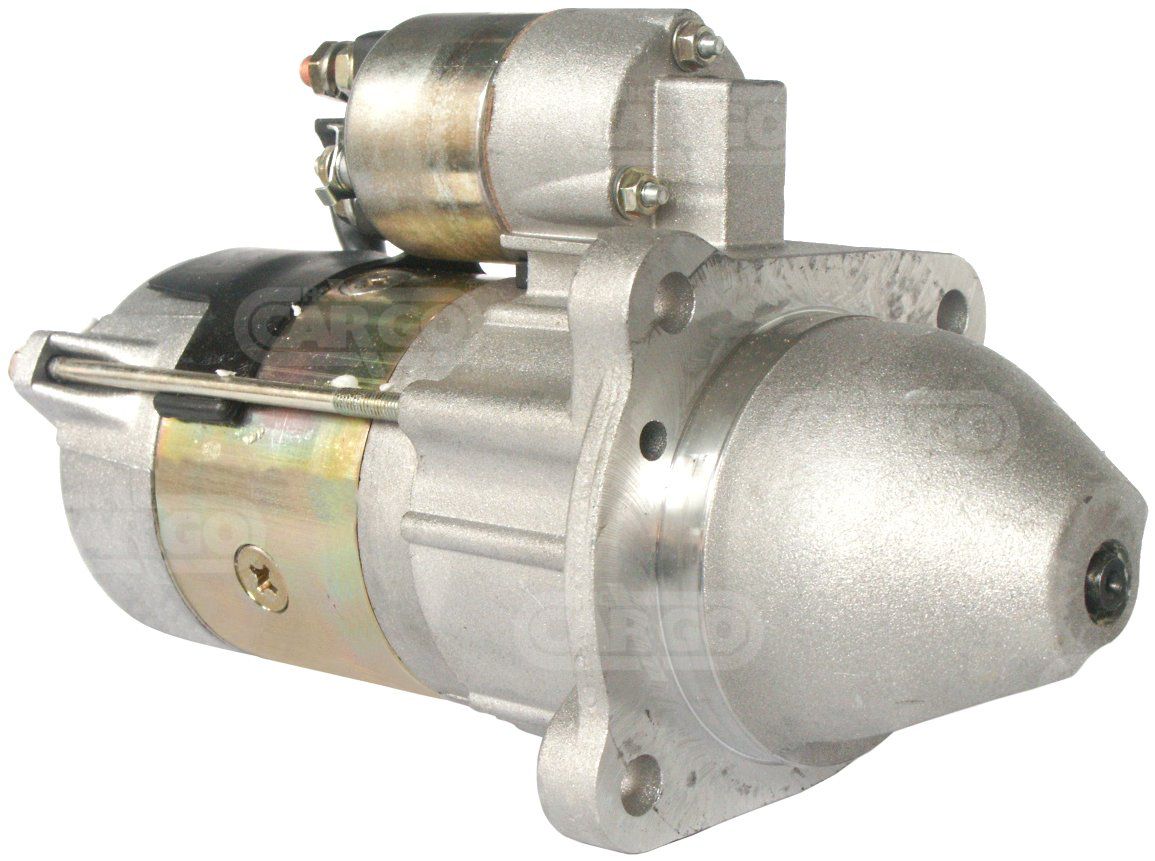

HC-Cargo Starter Motor for Perkins 3.0 kw F032113655

Marelli/Denso version.

Voltage: 12
kW: 3.0
No./teeth: 10
Rotation: CW
Gear type: GR
Mount. flange: 89.00
B+: M8
No./mount. holes: 3 (0)
Drive dist.: 30.50
Mount. hole 1 mm: 11.50
Mount. hole 2 mm: 11.50
Mount. hole 3 mm: 11.50
Dist./back: 196.50
Dist./front: 68.50
Thread length mm: 19.00
Terminal 50: M6
Position/50: 20
Dist. mm: 126.50
Dist. 2: 90.00
Dist. 3: 90.00
Total length mm: 291.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Info: HC-CARGO 113655 is a Marelli/Denso version
and cannot replace the Iskra version (HC-CARGO 114388).
Remarks: Marelli/Denso version.

Replaces OEM reference(s):
Denso 428000-1290, Magneti Marelli 63280041, Perkins 2873k405

Replaces aftermarket reference(s):
AD Kühner 254193, Autostarter Poland S4030, Bowers - HCUK BSO7311, Casco CST30170, ERA S.p.A Italia 220702, ERA S.p.A Italia 220702A, lucas LES0271, lucas LRS02425, Magneti Marelli MSN8041, Wai 18940N, Wood Auto STR70057
